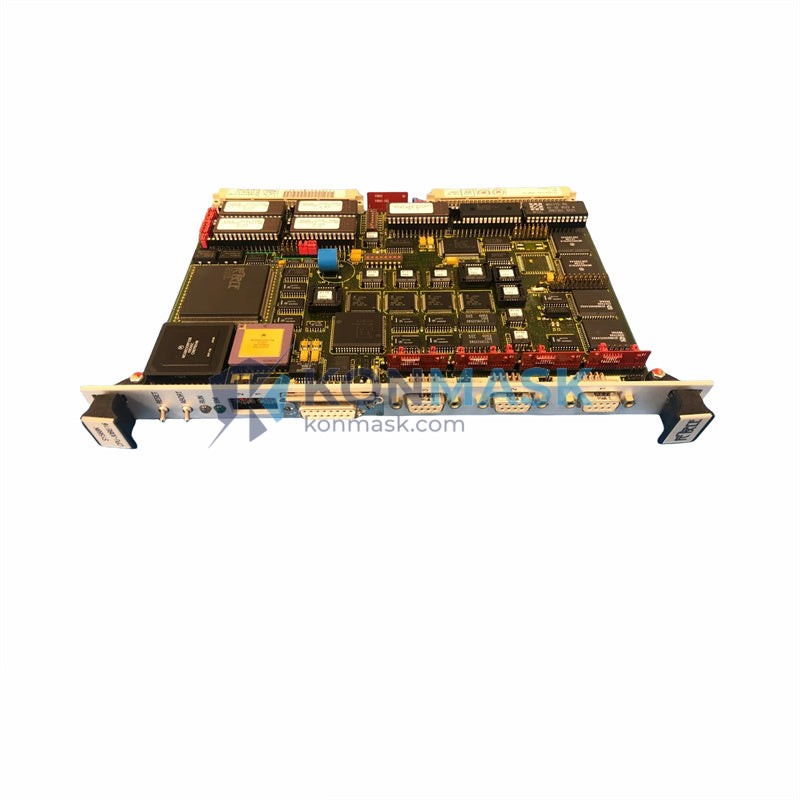

FORCE SYS68K/CPU-30BE/16-REV3 – 32-Bit VMEbus CPU Board | SYS68K Platform
Engineering Background: The SYS68K series was developed by FORCE Computers (Germany) as a high-reliability VMEbus single-board computer family for demanding industrial, defense, and process-control environments. Built around the Motorola MC68030 processor, the SYS68K/CPU-30BE/16 delivers deterministic real-time performance within the IEEE 1014-1987 (VMEbus) standard architecture. Revision 3 incorporates refined bus arbitration logic and improved thermal management over earlier board revisions.
Product Positioning: This board is the preferred CPU node for legacy VME rack systems requiring a proven 32-bit CISC processor with on-chip MMU and FPU coprocessor support. It is directly applicable to SCADA front-end controllers, CNC machine tool axes controllers, and scientific instrumentation platforms where long-lifecycle component availability is critical.
Complete Technical Specifications
- Part Number: SYS68K/CPU-30BE/16-REV3
- Manufacturer: FORCE Computers GmbH, Germany
- Series: SYS68K
- Form Factor: VMEbus 6U Single-Board Computer
- Processor: Motorola MC68030 @ 16 MHz (32-bit CISC)
- On-Chip Cache: 256-byte instruction cache + 256-byte data cache
- FPU: MC68882 floating-point coprocessor (optional/onboard)
- MMU: Integrated on MC68030
- Bus Standard: VMEbus (IEEE 1014-1987), A32/D32
- Bus Width: 32-bit data, 32-bit address
- Revision: REV 3
- Weight: 1,140 g
- Country of Origin: Germany (DE)
- Operating Temperature: 0°C to +55°C (industrial grade)
- Compliance: IEEE 1014-1987 VMEbus, CE
Proven Application Environments
- SCADA and DCS front-end processing nodes
- CNC machine tool and motion-control axes controllers
- Defense and aerospace embedded computing racks
- Scientific instrumentation and laboratory automation
- Power generation and utility control systems
- Semiconductor fab equipment (legacy VME rack integration)
- Railway signaling and transportation control systems
Engineering Advantages
- Mature, Stable Architecture: MC68030 CISC core with deterministic interrupt latency — ideal for hard real-time control loops
- Integrated MMU: Enables protected memory spaces and multi-tasking OS support (OS-9, VxWorks, LynxOS)
- REV 3 Refinements: Improved bus arbitration and thermal dissipation over REV 1/2
- Full VMEbus A32/D32 Compliance: Interoperable with all standard VME I/O and memory boards
- Long-Lifecycle Availability: Sourced from verified industrial surplus channels with full traceability
- Drop-In Replacement: Pin-compatible with earlier SYS68K/CPU-30 revisions in existing rack configurations
System Architecture & Signal Flow
The SYS68K/CPU-30BE/16-REV3 operates as the VMEbus System Controller (Slot 1) or non-system-controller node. The MC68030 CPU interfaces to local DRAM/SRAM via a dedicated local bus, while the VMEbus interface ASIC handles all P1/P2 connector transactions. The on-chip MMU manages address translation for multi-process operating systems. The MC68882 FPU coprocessor communicates via the MC68030 coprocessor interface, offloading floating-point operations from the integer pipeline. Bus arbitration supports RRS (Round-Robin Scheduling) and PRI (Priority) modes configurable via onboard DIP switches.
Sourcing & Quality Verification
- Source: Verified industrial surplus and decommissioned OEM systems
- Inspection: Visual inspection, PCB trace integrity check, connector pin verification
- Functional Test: Power-on self-test (POST) and VMEbus enumeration verified prior to shipment
- Revision Verification: Board silk-screen and PCB revision marking confirmed as REV 3
- Packaging: Anti-static bag + foam-lined carton; ESD-safe handling throughout
- Warranty: 90-day return-to-base warranty against DOA
Procurement Process
- Submit RFQ via [email protected] with quantity and delivery timeline
- Receive quotation with stock confirmation within 1 business day
- Issue PO — accepted formats: bank transfer (T/T), PayPal, credit card
- Order processed and dispatched within 2–3 business days
- Tracking number provided; DHL / FedEx international express available
- Post-delivery technical support available via email
Technical FAQ
Q: Is this board compatible with VxWorks RTOS?
A: Yes. The MC68030 with integrated MMU is a supported target for VxWorks 5.x and OS-9. BSP availability depends on your specific rack configuration.
Q: Can this replace an earlier REV 1 or REV 2 board?
A: In most cases yes — REV 3 is backward-compatible at the connector and bus level. Verify EPROM firmware version compatibility with your system integrator.
Q: What operating systems are supported?
A: OS-9 (Microware), VxWorks (Wind River), LynxOS, and bare-metal firmware are all documented for the SYS68K/CPU-30 family.
Q: Do you provide a test report?
A: A functional test summary is available upon request. Contact us before placing your order if a formal test report is required.
Q: What is the lead time for international orders?
A: In-stock items ship within 2–3 business days. DHL Express international delivery typically 3–7 business days depending on destination.
