FORNEY IDD 9000 408100-00 Flame Detector Amplifier | Replacement, Equivalent & Selection Guide

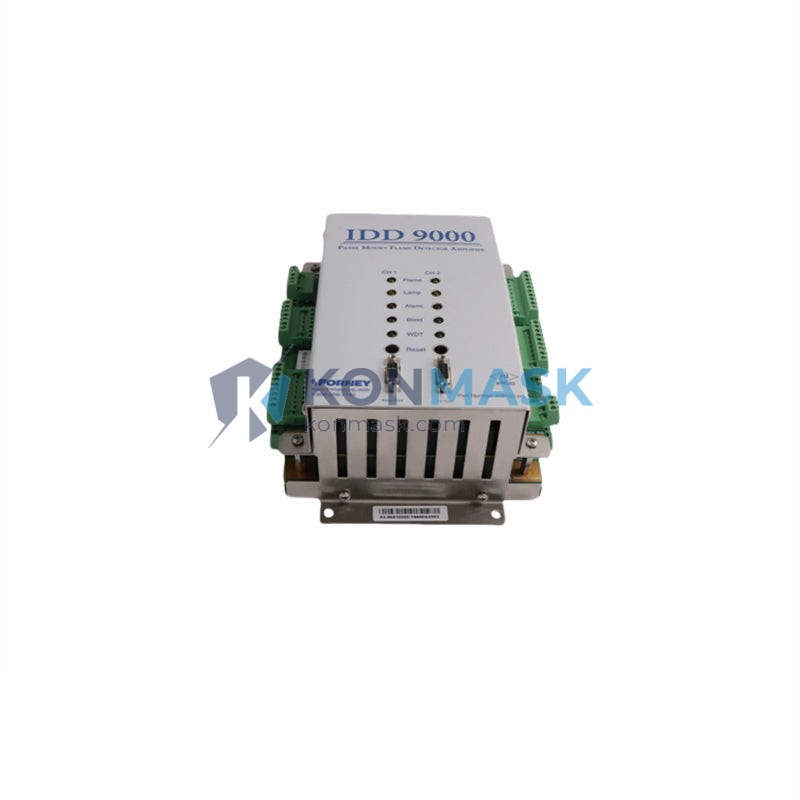

The FORNEY IDD 9000 408100-00 is a dedicated flame detector amplifier module designed for industrial burner management and combustion safety systems. This page provides full technical specifications, compatible replacement options, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
| Manufacturer | FORNEY (Forney Industries / Forney Engineering) |
| Model / Part Number | IDD 9000 / 408100-00 |
| Product Type | Flame Detector Amplifier |
| Series | IDD 9000 |
| Function | Amplifies and processes signals from UV/IR flame detectors for burner management systems |
| Mounting | DIN rail / panel mount (refer to OEM datasheet) |
| Weight | 1,240 g (approx.) |
| Condition Available | New, Surplus New, Refurbished |
Note: Always verify specifications against the original FORNEY datasheet before installation. Contact us if you need the full datasheet.
Compatible Replacement & Equivalent Models
When the FORNEY IDD 9000 408100-00 is discontinued, long lead-time, or cost-prohibitive, the following alternatives may be evaluated as functional equivalents. Compatibility must be verified by a qualified engineer for each specific application.
| Brand | Model | Notes |
|---|---|---|
| FORNEY | IDD 9000 (other sub-variants) | Check suffix/revision for exact match |
| Fireye | ED510 / ED530 Series | UV/IR flame amplifier; verify signal output compatibility |
| Honeywell / Kromschröder | IFD 258 / IFD 268 | Flame detector amplifier for BMS; check wiring diagram |
| Siemens | LAL / LFL Series Controllers | Integrated burner control with flame monitoring |
| Durag | D-UG 660 / D-LX 100 | UV/IR flame detector amplifier modules |
Important: Cross-referencing is provided for reference only. Always confirm electrical, functional, and safety compatibility before substitution.
Why Choose the Original FORNEY IDD 9000 408100-00
- OEM Precision: Engineered specifically for FORNEY burner management systems — guaranteed signal compatibility.
- Safety Certified: Designed to meet industrial combustion safety standards (SIL-rated applications).
- Proven Reliability: Widely deployed in power generation, petrochemical, and process industries.
- Reduced Integration Risk: No re-engineering or re-validation required when using the original part.
- Long Service Life: Robust construction for continuous industrial duty cycles.
Typical Applications
- Industrial burner management systems (BMS)
- Power plant boiler flame monitoring
- Petrochemical and refinery process heaters
- Cement kiln and rotary kiln burner control
- Waste-to-energy and biomass combustion systems
- Marine and offshore boiler systems
System Compatibility
The FORNEY IDD 9000 408100-00 is designed to interface with:
- FORNEY IDD 9000 series flame detector heads (UV, IR, UV/IR)
- FORNEY burner management control panels
- DCS and PLC systems via standard analog/digital I/O (verify signal levels)
- Safety relay modules and SIL-rated safety loops
Always consult the system wiring diagram and FORNEY engineering documentation before integration.
Selection Guide
Use the following criteria to confirm the correct amplifier for your application:
- Detector Type: Confirm whether your flame detector is UV, IR, or UV/IR — the amplifier must match the detector’s output signal type.
- Supply Voltage: Verify AC/DC supply voltage requirements match your panel design.
- Output Signal: Check relay output configuration (SPDT/DPDT) and fail-safe logic requirements.
- Response Time: Confirm flame-on and flame-loss response times meet your BMS safety requirements.
- Certification: Verify SIL level, CE, UL, or other certifications required by your project specification.
- Environment: Check operating temperature range and enclosure IP rating for your installation environment.
Quality Assurance & Sourcing
At Konmask.com, every FORNEY IDD 9000 408100-00 unit is:
- Sourced from authorized distributors or verified surplus channels
- Inspected for physical integrity and labeling authenticity
- Tested where applicable prior to dispatch
- Shipped with original packaging and documentation when available
- Backed by our quality guarantee and after-sales support
We specialize in hard-to-find, long-lead, and obsolete industrial automation components for global buyers.
How to Order
- Click Add to Cart or Buy Now on this page.
- For bulk orders or special requirements, email support@konmask.com with your quantity and delivery timeline.
- We accept T/T bank transfer, PayPal, and major credit cards.
- Global shipping available — DHL, FedEx, UPS, and sea freight for large orders.
- Lead time: typically 3–7 business days for in-stock items; contact us for ETA on sourced items.
Replacement & Compatibility FAQ
Q: Can I use a Fireye ED510 as a direct replacement for the FORNEY IDD 9000 408100-00?
A: The Fireye ED510 is a UV flame amplifier with similar functionality, but wiring, signal levels, and relay logic must be verified against your specific system before substitution.
Q: Is the 408100-00 suffix a revision code or a separate part number?
A: The full part number is IDD 9000 408100-00. The suffix identifies the specific variant. Always order using the complete part number to ensure correct supply.
Q: Do you supply refurbished units?
A: Yes. Refurbished units are available and clearly labeled. All refurbished units undergo functional testing. Contact us for pricing and availability.
Q: Can this amplifier work with third-party flame detectors?
A: Potentially, if the detector output signal is compatible. However, FORNEY recommends using matched OEM detector and amplifier pairs for safety-critical applications.
Q: What is the warranty on your supplied units?
A: We offer a 90-day warranty on new and surplus-new units. Refurbished units carry a 30-day warranty. Extended warranty available on request.
