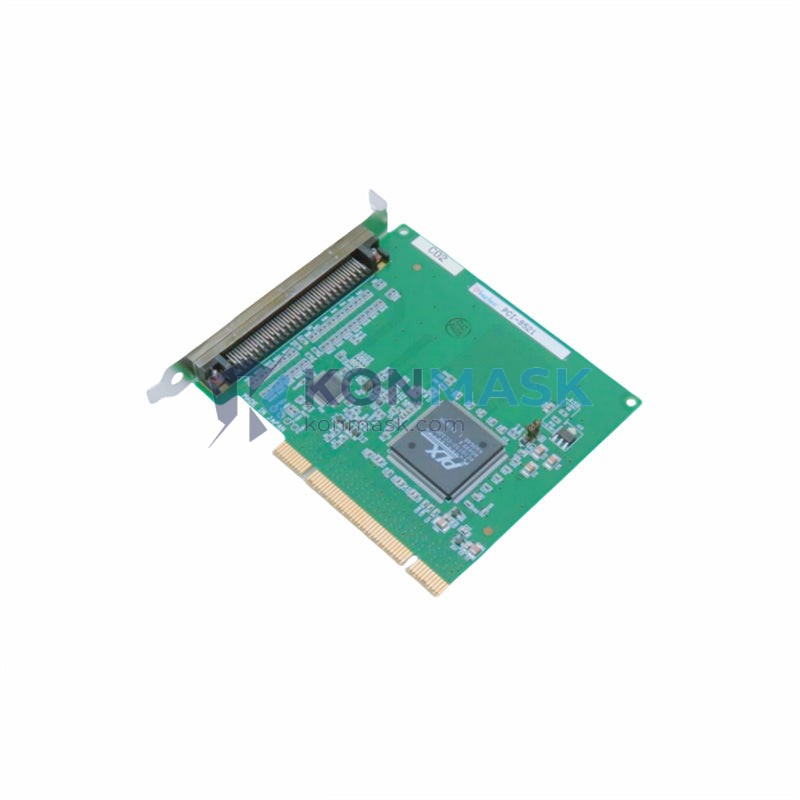

INTERFACE PCI-8521 – PCI Bus Isolated Digital I/O Interface Board | PCI Bus Interface Card Series
Engineering Background
The INTERFACE PCI-8521 is engineered by INTERFACE Corporation (Japan), a specialist in high-reliability industrial interface hardware. Designed for demanding industrial PC environments, this board delivers robust, electrically isolated digital I/O over the standard PCI bus — a proven architecture trusted in factory automation, test & measurement, and process control for over two decades.
Product Positioning
Targeting procurement engineers and system integrators who require deterministic, noise-immune digital signal acquisition and control, the PCI-8521 bridges legacy PCI-slot industrial PCs with field-level sensors, actuators, and relay arrays. Its optocoupler isolation architecture ensures ground-loop immunity and protects host systems from transient surges common in industrial environments.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PCI-8521 |
| Manufacturer | INTERFACE Corporation (Japan) |
| Bus Interface | PCI Bus (32-bit, 33 MHz) |
| I/O Type | Isolated Digital Input / Output |
| Isolation Method | Optocoupler (photocoupler) |
| Channel Count | 32 Channels (configurable IN/OUT) |
| Logic Levels | TTL / Open-collector compatible |
| Isolation Voltage | 500 V DC (typical) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -10°C to +60°C |
| Power Consumption | PCI bus powered (+5 V) |
| Board Weight | 1,150 g |
| Form Factor | PCI half-length card |
| OS Support | Windows / Linux (driver dependent) |
| Compliance | CE, RoHS |
| Country of Origin | Japan |
Proven Application Environments
- Factory Automation: PLC I/O expansion, relay control panels, conveyor interlocking
- Test & Measurement: ATE systems, functional test fixtures, signal conditioning racks
- Process Control: DCS auxiliary I/O, SCADA field interface, alarm annunciator systems
- Machine Vision: Trigger input / strobe output control for camera systems
- Power & Energy: Substation monitoring, protection relay interface, grid automation
- Semiconductor Fab: Wafer handling equipment, cleanroom automation controllers
Engineering Advantages
- ✅ Full Galvanic Isolation: Optocoupler isolation on every channel eliminates ground loops and protects host PC from field-side transients
- ✅ PCI Plug-and-Play: Standard PCI 2.2 compliant — no IRQ conflicts, auto-configured by BIOS
- ✅ High Channel Density: 32 isolated channels on a single half-length card minimizes rack space
- ✅ INTERFACE Driver Ecosystem: Supported by INTERFACE’s mature SDK (Windows/Linux), reducing integration time
- ✅ Industrial-Grade Reliability: Designed and manufactured in Japan to INTERFACE’s ISO-certified quality standards
- ✅ Long Service Life: Solid-state optocoupler switching — no mechanical wear, rated for millions of cycles
System Architecture & Signal Flow
The PCI-8521 connects to the host industrial PC via the 32-bit PCI bus slot. Field-side digital signals enter through the board’s I/O connector, pass through individual optocoupler isolation stages, and are presented to the PCI bus as clean logic-level signals. The host application reads/writes channel states via INTERFACE’s register-mapped API or provided SDK functions. A dedicated field-side power rail (sourced externally or from the connector) drives the LED side of each optocoupler, ensuring complete electrical separation between the host PC ground and the field ground.
[Field Sensors / Actuators]
|
[I/O Connector]
|
[Optocoupler Array — 32 CH isolated]
|
[PCI Bus Logic Interface]
|
[Host Industrial PC — PCI Slot]
|
[INTERFACE SDK / Application Software]
Sourcing & Quality Verification
- Source: Konmask.com sources PCI-8521 units from verified industrial surplus channels and authorized distributors
- Inspection: Each unit undergoes visual inspection, connector integrity check, and functional power-on verification before shipment
- Authenticity: INTERFACE part number and serial label verified against manufacturer documentation
- Condition: Units are graded and described accurately — new, refurbished, or tested-used as applicable
- Packaging: ESD-safe anti-static bag + foam-padded carton for safe international transit
Procurement Process
- Confirm Compatibility: Verify your industrial PC has an available 32-bit PCI slot and your OS is supported by INTERFACE drivers
- Request Quote: Contact support@konmask.com for volume pricing, lead time, and stock confirmation
- Place Order: Add to cart and complete checkout — we accept T/T bank transfer, PayPal, and major credit cards
- Shipping: DHL / FedEx express international shipping from China; typical transit 3–7 business days
- Documentation: Commercial invoice, packing list, and CE/RoHS declaration provided upon request
Technical FAQ
Q: Is the PCI-8521 compatible with PCIe slots?
A: No. The PCI-8521 requires a standard 32-bit PCI slot. It is not compatible with PCIe (PCI Express) slots without a PCI-to-PCIe bridge adapter.
Q: Can I use the PCI-8521 with Linux?
A: Yes, INTERFACE provides Linux kernel drivers. Confirm the specific kernel version compatibility with INTERFACE’s driver release notes.
Q: What is the maximum input voltage on the digital input channels?
A: Refer to the official INTERFACE PCI-8521 datasheet for exact input voltage ratings. Typical optocoupler input is 5–24 V DC depending on configuration.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 90-day functional warranty on all tested units. Contact support for warranty claims.
Q: Can I order in bulk?
A: Yes. Contact support@konmask.com for bulk pricing and availability.
