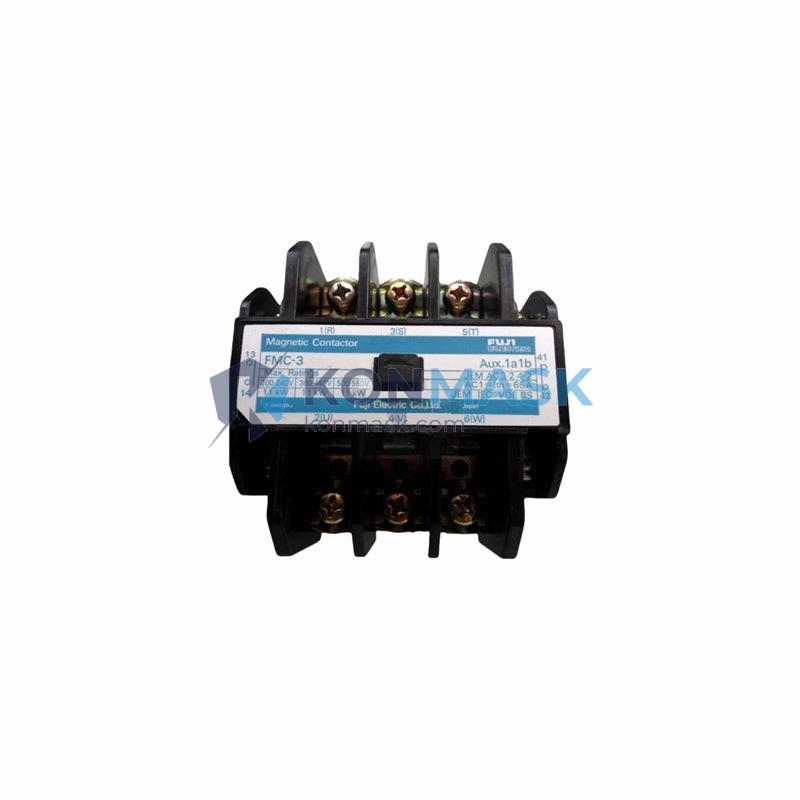

FUJI FMC-3 Electric Magnetic Contactor Relay | Replacement, Equivalent & Selection Guide
The FUJI FMC-3 is a compact electric magnetic contactor relay designed for industrial control circuits. This page provides full technical specifications, compatible replacement models, application guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Model: FMC-3
- Brand / Manufacturer: FUJI Electric
- Series: FMC Series
- Type: Electric Magnetic Contactor Relay
- Rated Voltage: Please confirm coil voltage (AC 110V / 220V / 380V options available)
- Contact Configuration: 3-pole main contacts + auxiliary contacts
- Rated Current: Refer to nameplate / datasheet
- Insulation Class: Class E / Class B (confirm per unit)
- Mounting: DIN rail or panel mount
- Weight: approx. 1,200 g
- Standards: IEC 60947-4-1 / JIS C 8201
Compatible Replacement & Equivalent Models
The following models are commonly used as drop-in or functional replacements for the FUJI FMC-3. Always verify coil voltage, contact rating, and mounting dimensions before substitution.
- FUJI SC-03 / SC-05 – Same series, higher current ratings; direct upgrade path
- Mitsubishi SD-Q11 / SD-Q21 – Functionally equivalent auxiliary contactor relay
- Omron J7KNA-AR-10 – Equivalent auxiliary relay for control circuits
- Schneider Electric LC1D09 / LC1D12 – IEC equivalent, widely available globally
- Siemens 3RT2015 / 3RT2016 – European standard equivalent
- ABB A9-30-10 / A12-30-10 – Compatible for similar load ratings
Note: Konmask.com recommends using original FUJI FMC-3 units for mission-critical applications to ensure full specification compliance.
Why Choose the Original FUJI FMC-3
- ✅ Manufactured to FUJI Electric’s strict quality standards
- ✅ Proven reliability in industrial automation environments
- ✅ Full traceability and OEM documentation available
- ✅ Guaranteed dimensional and electrical compatibility with FUJI control panels
- ✅ Long service life with minimal maintenance requirements
Typical Applications
- Motor starter and reversing control circuits
- PLC output relay expansion panels
- Machine tool and conveyor control systems
- HVAC and pump control panels
- Industrial automation and process control cabinets
- Power distribution and protection relay circuits
System Compatibility
The FUJI FMC-3 is compatible with the following control system environments:
- FUJI Electric MICREX-SX / MICREX-F PLC series
- Standard IEC 61131-3 compliant PLC platforms
- Relay logic and hardwired control panels
- Third-party DCS and SCADA output modules requiring dry-contact relay interfaces
Selection Guide
Use the following criteria to confirm the FMC-3 is the right choice for your application:
- Step 1 – Coil Voltage: Match coil voltage to your control circuit (AC 110V / 220V / 380V)
- Step 2 – Contact Rating: Verify rated current does not exceed FMC-3 specifications
- Step 3 – Pole Configuration: Confirm 3-pole main + auxiliary contact arrangement meets your wiring diagram
- Step 4 – Mounting: Check panel cutout or DIN rail space availability
- Step 5 – Environment: Confirm ambient temperature, humidity, and vibration ratings are within spec
- Step 6 – Certifications: Verify required approvals (CE, UL, CCC) match your project requirements
Quality Assurance & Sourcing
- All FUJI FMC-3 units sourced by Konmask.com are inspected prior to shipment
- Original packaging and manufacturer labels preserved
- Batch traceability records available on request
- New, surplus, and tested-used conditions available – please specify when ordering
- Export documentation (CO, packing list, commercial invoice) provided for international orders
How to Order
- Add the FUJI FMC-3 to your cart and proceed to checkout, or
- Contact us directly for bulk pricing, lead time confirmation, or custom configurations:
- 📧 [email protected]
- 📞 +0086 19859288691
- 🌐 https://konmask.com
Replacement & Compatibility FAQ
Q: Can I use the Mitsubishi SD-Q11 as a direct replacement for the FUJI FMC-3?
A: In many control circuit applications, yes — but verify coil voltage and contact current rating before substitution.
Q: Is the FMC-3 still in production?
A: The FMC-3 may be discontinued or in limited supply. Konmask.com maintains stock of both original and equivalent units. Contact us for availability.
Q: Do you provide a warranty?
A: Yes. All units come with Konmask.com’s standard quality guarantee. Contact us for warranty terms.
Q: Can you supply the FMC-3 with CE or CCC certification documentation?
A: Yes, certification documents are available upon request for qualifying orders.
Q: What is the lead time for the FUJI FMC-3?
A: Typically 3–7 business days for in-stock units; 2–4 weeks for sourced orders. Contact us to confirm current availability.
