AC Drive Power Control Solution – FUJI G11-PPCB-4-2.2 SA528530-05 | G11 Series
Where This Product Is Used

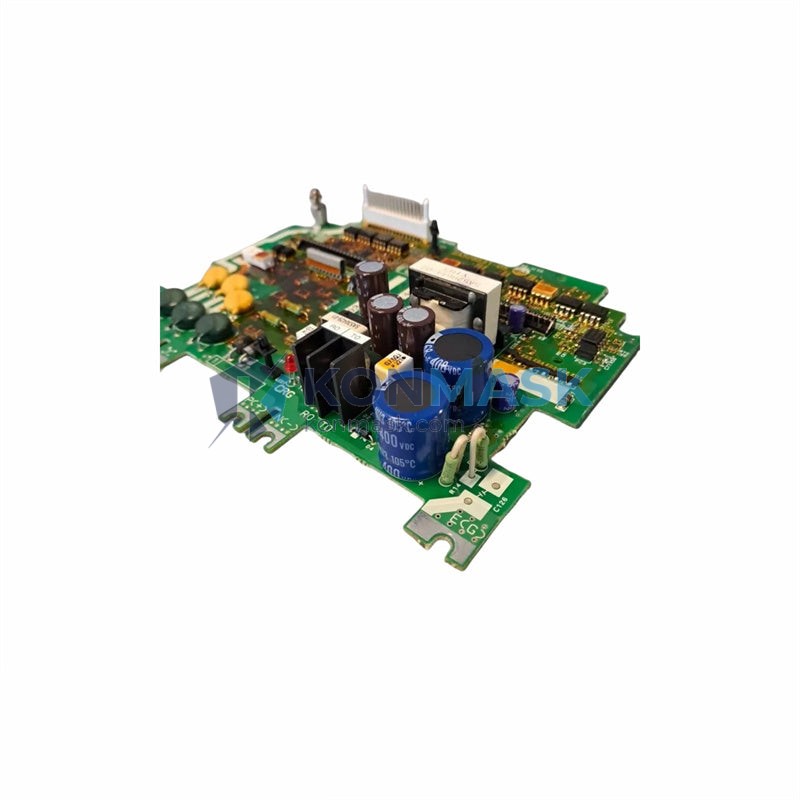

The FUJI G11-PPCB-4-2.2 SA528530-05 is the dedicated Power PCB (Printed Circuit Board) for the FUJI FRENIC G11 series variable frequency drive (VFD), rated at 2.2 kW / 400V class. It is widely deployed in the following industrial environments:
- Manufacturing plants – motor speed control for conveyor systems, mixers, and pumps
- HVAC systems – fan and blower drive control in commercial buildings
- Water treatment facilities – pump motor regulation and energy optimization
- Food & beverage processing – precise speed control for packaging and filling lines
- Textile & printing machinery – tension and speed synchronization
- OEM machine builders – embedded drive repair and board-level replacement
Technical Specifications
- Part Number: G11-PPCB-4-2.2
- Assembly Number: SA528530-05
- Compatible Drive Series: FUJI FRENIC G11 (FRN2.2G11S-4EN / similar 2.2 kW 400V variants)
- Board Type: Power PCB – gate drive & DC bus interface board
- Voltage Class: 400V (3-phase)
- Power Rating: 2.2 kW
- Form Factor: OEM replacement board, direct plug-in
- Weight: Approx. 1,000 g (packaged)
- Condition: New / Surplus New
Why Engineers Specify This Model
- OEM-exact replacement – eliminates compatibility risk vs. generic alternatives
- Board-level repair economics – replacing the PPCB costs a fraction of a full drive replacement
- Proven IGBT gate drive design – FUJI G11 series is renowned for robust power stage reliability
- Plug-and-play installation – no firmware re-flashing or parameter reconfiguration required
- Reduces downtime – critical for production lines where every hour of downtime has measurable cost
Complete System Bill of Materials
When servicing a FUJI G11 2.2 kW drive, engineers typically source the following alongside this board:
- FUJI G11 Control PCB (CPCB) – logic and parameter storage
- FUJI G11 Gate Drive Board – IGBT trigger interface
- IGBT Module (2.2 kW / 400V class) – power switching element
- DC Bus Capacitor Bank – energy storage and ripple filtering
- Cooling Fan Assembly – thermal management
- FUJI G11 Keypad / Operator Panel – parameter programming interface
Contact [email protected] for bundled BOM sourcing assistance.
Compliance & Industry Standards
- Designed to meet CE / UL / cUL requirements as part of the FUJI FRENIC G11 drive system
- Compatible with IEC 61800-3 (Adjustable Speed Electrical Power Drive Systems)
- RoHS-compliant manufacturing (FUJI Electric OEM specification)
- Suitable for use in ISO 9001-certified maintenance environments
Quality Assurance & Sourcing
- Sourced directly from authorized FUJI Electric distribution channels or verified surplus inventory
- Each unit undergoes visual inspection and functional verification prior to dispatch
- Packaged in anti-static ESD protective materials
- Traceable lot documentation available upon request
- 30-day return policy for DOA (Dead on Arrival) units
How to Source This Part
- Confirm your drive model number (nameplate on drive housing)
- Verify the assembly number SA528530-05 matches your existing PPCB label
- Add to cart or contact us for bulk / urgent orders
- Receive ESD-safe packaged board within estimated lead time
- Install per FUJI G11 service manual – no special tools required
For urgent requirements or volume pricing: [email protected] | +0086 19859288691
Application-Specific FAQ
Q: Is this board compatible with the FRN2.2G11S-4EN drive?
A: Yes. The G11-PPCB-4-2.2 / SA528530-05 is the OEM power board for 2.2 kW, 400V class G11 series drives including the FRN2.2G11S-4EN.
Q: Can I use this board in a G9 or P11 series drive?
A: No. This board is G11-series specific. Cross-series compatibility is not supported by FUJI Electric.
Q: What causes PPCB failure in G11 drives?
A: Common causes include IGBT overcurrent events, DC bus overvoltage transients, cooling fan failure leading to thermal stress, and capacitor aging. Replacing the PPCB after an IGBT failure event is standard practice.
Q: Do you provide installation support?
A: Yes. Our technical team can provide guidance via email or phone. Contact [email protected].
Q: What is the lead time?
A: In-stock units ship within 1–3 business days. Contact us for current stock status.
