Generator Protection Solution – GE Multilin 489-P1-HI-A20-E-H | Multilin 489 Series

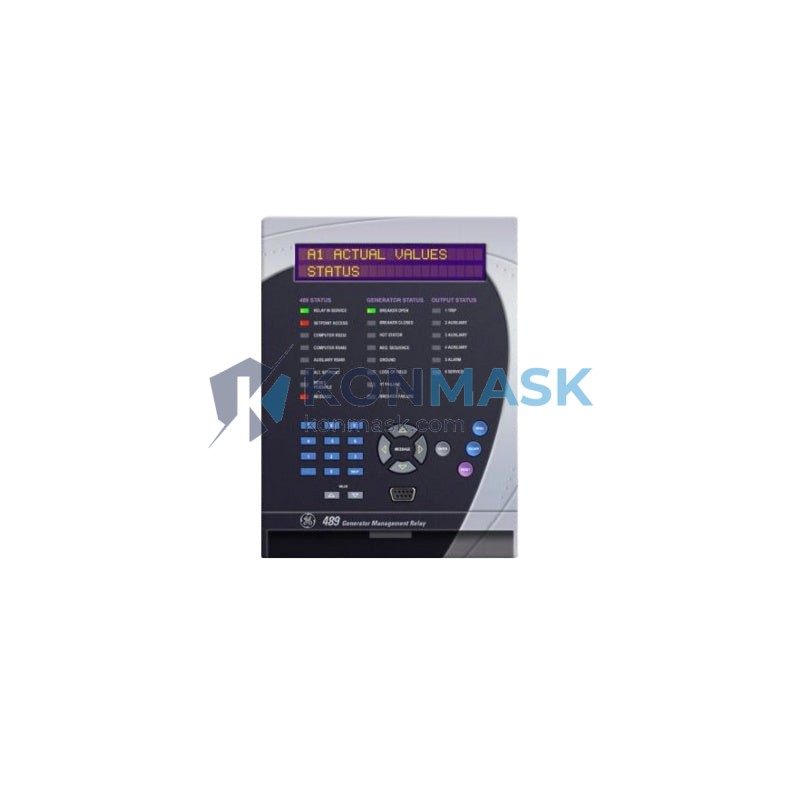

The GE Multilin 489-P1-HI-A20-E-H is a dedicated Generator Management Relay engineered for comprehensive protection, monitoring, and control of generators and large motors in demanding industrial environments. Part of the proven GE Multilin 489 Series, this relay delivers high-accuracy protection functions with flexible I/O and communications to meet the most stringent power system requirements.
Where This Product Is Used
The 489-P1-HI-A20-E-H is specified by protection engineers across a wide range of power-critical industries:
- Oil & Gas Facilities – Generator protection on offshore platforms, compressor stations, and LNG terminals where unplanned outages carry extreme cost and safety risk.
- Petrochemical & Refinery Plants – Protecting standby and prime generators that power critical process loads, ensuring continuous operation during grid disturbances.
- Mining Operations – Safeguarding large diesel or gas-driven generators supplying underground and surface equipment in remote locations.
- Data Centers & Critical Infrastructure – Backup generator protection ensuring seamless transfer and fault isolation to maintain uptime SLAs.
- Power Generation & Utilities – Distributed generation, co-generation, and small hydro applications requiring multi-function protection in a single relay.
- Marine & Offshore – Shipboard generator management where compact form factor and robust construction are mandatory.
- Industrial Manufacturing – Captive power plants and large motor protection in steel mills, cement plants, and pulp & paper facilities.
Technical Specifications
- Model: 489-P1-HI-A20-E-H
- Series: GE Multilin 489 Generator Management Relay
- Manufacturer: GE Grid Solutions (GE Multilin)
- Form Factor: Panel-mount, drawout case
- Input Voltage (AC): High-range (HI) – 100–240 V AC / DC power supply
- Current Inputs: 1 A / 5 A selectable CT inputs (P1 = standard CT)
- Analog Outputs: A20 – 20 analog output channels for metering and SCADA integration
- Communications: Ethernet (E) – 10/100 Mbps Ethernet port for IEC 61850 / Modbus TCP / DNP3
- Housing: H – High-security conformal-coated PCBs for harsh environments
- Protection Functions: 51/51N (overcurrent), 27/59 (under/overvoltage), 81 (frequency), 32 (reverse power), 40 (loss of excitation), 46 (negative sequence), 87G (differential), RTD-based thermal protection
- Metering: True RMS voltage, current, power (kW/kVAR/kVA), power factor, frequency, energy (kWh)
- Weight: 7.54 kg
- Standards: IEC 60255, IEEE C37.102, UL, CE
Why Engineers Specify This Model
- All-in-One Protection Platform – Replaces multiple discrete relays with a single integrated device, reducing panel space and wiring complexity by up to 60%.
- High-Range Power Supply (HI) – Accepts wide-range AC/DC input, eliminating the need for separate power conditioning in mixed-voltage substations.
- 20-Channel Analog Output (A20) – Provides rich real-time metering data to DCS/SCADA without additional transducers, lowering BOM cost.
- Ethernet + IEC 61850 Ready (E) – Native Ethernet port supports modern substation automation protocols, future-proofing the installation.
- Conformal Coating (H) – PCB-level protection against humidity, dust, and corrosive atmospheres — critical for coastal, offshore, and chemical plant environments.
- Oscillography & Event Recording – Captures fault waveforms and sequence-of-events data for post-fault analysis and regulatory compliance.
- RTD Inputs – Direct connection of stator and bearing RTDs for thermal model-based protection without external modules.
Complete System Bill of Materials
For a complete generator protection panel using the 489-P1-HI-A20-E-H, engineers typically specify:
- GE Multilin 489-P1-HI-A20-E-H – Generator Management Relay (this unit)
- Current Transformers (CT) – 5 A secondary, metering class 0.5 or protection class 5P20
- Voltage Transformers (VT/PT) – 100–120 V secondary, matched to system voltage
- RTD Sensors – PT100 (100 Ω) for stator windings and bearings
- Ethernet Switch – Industrial managed switch (e.g., GE MDS or Hirschmann) for substation LAN
- DC Power Supply – 24/48/110/125 V DC UPS-backed supply for relay auxiliary power
- Test Plugs & Terminal Blocks – Phoenix Contact or equivalent for drawout relay testing
- EnerVista 489 Setup Software – GE configuration and commissioning software (free download)
Compliance & Industry Standards
- IEC 60255 – Measuring relays and protection equipment
- IEEE C37.102 – Guide for AC Generator Protection
- IEC 61850 – Communication networks and systems in substations
- DNP3 / Modbus RTU / Modbus TCP – SCADA communication protocols
- UL Listed – North American safety certification
- CE Marked – European conformity for EMC and LVD directives
- RoHS Compliant – Restriction of hazardous substances
Quality Assurance & Sourcing
Konmask.com sources the GE 489-P1-HI-A20-E-H exclusively through authorized industrial distribution channels and verified surplus inventory networks. Every unit undergoes:
- Visual inspection and label verification against GE factory markings
- Firmware version check and functional power-on test
- Anti-counterfeit verification using GE Multilin serial number database cross-reference
- Packaging inspection to confirm original GE anti-static and moisture-barrier packaging
All units ship with a Konmask 12-month warranty covering defects in materials and workmanship.
How to Source This Part
- Request a Quote: Email support@konmask.com with your project quantity and required delivery date.
- Phone / WhatsApp: +0086 19859288691 — available Monday–Saturday, 09:00–18:00 CST.
- Add to Cart: In-stock units ship within 1–3 business days via DHL Express, FedEx, or UPS.
- Lead Time for Large Quantities: 2–4 weeks for orders exceeding 5 units; contact us for volume pricing.
- Export Documentation: We provide commercial invoice, packing list, and certificate of origin for customs clearance.
Application-Specific FAQ
Q: Can the 489-P1-HI-A20-E-H protect both generators and large motors?
A: Yes. The GE Multilin 489 series is designed for both generator and large motor protection. The relay’s protection function set covers all standard ANSI device numbers applicable to both machine types.
Q: What communications protocols does the -E (Ethernet) option support?
A: The Ethernet option supports IEC 61850 GOOSE messaging and MMS, Modbus TCP, and DNP3 over TCP/IP. Legacy serial Modbus RTU and DNP3 are also available via the rear RS-485 port.
Q: Is EnerVista 489 Setup software included?
A: EnerVista 489 Setup is a free download from GE Grid Solutions. Konmask can provide the software link and basic configuration templates upon request.
Q: What is the difference between the HI and LO power supply options?
A: The HI (high-range) option accepts 100–240 V AC or 88–300 V DC auxiliary power. The LO option is rated for 20–60 V DC. The HI option is preferred for most substation and industrial panel applications.
Q: Can I use this relay in a harsh offshore or coastal environment?
A: Yes. The -H suffix denotes conformal-coated PCBs, which provide protection against humidity, salt spray, and corrosive gases — meeting IEC 60068-2 environmental test requirements for harsh locations.
Q: Do you offer expedited shipping for emergency replacements?
A: Yes. Contact us at support@konmask.com or +0086 19859288691 for same-day dispatch on in-stock units via DHL Express Priority.
