GE IC693MDL730F 8-Point 12/24VDC Logic Output Module | Replacement, Equivalent & Selection Guide

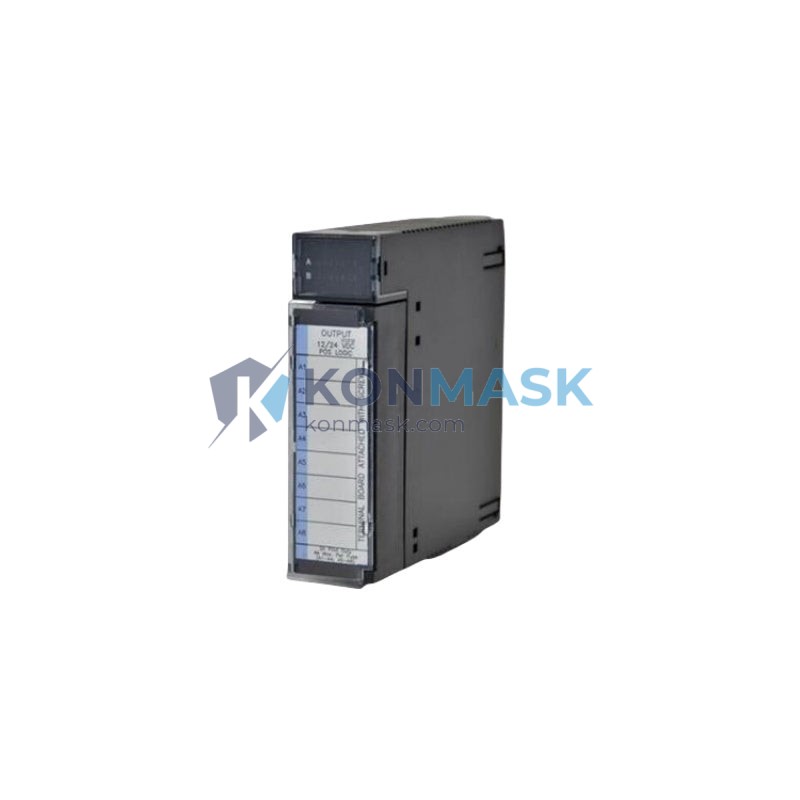

The GE IC693MDL730F is an 8-point discrete output module designed for the GE Fanuc Series 90-30 PLC platform. It delivers positive logic (sourcing) 12/24VDC output signals, making it a reliable choice for controlling solenoids, relays, indicator lights, and other DC-powered field devices in industrial automation systems. This page serves as a comprehensive selection and replacement reference for engineers and procurement teams sourcing the IC693MDL730F or its compatible equivalents.
Technical Specifications
- Part Number: IC693MDL730F
- Manufacturer: GE Fanuc / GE Automation & Controls
- Series: Series 90-30
- Module Type: Discrete Output (Positive Logic / Sourcing)
- Number of Output Points: 8
- Output Voltage: 12/24VDC
- Output Current: 0.5A per point (max)
- Total Module Current: 4A max
- Logic Type: Positive Logic (Sourcing)
- Isolation: Optical isolation between field and logic side
- Backplane Current Draw: 5VDC @ 250mA (typical)
- Operating Temperature: 0°C to 60°C
- Form Factor: Single-slot Series 90-30 module
- Indicators: LED per output point
- Connector Type: 20-pin removable terminal block
Compatible Replacement & Equivalent Models
When the IC693MDL730F is unavailable or discontinued, the following models may serve as direct or near-direct replacements. Always verify firmware, rack, and power supply compatibility before substitution.
- IC693MDL730 – Earlier revision; functionally identical, same pinout
- IC693MDL731 – 16-point version; suitable when additional I/O capacity is needed
- IC693MDL732 – 32-point output module; for high-density applications
- IC693MDL740 – Relay output variant; use when AC load switching is required
- IC693MDL741 – Relay output, 16-point; broader load compatibility
- IC693MDL742 – Relay output, 32-point; high-density relay switching
- Third-party equivalents: Certain aftermarket manufacturers produce pin-compatible 8-point 12/24VDC sourcing output modules for Series 90-30 racks — confirm rack slot compatibility and CE/UL certifications before use.
Why Choose the Original IC693MDL730F
- OEM-guaranteed compatibility with all Series 90-30 CPU and rack configurations
- Validated firmware interoperability with Proficy Machine Edition and legacy Logicmaster 90 software
- Optical isolation protects the CPU backplane from field-side transients
- LED diagnostics per output point for rapid fault identification
- Removable terminal block enables fast field replacement without rewiring
- Long-term availability through authorized distributors and certified refurbishers
Typical Applications
- Solenoid valve control in pneumatic and hydraulic systems
- Relay and contactor coil switching
- Indicator lamp and annunciator panel control
- Motor starter enable/disable signals
- Conveyor and material handling line control
- Packaging machinery and assembly line automation
- HVAC and building automation control panels
System Compatibility
- PLC Platform: GE Fanuc Series 90-30 (IC693 series)
- Compatible Racks: IC693CHS391, IC693CHS392, IC693CHS393, IC693CHS398, IC693CHS399
- Compatible CPUs: IC693CPU311, IC693CPU313, IC693CPU323, IC693CPU331, IC693CPU340, IC693CPU341, IC693CPU350, IC693CPU360, IC693CPU363, IC693CPU364, IC693CPU374
- Programming Software: Proficy Machine Edition (ME), Logicmaster 90-30
- Communication: Via CPU — supports Ethernet, Genius Bus, DeviceNet, Profibus (CPU-dependent)
Selection Guide
Use the following criteria to confirm the IC693MDL730F is the right module for your application, or to select an appropriate alternative:
- Output type needed: Sourcing (positive logic) DC → IC693MDL730F ✓; Sinking (negative logic) → IC693MDL724; Relay → IC693MDL740/741/742
- Point count: 8 points → IC693MDL730F; 16 points → IC693MDL731; 32 points → IC693MDL732
- Voltage range: 12/24VDC → IC693MDL730F; 120VAC → IC693MDL752; 240VAC → IC693MDL753
- Current per point: Up to 0.5A → IC693MDL730F; higher current loads → relay output modules
- Slot availability: Single-slot module — confirm rack has an available slot
- Revision: Suffix “F” is the latest production revision; earlier revisions (A–E) are functionally compatible
Quality Assurance & Sourcing
At Konmask.com, all GE IC693MDL730F modules are sourced through verified supply channels and undergo pre-shipment inspection including:
- Visual inspection for physical damage, corrosion, and counterfeit indicators
- Functional power-on test where applicable
- Revision and label verification against manufacturer documentation
- Anti-static packaging and secure export carton
- Certificate of conformance available upon request
We supply both new-in-box (NIB) and tested/refurbished units. Condition is clearly stated on each listing.
How to Order
- Confirm your rack model and available slot count
- Verify your CPU model supports the required I/O count
- Select quantity and condition (new / refurbished)
- Add to cart or contact us for bulk pricing and lead time
- For urgent requirements, email support@konmask.com or call +0086 19859288691
Replacement & Compatibility FAQ
Q: Is IC693MDL730 the same as IC693MDL730F?
A: Yes — the suffix “F” denotes the production revision. Both are functionally identical and pin-compatible. The “F” revision is the latest and preferred for new installations.
Q: Can I use IC693MDL730F in a Series 90-70 rack?
A: No. The IC693 series is exclusively for Series 90-30 racks. Series 90-70 uses IC697-series modules.
Q: What is the difference between positive logic and negative logic output?
A: Positive logic (sourcing) outputs supply current to the load. Negative logic (sinking) outputs provide a return path. The IC693MDL730F is positive logic — ensure your field devices are wired accordingly.
Q: Can IC693MDL731 replace IC693MDL730F?
A: The IC693MDL731 is a 16-point module occupying the same single slot. It is rack and CPU compatible, but your program will need to account for the additional 8 output points.
Q: Do you provide a warranty?
A: Yes. New units carry the manufacturer warranty. Refurbished units include a 90-day Konmask operational warranty. Contact us for details.
