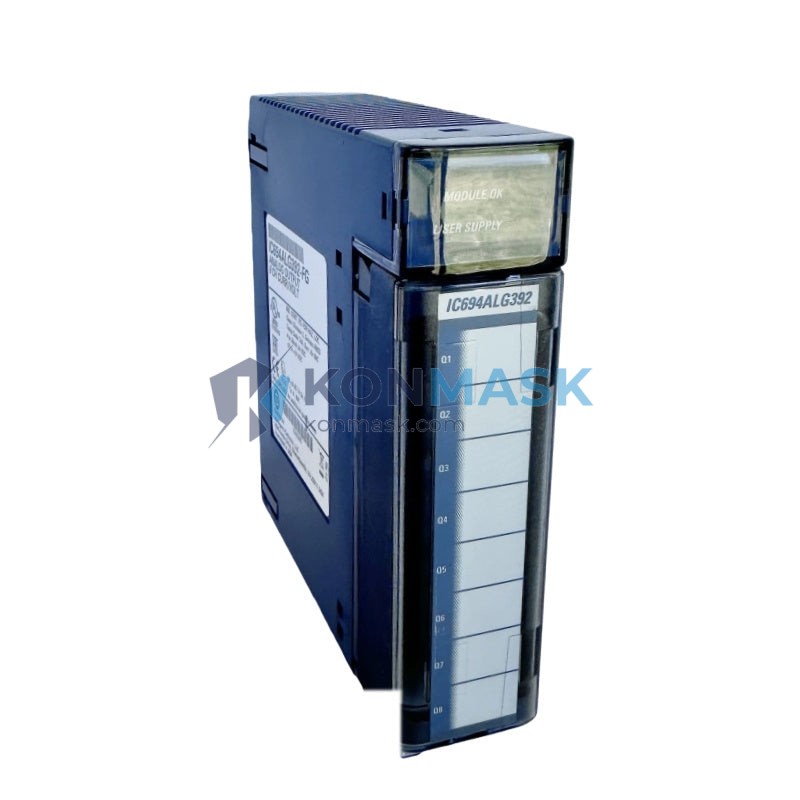

GE IC694ALG392-FG – 8-Channel Analog Output Module | PACSystems RX3i Platform
Engineering Background: The IC694ALG392-FG is a high-density analog output module designed for GE’s PACSystems RX3i platform — one of the most widely deployed process automation architectures in North American manufacturing. Built to IEC 61131-3 standards, this module bridges digital control logic to real-world actuators, drives, and process instruments with precision and reliability.
Product Positioning: Specified by process engineers who require deterministic analog output performance within a scalable, rack-based PLC architecture. The IC694ALG392-FG delivers 8 independently configurable channels supporting both voltage (0–10 V) and current (4–20 mA) output modes — making it the go-to choice for mixed-signal process loops without additional signal conditioning hardware.

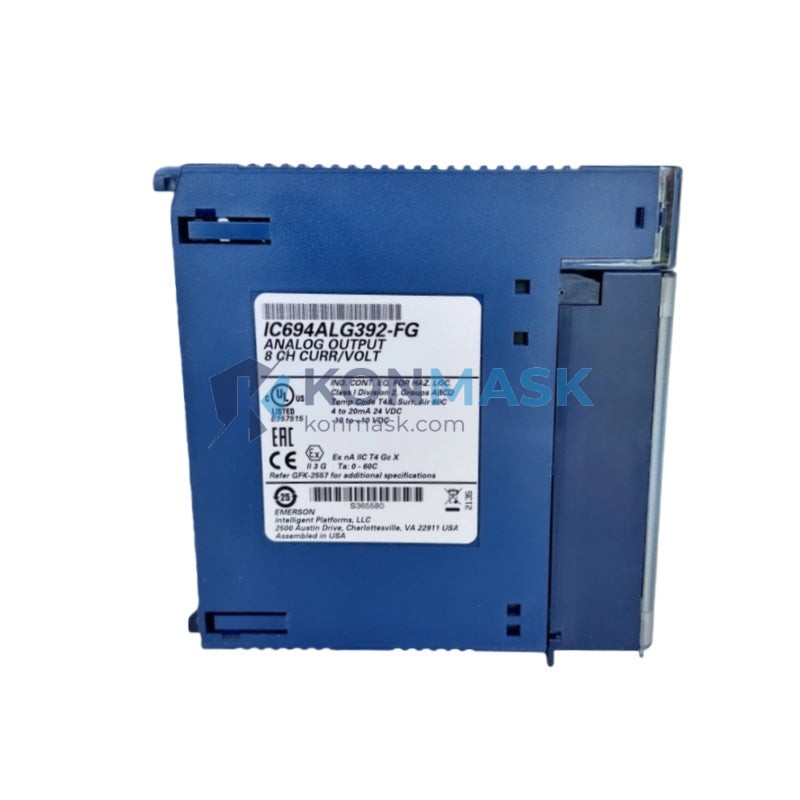

Complete Technical Specifications
- Part Number: IC694ALG392-FG
- Platform: GE PACSystems RX3i (Series 90-30 compatible rack)
- Module Type: Analog Output
- Number of Channels: 8 (independently configurable)
- Output Signal Types: Voltage: 0–10 V DC / Current: 4–20 mA
- Resolution: 12-bit (0.025% full scale)
- Accuracy: ±0.1% of full scale at 25°C
- Load Impedance (Voltage): ≥ 1 kΩ
- Load Impedance (Current): ≤ 600 Ω
- Output Update Rate: Synchronized with RX3i backplane scan cycle
- Isolation: Channel-to-backplane optical isolation
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5–95% RH, non-condensing
- Power Consumption: 5 VDC from backplane (typical 350 mA)
- Module Weight: Approx. 300 g
- Certifications: UL Listed, CE Marked, cUL
- Firmware Suffix: -FG (factory-configured, latest revision)
Proven Application Environments
- Oil & Gas Processing: Control valve positioners and pressure regulators in upstream/midstream SCADA systems
- Chemical & Petrochemical Plants: Flow control loops for reactors, distillation columns, and heat exchangers
- Water & Wastewater Treatment: Variable-speed pump drives and dosing pump control via 4–20 mA setpoint signals
- HVAC & Building Automation: Chiller staging, AHU damper actuators, and VAV box control
- Automotive Manufacturing: Paint booth airflow control, conveyor speed regulation, and robotic welding current setpoints
- Power Generation: Turbine governor setpoint output and excitation control interfaces
- Food & Beverage: Temperature-controlled mixing, filling line speed control, and CIP valve sequencing
Engineering Advantages
- Dual-Mode Flexibility: Each channel independently selectable for voltage or current output — eliminates the need for separate V/I modules in mixed-signal panels
- High Channel Density: 8 outputs in a single slot reduces rack space consumption by up to 50% vs. 4-channel alternatives
- Optical Isolation: Protects the RX3i backplane from field-side ground loops and transient surges common in industrial environments
- Deterministic Scan Synchronization: Output updates are synchronized to the CPU scan cycle, ensuring consistent loop timing for PID and cascade control
- Hot-Swap Compatible: Supports live insertion/removal in RX3i racks with appropriate CPU configuration — minimizes planned downtime
- Diagnostic Reporting: Open-wire detection on current channels with fault reporting to CPU fault table
- Long-Term Availability: GE PACSystems RX3i is an active platform with committed long-term support through Emerson Automation Solutions
System Architecture & Signal Flow

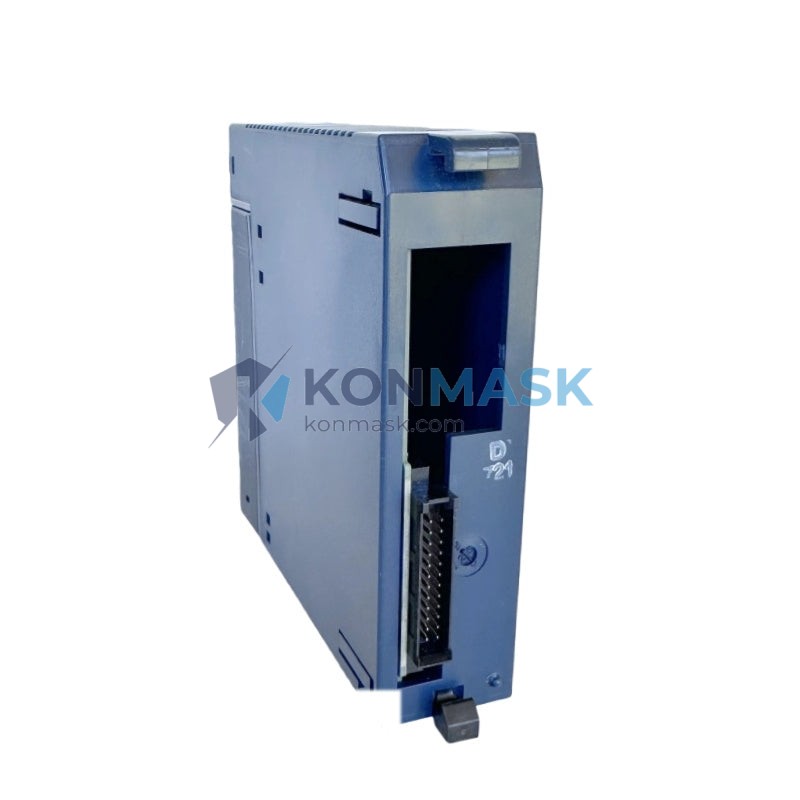

The IC694ALG392-FG occupies a single I/O slot in any RX3i or Series 90-30 compatible rack. The CPU writes 16-bit integer or floating-point values to the module’s output registers via the high-speed RX3i backplane. The module’s onboard DAC converts these values to the configured analog signal (V or mA) on each channel. Field wiring connects to the module’s removable terminal block — enabling module replacement without rewiring. Signal flow: CPU Register → Backplane Bus → DAC → Terminal Block → Field Device (Valve / Drive / Instrument).
Sourcing & Quality Verification
- All units sourced from authorized distributors or verified surplus channels with documented chain of custody
- Each module inspected for physical integrity: connector pins, label legibility, firmware revision suffix (-FG confirmed)
- Functional bench test available on request: backplane communication, channel output accuracy, and isolation verification
- Serialized traceability records maintained for every unit shipped
- 30-day return window for DOA units; 12-month warranty on verified stock
Procurement Process
- Confirm part number: IC694ALG392-FG (verify -FG suffix for latest firmware revision)
- Contact Konmask with your required quantity and delivery timeline
- Receive formal quotation with lead time, unit price, and shipping terms (EXW Xiamen / DDP available)
- Submit PO — payment via T/T, PayPal, or trade credit (approved accounts)
- Shipment with full documentation: packing list, commercial invoice, and test report
- Post-delivery technical support available via email or WhatsApp
Technical FAQ
Q: Is IC694ALG392-FG compatible with Series 90-30 racks?
A: Yes. The IC694 series modules are physically and electrically compatible with both PACSystems RX3i and legacy Series 90-30 racks using the IC693PWR321 or equivalent power supply.
Q: Can I mix voltage and current channels on the same module?
A: Yes. Each of the 8 channels is independently configurable for 0–10 V or 4–20 mA output via the CPU configuration tool (Proficy Machine Edition).
Q: What happens to outputs during a CPU fault or communication loss?
A: Outputs default to a configurable hold-last-value or go-to-zero state, as defined in the module’s configuration block within Proficy ME.
Q: Does the -FG suffix indicate a specific hardware revision?
A: Yes. The -FG suffix denotes the factory-configured firmware revision shipped as standard. Always specify -FG when ordering to ensure compatibility with current RX3i CPU firmware.
Q: What is the maximum cable length for 4–20 mA outputs?
A: GE recommends shielded twisted-pair cable up to 300 m (1,000 ft) for 4–20 mA loops, provided total loop resistance remains ≤ 600 Ω.
