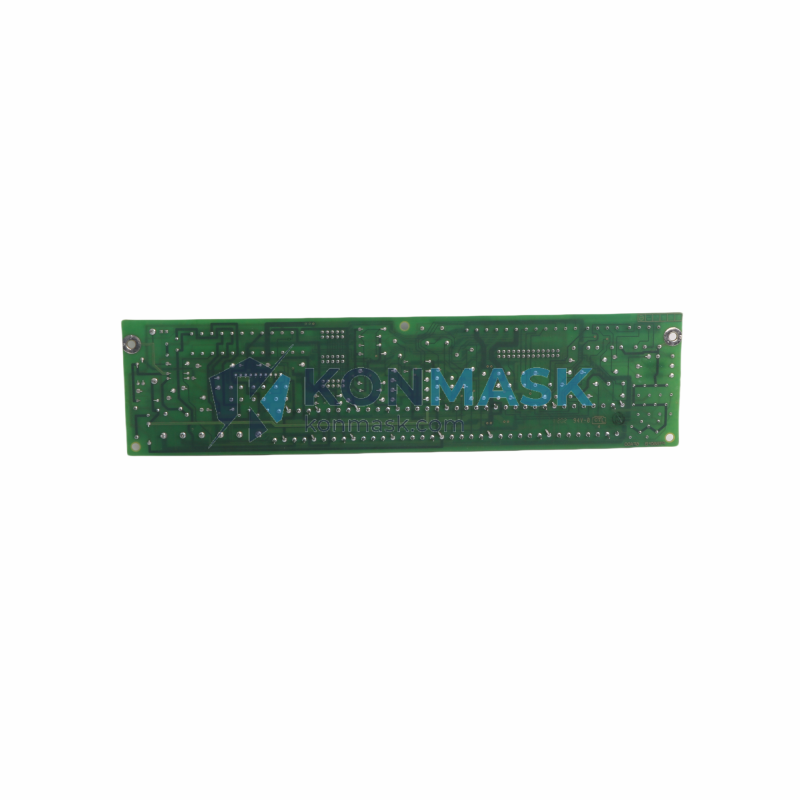

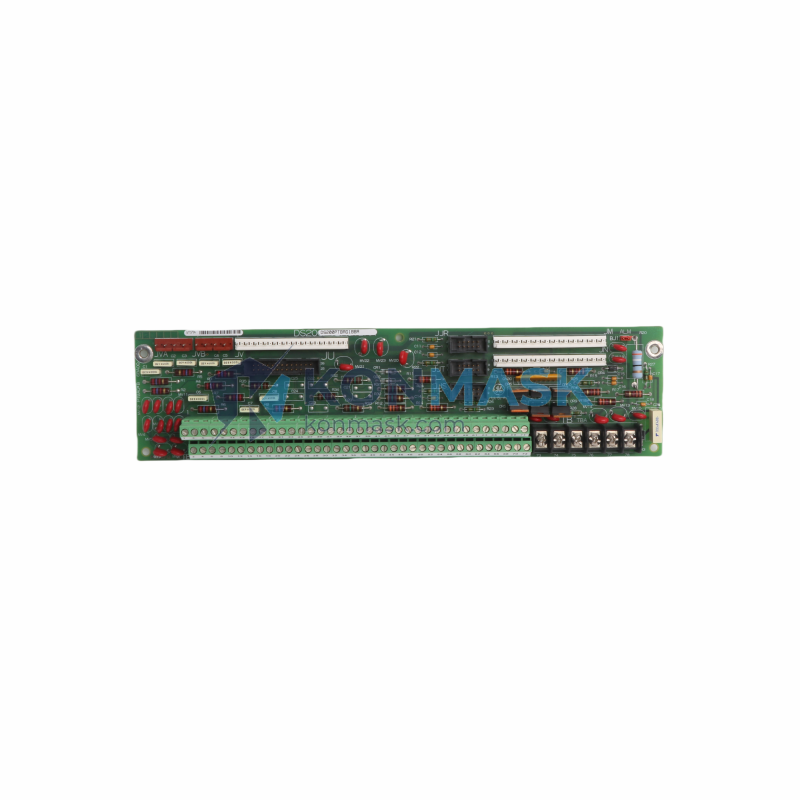

GE DS200PTBAG1BBA – Protection Termination Module | Mark VI Turbine Control Platform
Engineering Background: The DS200PTBAG1BBA is a critical protection termination board developed by GE as part of the Mark VI Turbine Control System — one of the most widely deployed distributed control architectures in gas turbine, steam turbine, and combined-cycle power generation facilities worldwide. This module serves as the primary interface layer between field-mounted protective sensors and the Mark VI’s core I/O and protection logic processors.
Product Positioning: Designed for procurement engineers and reliability teams managing aging Mark VI fleets, the DS200PTBAG1BBA provides a direct OEM-equivalent replacement path with no firmware reconfiguration required. It is the preferred sourcing solution for facilities operating under tight maintenance windows where downtime cost is measured in tens of thousands of dollars per hour.
Complete Technical Specifications
- Part Number / SKU: DS200PTBAG1BBA
- Manufacturer: GE (General Electric) — Power Controls Division
- Series / Platform: Mark VI Turbine Control System
- Module Type: Protection Termination Board
- Form Factor: PCB card, DIN-rail / rack-mount compatible within Mark VI enclosure
- Primary Function: Signal termination and conditioning for turbine protection I/O channels
- I/O Interface: Hardwired field terminal connections to Mark VI PPRO / TPRO protection processors
- Operating Temperature: 0°C to +60°C (standard industrial range)
- Storage Temperature: -40°C to +85°C
- Power Supply: Supplied via Mark VI backplane (28 VDC nominal)
- Weight: Approx. 300 g
- Compliance: Designed to GE Mark VI system standards; CE / UL applicable per installation
- Revision: G1BBA (confirmed hardware revision)
Proven Application Environments
- Gas turbine protection and trip logic systems (GE Frame 6, 7, 9 series)
- Steam turbine overspeed and vibration protection circuits
- Combined-cycle power plant distributed control architectures
- Compressor station emergency shutdown (ESD) integration
- Offshore and onshore oil & gas turbine-driven equipment
- Industrial cogeneration and waste-heat recovery units
Engineering Advantages
- Drop-in Replacement: Exact OEM part number match — no re-engineering or re-parameterization required
- Protection-Grade Reliability: Designed to SIL-rated protection loop standards within the Mark VI architecture
- Reduced Commissioning Risk: Pre-tested board eliminates field calibration uncertainty during emergency replacement
- Long Service Life: Conformal-coated PCB construction resists humidity, dust, and vibration in harsh plant environments
- Backward Compatibility: Compatible with Mark VI and Mark VIe control system variants where DS200PTBA series boards are specified
System Architecture & Signal Flow
Within the Mark VI protection architecture, the DS200PTBAG1BBA acts as the termination point for field wiring from protective devices — including flame detectors, vibration probes, speed pickups, and thermocouple/RTD inputs designated for trip functions. Signals are conditioned and routed via the board’s terminal blocks to the PPRO (Protection Processor) or TPRO (Triple Redundant Protection Processor) cards. The board supports TMR (Triple Modular Redundancy) voting logic configurations, ensuring that a single-card failure does not compromise the protection system’s integrity.
Sourcing & Quality Verification
- Condition: New / Refurbished (specify at inquiry — both grades available)
- Inspection Standard: Full visual, dimensional, and functional bench test prior to shipment
- Traceability: Serial number and revision documentation provided with each unit
- Packaging: ESD-safe anti-static bag + foam-lined export carton
- Lead Time: In-stock units ship within 1–3 business days; contact us for volume availability
- Warranty: 12-month replacement warranty against manufacturing defects
Procurement Process
- Submit your RFQ via the product page or email support@konmask.com
- Receive a formal quotation with lead time, condition grade, and traceability documentation within 24 hours
- Confirm purchase order — payment via T/T, PayPal, or credit card accepted
- Unit ships with full inspection report and packing list
- Post-delivery technical support available via email or phone
Technical FAQ
Q: Is the DS200PTBAG1BBA compatible with Mark VIe systems?
A: Compatibility depends on the specific Mark VIe I/O configuration. Contact our engineering team with your system’s MKVI revision and PPRO card model for a definitive compatibility assessment.
Q: Can this board be used in a simplex (non-TMR) Mark VI configuration?
A: Yes. The DS200PTBA series supports both simplex and TMR protection architectures. Confirm your system’s wiring diagram before installation.
Q: Do you provide the GE Mark VI wiring diagrams or manuals?
A: We can provide available reference documentation upon request. Contact us with your unit serial number and system configuration.
Q: What is the difference between DS200PTBAG1BBA and DS200PTBAG1ABA?
A: The G1BBA and G1ABA designations reflect different hardware revision levels. Functionally equivalent in most applications, but always verify against your system’s BOM before substitution.
