GE DS200SHVMG1AFE Mark V M-Frame Interface Board | Replacement, Equivalent & Selection Guide

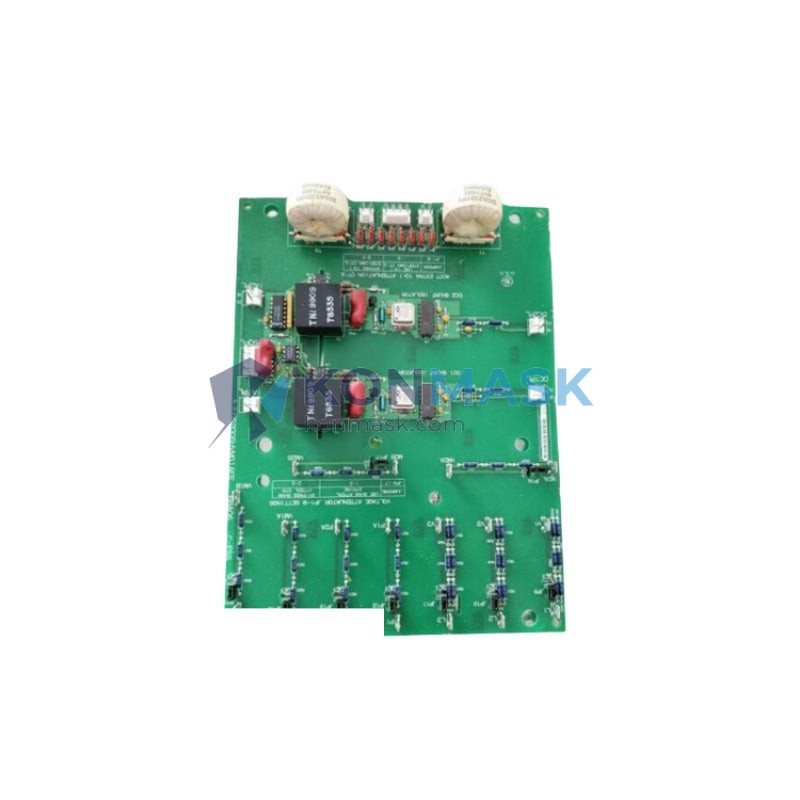

The GE DS200SHVMG1AFE is a Mark V series M-Frame Interface Board manufactured by GE (General Electric), designed for use in Speedtronic turbine control systems. This board serves as a critical communication and signal interface component within the Mark V control architecture. At Konmask.com, we specialize in sourcing, verifying, and supplying original and compatible replacement units for industrial automation applications worldwide.
Technical Specifications
- Part Number: DS200SHVMG1AFE
- Manufacturer: GE (General Electric)
- Series: Mark V Speedtronic
- Board Type: M-Frame Interface Board (SHVM)
- Form Factor: M-Frame PCB Module
- Weight: Approx. 360 g
- Application: Gas / Steam Turbine Control Systems
- Communication: Internal Mark V backplane interface
- Condition Available: New, Refurbished, Tested
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or functional equivalents for the DS200SHVMG1AFE. Always verify firmware revision and system configuration before substitution:
- DS200SHVMG1AEE – Earlier revision; verify compatibility with your Mark V firmware version
- DS200SHVMG1AGE – Later revision; may require configuration update
- DS200SHVMG1BFE – B-suffix variant; confirm frame slot compatibility
- DS200SHVMG1AFD – D-suffix; functionally similar, check connector pinout
Note: Suffix letters (A/B, E/F/G, D/E/F) denote hardware revision levels. Konmask engineers can assist with cross-reference verification — contact us before ordering a substitute.
Why Choose the Original DS200SHVMG1AFE
- Factory-validated firmware and calibration for Mark V architecture
- Guaranteed pin-for-pin compatibility with existing M-Frame slots
- No re-configuration or firmware flashing required on direct replacement
- Maintains OEM warranty compliance for supported installations
- Reduces commissioning risk in critical turbine control environments
Typical Applications
- GE Speedtronic Mark V gas turbine control panels
- Steam turbine governor and protection systems
- Combined-cycle power plant DCS integration
- Compressor station automation upgrades
- Retrofit and life-extension projects for aging Mark V systems
System Compatibility
- Control Platform: GE Speedtronic Mark V (TMR and Simplex configurations)
- Frame Type: M-Frame (SHVM slot)
- Companion Boards: DS200SDCCG1A, DS200TCQCG1B, DS200TCDAG1A, DS200TCEAG1B
- Software: Compatible with Mark V CIMPLICITY HMI and Toolbox ST
- Not Compatible With: Mark VI / Mark VIe without hardware adaptation
Selection Guide
Use the following criteria to confirm the correct board for your system:
- Step 1 – Identify your Mark V revision: Check the system nameplate or engineering drawings for the control panel generation.
- Step 2 – Confirm frame slot: The DS200SHVMG1AFE occupies a specific M-Frame slot; verify slot assignment in your panel layout drawing.
- Step 3 – Match suffix revision: Compare the full part number including suffix (e.g., AFE vs. AFD) against your existing board label.
- Step 4 – Check firmware baseline: If replacing with an alternate revision, confirm firmware compatibility with your Mark V software version.
- Step 5 – Contact Konmask: Our engineers provide free cross-reference support — share your panel drawing or existing board photo for confirmation.
Quality Assurance & Sourcing
- All units undergo functional bench testing prior to shipment
- Boards are inspected for component-level damage, corrosion, and trace integrity
- Sourced from decommissioned OEM systems, authorized distributors, or new surplus stock
- Serialized traceability records available on request
- Packaging: ESD-safe anti-static bag + foam-lined carton
- Warranty: 12-month replacement warranty (defect-in-material)
How to Order
- Online: Add to cart directly on this page — stock is updated in real time
- Email RFQ: Send your part number, quantity, and required condition to [email protected]
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Lead Time: In-stock units ship within 1–3 business days; sourced units 5–15 business days
- Payment: T/T wire transfer, PayPal, credit card via Shopify Payments
Replacement & Compatibility FAQ
Q: Can I use DS200SHVMG1AEE instead of DS200SHVMG1AFE?
A: Possibly — the E-suffix is an earlier hardware revision. Functional compatibility depends on your Mark V firmware version. Contact us for a free cross-reference check.
Q: Is this board compatible with Mark VI or Mark VIe?
A: No. The DS200SHVMG1AFE is designed exclusively for the Mark V platform. Mark VI uses a different backplane architecture and is not pin-compatible.
Q: Do you offer exchange / core return programs?
A: Yes. We accept defective cores for credit toward replacement units. Contact us for core return terms.
Q: What is the lead time for out-of-stock units?
A: Typical sourcing lead time is 5–15 business days depending on global inventory availability.
Q: Can Konmask provide a test report?
A: Yes. A functional test report is available upon request for all refurbished units.
