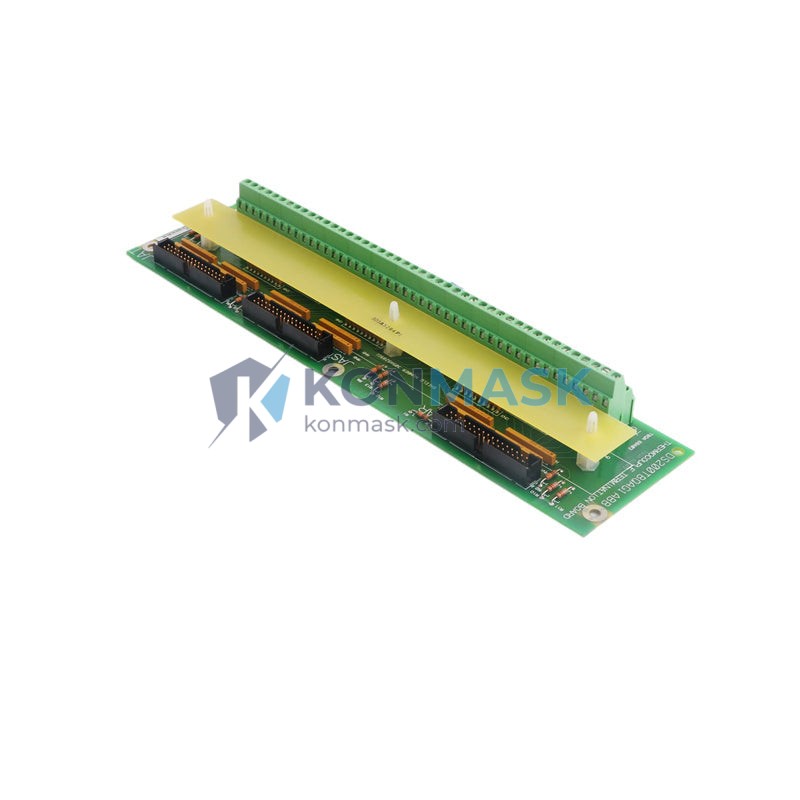

GE DS200TBQDG1AFF – RST Termination Relay Board | Mark VI Control Platform
Engineering Background
The DS200TBQDG1AFF is a factory-original termination relay board engineered by General Electric as an integral signal-conditioning and relay-interface component within the Mark VI Turbine Control System. Designed for gas turbine, steam turbine, and combined-cycle power generation applications, this board serves as the hardwired bridge between field I/O wiring and the Mark VI controller backplane — ensuring deterministic signal integrity in safety-critical environments.
Product Positioning
Procurement engineers sourcing DS200TBQDG1AFF face a narrow market of genuine, traceable units. Konmask.com specialises in verified GE Mark VI spare parts, offering documented provenance, pre-shipment inspection, and direct technical support — eliminating the risk of counterfeit or refurbished-without-disclosure components entering your control system.
Complete Technical Specifications
| Part Number | DS200TBQDG1AFF |
| Manufacturer | General Electric (GE Energy / GE Vernova) |
| Series / Platform | Mark VI Turbine Control System |
| Board Type | RST Termination Relay Board |
| Function | Field I/O relay termination and signal conditioning interface |
| Relay Configuration | Multiple relay channels for discrete output termination |
| Connector Interface | Mark VI standard backplane and field-wiring terminal blocks |
| Operating Voltage | Per Mark VI system specification (typically 24 VDC control bus) |
| Operating Temperature | 0 °C to +60 °C (storage: −40 °C to +85 °C) |
| Form Factor | PCB module, DIN-rail / rack-mount compatible within Mark VI enclosure |
| Weight | 320 g (approx.) |
| Compliance | CE, RoHS (per GE manufacturing standard) |
| Condition Available | New surplus / Tested used (specify at inquiry) |
Proven Application Environments
- Gas Turbine Power Plants — GE Frame 6B, 7E, 7F, 9E, 9F series turbine control panels
- Steam Turbine Control — Combined-cycle and cogeneration plant Mark VI panels
- Compressor Stations — Pipeline and LNG compression train control systems
- Offshore & Onshore Oil & Gas — Platform control rooms requiring SIL-rated discrete I/O termination
- Industrial Power Generation — Utility-scale and captive power plant DCS/ECS integration
- Retrofit & Upgrade Projects — Mark V to Mark VI migration requiring matched termination hardware
Engineering Advantages
- OEM-Matched Signal Integrity — Relay contact ratings and PCB trace geometry matched to GE Mark VI I/O specifications; no de-rating or field modification required.
- Plug-and-Play Replacement — Direct form-fit-function replacement for failed or degraded DS200TBQDG1AFF boards; zero firmware changes needed.
- Relay Isolation — Galvanic isolation between field wiring and controller backplane protects against ground loops and transient surges common in turbine environments.
- Reduced MTTR — Stocking a spare DS200TBQDG1AFF reduces mean time to repair from days (OEM lead time) to hours (on-shelf swap).
- Broad Compatibility — Compatible across Mark VI VCMI, VCRC, and VTUR controller configurations without hardware modification.
System Architecture & Signal Flow
Within the Mark VI architecture, the DS200TBQDG1AFF occupies the termination layer between field devices and the I/O processor boards. Field wiring (discrete outputs from actuators, solenoids, and trip circuits) lands on the terminal block side of the board. The relay contacts switch these field-side signals under command from the Mark VI I/O processor, while the PCB provides the necessary voltage clamping, flyback suppression, and contact status feedback to the controller. This architecture ensures that field-side faults are isolated from the controller backplane, maintaining system availability during partial fault conditions.
Sourcing & Quality Verification
- Traceability — Each unit is documented with source records; counterfeit-risk screening applied per AS6081 principles.
- Pre-Shipment Inspection — Visual inspection for PCB damage, relay contact integrity check, and connector pin verification.
- Functional Test (on request) — Bench-level relay actuation test available; test report provided with shipment.
- Packaging — ESD-safe anti-static bag, foam-lined carton, humidity indicator card; suitable for air freight and sea freight.
- Certification of Conformance — Available upon request for regulated procurement environments.
Procurement Process
- Submit RFQ — Contact support@konmask.com or call +0086 19859288691 with your required quantity, condition preference (new surplus / tested used), and delivery timeline.
- Receive Quotation — Formal quotation with unit price, lead time, and shipping options issued within 1 business day.
- Order Confirmation — Purchase order accepted; payment terms: T/T, L/C, or platform escrow.
- Quality Inspection & Dispatch — Pre-shipment inspection completed; tracking number and inspection report issued.
- Delivery & After-Sales — DHL / FedEx / sea freight options; 90-day warranty on tested units; technical support available post-installation.
Technical FAQ
Q: Is DS200TBQDG1AFF compatible with Mark VIe?
A: The DS200TBQDG1AFF is designed for the Mark VI platform. Compatibility with Mark VIe depends on the specific I/O module configuration — contact our engineers with your panel drawing for confirmation before ordering.
Q: What is the difference between DS200TBQDG1AFF and DS200TBQDG1AFE?
A: The suffix revision letter (F vs E) denotes a GE engineering change level. Functionally these are typically interchangeable, but always verify against your system BOM. Our team can cross-reference your panel documentation.
Q: Can you provide a datasheet?
A: GE Mark VI component datasheets are controlled documents. We can share available technical references under NDA or provide our internal inspection report as a substitute for procurement qualification.
Q: What is the lead time?
A: In-stock units ship within 3–5 business days internationally. If not in stock, typical sourcing lead time is 2–4 weeks depending on market availability.
Q: Do you accept returns?
A: Yes. DOA (dead on arrival) returns accepted within 14 days of receipt. Tested units carry a 90-day warranty against manufacturing defects.
