GE DS3800NDAC1D1E Analog Output Card | Replacement, Equivalent & Selection Guide

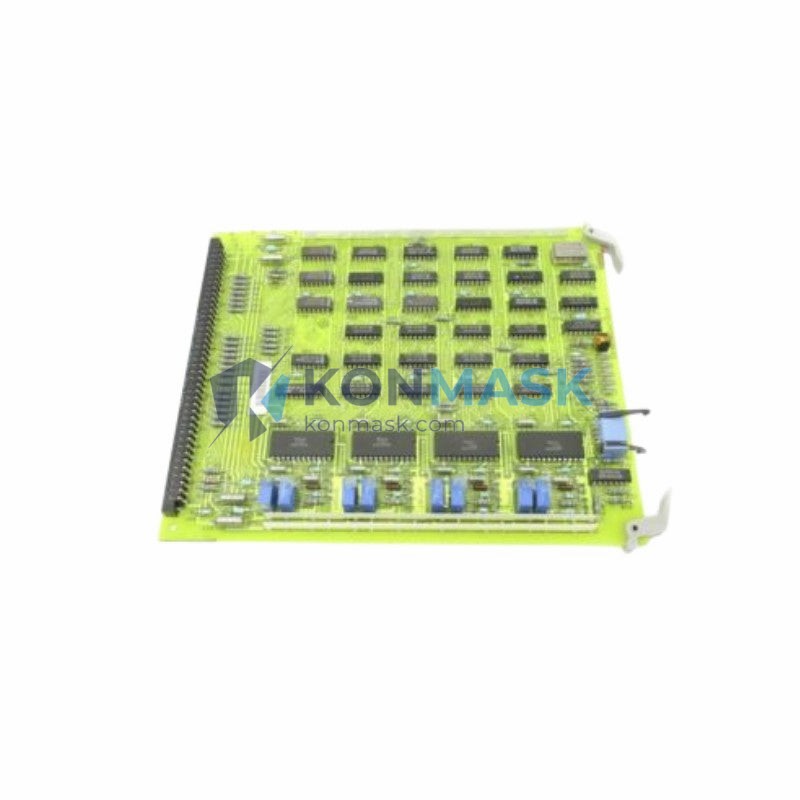

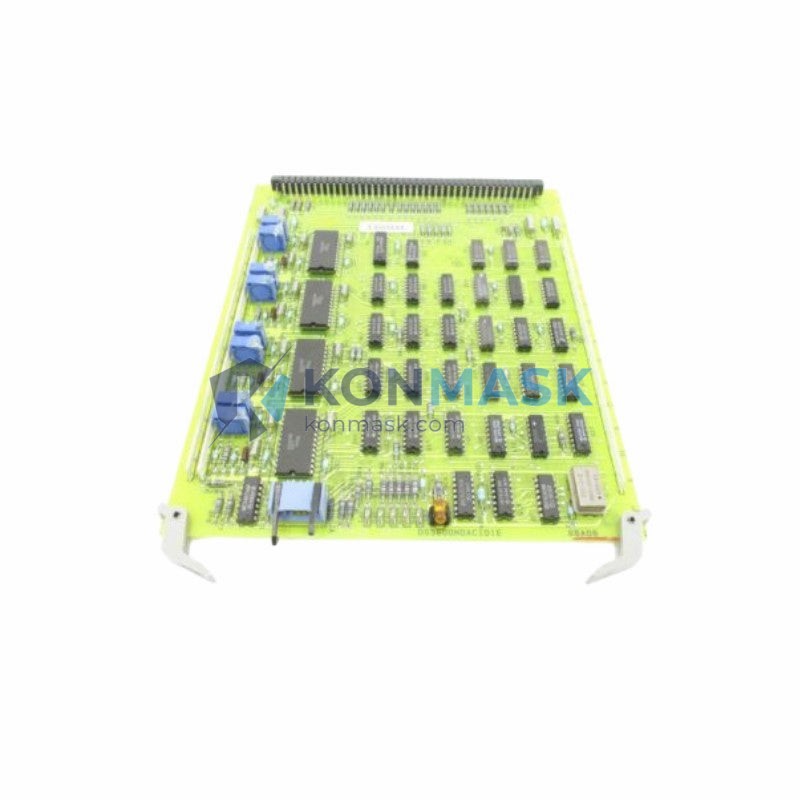

The GE DS3800NDAC1D1E is an Analog Output Card designed for use in General Electric’s Mark IV turbine control systems. This card provides precision analog signal output for critical process control applications in power generation and industrial automation environments. Whether you are sourcing an original unit, seeking a compatible replacement, or evaluating equivalent alternatives, this guide provides the technical detail and selection criteria you need.
Technical Specifications
- Manufacturer: General Electric (GE)
- Part Number: DS3800NDAC1D1E
- Card Type: Analog Output Card
- Compatible System: GE Mark IV Turbine Control System
- Output Type: Analog (4–20 mA / 0–10 V, configuration-dependent)
- Form Factor: PCB Card / Plug-in Module
- Weight: Approx. 650 g
- Operating Environment: Industrial control panel / DCS cabinet
- Condition Available: New, Refurbished, Tested & Certified
Compatible Replacement & Equivalent Models
When the DS3800NDAC1D1E is unavailable or end-of-life, the following models may serve as functional replacements depending on your system revision and firmware version. Always verify compatibility with your system integrator before substitution.
- DS3800NDAC1D1D – Earlier revision; functionally equivalent in most Mark IV configurations
- DS3800NDAC1D1F – Later revision; backward-compatible in most applications
- DS3800NDAC (base part) – Generic reference; confirm suffix revision with your system documentation
- IS200 Series Analog Output Modules – GE Mark VIe equivalent for upgraded systems
- Third-party analog output cards – Available from certified aftermarket suppliers; must match pinout, signal range, and backplane interface
Note: Suffix revisions (1D1E, 1D1D, etc.) may indicate hardware or firmware differences. Consult GE documentation or contact Konmask for cross-reference verification.
Why Choose the Original Model
- OEM Compatibility: Guaranteed fit and function within GE Mark IV control architecture
- Validated Signal Accuracy: Factory-calibrated analog output for precise process control
- Regulatory Compliance: Meets original system certification requirements for power plant operations
- Reduced Integration Risk: No firmware conflicts or backplane interface issues
- Long Service Life: Designed for continuous duty in demanding industrial environments
Typical Applications
- Gas turbine and steam turbine control (GE Frame 5, 6, 7, 9 series)
- Combined-cycle power plant automation
- Industrial process control with analog setpoint output
- Compressor and pump control systems using Mark IV architecture
- Legacy DCS/SCADA integration requiring analog 4–20 mA output signals
System Compatibility
- Primary System: GE Mark IV Speedtronic Turbine Control
- Backplane Interface: Mark IV standard card cage
- Signal Standard: 4–20 mA analog output (industry standard)
- Not Compatible With: Mark V, Mark VI, or Mark VIe without hardware adaptation
- Upgrade Path: Mark VIe IS200 series for modernization projects
Selection Guide
Use the following criteria to determine whether the DS3800NDAC1D1E is the right card for your application:
- Step 1 – Confirm System Generation: Verify your turbine control system is GE Mark IV (not Mark V/VI/VIe)
- Step 2 – Check Slot Assignment: Identify the card slot designation in your system drawing (I/O rack position)
- Step 3 – Verify Suffix Revision: Match the full part number including suffix (1D1E) to your system BOM or spare parts list
- Step 4 – Confirm Output Range: Validate required analog output range (4–20 mA or 0–10 V) against field device requirements
- Step 5 – Assess Condition Requirement: Choose New for critical applications; Refurbished/Tested for budget-sensitive or backup inventory
Quality Assurance & Sourcing
- All units sourced by Konmask.com undergo visual inspection and functional verification
- Refurbished units are tested to original GE performance specifications
- Traceability documentation available upon request
- Anti-static packaging and secure shipping for all PCB modules
- Inventory includes new surplus, factory refurbished, and tested used units
How to Order
- Online: Add to cart directly from this page
- Email: support@konmask.com with your part number, quantity, and required condition
- Phone/WhatsApp: +0086 19859288691
- Lead Time: In-stock units ship within 1–3 business days; sourced units subject to availability
- Bulk / Project Pricing: Contact us for volume discounts and project-based procurement
Replacement & Compatibility FAQ
Q: Can DS3800NDAC1D1D replace DS3800NDAC1D1E?
A: In most Mark IV configurations, yes. The suffix revision difference is typically a minor hardware change. Confirm with your system documentation or contact us for verification.
Q: Is this card compatible with GE Mark V or Mark VI?
A: No. The DS3800NDAC series is specific to Mark IV architecture. Mark V uses DS200 series; Mark VI/VIe uses IS200 series.
Q: Do you provide a warranty on refurbished units?
A: Yes. Refurbished units carry a standard warranty. Contact us for specific terms.
Q: Can I send my faulty card for repair?
A: Yes. Konmask.com offers board-level repair services for GE Mark IV cards. Contact support for evaluation.
Q: What is the lead time for new surplus units?
A: Typically 1–5 business days depending on stock availability. Contact us for real-time inventory status.
