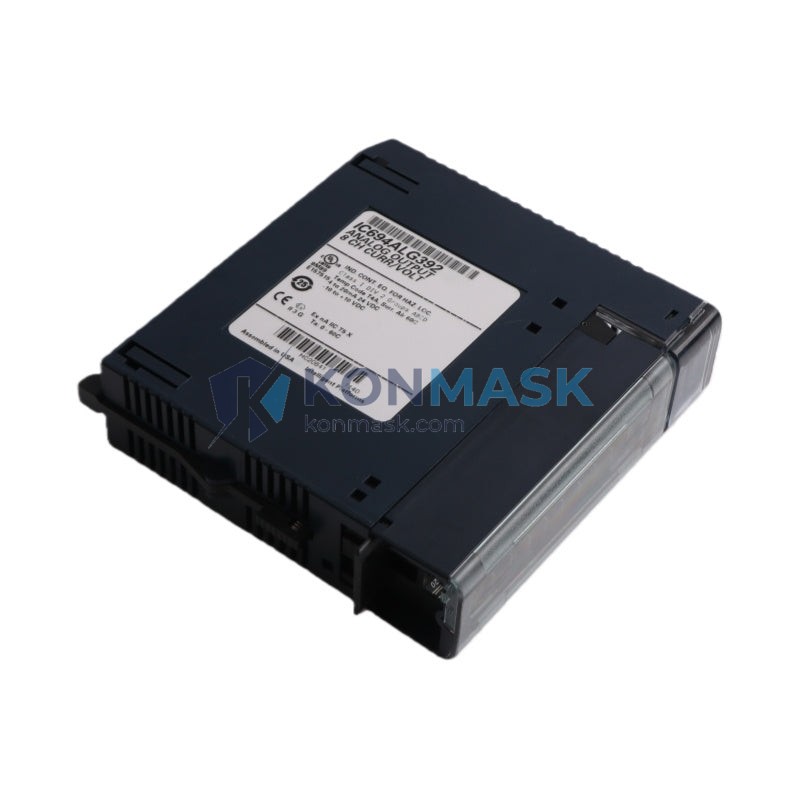

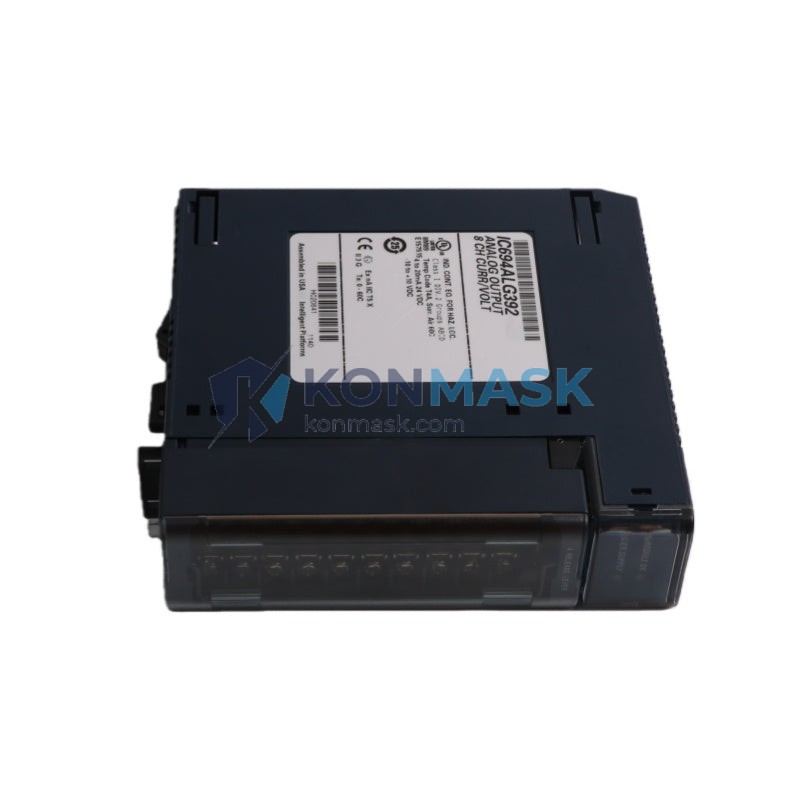

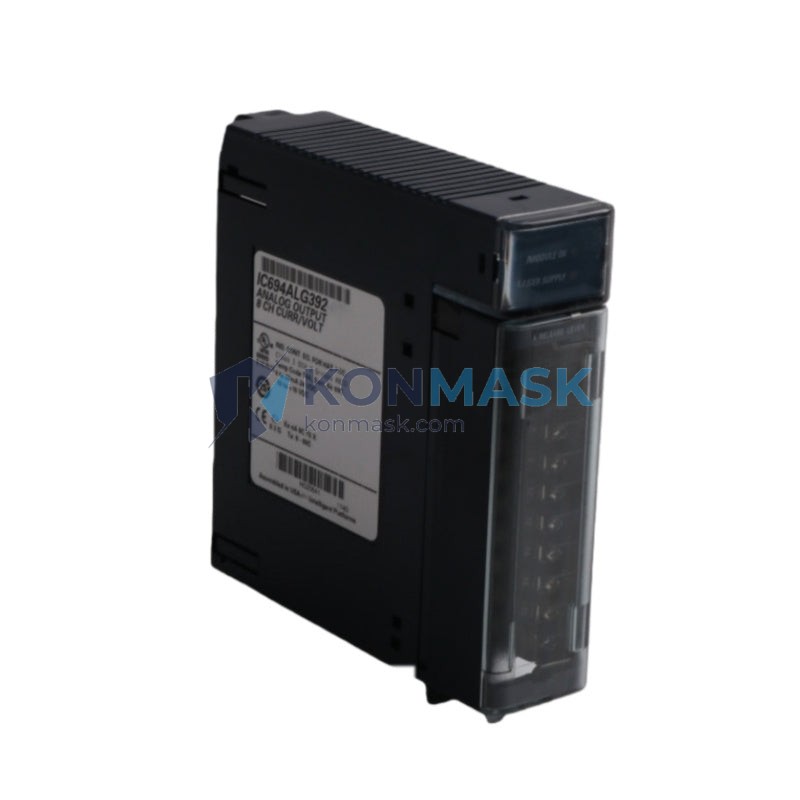

GE Fanuc IC694ALG392 – 8-Channel Analog Output Module | Series 90-30 PLC Platform
Engineering Background: The IC694ALG392 is a high-density analog output module engineered by GE Fanuc for the Series 90-30 programmable logic controller family — one of the most widely deployed mid-range PLC platforms in industrial automation history. Designed to meet the demanding signal-conditioning requirements of process control, the module delivers precision voltage and current outputs across eight independent channels, enabling fine-grained control of actuators, drives, and field instruments in a single rack slot.
Product Positioning: Targeted at procurement engineers and system integrators who require a proven, drop-in replacement or expansion module for existing Series 90-30 installations, the IC694ALG392 eliminates the need for external signal converters and reduces panel footprint. Konmask.com supplies this module from verified industrial surplus and authorized distribution channels, with full traceability documentation available upon request.
Complete Technical Specifications
- Part Number: IC694ALG392
- Manufacturer: GE Fanuc (General Electric Fanuc Automation)
- Platform / Series: Series 90-30 (90-30 PLC Family)
- Module Type: Analog Output
- Number of Channels: 8 (independent, individually configurable)
- Output Signal Types: Voltage: 0–10 V DC / ±10 V DC | Current: 4–20 mA / 0–20 mA
- Resolution: 12-bit (1 in 4,096)
- Output Update Rate: All channels updated each PLC scan cycle
- Load Impedance (Voltage): ≥ 1 kΩ
- Load Impedance (Current): ≤ 600 Ω
- Isolation: Field-side to backplane optical isolation
- Power Consumption: 5 V DC from backplane (refer to GFK-0356 for exact draw)
- Operating Temperature: 0 °C to +60 °C (32 °F to 140 °F)
- Storage Temperature: −40 °C to +85 °C
- Relative Humidity: 5–95% non-condensing
- Backplane Connector: Series 90-30 standard 96-pin DIN
- Field Wiring: Removable terminal block (RTB)
- Dimensions (H × W × D): Standard Series 90-30 single-slot form factor
- Weight: Approx. 300 g
- Certifications: UL Listed, CE Marked, cUL
- Reference Manual: GFK-0356 (Series 90-30 I/O Module Specifications)
Proven Application Environments
- Process Control: Valve positioner control (4–20 mA), flow control loops, pressure regulation
- Drive Control: Speed reference signals to VFDs and servo amplifiers (0–10 V / ±10 V)
- HVAC & Building Automation: Damper actuator control, chiller setpoint output
- Water & Wastewater Treatment: Pump speed control, chemical dosing pump reference
- Oil & Gas: Wellhead control panels, compressor station automation
- Automotive Manufacturing: Paint line tension control, conveyor speed regulation
- Food & Beverage: Temperature setpoint output to PID controllers and heat exchangers
Engineering Advantages
- 8-Channel Density: Maximizes rack utilization — replaces two 4-channel modules, freeing slots for additional I/O expansion.
- Dual Output Mode: Each channel independently configurable for voltage or current output without hardware jumpers — configured via software (Logicmaster 90 / Proficy Machine Edition).
- 12-Bit Resolution: Provides 0.024% full-scale accuracy, suitable for precision process control applications.
- Optical Isolation: Protects the CPU backplane from field-side ground loops, transients, and noise — critical in electrically noisy industrial environments.
- Hot-Swap Compatible: Removable terminal block (RTB) allows field wiring to remain intact during module replacement, minimizing downtime.
- Scan-Synchronous Update: All 8 outputs updated simultaneously each PLC scan, ensuring deterministic control loop timing.
System Architecture & Signal Flow
The IC694ALG392 occupies a single slot in any Series 90-30 baseplate (5-slot, 10-slot, or expansion). The CPU writes 16-bit words (12 bits significant) to the module’s output registers via the backplane bus each scan cycle. Internal DAC circuitry converts the digital value to the configured analog signal type (voltage or current) on each of the 8 field terminals. The removable terminal block (RTB) provides screw-clamp connections for field wiring, with clearly labeled channel numbering for rapid commissioning.
Supported Programming Environments: Logicmaster 90-30 (DOS), Proficy Machine Edition (Windows), VersaPro — all natively recognize the IC694ALG392 module type with full I/O configuration dialogs.
Sourcing & Quality Verification
- Source: Authorized industrial surplus, OEM-certified distribution, and factory-refurbished stock
- Inspection: Each unit undergoes visual inspection, firmware version verification, and functional bench test prior to shipment
- Traceability: Date code, lot number, and inspection records available upon request
- Packaging: Anti-static bag + foam-lined carton; ESD-safe handling throughout
- Warranty: 12-month Konmask warranty covering manufacturing defects and functional failure
- Counterfeit Prevention: All modules verified against GE Fanuc OEM markings, PCB revision codes, and holographic labels where applicable
Procurement Process
- Confirm Compatibility: Verify your Series 90-30 baseplate model and available slot count. The IC694ALG392 fits all standard 90-30 baseplates.
- Request Quote: Contact support@konmask.com for volume pricing, lead time, and availability confirmation.
- Place Order: Purchase directly via Konmask.com or submit a PO for net-terms accounts.
- Receive & Inspect: Module ships with inspection report. Verify part number label, RTB, and firmware version upon receipt.
- Install & Commission: Insert into target slot, connect RTB field wiring, configure channel modes in your programming environment, and verify analog output signals with a calibrated meter.
Technical FAQ
- Q: Is the IC694ALG392 compatible with Series 90-70 or PACSystems baseplates?
- A: No. The IC694ALG392 is exclusively designed for the Series 90-30 backplane. For Series 90-70, refer to IC697 analog output modules. For PACSystems RX3i, refer to IC694 modules with RX3i compatibility markings.
- Q: Can I mix voltage and current output channels on the same module?
- A: Yes. Each of the 8 channels is independently configurable for voltage (0–10 V, ±10 V) or current (4–20 mA, 0–20 mA) output via software configuration — no hardware changes required.
- Q: What happens to the analog outputs on a PLC fault or CPU stop?
- A: Outputs default to the configured fault state (typically 0 V / 4 mA or hold last value), as defined in the I/O configuration table within your programming software.
- Q: Does the module require external power for the analog output circuits?
- A: The module draws all required power from the Series 90-30 backplane 5 V bus. No external analog power supply is required for voltage output channels. Current output channels may require adequate loop supply voltage from the field device side.
- Q: What is the lead time for IC694ALG392?
- A: In-stock units typically ship within 1–3 business days. Contact support@konmask.com for real-time availability.
