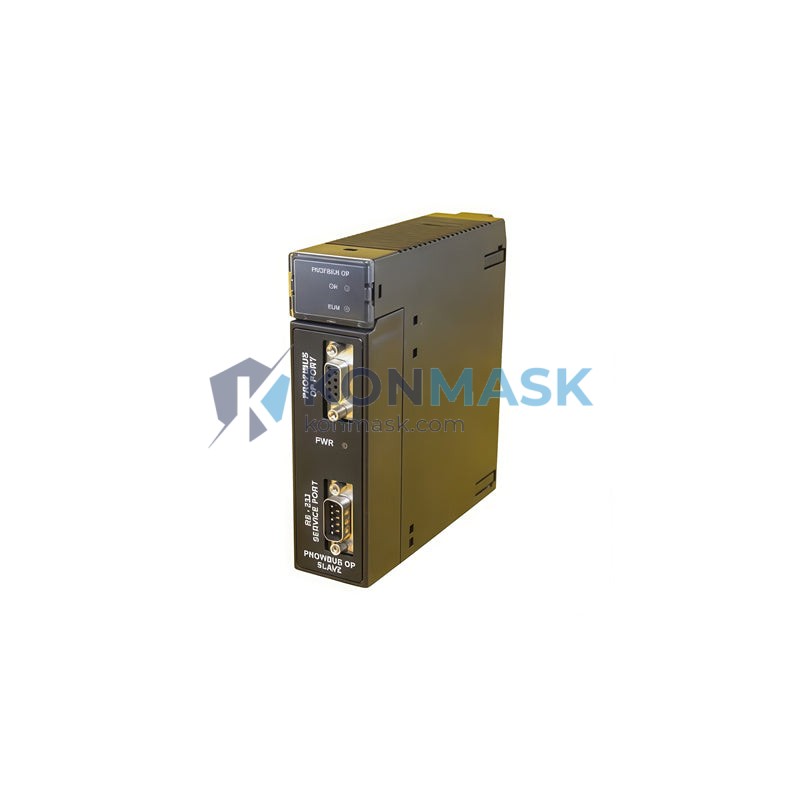

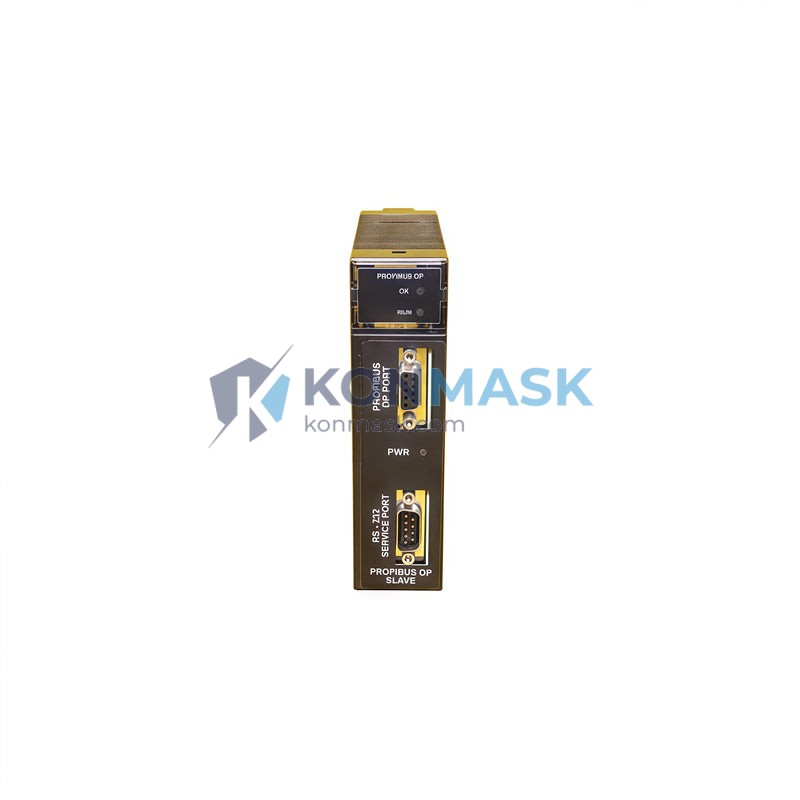

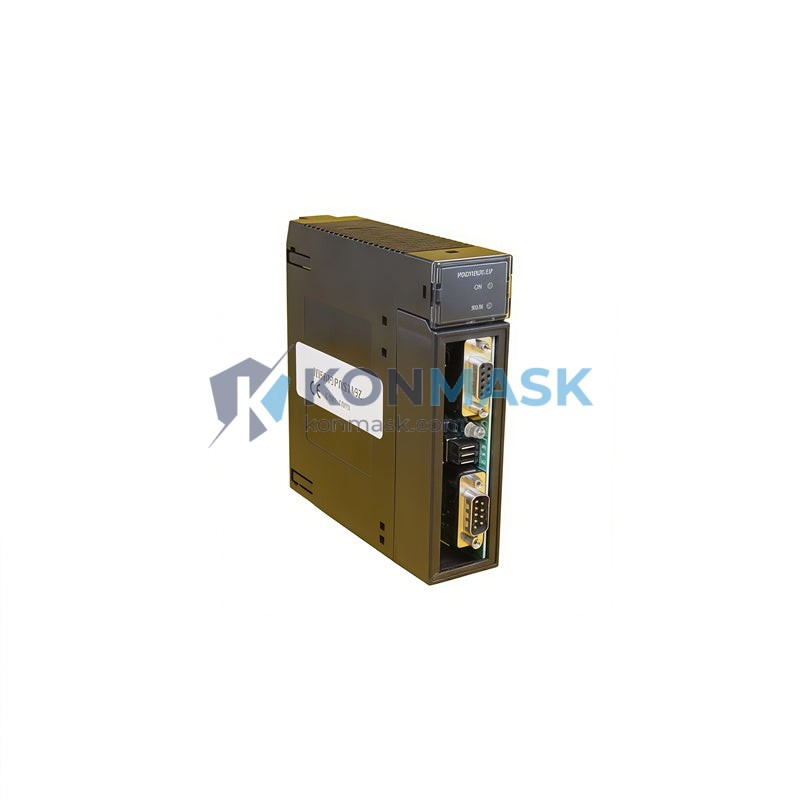

Profibus-DP Fieldbus Communication Solution – GE HE693PBS105 | Series 90-30
Where This Product Is Used
The GE HE693PBS105 Profibus-DP Slave Module is engineered for industrial environments that demand deterministic, high-speed fieldbus communication between a GE Series 90-30 PLC host rack and distributed field devices. Typical deployment scenarios include:
- Automotive Assembly Lines – Coordinating robot controllers, servo drives, and vision systems over a single Profibus-DP network, eliminating point-to-point wiring and reducing commissioning time.
- Water & Wastewater Treatment Plants – Integrating variable-frequency drives (VFDs), flow meters, and valve actuators into a centralized SCADA architecture via Profibus-DP.
- Pharmaceutical Manufacturing – Enabling GMP-compliant process control by linking GE Series 90-30 PLCs to Profibus-certified sensors and actuators in clean-room environments.
- Oil & Gas Upstream/Midstream – Connecting remote I/O panels and field instruments to a host PLC across long cable runs in hazardous-area installations.
- Food & Beverage Processing – Synchronizing conveyor drives, filling machines, and packaging lines through a noise-immune Profibus-DP backbone.
- Power Generation & Utilities – Interfacing GE PLCs with protection relays, energy meters, and switchgear controllers in substation automation projects.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number / SKU | HE693PBS105 |
| Manufacturer | GE (General Electric) / Horner APG |
| Product Series | Series 90-30 PLC |
| Module Type | Profibus-DP Slave Communication Module |
| Fieldbus Protocol | Profibus-DP (EN 50170 / IEC 61158) |
| Profibus-DP Role | Slave (DP-V0 compliant) |
| Baud Rate | 9.6 kbps – 12 Mbps (auto-detect) |
| Max I/O Data | 244 bytes input / 244 bytes output |
| Connector | 9-pin D-Sub (DB9) female |
| Backplane Interface | GE Series 90-30 CPU/expansion rack |
| Power Consumption | Supplied via Series 90-30 backplane |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% – 95% non-condensing |
| Weight | Approx. 200 g |
| Form Factor | Single-slot Series 90-30 module |
Why Engineers Specify This Model
- Seamless Series 90-30 Integration – Plugs directly into any Series 90-30 rack slot; no external power supply or gateway required.
- Auto Baud-Rate Detection – Eliminates manual DIP-switch configuration; the module synchronizes to the master’s baud rate automatically from 9.6 kbps to 12 Mbps.
- Large I/O Data Window – Supports up to 244 bytes in each direction, accommodating complex drive parameter exchanges and multi-axis position data.
- Proven Fieldbus Reliability – Profibus-DP’s token-passing protocol delivers cycle times under 1 ms at 12 Mbps, critical for motion-control and safety-interlock applications.
- Reduced Wiring Cost – A single twisted-pair bus cable replaces hundreds of discrete I/O wires, cutting material and labor costs by up to 40% on large installations.
- Long Cable Reach – Profibus-DP supports segment lengths up to 1,200 m at 93.75 kbps, suitable for large plant floors and outdoor installations with repeaters.
Complete System Bill of Materials
For a fully operational Profibus-DP slave node based on the HE693PBS105, engineers typically specify the following complementary components:
- GE Series 90-30 CPU (e.g., IC693CPU374 or IC693CPU375) – Host processor
- GE IC693PWR321 or IC693PWR330 – Series 90-30 power supply module
- GE IC693CHS391 or IC693CHS397 – 5-slot or 10-slot Series 90-30 baseplate
- Profibus-DP Master (e.g., Siemens CP 342-5 or GE IC693CMM321) – Network master controller
- Profibus-DP Cable (IEC 61158 Type A, shielded twisted pair, violet jacket) – Bus cable
- Profibus DB9 Bus Connector with termination resistor (e.g., Siemens 6ES7 972-0BA52-0XA0) – End-of-line terminator
- GE IC693MDL940 or IC693MDL741 – Discrete I/O modules for local I/O expansion
- GE Proficy Machine Edition – Programming and configuration software
Compliance & Industry Standards
- Profibus-DP Protocol: EN 50170 Vol. 2 / IEC 61158 Type 3 / IEC 61784-1 CP 3/1
- EMC Immunity: IEC 61000-4 series (ESD, EFT, surge, conducted RF)
- CE Marking: Compliant with EU Low Voltage Directive and EMC Directive
- UL/cUL Listed: Suitable for use in UL-listed industrial control panels
- RoHS: Compliant with EU Directive 2011/65/EU (RoHS 2)
- ATEX / IECEx: Not intrinsically safe; install in non-hazardous area or use appropriate enclosure for Zone 2 applications
Quality Assurance & Sourcing
Konmask.com sources the HE693PBS105 exclusively from verified industrial distributors and OEM-authorized channels. Every unit undergoes the following quality checks before shipment:
- Visual inspection for physical damage, bent pins, and label integrity
- Firmware version verification against GE release notes
- Functional power-on test confirming LED status indicators operate correctly
- Anti-static packaging with humidity indicator card for safe international transit
- Traceability documentation (lot number, date code) provided on request
New, surplus-new, and factory-refurbished grades are available. Please specify your required condition at the time of inquiry.
How to Source This Part
- Submit an RFQ – Email [email protected] with your required quantity, delivery timeline, and acceptable condition grade.
- Receive a Quotation – Our team responds within 24 business hours with pricing, lead time, and availability confirmation.
- Place Your Order – Secure checkout via this product page, or request a proforma invoice for bank transfer / LC payment.
- Inspection & Dispatch – Units are inspected, photographed, and dispatched with full tracking within 1–3 business days of payment confirmation.
- After-Sales Support – 12-month warranty on new units; 90-day warranty on surplus/refurbished units. Technical support available via email and WhatsApp.
Application-Specific FAQ
Q: Can the HE693PBS105 act as a Profibus-DP Master?
A: No. The HE693PBS105 is a DP Slave module only. For master functionality within a Series 90-30 rack, use the GE IC693CMM321 Communications Co-processor configured as a Profibus-DP master.
Q: Is this module compatible with Series 90-70 or PACSystems RX3i racks?
A: No. The HE693PBS105 is designed exclusively for the GE Series 90-30 backplane. It is not mechanically or electrically compatible with Series 90-70 or RX3i racks.
Q: What GSD file is required for the Profibus master configuration?
A: The GSD file (device description file) for the HE693PBS105 is available from GE Automation & Controls documentation. Contact us and we will provide the correct GSD file for your master configuration tool.
Q: Can I use this module in a Profibus-PA network?
A: No. Profibus-PA requires a segment coupler/link device. The HE693PBS105 communicates on Profibus-DP (RS-485 physical layer) only.
Q: What is the maximum number of HE693PBS105 modules per Series 90-30 rack?
A: Up to the available rack slots (maximum 11 I/O slots in a 12-slot baseplate), subject to the CPU’s total I/O module count limits as defined in the Series 90-30 PLC User’s Manual (GFK-0356).
Q: Do you offer expedited shipping for urgent plant shutdowns?
A: Yes. We offer DHL Express, FedEx International Priority, and UPS Worldwide Express options. Contact us at +0086 19859288691 for same-day dispatch arrangements.
