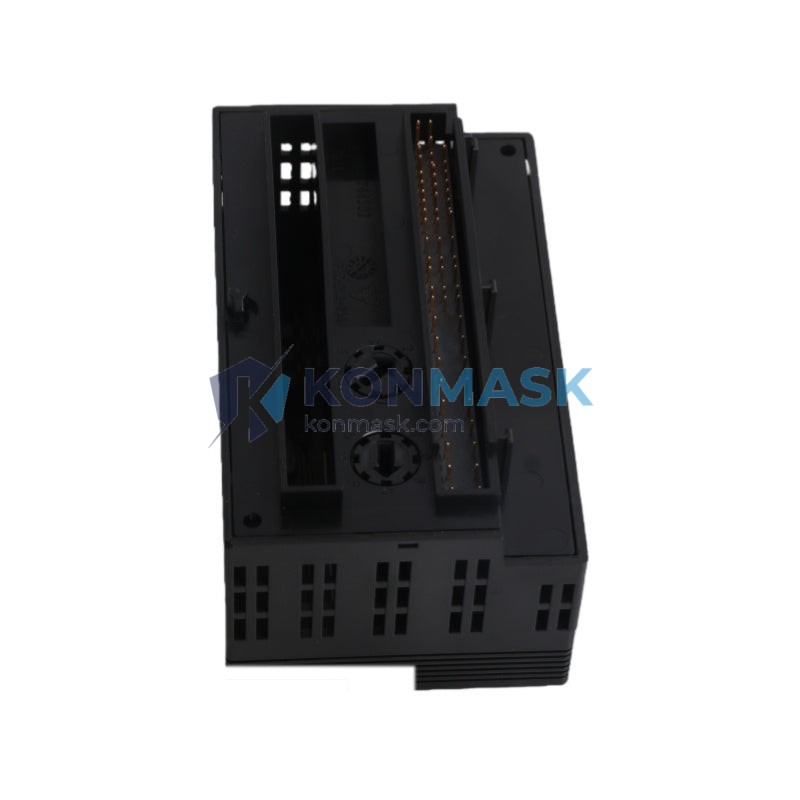

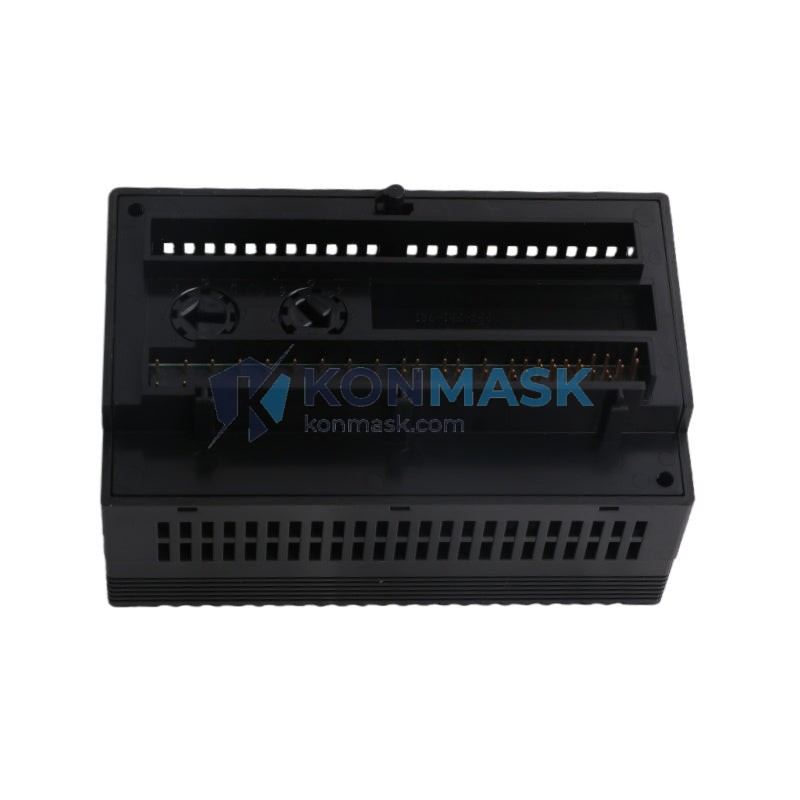

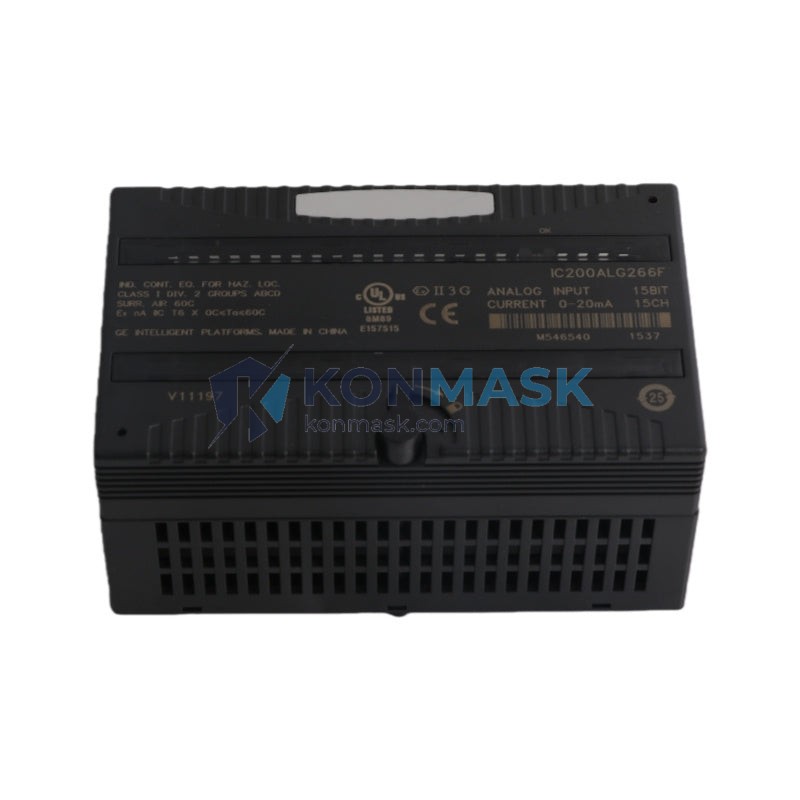

GE IC200ALG266F Analog Input Module – VersaMax Programmable Controller Series
When a critical analog signal chain fails in a process control environment — whether monitoring pressure in a chemical reactor, tracking flow rates in a water treatment plant, or measuring temperature in a furnace — production halts, alarms cascade, and every minute of downtime translates directly into lost revenue and safety risk. The GE IC200ALG266F Analog Input Module is the precision front-end that keeps those signals accurate, stable, and continuously available, making it an irreplaceable component in any VersaMax-based control architecture.
Within the IC200 VersaMax family, the IC200ALG266F occupies the high-channel-density tier of analog input modules, offering a cost-effective solution for applications that demand simultaneous multi-channel acquisition without sacrificing resolution or noise immunity. GE’s VersaMax platform has been deployed across tens of thousands of industrial sites worldwide — from oil & gas upstream facilities to automotive assembly lines — and the IC200ALG266F continues to be a cornerstone I/O module for both new installations and legacy system expansions.
Technical Specifications
- Part Number / SKU: IC200ALG266F
- Manufacturer: GE (General Electric) / GE Automation & Controls
- Series: VersaMax PLC — IC200 I/O Module Family
- Module Type: Analog Input Module
- Input Signal Types: Current (4–20 mA) and Voltage (0–10 V / ±10 V)
- Number of Channels: 16 single-ended / 8 differential (configurable)
- Resolution: 15-bit + sign (16-bit total)
- Conversion Speed: Selectable per channel
- Isolation: Field-side isolation from logic bus
- Backplane Bus: VersaMax I/O bus compatible
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% non-condensing
- Power Consumption: Supplied via VersaMax backplane
- Certifications: CE, UL listed
- Form Factor: VersaMax I/O module (standard slot)
- Weight: Approx. 100 g
Note: Specifications are based on GE published datasheets. Always verify against the official GE IC200ALG266F datasheet for your specific revision.
Key Features & Benefits
- High Channel Density: Up to 16 analog input channels in a single module slot, reducing cabinet space and wiring complexity.
- Dual Signal Mode: Supports both current (4–20 mA) and voltage (0–10 V / ±10 V) inputs, eliminating the need for separate modules per signal type.
- 16-Bit Resolution: Delivers high-precision measurement critical for process control loops where small deviations matter.
- Per-Channel Configuration: Each channel can be independently configured for range and mode via software, maximizing flexibility.
- Field-Side Isolation: Protects the PLC backplane and CPU from field-side transients and ground loops.
- Seamless VersaMax Integration: Plug-and-play compatibility with VersaMax CPU carriers, remote I/O heads, and Ethernet NIU modules.
- Proven Industrial Reliability: Designed to operate in harsh industrial environments with wide temperature tolerance and vibration resistance.
- Software Configurability: Fully configurable via GE Proficy Machine Edition (PME) without hardware jumpers.
Industry & Equipment Applications
- Oil & Gas: Wellhead pressure and flow monitoring, pipeline SCADA systems
- Chemical Processing: Reactor temperature and level control, batch process automation
- Water & Wastewater: Flow meter signal acquisition, pump station monitoring
- Power Generation: Turbine control analog feedback, generator monitoring panels
- Automotive Manufacturing: Paint booth environmental monitoring, press force measurement
- Food & Beverage: Temperature profiling in pasteurization and CIP systems
- Pulp & Paper: Web tension and moisture content measurement
- Building Automation: HVAC analog sensor integration with VersaMax-based BMS controllers
System Integration & Compatible Parts
The IC200ALG266F is designed to integrate directly into the GE VersaMax I/O system. Compatible and commonly paired components include:
- CPU Modules: IC200CPUE05, IC200CPU001, IC200CPU002 (VersaMax Micro & standard CPUs)
- Power Supplies: IC200PWR002, IC200PWR101 (VersaMax I/O power supplies)
- Carrier / Backplane: IC200CHS002, IC200CHS022 (VersaMax I/O carriers)
- Network Interface Units: IC200BEM003 (Genius Bus), IC200PBI001 (PROFIBUS-DP)
- Remote I/O Heads: IC200ETM001 (Ethernet NIU for remote VersaMax I/O)
- Programming Software: GE Proficy Machine Edition (PME) — required for module configuration
Our Quality Assurance Process
At Konmask.com, every GE IC200ALG266F module goes through a rigorous multi-stage verification process before shipment:
- Authenticity Verification: Cross-referenced against GE manufacturer records and part markings to confirm genuine origin.
- Visual Inspection: Full physical inspection for connector integrity, PCB condition, label accuracy, and revision marking.
- Functional Pre-check: Where applicable, modules are powered and checked for basic operational status.
- Anti-Static Packaging: All modules are packed in ESD-safe bags with foam cushioning and clearly labeled outer cartons.
- Documentation: Each shipment includes a packing list with part number, revision, and serial/lot reference where available.
How to Order
- Submit an inquiry via the Contact Us form or email support@konmask.com with your required quantity and delivery timeline.
- Our technical team will confirm availability, lead time, and provide a formal quotation within 24 business hours.
- Upon quote acceptance, we issue a Proforma Invoice (PI) and arrange payment via T/T, PayPal, or other agreed methods.
- After payment confirmation, we process, pack, and ship with full tracking information provided.
- Post-delivery support is available for installation guidance and compatibility questions.
📧 support@konmask.com | 📞 +0086 19859288691
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation: We focus exclusively on PLC, DCS, HMI, and industrial I/O components — not a general electronics distributor.
- ✅ Global Sourcing Network: Access to both new and surplus GE VersaMax inventory from verified supply chains worldwide.
- ✅ Technical Expertise: Our team includes experienced automation engineers who can advise on compatibility and system integration.
- ✅ Fast Response: Inquiry-to-quote within 24 hours; urgent requirements handled with priority processing.
- ✅ Secure Packaging & Reliable Shipping: ESD-safe packing, DHL/FedEx/UPS express options, and full export documentation support.
- ✅ Transparent Communication: No hidden fees. Clear lead times, honest stock status, and proactive updates throughout the order process.
Frequently Asked Questions
Q1: Is the IC200ALG266F compatible with all VersaMax CPU modules?
A: Yes, the IC200ALG266F is compatible with the full range of GE VersaMax CPU and remote I/O head modules. It communicates via the standard VersaMax I/O bus and is configured through GE Proficy Machine Edition software.
Q2: Can I mix current and voltage inputs on the same IC200ALG266F module?
A: Yes. Each channel can be independently configured for either current (4–20 mA) or voltage (0–10 V / ±10 V) input via software configuration in PME, without any hardware changes.
Q3: What is the difference between IC200ALG266 and IC200ALG266F?
A: The “F” suffix typically denotes a firmware or hardware revision update by GE. The IC200ALG266F is the current production revision and is backward compatible with earlier revisions in the same slot.
Q4: Do you supply new or refurbished modules?
A: We supply both new (factory-sealed) and tested surplus units depending on availability. Stock status is confirmed at the time of inquiry. All units pass our quality inspection process regardless of origin.
Q5: How long does shipping take to my country?
A: Standard express shipping (DHL/FedEx) typically takes 3–7 business days to most destinations. We provide full export documentation including commercial invoice and packing list to support customs clearance.
Q6: Can you provide a datasheet or technical documentation for the IC200ALG266F?
A: Yes. Contact us at support@konmask.com and we will provide the official GE datasheet and any available application notes for this module.
