Profibus DP Automation Solution – GE IC200GBI001 | VersaMax Series

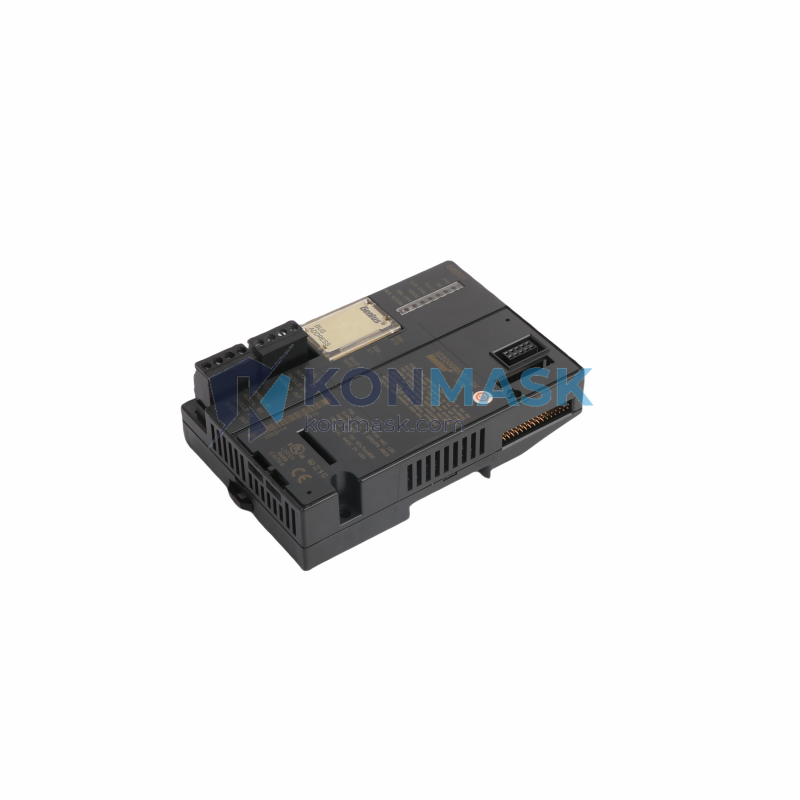

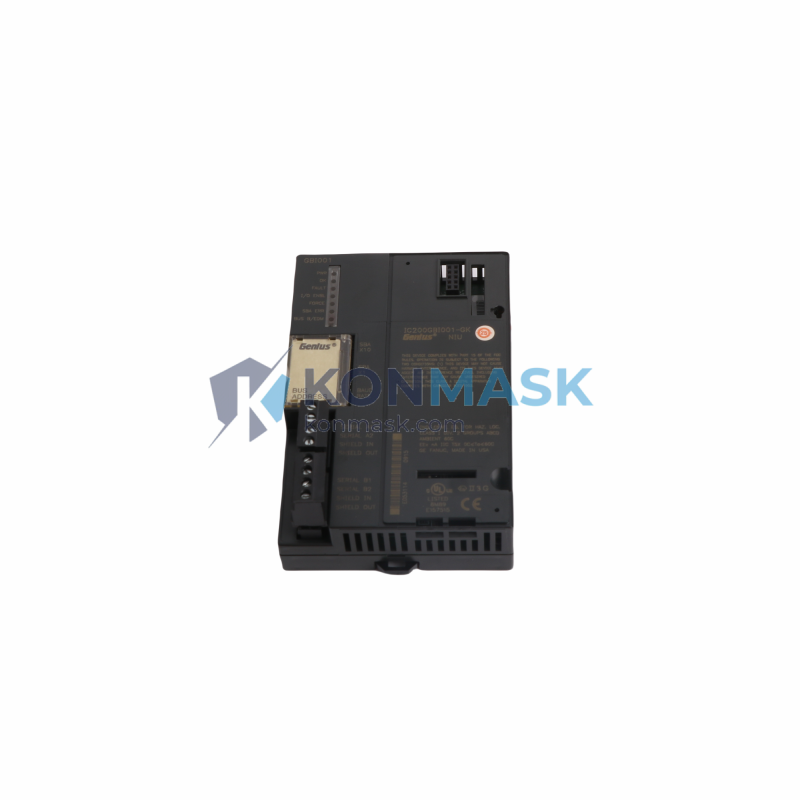

The GE IC200GBI001 is a Profibus DP Network Interface Module designed for the GE VersaMax distributed I/O platform. It enables seamless integration of VersaMax I/O stations into Profibus DP networks, making it a critical component in distributed control architectures across process, manufacturing, and utility industries.
Where This Product Is Used
The IC200GBI001 is specified by automation engineers in environments where distributed I/O must communicate over Profibus DP fieldbus networks. Typical deployment scenarios include:
- Automotive Assembly Lines – Connecting remote I/O stations to Siemens S7 or GE Series 90 PLCs via Profibus DP for real-time body-in-white and paint shop control.
- Water & Wastewater Treatment Plants – Distributed pump station monitoring and valve control across large geographic footprints using Profibus DP topology.
- Oil & Gas Upstream/Midstream – Remote I/O integration at wellhead panels and compressor stations where Profibus DP is the established fieldbus standard.
- Pharmaceutical Manufacturing – GMP-compliant process control systems requiring deterministic fieldbus communication for batch reactor and filling line automation.
- Power Generation & Utilities – Turbine auxiliary control and switchgear monitoring systems using VersaMax I/O nodes on Profibus DP segments.
- Food & Beverage Processing – Hygienic zone I/O expansion for conveyors, mixers, and packaging lines integrated via Profibus DP master controllers.
Technical Specifications
- Part Number: IC200GBI001
- Series: GE VersaMax Distributed I/O
- Network Protocol: Profibus DP (EN 50170 / IEC 61158)
- Baud Rate: 9.6 Kbps – 12 Mbps (auto-detect)
- Node Address: 0–125 (software configurable)
- Max I/O Modules per Station: Up to 8 VersaMax I/O modules
- Power Supply: 24 VDC (supplied via VersaMax power supply module)
- Backplane Connector: VersaMax standard backplane bus
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Weight: 160 g
- Dimensions: Standard VersaMax module form factor
- Certifications: CE, UL Listed, cUL
Why Engineers Specify This Model
- Plug-and-Play Profibus Integration – Auto baud-rate detection eliminates manual DIP switch configuration, reducing commissioning time on multi-segment networks.
- Full VersaMax Ecosystem Compatibility – Works natively with all IC200 series I/O modules, power supplies, and carrier assemblies without additional gateways.
- Deterministic Communication – Profibus DP cyclic data exchange ensures sub-millisecond I/O update times critical for motion and process control loops.
- Wide Baud Rate Range – Supports 9.6 Kbps to 12 Mbps, accommodating both legacy installations and high-speed modern networks on the same segment.
- Compact DIN-Rail Footprint – Minimizes panel space in distributed junction boxes and remote I/O enclosures.
- Proven Field Reliability – Deployed in thousands of industrial installations globally with a documented MTBF exceeding 10 years in continuous operation.
Complete System Bill of Materials
For a complete VersaMax Profibus DP remote I/O station, engineers typically specify the following alongside the IC200GBI001:
- IC200PWR002 – VersaMax 24 VDC Power Supply Module
- IC200CHS002 – VersaMax 8-Slot Carrier Assembly
- IC200MDL640 – 16-Point 24 VDC Discrete Input Module
- IC200MDL740 – 16-Point 24 VDC Discrete Output Module
- IC200ALG260 – 4-Channel Analog Input Module (4–20 mA)
- IC200ALG320 – 2-Channel Analog Output Module (4–20 mA)
- Profibus DP cable (shielded, twisted pair, per EN 50170 Type A specification)
- Profibus DP bus termination resistors (active termination at segment ends)
Compliance & Industry Standards
- Profibus DP Standard: EN 50170 / IEC 61158 / IEC 61784
- EMC Directive: CE marked per 2014/30/EU
- Safety: UL Listed, cUL (Canada)
- RoHS: Compliant with EU Directive 2011/65/EU
- Industrial Environment: Designed to IEC 61131-2 environmental requirements
- Vibration & Shock: Tested per IEC 60068-2-6 and IEC 60068-2-27
Quality Assurance & Sourcing
At Konmask.com, every IC200GBI001 unit undergoes a rigorous multi-point inspection process before shipment:
- Visual inspection for physical damage, corrosion, and connector integrity
- Functional power-on test verifying LED status indicators and backplane communication
- Profibus DP node address configuration and baud-rate auto-detect verification
- Firmware version check and documentation
- Anti-static packaging with humidity indicator card
All units are sourced from authorized distributors, certified refurbishers, or directly from decommissioned OEM installations with full traceability documentation available upon request.
How to Source This Part
- In Stock: Ready to ship within 1–2 business days from our warehouse.
- Lead Time (if out of stock): Typically 3–7 business days via our global sourcing network.
- Quantity Pricing: Volume discounts available for orders of 5+ units — contact us for a formal quotation.
- Export Compliance: We handle EAR/ECCN classification and export documentation for international shipments.
- Contact: Email support@konmask.com or call +0086 19859288691 for urgent requirements or system-level BOM quotations.
Application-Specific FAQ
Q: Is the IC200GBI001 compatible with Siemens S7-300/400 Profibus DP masters?
A: Yes. The IC200GBI001 is a standard Profibus DP slave device and is fully interoperable with any Profibus DP master controller, including Siemens S7, ABB, Schneider, and Rockwell systems, using the GSD file provided by GE.
Q: How many IC200GBI001 nodes can exist on a single Profibus DP segment?
A: A single Profibus DP segment supports up to 32 nodes (including master). With repeaters, up to 125 slave nodes can be addressed across extended networks.
Q: Can this module be used with GE PACSystems RX3i or RX7i as the Profibus master?
A: Yes. The IC200GBI001 operates as a Profibus DP slave and is fully compatible with GE PACSystems Profibus DP master modules (e.g., IC695PBM300) as well as legacy Series 90-70 Profibus masters.
Q: What GSD file is required for configuration?
A: The GSD file (GEGE0B01.GSD or equivalent) is available from GE’s product documentation library. Konmask can provide the GSD file upon request with your order.
Q: Is a firmware upgrade available for this module?
A: Firmware updates for the IC200GBI001 are managed via the GE Machine Edition programming environment. Contact us if you require a specific firmware version for your application.
