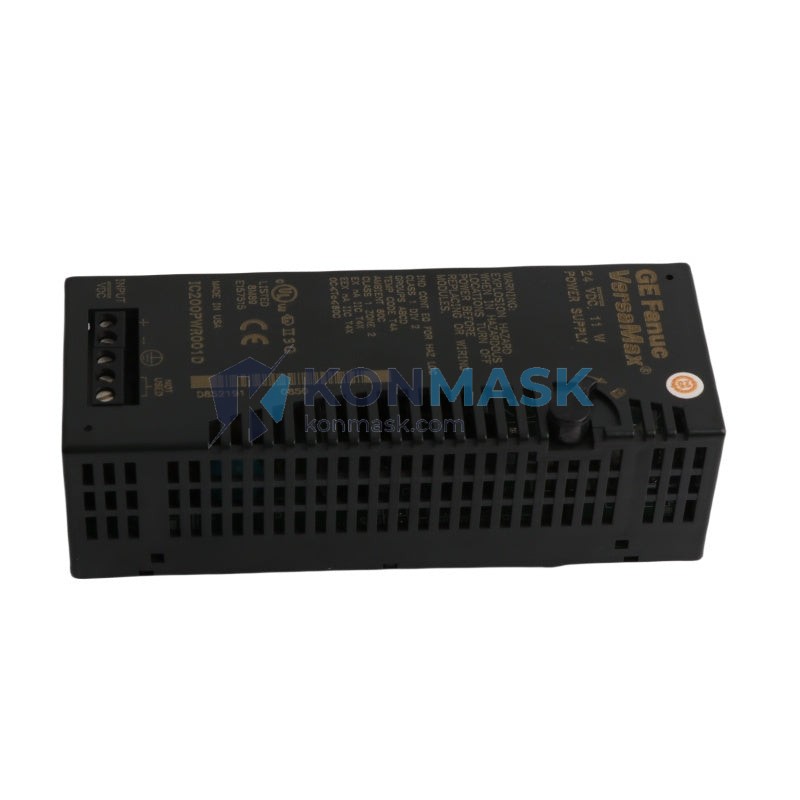

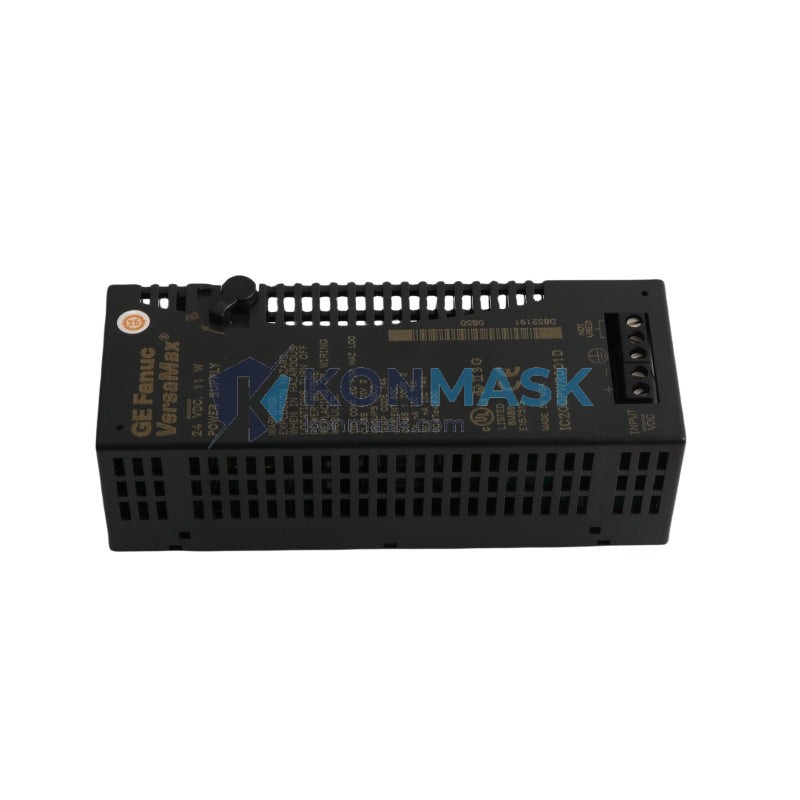

GE IC200PWR001 – 24VDC Input Power Supply Module | VersaMax Micro Platform
Engineering Background: The IC200PWR001 is the dedicated 24 VDC input power supply module for GE’s VersaMax Micro PLC family. Designed to accept a wide-range 24 VDC bus input, it converts and conditions power for the CPU and I/O backplane, ensuring stable, noise-immune operation in demanding industrial environments. It is a direct factory-replacement and expansion component within the IC200 series ecosystem.
Product Positioning: Targeted at OEM machine builders, system integrators, and MRO procurement teams who require a certified, drop-in power supply for existing VersaMax Micro installations or new panel builds. Konmask.com stocks genuine and quality-verified units with full traceability documentation available on request.
Complete Technical Specifications
- Part Number: IC200PWR001
- Series / Platform: GE VersaMax Micro (IC200 Series)
- Input Voltage: 24 VDC (nominal), 20.4 – 28.8 VDC operating range
- Input Current: ≤ 1.5 A @ 24 VDC (typical load)
- Output: Regulated backplane power for VersaMax Micro CPU & I/O modules
- Isolation: Input-to-logic isolation per IEC 61131-2
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: −40 °C to +85 °C
- Relative Humidity: 5 – 95 % RH, non-condensing
- Mounting: DIN rail or panel mount via VersaMax Micro base
- Dimensions (W × H × D): Refer to GE datasheet GFK-1504 for exact footprint
- Weight: Approx. 120 g
- Certifications: UL Listed, CE Marked, cUL
- Compatibility: IC200UDR002, IC200UDR005, IC200UDD064, and all VersaMax Micro CPU bases
Proven Application Environments
- Discrete manufacturing: conveyor control, pick-and-place, assembly line sequencing
- Building automation: HVAC control panels, access control, lighting management
- Water & wastewater: pump station control, level monitoring
- Food & beverage: packaging machinery, batch processing
- Oil & gas: remote terminal units (RTU), wellhead monitoring panels
- MRO replacement for aging VersaMax Micro installations requiring power supply swap-out
Engineering Advantages
- Wide input tolerance: ±20 % of nominal 24 VDC handles real-world supply fluctuations without nuisance trips
- Galvanic isolation: Protects CPU logic from field-side transients and ground loops
- Compact form factor: Integrates directly into the VersaMax Micro base — no external PSU enclosure required
- Low heat dissipation: High-efficiency design minimises panel thermal load
- Plug-and-play replacement: Identical footprint and connector to original factory unit; no firmware changes required
- UL/CE certified: Meets global safety standards for industrial control equipment
System Architecture & Signal Flow

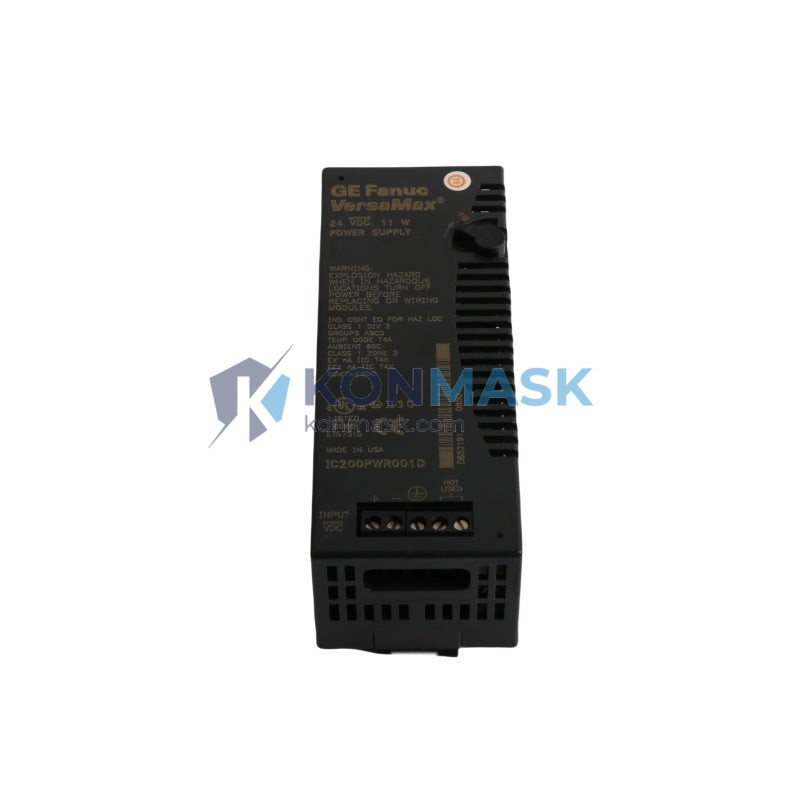

The IC200PWR001 mounts directly onto the VersaMax Micro base unit. 24 VDC field power enters via the two-terminal screw connector on the module face. Internally, the module regulates and isolates this supply before distributing conditioned logic power across the backplane bus to the CPU (e.g., IC200UDR002) and any attached I/O expansion modules. The CPU communicates over the internal serial backplane; the power module has no programmable parameters and requires no configuration — it is purely a power-conditioning component.
Signal flow: Field 24 VDC → IC200PWR001 input terminals → internal DC/DC regulation & isolation → backplane bus → CPU + I/O modules
Sourcing & Quality Verification
- Units sourced from authorised distributors and verified OEM channels
- Each unit inspected for physical integrity, label authenticity, and connector condition prior to dispatch
- Serialisation and date-code records available on request for traceability
- Packaging: anti-static bag + foam-lined carton; ESD-safe handling throughout
- Certificate of conformance (CoC) available for regulated industries
Procurement Process
- Add IC200PWR001 to cart and complete checkout, or contact us for volume/blanket-order pricing
- Receive order confirmation with estimated lead time (typically 1–3 business days for in-stock units)
- Unit ships with packing slip and optional CoC documentation
- Post-delivery technical support available via email or phone
Technical FAQ
Q: Is IC200PWR001 compatible with VersaMax (full-size) I/O, not just VersaMax Micro?
A: No. IC200PWR001 is designed exclusively for the VersaMax Micro base. Full-size VersaMax I/O systems use a different power supply form factor (e.g., IC200PWR002).
Q: Can I use an AC input power supply instead?
A: The IC200PWR001 accepts DC input only. For AC input applications, GE offers the IC200PWR002 (120/240 VAC). Confirm your panel supply voltage before ordering.
Q: What is the maximum number of I/O modules this power supply can support?
A: Power budget depends on the specific I/O modules used. Refer to GE reference manual GFK-1504 for the power budget calculation worksheet.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 90-day functional warranty on all verified units. Extended warranty options are available — contact us for details.
Q: Can I get a datasheet or wiring diagram?
A: Yes. Contact support@konmask.com and reference part number IC200PWR001; we will provide the relevant GE documentation.
