General Electric IC3600ADAHIC – Analog Input / Signal Conditioning Board | Mark IV Gas Turbine Control Platform
Engineering Background

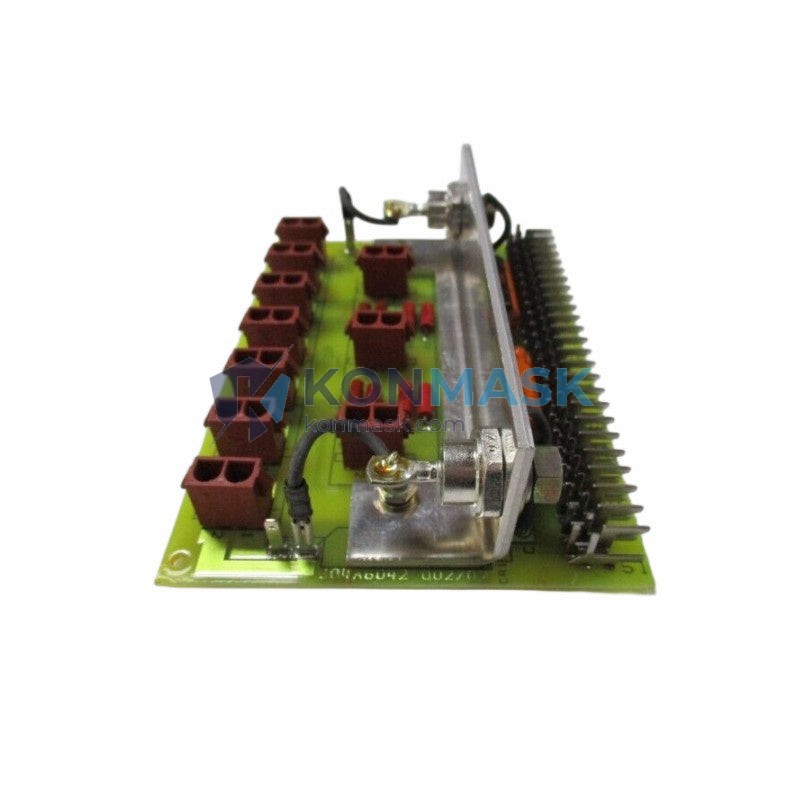

The GE IC3600ADAHIC is a precision analog signal conditioning printed circuit board engineered for integration within General Electric’s Mark IV Speedtronic™ gas turbine control system. Designed to interface directly with turbine instrumentation loops, this board performs critical analog-to-digital conversion, signal scaling, and fault-tolerant signal routing tasks that underpin safe and reliable turbine operation in power generation and industrial drive applications.
Product Positioning
As OEM replacement inventory for aging Mark IV installations, the IC3600ADAHIC addresses the growing challenge of sustaining legacy turbine control infrastructure without full panel upgrades. Procurement engineers sourcing this board gain a direct, cost-effective path to restoring system integrity while maintaining full compatibility with existing Mark IV I/O architecture, wiring, and software logic.
Complete Technical Specifications
| Part Number | IC3600ADAHIC |
| Manufacturer | General Electric (GE Energy / GE Power) |
| Platform | Mark IV Speedtronic™ Gas Turbine Control System |
| Board Type | Analog Input / Signal Conditioning PC Board |
| Form Factor | Plug-in PCB module, Mark IV rack-compatible |
| Signal Interface | Analog input channels with onboard conditioning and scaling |
| Operating Voltage | Per Mark IV panel bus specification (typically ±15 VDC / +5 VDC logic) |
| Operating Temperature | 0°C to +60°C (panel ambient) |
| Weight | 300 g (approx.) |
| Condition | Surplus / Refurbished – tested to OEM functional specification |
| Warranty | 12-month Konmask quality warranty |
Proven Application Environments
- Power Generation: Combined-cycle and simple-cycle gas turbine plants running GE Frame 5, Frame 6, Frame 7 units with Mark IV control panels
- Oil & Gas: Compressor drive turbines and pipeline booster stations with legacy Mark IV installations
- Industrial Utilities: Cogeneration facilities and district energy plants requiring long-term Mark IV spares support
- Marine & Offshore: Platform power generation turbines with GE Speedtronic Mark IV architecture
- Maintenance & Overhaul (MRO): Turbine service centers performing board-level repairs and panel refurbishments
Engineering Advantages
- Drop-in Compatibility: Direct OEM form-fit-function replacement — no firmware changes, no wiring modifications required
- Signal Integrity: Onboard conditioning circuitry maintains measurement accuracy across full turbine operating range
- Fault Isolation: Board-level replacement strategy minimizes turbine downtime versus full panel swap
- Proven Reliability: GE Mark IV platform has accumulated decades of field hours in harsh industrial environments
- Immediate Availability: Surplus stock held in climate-controlled warehouse, ready for same-week dispatch
System Architecture & Signal Flow
Within the Mark IV Speedtronic architecture, the IC3600ADAHIC resides in the analog input section of the control panel. Field sensor signals (thermocouples, RTDs, pressure transmitters, and speed pickups) are routed through terminal boards into the IC3600ADAHIC, where they undergo signal conditioning — including filtering, amplification, and isolation — before being passed to the Mark IV processor cards for control logic execution. The board communicates via the Mark IV internal backplane bus, ensuring synchronous data transfer with the turbine control sequence.
Sourcing & Quality Verification
- All units sourced from decommissioned OEM installations or authorized surplus channels
- Each board undergoes visual inspection, cleaning, and functional bench testing prior to listing
- Electrostatic discharge (ESD) protective packaging used for all shipments
- Serialized traceability records maintained for each unit
- Certificate of conformance available upon request for regulated procurement processes
Procurement Process
- Confirm Part Number: Verify IC3600ADAHIC against your Mark IV panel BOM or existing board label
- Request Quote: Contact Konmask for current stock availability and volume pricing
- Technical Review: Our engineering team can cross-reference your panel revision for compatibility confirmation
- Order & Ship: Orders confirmed before 14:00 CST dispatched same business day; global freight options available
- Incoming Inspection: Recommended bench test against known-good Mark IV panel before installation
Technical FAQ
Q: Is the IC3600ADAHIC compatible with Mark V or Mark VI panels?
A: No. This board is designed exclusively for the Mark IV Speedtronic platform. Mark V and Mark VI use different I/O architectures and are not pin-compatible.
Q: Can Konmask provide a test report for this board?
A: Yes. A functional test summary is available upon request. Full third-party certification testing can be arranged for critical applications.
Q: What is the lead time if the board is out of stock?
A: Konmask maintains an active global sourcing network. Typical lead time for sourced units is 2–4 weeks. Contact us to register your requirement.
Q: Do you offer exchange or repair services?
A: Yes. Board exchange and repair-and-return programs are available. Contact support@konmask.com for details.
Q: What packaging is used for international shipments?
A: All boards are shipped in anti-static bags inside foam-lined cartons, compliant with ISTA 2A transit testing standards.
