GE IC3600VMPA1E – Mechanical Protective Circuit Board | Mark I Speedtronic Platform
Engineering Background: The GE Speedtronic Mark I turbine control system was introduced in the late 1960s and became the industry benchmark for gas turbine protection and sequencing. Designed for Frame 5, Frame 6, and early Frame 7 heavy-duty gas turbines, the Mark I architecture relies on dedicated analog protection boards to enforce hard-wired safety limits independent of the main control logic. The IC3600VMPA1E is one such board — a mechanical protection module that monitors critical mechanical parameters and initiates emergency shutdown when thresholds are exceeded.

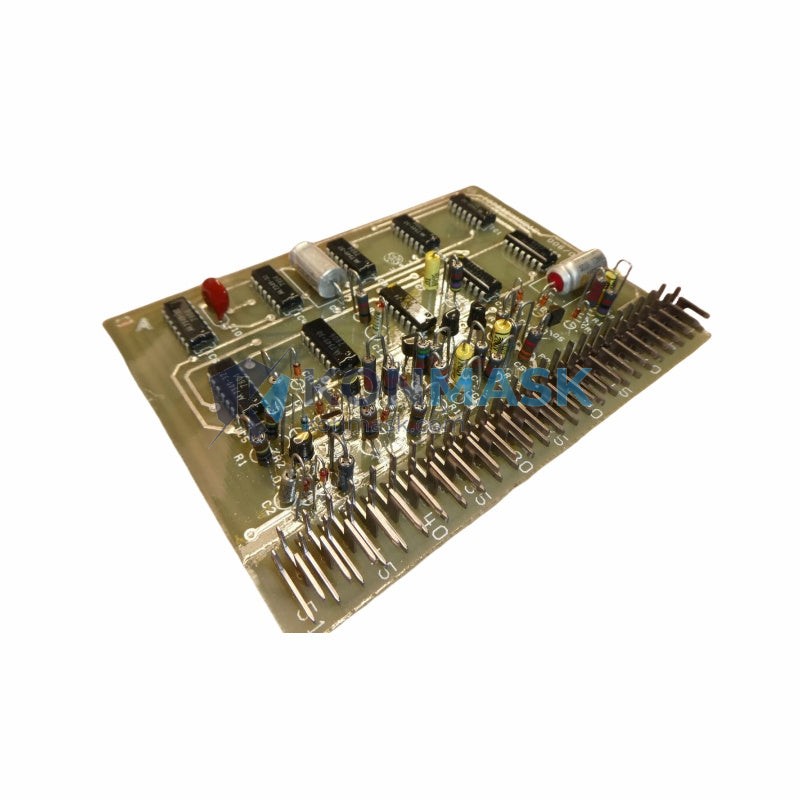

Product Positioning: The IC3600VMPA1E is a direct-replacement mechanical protective circuit board for GE Speedtronic Mark I turbine control panels. It provides hardware-level overspeed detection, vibration monitoring, and flame-out protection — functions that cannot be emulated in software and must remain operational even during control processor faults. Procurement engineers sourcing this board require verified OEM provenance, functional test records, and traceability documentation to satisfy plant safety audits.
Complete Technical Specifications
| Part Number | IC3600VMPA1E |
| Manufacturer | General Electric (GE) |
| Series / Platform | Speedtronic Mark I (IC3600 Series) |
| Module Function | Mechanical Protective Circuit Board |
| Protection Functions | Overspeed trip, vibration trip, flame-out detection, mechanical limit enforcement |
| Compatible Turbines | GE Frame 5, Frame 6, Frame 7 (early) heavy-duty gas turbines |
| Control Panel | GE Speedtronic Mark I turbine control cabinet |
| Logic Type | Analog hard-wired protection (non-programmable) |
| Form Factor | Plug-in PCB card, IC3600 card cage format |
| Operating Temperature | 0°C to +60°C (panel ambient) |
| Weight (approx.) | 800 g |
| Condition Available | Refurbished / Tested / New Surplus |
Proven Application Environments
- Power Generation Plants – Peaking and base-load gas turbine generators running GE Frame 5/6/7 units with legacy Mark I control panels still in service.
- Oil & Gas Compression Stations – Pipeline compressor drives where turbine mechanical protection must remain active independent of DCS communication.
- Industrial Cogeneration (CHP) – Combined heat and power facilities requiring continuous turbine availability with hard-wired safety interlocks.
- Petrochemical & Refinery Utilities – Process utility turbines where flame-out and overspeed protection are mandated by site safety cases.
- Marine & Offshore Platforms – Offshore power generation turbines operating in harsh environments where analog protection boards offer higher reliability than digital alternatives.
- Spare Parts Inventory Programs – Plant maintenance teams maintaining critical spare boards to minimize turbine downtime during unplanned outages.
Engineering Advantages
- Hardware-Level Protection: Analog hard-wired logic enforces overspeed and vibration trips without dependency on software or processor health — critical for SIL-rated protection loops.
- Direct Drop-In Replacement: Identical form factor, connector pinout, and signal conditioning to the original OEM board — no panel rewiring or calibration changes required.
- Proven Long-Term Reliability: Mark I boards are engineered for 20+ year service life in continuous-duty turbine environments.
- Independent of Control Processor: Mechanical protection functions remain active even during Mark I control card faults, maintaining turbine safety during diagnostic events.
- Reduced Commissioning Risk: Tested and verified boards ship ready for installation, reducing outage window duration for maintenance teams.
System Architecture & Signal Flow
Within the Mark I Speedtronic cabinet, the IC3600VMPA1E receives analog signals from turbine-mounted sensors — magnetic speed pickups, vibration transducers, and flame detectors. The board conditions these signals through dedicated analog circuits, compares them against hard-wired setpoints, and drives relay outputs to the turbine trip solenoid and alarm annunciator. Signal flow is strictly one-directional: sensor → IC3600VMPA1E → trip relay → fuel shutoff valve. This architecture ensures that a single board failure cannot create a spurious run condition.
The board interfaces with adjacent IC3600 series cards including the sequencing logic cards, the temperature control cards (e.g., IC3600TCQA), and the I/O terminal boards via the Mark I card cage backplane. Replacement requires only card extraction and re-insertion — no field wiring changes.
Sourcing & Quality Verification
- All IC3600VMPA1E boards sourced by Konmask undergo incoming inspection including visual PCB examination, component-level continuity checks, and functional bench testing against Mark I signal specifications.
- Boards are supplied with test reports documenting pass/fail status for each protection channel.
- Traceability documentation (serial number, revision level, test date) is included with each shipment to support plant maintenance records and safety audit requirements.
- Anti-static packaging with humidity indicator cards is used for all shipments.
- Konmask does not supply counterfeit, remarked, or untested boards. All stock is sourced from decommissioned OEM panels, authorized distributors, or verified surplus channels.
Procurement Process
- Confirm Part Number: Verify IC3600VMPA1E against your panel drawing or existing board label. Note the revision suffix (e.g., A, B, E) — contact us to confirm cross-compatibility if your revision differs.
- Request a Quote: Email support@konmask.com with your required quantity, delivery timeline, and any documentation requirements (COC, test report, datasheet).
- Order Confirmation: Konmask issues a proforma invoice with lead time, shipping method, and payment terms. Standard lead time: 3–7 business days for in-stock units.
- Shipment & Tracking: Boards ship via DHL Express or FedEx International Priority with full tracking. Export documentation (commercial invoice, packing list, HS code 8537.10) is included.
- Installation Support: Konmask technical advisors are available via email or WhatsApp to support installation and commissioning queries.
Technical FAQ
Q: Is the IC3600VMPA1E compatible with Mark II or Mark IV Speedtronic systems?
A: No. The IC3600 series is specific to the Mark I platform. Mark II uses the IC3600 series in a modified configuration, and Mark IV uses entirely different card formats. Contact us with your panel model number for cross-compatibility guidance.
Q: What is the difference between IC3600VMPA1A, 1B, 1C, and 1E revision suffixes?
A: Revision suffixes denote minor PCB layout or component changes made during the product lifecycle. In most cases, later revisions are backward-compatible, but Konmask recommends confirming with your panel drawing before ordering.
Q: Can this board be repaired rather than replaced?
A: Component-level repair is possible for some failure modes (e.g., failed op-amps, blown protection diodes). Konmask offers board repair services — contact us with your fault description for a repair assessment.
Q: What documentation is provided with the board?
A: Each board ships with a functional test report, visual inspection record, and packing list. Certificates of Conformance (COC) are available on request.
Q: What is the typical lead time for urgent orders?
A: In-stock boards can ship within 24–48 hours of order confirmation. Express air freight to most destinations takes 2–4 business days.
