GE IC693CHS391M 10-Slot Baseplate | Replacement, Equivalent & Selection Guide

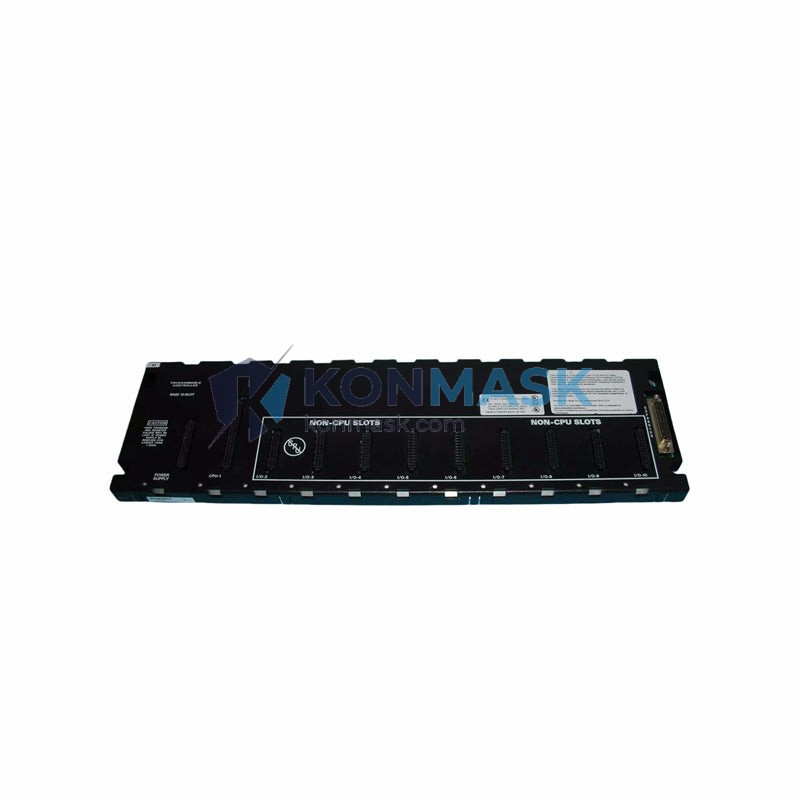

The GE IC693CHS391M is a 10-slot baseplate (rack) designed for the GE Fanuc Series 90-30 PLC platform. It provides the physical and electrical backbone for mounting CPU, I/O, and specialty modules in distributed or centralized control architectures. This page serves as a comprehensive selection, replacement, and compatibility reference for engineers and procurement teams sourcing IC693CHS391M or its equivalents.
Technical Specifications
- Part Number: IC693CHS391M
- Manufacturer: GE Fanuc / GE Automation & Controls
- Series: Series 90-30
- Type: 10-Slot Baseplate / Expansion Rack
- Slot Count: 10 module slots
- Bus Type: Series 90-30 backplane bus
- Power Supply: Requires compatible Series 90-30 power supply (e.g., IC693PWR321, IC693PWR330, IC693PWR331)
- Mounting: DIN rail or panel mount
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Humidity: 5% to 95% non-condensing
- Weight: Approx. 200 g
- Compliance: CE, UL listed
Compatible Replacement & Equivalent Models
When the IC693CHS391M is unavailable or discontinued, the following models may serve as direct or functional replacements depending on your system configuration:
- IC693CHS391 – Earlier revision of the same 10-slot baseplate; functionally equivalent in most applications
- IC693CHS392 – 10-slot expansion baseplate with serial bus expansion port; suitable when remote I/O expansion is required
- IC693CHS393 – 10-slot baseplate with enhanced grounding; check revision compatibility with your CPU
- IC693CHS398 – 5-slot baseplate; use only when slot count reduction is acceptable
- IC693CHS399 – 5-slot expansion baseplate; for compact panel layouts
Note: Always verify firmware revision and power supply compatibility before substituting baseplates. Contact support@konmask.com for cross-reference assistance.
Why Choose the Original IC693CHS391M
- Guaranteed Compatibility: Factory-validated for all Series 90-30 CPU and I/O modules
- Revision M Reliability: Incorporates manufacturing improvements over earlier revisions for enhanced signal integrity
- Full 10-Slot Capacity: Maximizes I/O density in a single rack, reducing wiring complexity
- Long Service Life: Designed for 24/7 industrial environments with high vibration and temperature tolerance
- OEM Traceability: Sourced with full documentation for audit and compliance requirements
Typical Applications
- Discrete manufacturing automation (assembly lines, conveyors)
- Process control in chemical, oil & gas, and water treatment plants
- Building automation and HVAC control systems
- Machine tool and packaging machine control
- Legacy system maintenance and MRO (Maintenance, Repair & Operations) replacement
System Compatibility
The IC693CHS391M is compatible with the full GE Series 90-30 module ecosystem, including:
- CPUs: IC693CPU311, IC693CPU313, IC693CPU321, IC693CPU323, IC693CPU331, IC693CPU340, IC693CPU341, IC693CPU350, IC693CPU351, IC693CPU360, IC693CPU363, IC693CPU364, IC693CPU374
- Power Supplies: IC693PWR321, IC693PWR330, IC693PWR331
- I/O Modules: IC693MDL Series (discrete and analog input/output)
- Communications: IC693CMM Series (Ethernet, Genius, Profibus)
- Specialty Modules: IC693APU Series, IC693DSM Series
Selection Guide
Use the following criteria to confirm IC693CHS391M is the right baseplate for your project:
- Slot Requirement: Do you need 10 module slots in a single rack? → IC693CHS391M ✓
- Expansion Need: Do you need serial bus expansion to a remote rack? → Consider IC693CHS392 instead
- Compact Layout: Is panel space limited to 5 slots? → Consider IC693CHS398 or IC693CHS399
- Revision Matching: Confirm your CPU firmware supports revision M baseplates (all Series 90-30 CPUs do)
- Power Budget: Verify total module current draw does not exceed your power supply rating
Quality Assurance & Sourcing
- All units at Konmask.com are sourced from authorized distributors or verified surplus channels
- Each unit undergoes visual inspection and functional verification prior to shipment
- Original packaging and documentation provided where available
- Traceability records available upon request for regulated industries
- 12-month warranty against manufacturing defects
How to Order
- Add IC693CHS391M to cart and proceed to checkout
- For bulk orders (>5 units) or urgent requirements, contact support@konmask.com
- Lead time: In-stock units ship within 1–3 business days; special orders 5–15 business days
- Export documentation (CO, packing list, commercial invoice) available for international orders
Replacement & Compatibility FAQ
Q: Can IC693CHS391 (without the M suffix) replace IC693CHS391M?
A: Yes, in most cases. The M suffix denotes a manufacturing revision. Functionally they are equivalent; verify with your system integrator for critical applications.
Q: Is IC693CHS391M compatible with Series 90-70 modules?
A: No. The Series 90-30 and Series 90-70 use different backplane architectures and are not cross-compatible.
Q: Can I mix CPU and I/O modules from different manufacturers in this baseplate?
A: Only GE Series 90-30 compatible modules should be used. Third-party modules must be explicitly validated for Series 90-30 backplane compatibility.
Q: What power supply do I need for IC693CHS391M?
A: IC693PWR321 (120/240 VAC), IC693PWR330 (24 VDC), or IC693PWR331 (125 VDC) are the standard options. Select based on your facility power source.
Q: Does Konmask offer repair or refurbishment services?
A: Yes. Contact support@konmask.com for repair quotations on failed units.
