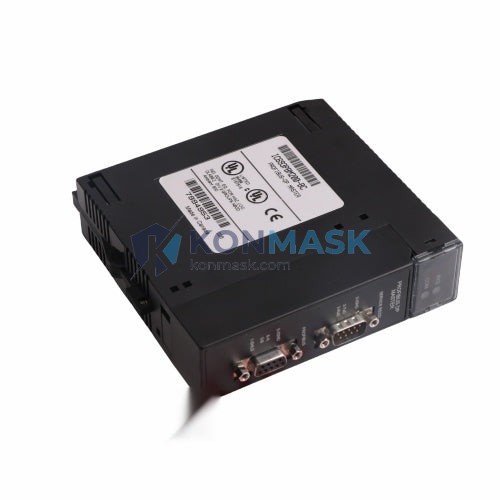

GE IC693PBM200 PROFIBUS-DP Master Module – Series 90-30 PLC
When a PROFIBUS-DP master module fails on the plant floor, the consequences are immediate and severe: entire device networks go silent, distributed I/O racks stop responding, and production lines halt without warning. Operators lose visibility into field instruments, drives, and sensors simultaneously — a single missing module can cascade into hours of unplanned downtime and significant revenue loss. The GE IC693PBM200 is the critical link that keeps your PROFIBUS network alive and your automation system in command.
Within the GE Series 90-30 PLC ecosystem — one of the most widely deployed modular PLC platforms in North American and global industrial automation — the IC693PBM200 occupies a strategic position as the dedicated PROFIBUS-DP Class 1 Master. It enables the Series 90-30 CPU to act as the network master, orchestrating communication with up to 125 slave devices across a single PROFIBUS-DP segment. This module has been a cornerstone of fieldbus integration projects in manufacturing, utilities, and process industries for decades, and remains in active demand for both new installations and legacy system maintenance worldwide.
Technical Specifications
- Part Number: IC693PBM200
- Manufacturer: GE (General Electric) / GE Automation & Controls
- Series: Series 90-30 PLC
- Module Type: PROFIBUS-DP Class 1 Master Module
- Protocol: PROFIBUS-DP (EN 50170 / IEC 61158)
- Max Slave Devices: Up to 125 DP slave devices per segment
- Baud Rates Supported: 9.6 kbps to 12 Mbps (auto-detect)
- Connector: 9-pin D-sub (DB9) female, RS-485
- Backplane Interface: Series 90-30 standard backplane
- Power Consumption: Supplied via Series 90-30 backplane
- Weight: Approx. 200 g
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% non-condensing
- Certifications: UL Listed, CE Marked
Key Features & Benefits
- Full PROFIBUS-DP Class 1 Master: Manages cyclic data exchange with all connected DP slaves, ensuring deterministic, real-time I/O updates across the network.
- High Device Density: Supports up to 125 slave nodes per segment, making it suitable for large-scale distributed I/O architectures without additional hardware.
- Wide Baud Rate Range: Auto-negotiates from 9.6 kbps to 12 Mbps, accommodating both legacy slow-speed devices and modern high-speed field instruments on the same network.
- Seamless Series 90-30 Integration: Plugs directly into any standard Series 90-30 5-slot, 10-slot, or expansion rack — no special adapters or external power supplies required.
- GSD File Support: Compatible with standard GSD (General Station Description) files for straightforward slave configuration using Proficy Machine Edition or third-party PROFIBUS configurators.
- Diagnostic Transparency: Provides detailed slave diagnostics accessible via the CPU, enabling rapid fault isolation without physical inspection of field devices.
- Proven Reliability: Designed for continuous 24/7 industrial operation in harsh environments, with robust EMI shielding and wide temperature tolerance.
Industry & Equipment Applications
- Automotive Manufacturing: Body shop welding lines, paint shop conveyor control, assembly robot coordination via PROFIBUS-connected drives and I/O.
- Food & Beverage Processing: Bottling lines, filling machines, and packaging equipment using distributed PROFIBUS I/O for hygienic zone control.
- Water & Wastewater Treatment: Pump station control, valve actuation, and flow meter integration across geographically distributed PROFIBUS segments.
- Oil & Gas: Wellhead control panels, compressor station automation, and pipeline monitoring systems requiring reliable fieldbus communication.
- Pulp & Paper: Winder and rewinder control, dryer section management, and distributed drive coordination on PROFIBUS-DP networks.
- Power Generation & Utilities: Substation automation, turbine auxiliary control, and switchgear monitoring integrated via PROFIBUS into Series 90-30 systems.
- Material Handling: Conveyor systems, sortation equipment, and automated storage/retrieval systems (AS/RS) with PROFIBUS-connected motor drives.
System Integration & Compatible Parts
The IC693PBM200 is designed to operate within the GE Series 90-30 PLC platform. Commonly paired components include:
- CPUs: IC693CPU311, IC693CPU313, IC693CPU323, IC693CPU331, IC693CPU340, IC693CPU341, IC693CPU350, IC693CPU360, IC693CPU363, IC693CPU374
- Power Supplies: IC693PWR321, IC693PWR322, IC693PWR330, IC693PWR331
- Racks: IC693CHS391 (5-slot), IC693CHS392 (10-slot), IC693CHS393 (5-slot expansion), IC693CHS398 (10-slot expansion)
- Related Communication Modules: IC693CMM311 (Ethernet), IC693CMM321 (Serial), IC693BEM331 (Genius Bus Controller)
- PROFIBUS Cables & Connectors: Standard RS-485 shielded twisted-pair cable with DB9 PROFIBUS connectors (termination resistors required at segment ends)
Configuration is performed using GE Proficy Machine Edition (Logic Developer – PLC) with the PROFIBUS-DP configurator tool, or compatible third-party GSD-based configuration software.
Our Quality Assurance Process
At Konmask.com, every IC693PBM200 unit undergoes a rigorous multi-stage inspection before shipment:
- Visual Inspection: Examination of PCB, connectors, and housing for physical damage, corrosion, or counterfeit indicators.
- Functional Power-On Test: Module is powered via a Series 90-30 backplane to verify LED status indicators and backplane communication handshake.
- PROFIBUS Port Verification: DB9 connector and RS-485 transceiver integrity confirmed using protocol analyzer equipment.
- Firmware Version Check: Firmware revision documented and disclosed to buyer prior to shipment.
- ESD-Safe Packaging: All units shipped in anti-static bags with foam cushioning inside double-wall corrugated cartons.
- Traceability: Each unit is assigned a unique inspection record retained for 3 years.
We source from verified industrial surplus channels, OEM-authorized distributors, and decommissioned plant equipment — never from unverified grey-market sources.
How to Order
- Submit an Inquiry: Use the Contact Us form or email support@konmask.com with your required quantity and any specific firmware or condition requirements.
- Receive a Quote: Our technical sales team will respond within 1 business day with pricing, availability, lead time, and shipping options.
- Order Confirmation: Confirm your purchase order via email or our online checkout. Proforma invoice issued for wire transfer or credit card payment.
- Inspection & Dispatch: Unit passes final QA check, is photographed, and ships with tracking information provided same or next business day.
- After-Sales Support: Our engineering team is available post-delivery to assist with installation questions or compatibility verification.
Phone / WhatsApp: +0086 19859288691
Email: support@konmask.com
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, HMI, and industrial communication hardware — not a general electronics reseller.
- Technical Pre-Sales Support: Our team includes engineers with hands-on Series 90-30 experience who can verify compatibility before you order.
- Global Shipping: We ship to 50+ countries with DHL, FedEx, and UPS express options. Export documentation (commercial invoice, packing list, COO) provided.
- Competitive Pricing: Direct sourcing relationships allow us to offer market-competitive pricing on both single units and bulk orders.
- Warranty: 90-day functional warranty on all tested units. Extended warranty options available on request.
- Confidential Transactions: All B2B transactions handled with full commercial confidentiality.
Frequently Asked Questions
Q: Is the IC693PBM200 still in production by GE?
A: The IC693PBM200 has reached end-of-life (EOL) status from GE. However, it remains widely available through authorized industrial surplus and aftermarket channels such as Konmask.com, and is fully supported for existing Series 90-30 installations.
Q: Can the IC693PBM200 act as a PROFIBUS-DP slave?
A: No. The IC693PBM200 is a Class 1 Master only. For slave functionality within a Series 90-30 system, a different module would be required.
Q: How many IC693PBM200 modules can I install in one Series 90-30 system?
A: Multiple modules can be installed across expansion racks, subject to the CPU’s I/O table configuration limits and backplane slot availability. Consult GE’s Series 90-30 Hardware Reference Manual for specific constraints.
Q: What software do I need to configure the IC693PBM200?
A: GE Proficy Machine Edition (Logic Developer – PLC) with the PROFIBUS-DP configurator is the standard tool. Third-party tools supporting GSD file import may also be used for network configuration.
Q: Do you provide a test report or inspection certificate with the module?
A: Yes. A functional test summary is available upon request. For orders requiring third-party inspection certificates, please contact us prior to ordering.
Q: What is the lead time for the IC693PBM200?
A: In-stock units typically ship within 1–2 business days. For bulk orders or specific firmware requirements, lead time will be confirmed at the time of quotation.
