Discrete Output Control Solution – GE IC694MDL940F | Series 90-30

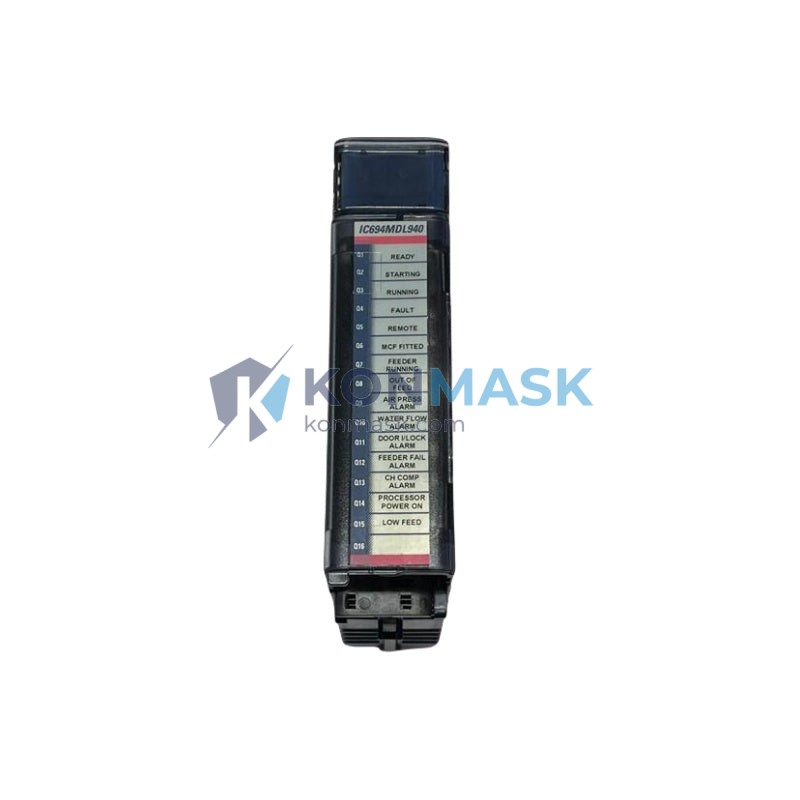

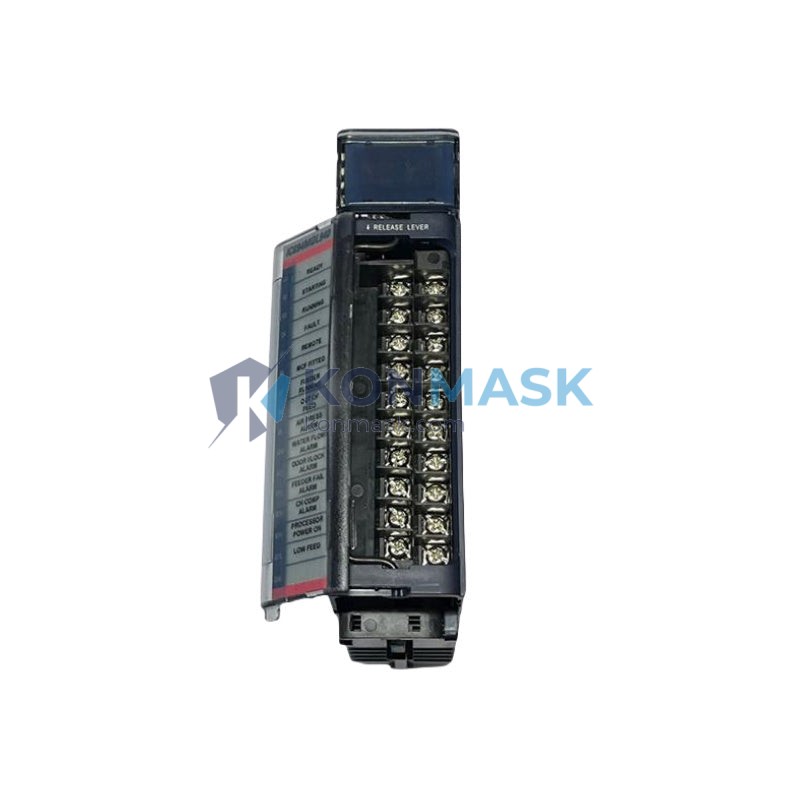

The GE IC694MDL940F is a 16-point relay output module designed for the GE Series 90-30 PLC platform. It provides robust, electrically isolated switching for high-current discrete loads across demanding industrial environments. Engineers specify this module when reliability, load flexibility, and seamless integration with the Series 90-30 rack architecture are non-negotiable.
Where This Product Is Used
The IC694MDL940F is deployed across a wide range of industrial sectors where reliable discrete output switching is critical:
- Automotive Assembly Lines — Controls solenoid valves, pneumatic actuators, and conveyor drive relays in body-shop and paint-shop automation cells.
- Food & Beverage Processing — Switches pumps, agitators, and filling-line actuators in hygienic environments requiring electrical isolation.
- HVAC & Building Automation — Manages fan starters, damper actuators, and chiller contactors in large commercial facilities.
- Water & Wastewater Treatment — Operates pump station contactors, valve actuators, and alarm annunciators in wet, corrosive environments.
- Material Handling & Conveyor Systems — Drives motor starters, diverter gates, and zone-control relays in distribution center sortation lines.
- Oil & Gas Wellhead / Skid Control — Interfaces with shutdown valves and ESD systems where relay isolation is a safety requirement.
- Packaging Machinery — Controls labelers, sealers, and reject mechanisms in high-speed packaging lines.
Technical Specifications
- Part Number: IC694MDL940F
- Platform: GE Series 90-30 (PACSystems RX3i compatible rack with adapter)
- Output Type: Relay (Form A — SPST-NO)
- Number of Output Points: 16
- Output Groups: 4 groups of 4 points (isolated commons per group)
- Rated Load Voltage: 12–240 V AC / 12–24 V DC
- Maximum Load Current: 2 A per point; 8 A per common
- Minimum Load Current: 10 mA
- Contact Material: Silver alloy
- Electrical Isolation: 1,500 V AC (field-to-backplane)
- Operating Temperature: 0 °C to 60 °C
- Backplane Current Draw: 800 mA @ 5 V DC
- Module Weight: ~300 g
- Certifications: UL Listed, CE Marked, cUL
Why Engineers Specify This Model
- Isolated Output Groups — Four independent commons allow mixed-voltage loads (AC and DC) on a single module, eliminating the need for external isolation relays.
- High Inrush Tolerance — Silver-alloy contacts handle motor-start inrush and lamp-load surges without premature contact wear.
- Drop-in Series 90-30 Compatibility — Slots directly into any IC694 rack slot; no firmware changes or special configuration required.
- Proven Field Reliability — Millions of operating hours logged across global installations; a standard spare in MRO inventories worldwide.
- Broad Load Compatibility — Switches resistive, inductive, and lamp loads across AC and DC voltage ranges without derating.
Complete System Bill of Materials
To build a fully operational Series 90-30 control system around the IC694MDL940F, the following components are typically required:
- CPU: IC693CPU374 / IC694CPU374 (or equivalent Series 90-30 CPU)
- Rack: IC694CHS392 (10-slot) or IC694CHS398 (6-slot)
- Power Supply: IC694PWR321 (120/240 V AC input)
- Discrete Input Module: IC694MDL645 (16-point 24 V DC input)
- Output Module (this unit): IC694MDL940F
- Programming Cable / Adapter: IC690USB901 (USB-to-serial converter)
- Terminal Block: IC694TBB032 (40-pin, for field wiring)
- Programming Software: Proficy Machine Edition (Logic Developer – PLC)
Contact support@konmask.com for bundle pricing on complete rack assemblies.
Compliance & Industry Standards
- UL 508 — Industrial Control Equipment
- CE Marking — EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- cUL — Canadian Standards (CSA C22.2)
- RoHS Compliant (Directive 2011/65/EU)
- ATEX / IECEx: Not rated for Zone 0/1 hazardous areas; consult for Zone 2 barrier solutions
Quality Assurance & Sourcing
Every IC694MDL940F unit supplied by Konmask undergoes the following verification process before shipment:
- Visual Inspection — Connector pins, PCB, and housing checked for physical damage or counterfeit indicators.
- Functional Power-On Test — Module is seated in a live Series 90-30 rack and all 16 output points are exercised under load.
- Firmware / Revision Verification — Hardware revision and firmware stamp confirmed against GE Automation & Controls documentation.
- Traceability — Serial number and date code recorded; test report available on request.
- Packaging — Anti-static bag, foam-lined carton, and moisture-barrier seal for safe international transit.
Units are sourced from authorized distributors, OEM decommissions, and verified surplus channels. Konmask does not supply grey-market or refurbished-as-new product.
How to Source This Part
- Add to Cart — Click the purchase button above to place an order directly.
- Request a Quote — For quantities ≥ 3 units or project BOM pricing, email support@konmask.com with your required quantity and delivery timeline.
- Expedited Sourcing — If this unit shows out of stock, contact us — we maintain relationships with multiple verified suppliers and can typically source within 3–7 business days.
- Export & Customs — We handle export documentation (commercial invoice, packing list, COO) for international shipments. HS Code: 8537.10.
Application-Specific FAQ
- Q: Can the IC694MDL940F switch 240 V AC motor starters directly?
- A: Yes. Each output point is rated for up to 240 V AC at 2 A continuous. For motor starters with high inrush, verify the locked-rotor current does not exceed the relay’s make rating (typically 10× rated current for ≤ 20 ms). Use an interposing contactor for loads above 2 A.
- Q: Can I mix AC and DC loads on the same module?
- A: Yes — the four isolated output groups (4 points each) allow different voltage sources per group. For example, Group 1 can switch 120 V AC solenoids while Group 2 switches 24 V DC indicators.
- Q: Is this module compatible with PACSystems RX3i racks?
- A: The IC694MDL940F is a Series 90-30 module. It is not natively compatible with RX3i racks. An IC694ACC300 Series 90-30 expansion adapter is required to use it in an RX3i system.
- Q: What is the expected relay contact life?
- A: GE specifies ≥ 100,000 mechanical operations and ≥ 30,000 electrical operations at rated load. Actual life depends on load type, switching frequency, and whether arc suppression is used.
- Q: Do you provide a warranty?
- A: Konmask provides a 90-day functional warranty on all tested units. Extended warranty options are available — contact us for details.
