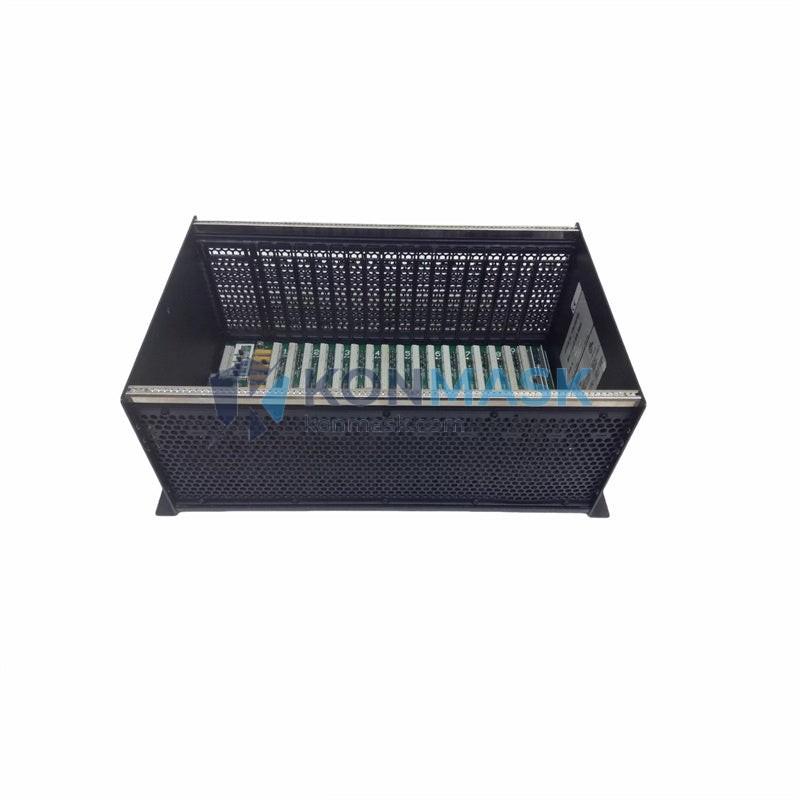

GE IC697CHS782 9-Slot VME Rack Chassis | Series 90-70 PLC Baseplate

GE IC697CHS782 9-Slot VME Rack Chassis – Series 90-70 Programmable Controller

When a production line loses its PLC rack, everything stops. Conveyor belts freeze, robotic arms halt mid-cycle, and SCADA screens go dark. The GE IC697CHS782 is the structural backbone of the Series 90-70 control system — without it, no CPU, no I/O module, and no power supply can communicate. Downtime is not measured in minutes; it is measured in lost batches, missed shipments, and emergency maintenance calls. Sourcing a verified replacement quickly is not optional — it is critical.

The IC697CHS782 is GE Fanuc’s 9-slot VME-standard rack chassis within the Series 90-70 family, one of the most widely deployed large-scale PLC platforms in heavy industry worldwide. Designed for high-density I/O configurations, this chassis supports the full range of Series 90-70 CPU, power supply, and I/O modules, making it the preferred baseplate for complex, multi-axis automation architectures in automotive, petrochemical, and power generation facilities.

Technical Specifications

• Part Number: IC697CHS782
• Series: GE Series 90-70 PLC
• Slot Count: 9 slots (VME-standard)
• Backplane Bus: VMEbus (IEEE 1014)
• Compatible Power Supplies: IC697PWR710, IC697PWR711, IC697PWR724, IC697PWR748
• Compatible CPUs: IC697CPU731, IC697CPU771, IC697CPU772, IC697CPU781, IC697CPU782, IC697CPU788, IC697CPU789
• Mounting: Panel or rack mount
• Weight: Approx. 1,200 g
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Humidity: 5% to 95% non-condensing
• Standards: UL, CE, CSA

Key Features & Benefits

• 9-Slot High-Density Configuration: Accommodates up to 8 I/O or specialty modules plus one CPU/power supply slot, maximizing control density per rack.
• VMEbus Backplane Architecture: Ensures high-speed, deterministic data transfer between all installed modules — critical for real-time process control.
• Universal Module Compatibility: Accepts the complete Series 90-70 module ecosystem including analog, digital, motion, and communications modules.
• Robust Industrial Construction: Steel chassis with EMI shielding designed for harsh industrial environments with vibration, dust, and temperature extremes.
• Drop-in Replacement: Direct form-fit-function replacement for existing IC697CHS782 installations — no firmware changes or reconfiguration required.
• Long Service Life: Passive backplane design with no active components ensures decades of reliable operation.

Industry & Equipment Applications

• Automotive Manufacturing: Body welding lines, paint shop conveyors, and assembly robot coordination.
• Oil & Gas / Petrochemical: Pipeline control, compressor stations, and refinery process automation.
• Power Generation: Turbine control systems, substation automation, and load management.
• Pulp & Paper / Steel Mills: Rolling mill drives, press control, and continuous process lines.
• Water & Wastewater Treatment: Pump station control and SCADA-integrated process management.
• Food & Beverage: Batch processing, filling lines, and packaging automation.

System Integration & Compatible Parts

The IC697CHS782 is designed to work seamlessly within the GE Series 90-70 ecosystem. Commonly paired components available at Konmask.com include:

• Power Supplies: IC697PWR710, IC697PWR711, IC697PWR724, IC697PWR748
• CPUs: IC697CPU771, IC697CPU781, IC697CPU782, IC697CPU788
• Digital I/O: IC697MDL340, IC697MDL341, IC697MDL653, IC697MDL654
• Analog I/O: IC697ALG320, IC697ALG321, IC697ALG440
• Communications: IC697CMM711, IC697CMM742 (Ethernet, Genius Bus)
• Expansion Racks: IC697CHS790 (10-slot), IC697CHS750 (5-slot)

Our Quality Assurance Process

Every IC697CHS782 unit shipped from Konmask.com undergoes a rigorous multi-stage inspection process:

• ✅ Visual Inspection: Backplane connector pins, slot guides, and chassis integrity checked for damage or corrosion.
• ✅ Functional Verification: Backplane bus continuity tested with calibrated equipment.
• ✅ Cleaning & Refurbishment: Industrial-grade cleaning of all contact surfaces and connector areas.
• ✅ Anti-Static Packaging: Shipped in ESD-safe bags with foam padding to prevent transit damage.
• ✅ Traceability: Each unit is logged with inspection records available upon request.

How to Order

1. Submit your inquiry via the Contact / Request a Quote form on this page.
2. Provide your required quantity, delivery timeline, and destination country.
3. Our technical team will confirm availability, lead time, and shipping options within 24 hours.
4. Receive a formal quotation with payment terms and export documentation details.
5. Upon order confirmation, units are prepared, inspected, and dispatched with full tracking.

Why Choose Konmask.com?

• 🌐 Global B2B Supplier: Serving industrial clients across 50+ countries with reliable cross-border logistics.
• 🔧 Technical Expertise: Our team includes experienced automation engineers who understand your application requirements.
• 📦 Fast Dispatch: In-stock items typically ship within 2–3 business days with DHL, FedEx, or UPS Express options.
• 📋 Full Documentation: Commercial invoice, packing list, certificate of conformity, and test reports provided.
• 🔒 Secure Transactions: T/T bank transfer, PayPal, and trade assurance payment options available.
• 💬 Dedicated Support: Pre-sales technical consultation and after-sales follow-up included with every order.

Frequently Asked Questions

Q: Is the IC697CHS782 a new or refurbished unit?
A: We supply both new-surplus (unused, original packaging) and professionally refurbished units. Please specify your preference when submitting your inquiry and we will confirm availability.

Q: Can the IC697CHS782 be used with Series 90-30 or PACSystems modules?
A: No. The IC697CHS782 is exclusively compatible with GE Series 90-70 modules. It is not interchangeable with Series 90-30 (IC693 series) or PACSystems RX7i/RX3i platforms.

Q: What is the lead time for international orders?
A: In-stock units are dispatched within 2–3 business days. International delivery via express courier typically takes 3–7 business days depending on destination and customs clearance.

Q: Do you provide a warranty?
A: Yes. All units carry a 90-day functional warranty covering defects in materials and workmanship under normal operating conditions.

Q: Can you supply the complete Series 90-70 rack system (chassis + CPU + power supply + I/O)?
A: Yes. Konmask.com can source and supply complete configured systems or individual components. Contact us with your full BOM for a consolidated quotation.

---
