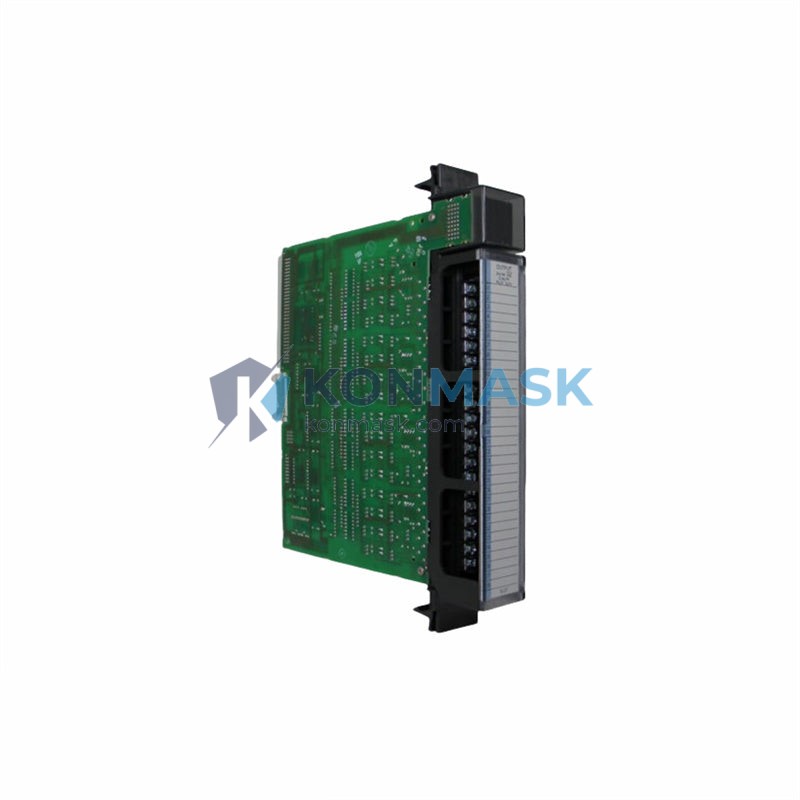

GE IC697MDL241 – 32-Channel 24VDC Discrete Input Module | Series 90-70 PLC Platform
Engineering Background: The IC697MDL241 is a high-density discrete input module designed for GE’s Series 90-70 programmable logic controller platform — one of the most widely deployed rack-based PLC architectures in heavy industrial automation. Built to IEC 61131-2 input specifications, this module provides reliable 24VDC signal acquisition across 32 isolated channels, making it the preferred choice for large-scale I/O expansion in process and discrete manufacturing environments.
Product Positioning: Engineered for procurement engineers and system integrators who require a proven, drop-in replacement or new-build component for GE Series 90-70 control systems. The IC697MDL241 delivers deterministic input scanning, robust noise immunity, and full backward compatibility with existing Series 90-70 rack infrastructure — minimizing retrofit risk and commissioning time.
Complete Technical Specifications
- Part Number: IC697MDL241
- Platform: GE Series 90-70 PLC
- Module Type: Discrete Input Module
- Number of Channels: 32 (grouped in 4 × 8-channel isolated groups)
- Input Voltage: 24VDC nominal
- Input Voltage Range: 18–30VDC (ON state); 0–5VDC (OFF state)
- Input Current (per channel): ~8.5 mA @ 24VDC
- Input Impedance: ~2.8 kΩ
- Isolation: Optical isolation between field and backplane
- Response Time: Configurable filter: 1 ms / 10 ms / 100 ms
- Backplane Current Draw: 800 mA @ 5VDC
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5–95% non-condensing
- Dimensions (H × W × D): Standard Series 90-70 single-slot form factor
- Weight: ~1,010 g (with connector)
- Connector Type: 40-pin field wiring connector (included)
- Compliance: CE, UL, CSA
- Country of Origin: USA
Proven Application Environments
- Oil & Gas: Wellhead control panels, compressor station I/O, pipeline SCADA integration
- Power Generation: Turbine control systems, switchgear status monitoring, substation automation
- Automotive Manufacturing: Body-in-white assembly lines, press control, conveyor interlocking
- Chemical & Petrochemical: Reactor status monitoring, valve position feedback, safety interlock systems
- Water & Wastewater: Pump station control, level switch monitoring, SCADA I/O expansion
- Pulp & Paper: Machine drive coordination, process status acquisition
Engineering Advantages
- High Channel Density: 32 inputs per single rack slot — maximizes I/O capacity while minimizing rack space and wiring cost
- Configurable Input Filtering: Software-selectable 1/10/100 ms debounce filters adapt to both high-speed sensing and noisy field environments
- Optical Isolation: Full galvanic isolation protects the CPU backplane from field-side transients and ground loops
- Hot-Swap Compatible: Supports module replacement without full system shutdown (with appropriate rack configuration)
- LED Status Indicators: Per-channel ON/OFF LEDs enable rapid field diagnostics without programming tools
- Backward Compatibility: Fully interchangeable with existing Series 90-70 racks, power supplies, and CPUs — no firmware upgrade required
System Architecture & Signal Flow
The IC697MDL241 occupies a single I/O slot in any Series 90-70 rack (IC697CHS750, IC697CHS782, IC697CHS790, etc.). Field wiring connects via the 40-pin connector to 32 discrete 24VDC input channels. Each channel passes through an optical isolator before presenting its state to the backplane bus. The CPU (e.g., IC697CPX935, IC697CPU772) reads all 32 channel states in a single backplane transaction during each PLC scan cycle. Input filter time is configured per group via the Proficy Machine Edition (PME) hardware configuration tool — no physical jumpers required.
Wiring Topology: Sink (NPN) or Source (PNP) field devices are both supported. Common return lines are shared within each 8-channel group. Shielded cable is recommended for runs exceeding 30 m or in high-EMI environments.
Sourcing & Quality Verification
- Authenticity: All IC697MDL241 units sourced by Konmask.com are inspected against GE factory markings, date codes, and firmware revision labels prior to listing
- Functional Testing: Each module undergoes power-on verification and channel continuity checks before shipment
- Condition: New surplus, refurbished (tested), or factory-new stock — condition clearly stated on each order confirmation
- Packaging: Anti-static bag + foam-lined carton; original GE packaging retained where available
- Warranty: 12-month replacement warranty against manufacturing defects
- Traceability: Serial number and batch records available on request for regulated industries
Procurement Process
- Confirm Part Number: Verify IC697MDL241 against your BOM or existing rack configuration — check for hardware revision suffix if applicable (e.g., IC697MDL241A)
- Request Quote: Contact [email protected] with required quantity, condition preference, and delivery timeline
- Order Confirmation: Receive proforma invoice with unit serial numbers and condition report within 1 business day
- Payment & Export: Supports T/T wire transfer, PayPal, and trade-term options (EXW, FOB Xiamen). Export documentation (CO, packing list, commercial invoice) provided for customs clearance
- Shipping: DHL / FedEx / UPS express available; sea freight consolidation for bulk orders. Typical lead time: 3–7 business days
- After-Sales: Technical support available via email and WhatsApp for installation, configuration, and compatibility queries
Technical FAQ
Q: Is the IC697MDL241 compatible with Series 90-30 or PACSystems racks?
A: No. The IC697MDL241 is exclusively designed for the Series 90-70 rack backplane. It is not electrically or mechanically compatible with Series 90-30 (IC693 series) or PACSystems RX7i/RX3i platforms.
Q: Can I mix IC697MDL241 with other Series 90-70 I/O modules in the same rack?
A: Yes. The Series 90-70 rack supports mixed I/O module types in any slot order. Slot assignment is configured in PME hardware configuration.
Q: What CPU firmware version is required?
A: The IC697MDL241 is supported by all Series 90-70 CPU firmware versions. No minimum firmware revision is required for basic operation.
Q: Does this module support diagnostics or fault reporting?
A: The IC697MDL241 reports module presence and general fault status to the CPU via the backplane. Per-channel diagnostics (e.g., open-wire detection) are not supported on this model — consider IC697MDL671 for enhanced diagnostics.
Q: What is the maximum cable length for field wiring?
A: GE recommends a maximum of 1,000 m for 24VDC discrete inputs using 1.5 mm² shielded cable, subject to voltage drop calculations. Consult GE Series 90-70 Installation Manual (GFK-0262) for detailed wiring guidelines.
