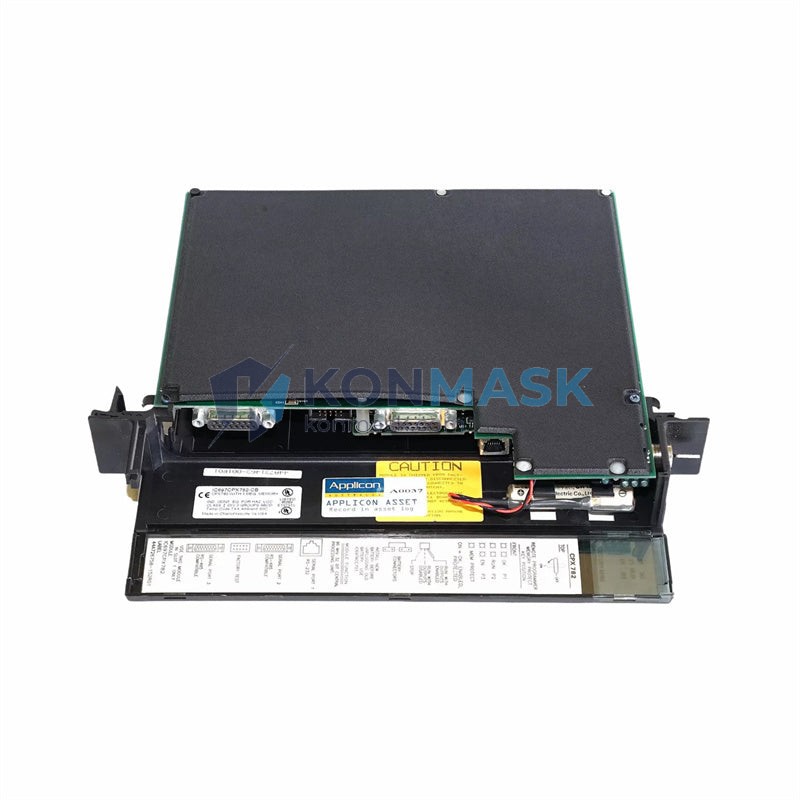

GE IC697CPX782-ED – High-Performance CPU Module | Series 90-70 PLC Platform
Engineering Background
The GE IC697CPX782-ED is a rack-mounted central processing unit (CPU) module designed for GE’s Series 90-70 programmable logic controller platform — one of the most widely deployed large-scale PLC architectures in heavy industry. Built to GE Automation & Controls’ stringent manufacturing standards, this CPU delivers deterministic scan-cycle performance and robust I/O management for mission-critical process environments.
Product Positioning
Targeted at maintenance engineers, system integrators, and MRO procurement teams managing legacy Series 90-70 installations, the IC697CPX782-ED provides a direct, specification-matched replacement or capacity-upgrade path without requiring rack or backplane redesign. Its compatibility with the IC697 module family makes it the preferred choice for extending the operational life of existing GE PLC infrastructure.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | IC697CPX782-ED |
| Manufacturer | GE Automation & Controls (General Electric) |
| Product Family | Series 90-70 PLC |
| Module Type | CPU / Rack Controller Module |
| Processor | High-speed 32-bit RISC processor |
| Program Memory | Up to 512 KB user logic memory |
| Data Memory | Configurable register and coil tables |
| Communications | Ethernet (SNP/SRTP), Serial RS-232/RS-485 |
| I/O Capacity | Up to 12,000 discrete I/O points (system-dependent) |
| Backplane Interface | IC697 Series 90-70 VME-based rack |
| Operating Voltage | 5 VDC (supplied via rack backplane) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Certifications | UL Listed, CE Marked, cUL |
| Form Factor | Single-slot IC697 rack module |
| Country of Origin | United States |
Proven Application Environments
- Power Generation & Utilities — turbine control, generator protection, and substation automation
- Oil & Gas Processing — pipeline SCADA, compressor control, and emergency shutdown systems
- Automotive Manufacturing — body-in-white assembly lines, paint shop conveyors, and press control
- Chemical & Petrochemical Plants — batch process control, reactor management, and DCS integration
- Water & Wastewater Treatment — pump station automation, filtration sequencing, and SCADA telemetry
- Pulp & Paper Mills — winder control, digester management, and distributed I/O coordination
Engineering Advantages
- Drop-in Compatibility — direct replacement for IC697CPX782 variants within the Series 90-70 rack; no backplane or wiring modifications required
- Deterministic Scan Performance — fixed-cycle execution ensures predictable response times for time-sensitive control loops
- Dual-Port Ethernet — supports simultaneous SRTP and SNP communications for HMI, SCADA, and peer-to-peer data exchange
- Expanded Memory Architecture — supports large ladder logic programs and extensive data table configurations without external memory cards
- Hot-Standby Redundancy Ready — compatible with GE Series 90-70 redundancy modules for fault-tolerant system architectures
- Proven Field Longevity — designed for 24/7 continuous operation in harsh industrial environments with extended MTBF ratings
System Architecture & Signal Flow
The IC697CPX782-ED occupies Slot 1 of the IC697 VME-based rack and communicates with all I/O modules via the high-speed backplane bus. The CPU executes the user program in a continuous scan cycle: Input Scan → Logic Solve → Output Update → Communications Service. Ethernet ports connect upstream to SCADA/HMI systems via SRTP or Modbus TCP, while the serial port supports legacy SNP programming terminals and remote I/O drops. The module’s memory map is fully configurable through GE’s Proficy Machine Edition (PME) programming environment.
Sourcing & Quality Verification
- All units sourced from authorized distributors or verified industrial surplus channels
- Each module undergoes incoming inspection: visual examination, label verification, and functional power-on test
- Firmware revision and hardware revision codes documented prior to shipment
- Original GE packaging and documentation included where available
- Traceability records maintained for enterprise procurement compliance
Procurement Process
- Confirm Part Number — verify IC697CPX782-ED matches your existing rack slot and firmware revision requirements
- Request Quote — contact [email protected] for volume pricing, lead time, and availability confirmation
- Order Placement — purchase order accepted via website checkout, bank transfer (T/T), or trade-term negotiation
- Inspection & Dispatch — unit tested, packed with anti-static protection, and shipped with tracking within 1–3 business days
- Delivery & Commissioning Support — technical documentation and remote commissioning guidance available upon request
Technical FAQ
Q: Is the IC697CPX782-ED compatible with all Series 90-70 racks?
A: Yes. It is designed for the standard IC697 VME rack family. Confirm slot count and power supply capacity before installation.
Q: What programming software is required?
A: GE Proficy Machine Edition (PME) with the Series 90-70 target type. Legacy Logicmaster 90-70 software is also supported for older installations.
Q: Can this CPU operate in a redundant configuration?
A: Yes, when paired with a compatible GE redundancy module (e.g., IC697RCM711). Consult GE’s Series 90-70 Redundancy User Manual for configuration details.
Q: What is the warranty on this unit?
A: Konmask.com provides a 90-day functional warranty on all verified units. Extended warranty options are available — contact us for details.
Q: Do you provide export documentation for international shipments?
A: Yes. Commercial invoice, packing list, and certificate of origin are provided. HS Code 8537.10 applies for customs classification.
