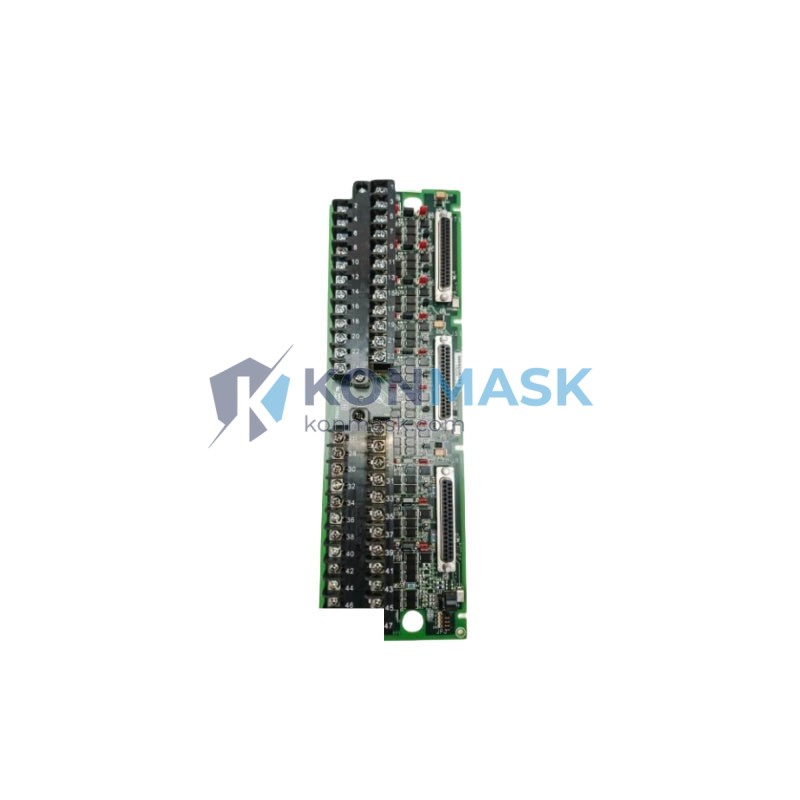

GE IS200TBAIH1CDD Analog Input Terminal Board – Mark VI Speedtronic Turbine Control System
When a gas turbine’s analog input terminal board fails mid-operation, the control system loses its ability to read critical process signals — exhaust temperatures, fuel flow rates, vibration levels, and compressor inlet pressures all go dark. Without accurate analog feedback, the Mark VI controller cannot execute protective shutdowns or load-following commands, leaving operators blind and the turbine at risk of catastrophic damage. Unplanned downtime in power generation or petrochemical processing can cost tens of thousands of dollars per hour. The GE IS200TBAIH1CDD is the precision interface that keeps those signals flowing reliably.
The IS200TBAIH1CDD is a high-density differential analog input terminal board engineered specifically for the GE Mark VI Speedtronic turbine control platform — one of the most widely deployed turbine control architectures in the world, found in gas turbines, steam turbines, and combined-cycle power plants across six continents. Within the Mark VI I/O subsystem, the TBAIH series handles the most demanding analog acquisition tasks, providing the signal conditioning and terminal interface between field instrumentation and the core I/O processor boards. The H1CDD revision reflects GE’s latest hardware refinement for improved noise immunity and connector reliability.
Technical Specifications
- Part Number: IS200TBAIH1CDD
- Manufacturer: GE (General Electric)
- Series: Mark VI Speedtronic Turbine Control System
- Board Type: Analog Input Terminal Board (High-Density, Differential)
- Form Factor: Printed Circuit Board (PCB) — rack-mount terminal board
- Weight: 200 g (approx.)
- Compatible Platform: GE Mark VI / Mark VIe Speedtronic control systems
- Condition Available: New surplus, refurbished/tested
Note: Detailed electrical specifications (channel count, input range, resolution) are available upon request. We do not publish unverified parameters.
Key Features & Benefits
- High-Density Differential Inputs: Maximizes channel count per rack slot, reducing overall panel footprint in turbine control cabinets.
- Differential Signal Architecture: Inherently rejects common-mode noise from industrial environments — essential in high-EMI turbine halls.
- Direct Field Wiring Interface: Screw-terminal or connector-based field wiring lands directly on this board, simplifying maintenance and reducing wiring errors.
- Mark VI Native Compatibility: Plug-and-play replacement within existing Mark VI I/O racks — no firmware changes or re-engineering required.
- Revision H1CDD: Latest production revision with enhanced connector durability and improved EMC performance over earlier TBAIH variants.
- Proven Field Reliability: Deployed in thousands of turbine installations worldwide across power generation, oil & gas, and industrial compression applications.
Industry & Equipment Applications
- Power Generation: Gas turbine generators (Frame 6, Frame 7, Frame 9 series), combined-cycle plants, cogeneration facilities
- Oil & Gas: Pipeline compressor stations, LNG liquefaction trains, offshore platform turbine drivers
- Petrochemical & Refining: Turbine-driven process compressors, steam turbine drives for critical pumps
- Industrial Manufacturing: Large rotating machinery with Mark VI-based condition monitoring and control
- Utilities & Independent Power Producers (IPPs): Peaker plants and baseload generation requiring high-availability control systems
System Integration & Compatible Parts
The IS200TBAIH1CDD operates within the GE Mark VI I/O subsystem and is typically used alongside the following components:
- IS200TBAIH1A / IS200TBAIH1B: Earlier revisions of the same terminal board (backward compatible in most configurations)
- IS200AAIAH1A: Analog input I/O processor board that pairs with TBAIH terminal boards
- IS200TREGH1BDC: Termination board for regulation I/O — commonly installed in the same cabinet
- Mark VI I/O Racks & Backplanes: Standard Mark VI rack assemblies (consult your system drawing for slot assignment)
- GE Mark VI Controller Modules: VCMI, VCRC, VTUR, VPRO processor cards that communicate with this terminal board via the I/O bus
Always cross-reference your turbine’s Bill of Materials (BOM) and system drawings before ordering. Our technical team can assist with compatibility verification.
Our Quality Assurance Process
- Visual Inspection: Every board is inspected for physical damage, burnt components, corrosion, and connector integrity before listing.
- Functional Testing: Refurbished units undergo bench testing against GE Mark VI system parameters where test fixtures are available.
- Authenticity Verification: We source exclusively from decommissioned OEM installations, authorized distributors, and verified surplus channels — no counterfeit parts.
- Traceability: Lot and revision tracking maintained for all inventory to support your maintenance records.
- Packaging: ESD-safe anti-static bags, foam cushioning, and double-box shipping for international orders.
How to Order
- Submit an Inquiry: Use the contact form or email [email protected] with your part number (IS200TBAIH1CDD) and required quantity.
- Receive a Quote: Our team responds within 1 business day with pricing, lead time, and availability confirmation.
- Technical Consultation: Need help confirming compatibility? Share your system drawing or BOM — we’ll verify before you commit.
- Secure Payment & Export Documentation: We support T/T wire transfer, and can provide commercial invoices, packing lists, and certificates of origin for customs clearance.
- Fast Dispatch: In-stock items ship within 2–3 business days via DHL, FedEx, or UPS with full tracking.
Why Choose Konmask.com?
- ✅ Specialized in GE Mark VI / Mark VIe: Deep inventory of Speedtronic system components — not a generalist catalog.
- ✅ B2B Export Experience: Serving power plants, EPC contractors, and MRO teams in 40+ countries.
- ✅ Technical Support Included: Our engineers can assist with installation guidance and system compatibility questions.
- ✅ Competitive Lead Times: Faster than OEM factory orders — critical for minimizing turbine downtime.
- ✅ Transparent Sourcing: We disclose the condition and revision of every part before purchase.
Frequently Asked Questions
Q: Is the IS200TBAIH1CDD compatible with the GE Mark VIe system?
A: The TBAIH terminal board family is primarily designed for the Mark VI platform. Mark VIe uses a different I/O architecture (ETM/EIM modules). Please confirm your system generation before ordering — our team can assist.
Q: What is the difference between IS200TBAIH1CDD and IS200TBAIH1A?
A: The H1CDD is a later revision with improvements to connector reliability and EMC performance. In most Mark VI configurations they are functionally interchangeable, but always verify against your system’s approved parts list.
Q: Do you provide a warranty?
A: Yes. Refurbished units carry a 12-month warranty against manufacturing defects under normal operating conditions. New surplus units carry the original OEM warranty terms where applicable.
Q: Can you supply multiple units for a fleet maintenance program?
A: Yes. We support bulk orders and can establish blanket purchase agreements for operators managing multiple turbine units. Contact us to discuss volume pricing.
Q: How do I verify the revision of the board I receive?
A: The revision code (H1CDD) is silk-screened on the PCB and also appears on the board’s label. We photograph and document the revision of every unit shipped.
