Turbine Protection & Relay Switching Solution – GE IS200TRLYH1BGE | Mark VI / VIe Series

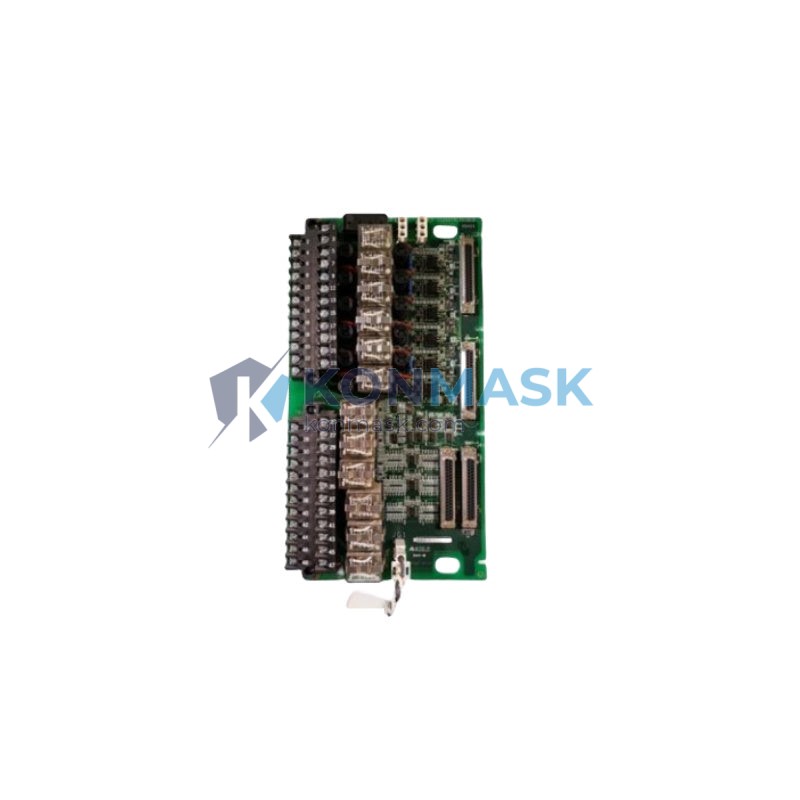

The GE IS200TRLYH1BGE is a relay output terminal board engineered for GE’s Mark VI and Mark VIe turbine control platforms. As the hardwired interface between the control system’s digital output logic and field-connected protective relay circuits, this board is the last line of defense in turbine trip, alarm, and sequencing architectures. Konmask.com supplies this board from verified OEM and authenticated surplus channels with full traceability for regulated power generation environments.
Where This Product Is Used
- Gas Turbine Power Plants: Relay output switching for turbine trip solenoids, fuel shutoff valves, and flame detector alarm circuits in GE Frame 5, Frame 6, Frame 7, and Frame 9 installations.
- Steam Turbine Control: Interface board for overspeed trip relay chains, extraction valve sequencing, and lube oil pressure alarm outputs in combined-cycle and cogeneration plants.
- Combined-Cycle (CCPP) Facilities: Coordinated relay output management across gas turbine, steam turbine, and HRSG control loops within a unified Mark VI architecture.
- Compressor Stations: Relay-driven ESD (Emergency Shutdown) output circuits for pipeline compressor protection systems using Mark VI as the primary controller.
- Industrial Cogeneration: Relay output board for generator protection relay interfacing, breaker trip coil circuits, and auxiliary equipment sequencing.
- Offshore & Marine Power: Relay switching in harsh-environment turbine control panels where Mark VI provides the control backbone.
Technical Specifications
| Part Number | IS200TRLYH1BGE |
| Manufacturer | GE (General Electric) – Grid Solutions / Power Controls |
| Product Family | Mark VI / Mark VIe Turbine Control System |
| Board Type | Relay Output Terminal Board (TRLY) |
| Output Type | Dry contact relay outputs (normally open / normally closed) |
| Relay Contact Rating | Typically 5 A @ 250 V AC / 30 V DC (per GE Mark VI I/O spec) |
| Number of Relay Channels | Multiple isolated relay output channels (per board configuration) |
| Interface | Mates with Mark VI I/O module via terminal block and ribbon connector |
| Operating Voltage | 24 V DC (supplied via Mark VI I/O rack backplane) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5 % to 95 % (non-condensing) |
| Protection Class | IP20 (panel-mounted) |
| Mounting | Mark VI I/O terminal board rack (dedicated slot) |
| Weight | 400 g (approx.) |
| Compliance | CE, UL, IEEE, NERC CIP compatible installations |
| Country of Origin | United States (GE manufacturing) |
Why Engineers Specify This Model
- Direct OEM Form-Factor: IS200TRLYH1BGE is a plug-compatible replacement for the TRLY terminal board position in Mark VI I/O racks — no rewiring, no reconfiguration of the control system project file.
- Isolated Relay Outputs: Each relay channel provides galvanic isolation between the control system logic and field-side protective circuits, preventing ground loops and protecting the controller from field transients.
- Trip-Rated Reliability: Designed to meet the response-time and contact-integrity requirements of turbine trip and ESD circuits where relay chatter or contact failure is not acceptable.
- Simplex & TMR Compatible: Supports both simplex and triple modular redundant (TMR) Mark VI architectures, making it applicable across a wide range of plant configurations.
- Long Field Service Life: GE’s Mark VI platform is designed for 20+ year operational lifecycles; the TRLY board is built to the same durability standard.
- Minimal Commissioning Overhead: Terminal labeling and wiring conventions follow GE Mark VI standard drawings, reducing installation time for experienced control system technicians.
Complete System Bill of Materials
The IS200TRLYH1BGE is typically deployed alongside the following Mark VI system components:
- IS215UCVEH2A / IS215UCVEH2B – Mark VIe VME Controller (UCVE)
- IS200VTURH1BDD – Turbine Control I/O Board (VTUR)
- IS200TREGH1B – Relay & Digital Output Terminal Board (TREG)
- IS200TBAIH1C – Analog Input Terminal Board (TBAI)
- IS200TBCIH1C – Contact Input Terminal Board (TBCI)
- IS200PSCDH1A – Power Supply & Distribution Board (PSCD)
- IS200DSPXH1A – Digital Signal Processor Board (DSPX)
Contact support@konmask.com for complete BOM sourcing and multi-line RFQ support.
Compliance & Industry Standards
- IEC 61511: Functional safety for process industry sectors — relay output boards in SIL-rated trip circuits.
- IEC 61131-2: Programmable controllers — environmental and electrical requirements for I/O modules.
- IEEE C37.90: Relay and relay systems associated with electric power apparatus.
- NERC CIP: Compatible with cybersecurity-compliant Mark VI installations in bulk electric system environments.
- CE / UL: Manufactured to CE and UL standards as part of the GE Mark VI certified control system.
Quality Assurance & Sourcing
- OEM Authenticity: All IS200TRLYH1BGE boards supplied by Konmask.com are sourced from GE-authorized channels or verified surplus with intact OEM labeling, serialization, and revision markings.
- Pre-Shipment Inspection: Visual inspection of PCB integrity, relay contact condition, terminal block seating, and connector pin alignment prior to dispatch.
- ESD-Safe Packaging: Anti-static bag, moisture barrier, and foam-cushioned outer carton for safe international freight.
- Traceability Documentation: Certificate of conformity and supply chain records available upon request for power plant maintenance documentation requirements.
- Warranty: 12-month warranty against manufacturing defects from date of shipment.
How to Source This Part
- Submit RFQ: Email support@konmask.com with part number IS200TRLYH1BGE, required quantity, and delivery destination.
- Quotation: Formal quotation with unit price, lead time, and freight options returned within 24 business hours.
- Order Confirmation: Issue PO against quotation. Pro-forma invoice issued upon receipt.
- Payment: T/T bank transfer, PayPal, or credit card accepted.
- Dispatch: In-stock units ship within 3–7 business days via DHL / FedEx / UPS with tracking and customs documentation.
- After-Sales Support: Technical assistance via email or WhatsApp: +0086 19859288691.
Application-Specific FAQ
Q: Which Mark VI I/O module does the IS200TRLYH1BGE pair with?
A: The TRLY terminal board is designed to interface with the Mark VI relay output I/O module in the standard I/O rack. Please confirm your rack configuration and I/O module part number when placing your order so we can verify compatibility.
Q: Can this board be used in a TMR (Triple Modular Redundant) Mark VI system?
A: Yes. The IS200TRLYH1BGE is compatible with both simplex and TMR Mark VI architectures. In TMR systems, three boards are typically installed in voted relay output configurations for trip-critical circuits.
Q: Is this board suitable for SIL-rated safety circuits?
A: The board is used in turbine trip and ESD circuits in power plants worldwide. For formal SIL certification of your safety loop, consult your functional safety engineer and refer to GE’s Mark VI safety documentation.
Q: Do you supply the mating I/O module (TRLY I/O card) as well?
A: Yes. Konmask.com stocks a broad range of Mark VI I/O modules and terminal boards. Include your full BOM in your RFQ for consolidated sourcing.
Q: What is the lead time for IS200TRLYH1BGE?
A: In-stock units ship within 3–7 business days. For out-of-stock items, lead time is typically 2–4 weeks depending on sourcing channel. Contact us for current availability.
