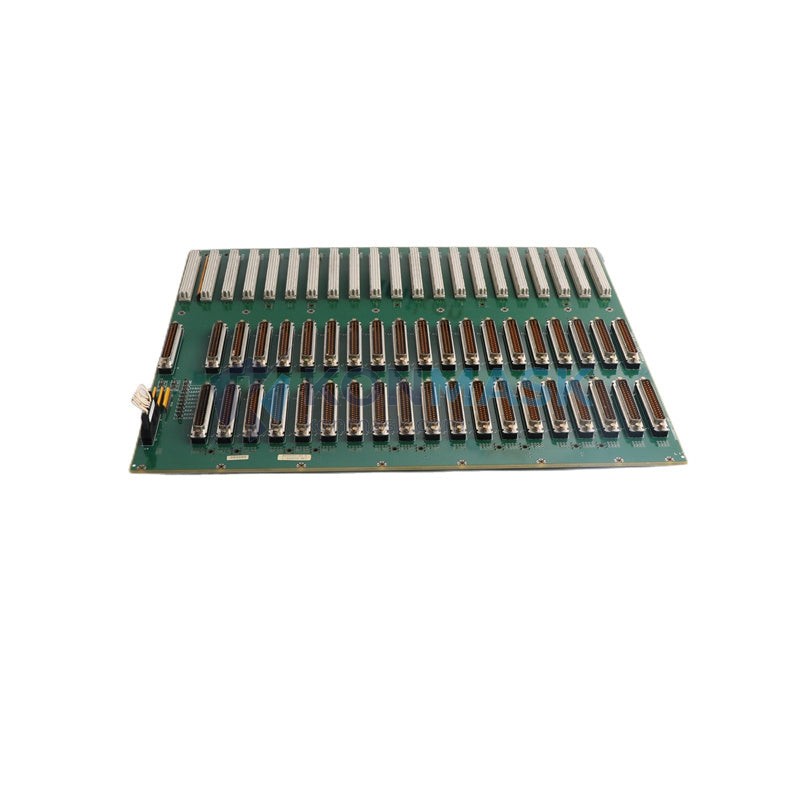

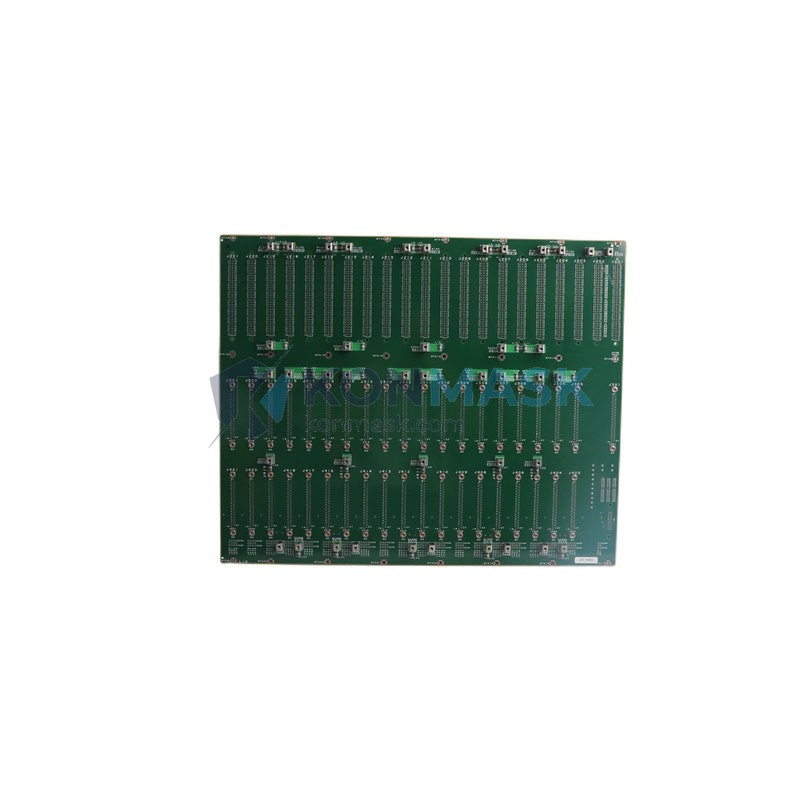

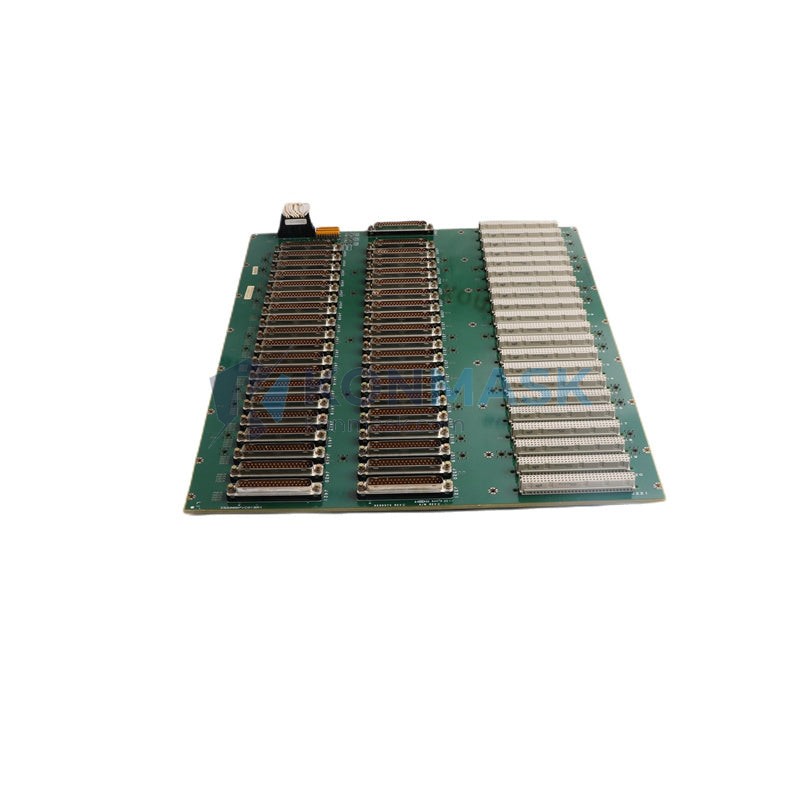

GE IS200BPVCG1BR1 – Backplane Assembly Board | Mark VI Control Platform
Engineering Background
The IS200BPVCG1BR1 is a critical backplane assembly board engineered by General Electric for deployment within the Mark VI Turbine Control System — GE’s flagship distributed control architecture for gas turbines, steam turbines, and combined-cycle power generation assets. The Mark VI platform is recognized globally for its triple-redundant TMR (Triple Modular Redundancy) architecture, and the backplane board serves as the structural and electrical backbone that interconnects I/O modules, processor cards, and communication interfaces within the control enclosure.
Product Positioning
Designed for procurement engineers and maintenance teams managing legacy or active Mark VI installations, the IS200BPVCG1BR1 provides a direct OEM-equivalent replacement path. Whether supporting a planned outage, emergency repair, or system expansion, this board ensures signal integrity, mechanical compatibility, and full electrical compliance with GE’s original design specifications. Konmask.com stocks verified units sourced through authorized industrial channels, with full traceability documentation available upon request.
Complete Technical Specifications
| Part Number | IS200BPVCG1BR1 |
| Manufacturer | General Electric (GE) |
| Series / Platform | Mark VI Turbine Control System |
| Module Type | Backplane Assembly Board (BPVC) |
| Form Factor | Rack-mount backplane, Mark VI enclosure compatible |
| Connector Type | High-density VME-style backplane connectors |
| Supported Modules | I/O boards, processor cards, communication modules (Mark VI family) |
| Redundancy Support | TMR (Triple Modular Redundancy) architecture compatible |
| Operating Temperature | 0°C to +60°C (standard industrial range) |
| Storage Temperature | -40°C to +85°C |
| Power Supply Compatibility | Mark VI standard DC bus (24 VDC / 48 VDC rail, per enclosure spec) |
| Weight | 1,900 g (approx.) |
| Condition Available | New OEM / Refurbished / Tested Surplus |
| Warranty | 12 months (Konmask standard) |
| Lead Time | In-stock / 3–7 business days (subject to availability) |
| Export Classification | EAR99 (verify with your compliance team for destination-specific requirements) |
Proven Application Environments
- Gas Turbine Control: GE Frame 6B, 7E, 7F, 9E, 9F series turbines running Mark VI control systems
- Steam Turbine Control: Combined-cycle and cogeneration plants with Mark VI-based steam turbine controllers
- Power Generation Utilities: Independent Power Producers (IPPs), grid-scale generation facilities, and peaker plants
- Oil & Gas Compression Stations: Pipeline compressor drives and offshore platform turbine control
- Industrial Process Plants: Petrochemical, refinery, and LNG facilities with GE turbine-driven compressors
- OEM Integrators: System integrators building or refurbishing Mark VI control panels for end-user delivery
Engineering Advantages
- Direct OEM Compatibility: Manufactured to GE’s original design specifications — no adaptation or modification required for Mark VI enclosures
- TMR Architecture Support: Fully compatible with GE’s triple-redundant control philosophy, ensuring no single point of failure at the backplane level
- Signal Integrity: High-density backplane connectors maintain low-impedance, noise-immune signal paths across all I/O and processor slots
- Mechanical Precision: Rigid PCB construction with precision-aligned connector arrays ensures reliable card seating and vibration resistance in turbine environments
- Reduced Downtime Risk: Stocked and tested units enable same-week dispatch, minimizing forced outage duration for critical generation assets
- Traceability: Units available with full documentation chain — serial number, test records, and sourcing certificates upon request
System Architecture & Signal Flow
Within the Mark VI control enclosure, the IS200BPVCG1BR1 backplane board provides the passive interconnect layer between all active modules. The architecture follows GE’s VCMI (VME Communication Module Interface) bus standard, where:
- The processor card (VCMI) occupies the master slot and arbitrates all inter-module communication
- I/O terminal boards (TBCI, TBQC, TBAI, etc.) connect via ribbon cables to I/O boards seated in the backplane slots
- Power distribution rails on the backplane deliver regulated DC power to each module slot independently
- Redundant signal paths (R, S, T controllers in TMR mode) each connect through dedicated backplane sections, ensuring no cross-contamination of control signals
- Ethernet / IONet communication is routed through the backplane to the VCMI for HMI and historian connectivity
This architecture ensures that a single module failure does not propagate to adjacent slots, and the backplane itself is a passive, high-reliability component with no active failure modes under normal operating conditions.
Sourcing & Quality Verification
All IS200BPVCG1BR1 units offered through Konmask.com undergo the following verification process before dispatch:
- Visual Inspection: PCB surface, connector pins, and component population checked against GE reference images
- Connector Integrity Test: All backplane connector rows tested for continuity and pin alignment
- Functional Bench Test (where applicable): Powered verification in a Mark VI-compatible test rack
- Anti-Static Packaging: Shipped in ESD-safe bags with foam cushioning and moisture barrier
- Documentation Package: Test report, sourcing declaration, and warranty certificate included
Konmask.com does not source from unverified grey-market channels. All units are traceable to known industrial decommissioning projects, authorized distributor stock, or OEM surplus programs.
Procurement Process
- Submit Inquiry: Contact us via email or phone with your part number, required quantity, and delivery timeline
- Availability Confirmation: We confirm stock status, condition grade, and lead time within 1 business day
- Quotation & Documentation: Formal quotation issued with unit price, shipping terms (EXW / CIF / DAP), and available documentation
- Order Placement: Purchase order accepted via email; payment terms confirmed (T/T, L/C, or platform checkout)
- Quality Check & Dispatch: Final inspection completed, unit packed to IPC-A-610 standards, and shipped with tracking
- After-Sales Support: 12-month warranty coverage; technical support available for installation and commissioning queries
Technical FAQ
Q: Is the IS200BPVCG1BR1 compatible with both Mark VI and Mark VIe systems?
A: The IS200BPVCG1BR1 is designed for the Mark VI platform. Mark VIe uses a different backplane architecture (IS200 series with Ethernet-based I/O). Please confirm your system revision before ordering.
Q: Can this backplane support a simplex (non-redundant) Mark VI configuration?
A: Yes. The backplane supports simplex, dual (DMR), and triple (TMR) redundancy configurations depending on the processor and I/O module population.
Q: What is the typical lead time for in-stock units?
A: In-stock units are dispatched within 3–7 business days after order confirmation and payment clearance. Express dispatch (1–2 days) available upon request.
Q: Do you provide a test report with each unit?
A: Yes. A functional test report is available for all units that have undergone bench verification. Please request this at the time of inquiry.
Q: Can Konmask assist with installation or commissioning?
A: Konmask provides remote technical support for installation guidance. On-site commissioning services can be arranged through our partner network — contact us for details.
Q: What shipping terms are available for international orders?
A: We support EXW (Shenzhen/Xiamen), CIF, and DAP terms. All international shipments include commercial invoice, packing list, and certificate of origin. DDP available for select destinations.
