GE IS400JGPAG1A Terminal Board – Junction & Signal Interface Board | Mark VI Turbine Control Platform
Engineering Background

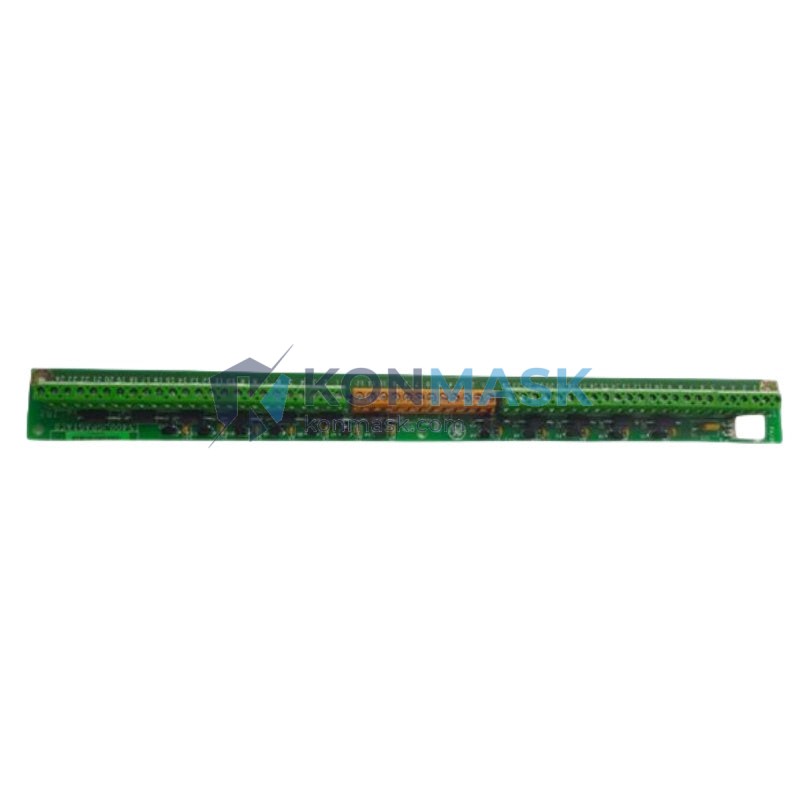

The IS400JGPAG1A is a General Electric terminal board designed for use within the Mark VI turbine control system — GE’s flagship distributed control architecture for gas turbines, steam turbines, and combined-cycle power generation units. Terminal boards in the Mark VI ecosystem serve as the critical physical interface layer between field instrumentation (thermocouples, RTDs, proximity probes, servo valves, solenoids) and the core I/O processor modules. The IS400JGPAG1A specifically handles junction and signal routing functions, providing a robust, noise-immune termination point for analog and discrete field wiring.
Product Positioning
Procurement engineers sourcing IS400JGPAG1A face a common challenge: OEM lead times from GE can extend 16–26 weeks, while unplanned turbine outages demand same-week resolution. Konmask.com maintains verified stock of this board to support emergency replacement, planned maintenance shutdowns, and spare-parts inventory programs for power generation and industrial facilities worldwide.
Complete Technical Specifications
| Part Number | IS400JGPAG1A |
| Manufacturer | General Electric (GE) |
| Series / Platform | Mark VI Turbine Control System |
| Module Type | Terminal Board – Junction & Signal Interface |
| Form Factor | DIN-rail / panel-mount terminal board |
| Signal Types Supported | Analog inputs (thermocouple, RTD, mV), discrete I/O, servo/valve interface |
| Connector Interface | Compatible with Mark VI I/O processor ribbon/cable harness |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Weight | 360 g (approx.) |
| Condition Available | New OEM / Refurbished / Tested Surplus |
| Warranty | 12 months from date of shipment |
| Compliance | CE, RoHS-compatible (verify with GE datasheet for specific revision) |
Proven Application Environments
- Gas Turbine Power Plants – GE Frame 5, Frame 6, Frame 7, Frame 9 series turbines running Mark VI control
- Steam Turbine Units – Combined-cycle and cogeneration plants with Mark VI-based steam turbine controllers
- Compressor Stations – Pipeline and process compressor trains using GE Mark VI for speed and surge control
- Offshore & Marine Platforms – Turbine-driven generators on FPSO and offshore production facilities
- Industrial Process Plants – Refineries and petrochemical facilities with GE turbine-driven rotating equipment
- Utility & IPP Facilities – Independent power producers requiring high-availability spare parts programs
Engineering Advantages
- Direct OEM Replacement – Drop-in compatible with existing Mark VI terminal board slots; no firmware changes required
- Signal Integrity – Designed to GE’s noise-rejection and shielding specifications for industrial field environments
- Reduced Downtime Risk – Stocking this board as a cold spare eliminates the primary failure mode in unplanned outage scenarios
- Long Service Life – Industrial-grade PCB construction rated for continuous duty in high-vibration, high-temperature enclosures
- Backward Compatibility – Interoperable with Mark VI I/O modules including VCMI, VTUR, VPRO, and associated I/O packs
System Architecture & Signal Flow
Within the Mark VI architecture, the IS400JGPAG1A sits at the field-wiring termination layer. Field cables from sensors and actuators land on the terminal board’s screw terminals or plug-in connectors. The board conditions and routes these signals via a ribbon cable or direct connector to the corresponding I/O processor module (e.g., VCMI or VTUR). The processor module then communicates over the Mark VI backplane to the controller (VCCC/VCRC) for real-time turbine control logic execution. Replacing a faulty terminal board does not require controller reconfiguration — only physical re-termination of field wiring.
Sourcing & Quality Verification
- All units inspected for physical integrity: PCB, connectors, terminal blocks, and labeling
- Functional test performed on refurbished units prior to shipment
- Serial number and revision level documented and provided with shipment
- Anti-static packaging with humidity indicator card for long-distance shipping
- Certificate of conformance available upon request
- Traceability documentation available for regulated facilities (nuclear, aerospace-adjacent)
Procurement Process
- Confirm Part Number – Verify IS400JGPAG1A against your Mark VI BOM or existing board label
- Request Quote – Contact support@konmask.com or call +0086 19859288691 with quantity and required condition (new/refurbished)
- Review Datasheet & CoC – We provide GE part documentation and our inspection certificate
- Place Order – Net payment terms available for qualified industrial accounts; T/T, L/C accepted
- Shipping – DHL Express / FedEx International Priority standard; air freight for emergency orders; sea freight for bulk spare-parts programs
- Incoming Inspection – We recommend incoming QC per your facility’s spare-parts acceptance procedure
Technical FAQ
Q: Is IS400JGPAG1A interchangeable with other IS400-series terminal boards?
A: IS400-series boards are function-specific. The JGPAG1A revision is not universally interchangeable with other IS400 suffixes. Always match the full part number including suffix and revision letter to your system BOM.
Q: Can this board be used with Mark VIe?
A: Mark VI and Mark VIe share some hardware lineage but have distinct I/O architectures. Confirm compatibility with your GE system integrator or contact us — we can cross-reference your system’s hardware configuration list (HCL).
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. For out-of-stock situations, typical sourcing lead time is 2–4 weeks depending on market availability.
Q: Do you provide installation support?
A: We provide part-level technical documentation. For system-level commissioning, we recommend engaging a GE-certified service partner or your plant’s DCS/controls engineering team.
Q: What warranty is provided?
A: 12 months from shipment date, covering manufacturing defects and functional failure under normal operating conditions. Does not cover damage from incorrect installation or overvoltage events.
