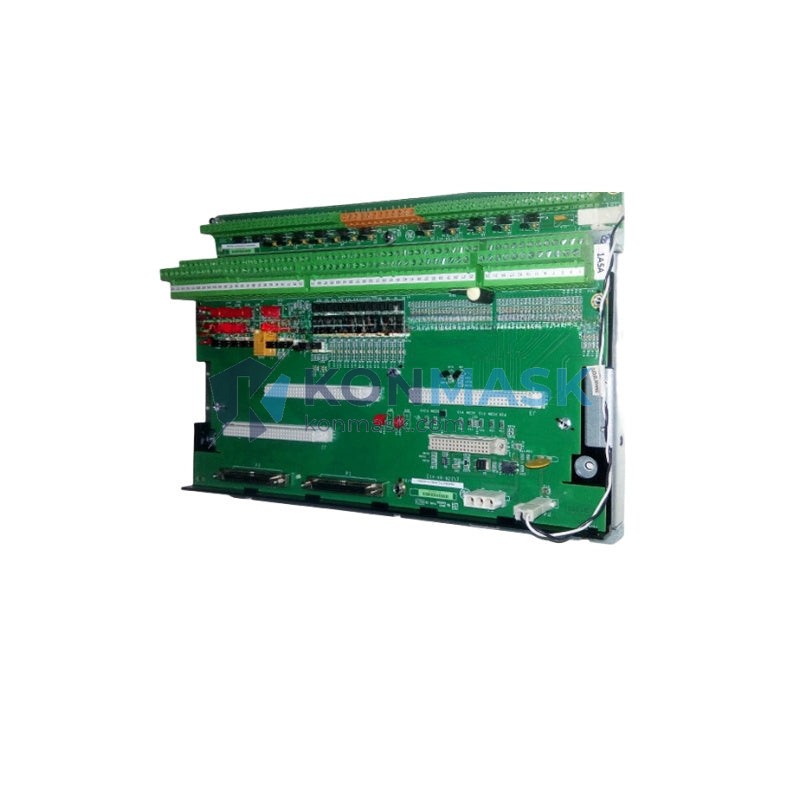

GE IS400TCASH1AGD – Core Analog (PCAA) Module Terminal Board | Mark VI Turbine Control Platform
Engineering Background
The GE IS400TCASH1AGD is a Core Analog (PCAA) Module Terminal Board designed for integration within General Electric’s Mark VI turbine control system — one of the most widely deployed distributed control architectures in power generation, oil & gas, and heavy industrial facilities worldwide. The Mark VI platform is engineered for deterministic, high-availability control of gas turbines, steam turbines, and combined-cycle units, where signal integrity and analog I/O accuracy are mission-critical.
Product Positioning
The IS400TCASH1AGD serves as the terminal interface board for the PCAA (Process Core Analog) module, providing the physical wiring termination layer between field instrumentation and the Mark VI controller backplane. Procurement engineers specifying replacement or spare-parts inventory for Mark VI-equipped turbine trains will find this board a direct, OEM-compatible solution with no firmware reconfiguration required upon installation.
Complete Technical Specifications
| Part Number | IS400TCASH1AGD |
| Manufacturer | General Electric (GE Energy / GE Vernova) |
| Series / Platform | Mark VI Turbine Control System |
| Module Type | Core Analog (PCAA) Terminal Board |
| Function | Analog signal termination & I/O interface for PCAA module |
| Signal Types Supported | 4–20 mA current loops, thermocouple inputs, RTD inputs, voltage analog signals |
| Mounting | Mark VI standard backplane / terminal board rail |
| Form Factor | IS400-series terminal board |
| Operating Temperature | 0°C to +60°C (standard industrial range) |
| Condition Available | New OEM / Refurbished / Tested surplus |
| SKU | IS400TCASH1AGD |
| Country of Origin | USA |
Proven Application Environments
- Power Generation: Gas turbine and steam turbine control panels running GE Mark VI / Mark VIe
- Oil & Gas: Compressor station control systems and pipeline SCADA integration points
- Petrochemical: Process heater and boiler management systems with Mark VI DCS backbone
- Combined-Cycle Plants: HRSG and balance-of-plant analog I/O expansion
- Industrial OEM: Retrofit and upgrade projects replacing legacy Mark V analog termination boards
Engineering Advantages
- Direct OEM Compatibility: Plug-and-play replacement within existing Mark VI racks — no re-engineering of wiring harnesses or backplane connectors
- High Signal Fidelity: Precision analog termination minimizes noise and ground-loop interference in high-EMI turbine environments
- Reduced Downtime Risk: Stocking this board as a critical spare eliminates extended lead-time exposure during unplanned outages
- Broad Sensor Compatibility: Supports thermocouples (J, K, T, E types), 2/3/4-wire RTDs, and standard 4–20 mA transmitters without additional signal conditioning
- Proven Field Reliability: IS400-series boards have accumulated millions of operating hours across GE’s global installed base
System Architecture & Signal Flow
Within the Mark VI architecture, the IS400TCASH1AGD occupies the field-side termination layer. Field wiring from sensors and transmitters lands on the terminal board’s screw or push-in terminals. Signals are then routed via the board’s internal traces and connectors to the mating PCAA processor module seated in the Mark VI I/O rack. The PCAA module performs A/D conversion, signal conditioning, and communicates processed values to the Mark VI controller over the IONet or IONET redundant network. This architecture ensures that the terminal board itself is a passive, high-reliability component — the primary failure mode is physical damage or connector wear, making it an ideal candidate for planned spare-parts inventory.
Sourcing & Quality Verification
- All units sourced through verified industrial surplus channels or authorized GE distribution partners
- Each board undergoes visual inspection, connector integrity check, and functional bench test prior to shipment
- Serialization and revision suffix (AGD) verified against GE engineering change documentation
- Anti-static packaging with humidity indicator card included for long-term storage compliance
- Certificate of conformance available upon request for regulated plant environments
Procurement Process
- Confirm Part Number: Verify IS400TCASH1AGD against your Mark VI BOM or panel drawing — cross-reference the revision suffix (AGD) with your system’s engineering change level
- Request Quote: Contact support@konmask.com or call +0086 19859288691 for volume pricing, lead time, and condition options
- Order & Documentation: Purchase orders accepted; commercial invoice, packing list, and CoC provided with every shipment
- Shipping: DHL / FedEx express available worldwide; export documentation prepared for CN customs compliance
- Incoming Inspection: Recommend incoming QC against GE IS400TCASH1AGD datasheet dimensional and connector specifications
Technical FAQ
Q: Is IS400TCASH1AGD compatible with Mark VIe as well as Mark VI?
A: The IS400-series terminal boards are primarily specified for Mark VI systems. Mark VIe uses a different I/O architecture (IS420-series). Confirm your system generation before ordering.
Q: Can this board be used with third-party analog I/O modules?
A: No. The IS400TCASH1AGD is designed exclusively for the GE PCAA module connector and backplane pinout. It is not a generic terminal board.
Q: What is the difference between revision suffixes (e.g., AGD vs. AGA)?
A: Revision suffixes denote GE engineering change levels. Always match the suffix to your system’s current BOM revision. Contact us if you need cross-revision compatibility guidance.
Q: Do you provide warranty on surplus units?
A: Yes — all tested surplus units carry a 90-day functional warranty. New OEM units carry the standard GE warranty. Terms provided with quotation.
Q: What lead time should I expect?
A: In-stock units ship within 1–3 business days. If not in stock, typical sourcing lead time is 2–4 weeks. Contact us for real-time availability.
