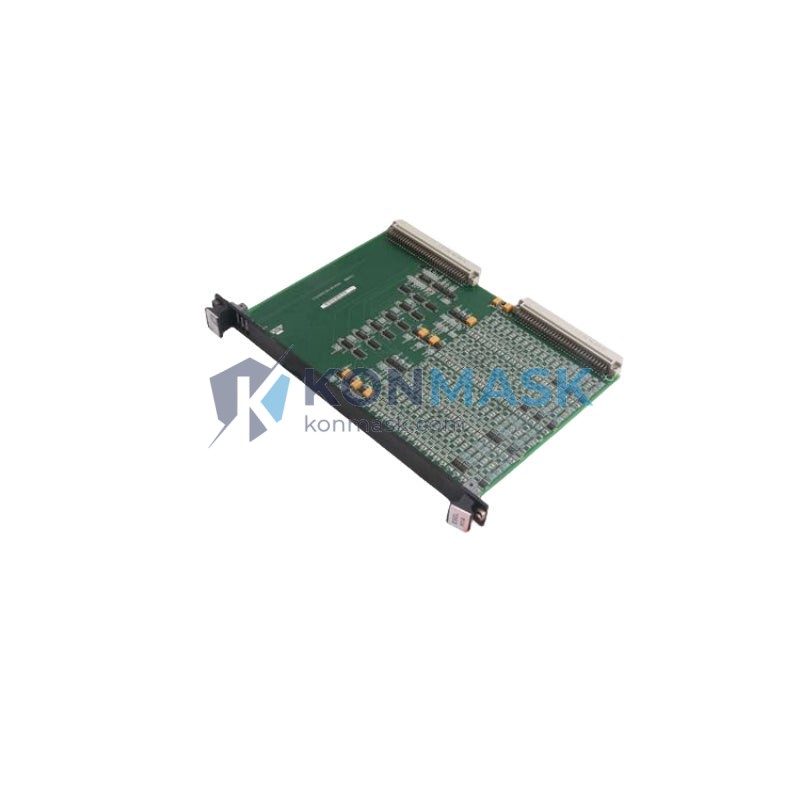

GE IS200JPDMG1ADC Printed Circuit Board | Replacement, Equivalent & Selection Guide
Technical Specifications
- Manufacturer: General Electric (GE)
- Part Number: IS200JPDMG1ADC
- SKU: IS200JPDMG1ADC
- Description: Printed Circuit Board (PCB) for GE Mark VI Turbine Control System
- Board Type: JPDM – Junction / Power Distribution Module
- Revision: G1ADC
- Form Factor: Standard GE Mark VI card-cage compatible module
- Weight: 900 g (approx.)
- Application: Gas turbine, steam turbine, and combined-cycle power plant control
- Condition Available: New, Refurbished, Tested & Certified
Compatible Replacement & Equivalent Models
The IS200JPDMG1ADC may be cross-referenced or substituted with the following models under appropriate engineering review:
- IS200JPDMG1AAA – Earlier revision; functionally equivalent in most Mark VI configurations
- IS200JPDMG1ABB – Intermediate revision; verify firmware compatibility before substitution
- IS200JPDMG1ACC – Preceding revision to ADC; direct drop-in candidate
- IS200JPDMG1AEC – Later revision; backward-compatible in most applications
- IS200JPDMG2ADC – Second-generation variant; confirm rack slot and I/O mapping
Note: Always verify hardware revision, firmware version, and system configuration with your GE Mark VI documentation before substituting any PCB module.
Why Choose the Original Model
- Exact OEM Fit: IS200JPDMG1ADC is the factory-specified revision for systems configured to ADC-level firmware and hardware.
- Validated Compatibility: Eliminates risk of I/O mapping mismatches or firmware conflicts present in cross-revision substitutions.
- Regulatory Compliance: Power plant operators often require OEM part numbers for maintenance records, insurance, and audit trails.
- Reduced Commissioning Time: Drop-in replacement with no re-parameterization required when replacing like-for-like.
- Long-Term Support: Sourcing the exact revision ensures availability of matching spare boards for future redundancy needs.
Typical Applications
- GE Frame 6B, 7E, 7EA, 9E gas turbine control panels
- GE steam turbine Mark VI control systems
- Combined-cycle power plant (CCPP) DCS integration
- Turbine protection and sequencing logic boards
- Power distribution and junction signal routing within Mark VI card cages
- Retrofit and upgrade projects replacing Mark V or Mark IV legacy systems
System Compatibility
- Control Platform: GE Mark VI Turbine Control System
- Card Cage: Standard Mark VI VME-style enclosure
- Communication: Compatible with GE IONet and ARCNET-based I/O networks
- Software: Toolbox ST (GE ControlST) configuration environment
- Power Supply: 28 VDC nominal (verify with system documentation)
- Operating Environment: Industrial panel-mount; consult GE GEH-6421 manual for environmental ratings
Selection Guide
Use the following criteria to confirm IS200JPDMG1ADC is the correct module for your application:
- Step 1 – Identify your Mark VI revision: Check the system nameplate or ControlST project file for the hardware baseline.
- Step 2 – Confirm the board revision: The label on the existing board should read IS200JPDMG1ADC. If it reads a different suffix (AAA, ABB, etc.), consult the compatibility table above.
- Step 3 – Check firmware alignment: Ensure the replacement board’s firmware revision matches the running system to avoid I/O configuration errors.
- Step 4 – Verify slot assignment: JPDM boards occupy specific slots in the Mark VI card cage; confirm slot number in your system’s I/O configuration drawing.
- Step 5 – Contact us for pre-shipment testing: All boards shipped from Konmask.com are bench-tested and certified prior to dispatch.
Quality Assurance & Sourcing
- All IS200JPDMG1ADC units are sourced from verified industrial surplus, OEM overstock, or certified repair facilities.
- Each board undergoes visual inspection, functional bench testing, and ESD-safe packaging before shipment.
- Traceability documentation (test reports, photos, serial numbers) available upon request.
- Warranty: 12-month replacement warranty on tested & certified units.
- Export compliance: ECCN classification and export documentation available for international orders.
How to Order
- Online: Add to cart directly on this page. Secure checkout with multiple payment options.
- RFQ / Bulk Orders: Email support@konmask.com with quantity, required delivery date, and destination country.
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Lead Time: In-stock units ship within 1–3 business days. Out-of-stock units subject to sourcing lead time (typically 5–15 business days).
- Shipping: DHL, FedEx, UPS express available worldwide. Customs documentation provided.
Replacement & Compatibility FAQ
Q: Can I use IS200JPDMG1AAA instead of IS200JPDMG1ADC?
A: In many cases yes, but you must verify firmware compatibility and I/O mapping. Contact us for a compatibility assessment before ordering.
Q: Is this board compatible with Mark V systems?
A: No. The IS200JPDMG1ADC is designed exclusively for the GE Mark VI platform. Mark V uses a different card architecture (e.g., DS200 series).
Q: Do you offer repair services for faulty IS200JPDMG1ADC boards?
A: Yes. Send your faulty board to us for evaluation. Repair turnaround is typically 7–14 business days. Contact support@konmask.com for a repair RMA.
Q: What is the difference between IS200JPDMG1ADC and IS200JPDMG2ADC?
A: The “2” in IS200JPDMG2ADC denotes a second-generation hardware revision with potential changes to component layout or I/O capacity. Confirm with GE documentation or contact us before substituting.
Q: Can you provide a Certificate of Conformance (CoC)?
A: Yes. CoC, test reports, and traceability documentation are available upon request for all tested & certified units.
