Precision Robotics & Automation Solution – HARMONIC DRIVE HDA-025-080-2-SP2222 | PGM-320REC Series
Where This Product Is Used

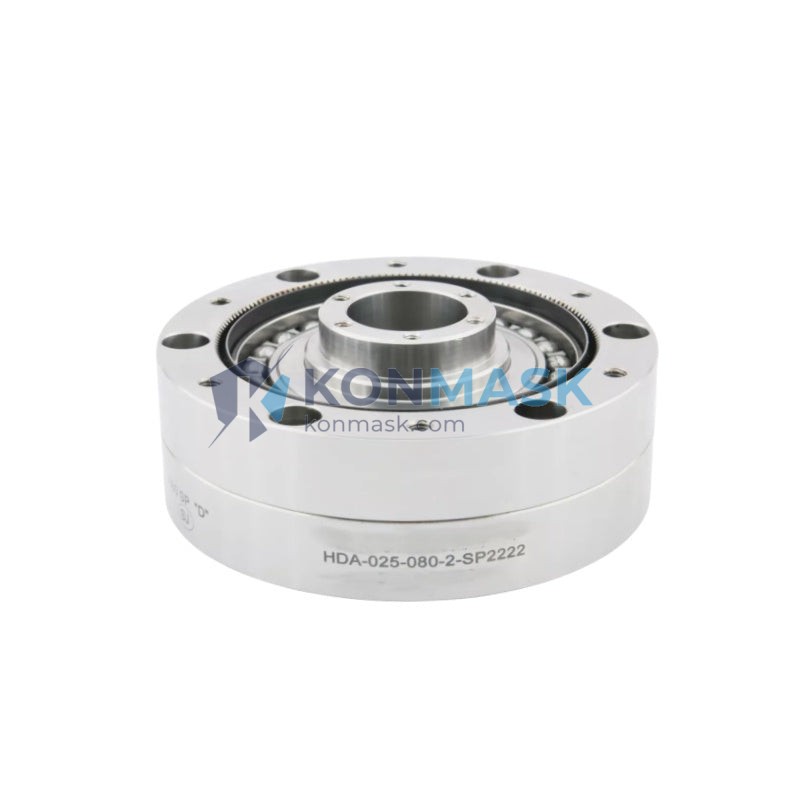

The HARMONIC DRIVE HDA-025-080-2-SP2222 Bearing Assembly is a mission-critical precision component deployed across high-demand industrial and advanced automation environments, including:
- Industrial Robotics – Joint actuators in 6-axis articulated robot arms (FANUC, KUKA, ABB, Yaskawa) requiring zero-backlash torque transmission
- Semiconductor & Flat Panel Display Manufacturing – Wafer handling robots and precision positioning stages where micron-level repeatability is mandatory
- Medical Robotics & Surgical Systems – Collaborative robot joints and surgical assist arms demanding smooth, low-noise motion
- Aerospace & Defense – Antenna positioning systems, satellite attitude control mechanisms, and UAV gimbal drives
- CNC Machine Tools – Rotary table drives and tool-changer mechanisms requiring high stiffness and compact form factor
- Automated Optical Inspection (AOI) – High-speed scanning heads and multi-axis gantry systems
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | HARMONIC DRIVE AG / Harmonic Drive Systems Inc. |
| Primary Part Number | HDA-025-080-2-SP2222 |
| Cross-Reference SKUs | PGM-320REC / BM23951L29 / BM17180L14/N / EPS31196 |
| Assembly Type | Bearing Assembly (BEARING ASSY) |
| Series | HDA / PGM-320 Series |
| Size Code | 025 (25 mm output flange class) |
| Reduction Ratio | 80:1 |
| Configuration | Type 2, SP2222 special specification |
| Weight (approx.) | 2,600 g |
| Lubrication | Grease-lubricated (factory pre-filled) |
| Output Interface | Flange output, bolt-circle mounting |
| Operating Temperature | -10°C to +70°C (standard) |
Why Engineers Specify This Model
- Zero Backlash – Harmonic Drive strain-wave gearing eliminates backlash, delivering arc-second positional accuracy critical for servo-driven joints
- High Torque Density – Compact 025-size housing achieves torque output far exceeding conventional planetary gearboxes of equivalent volume
- Multi-SKU Cross-Reference – PGM-320REC, BM23951L29, BM17180L14/N, and EPS31196 are all validated cross-references, simplifying MRO procurement and BOM alignment
- Long Service Life – Precision-ground bearing races and controlled preload extend MTBF in continuous-duty servo applications
- Drop-In Replacement – Dimensional compatibility with HDA-025 series housings enables direct swap without mechanical redesign
- Stiffness & Damping – Integrated bearing assembly provides high torsional stiffness, reducing settling time in closed-loop servo systems
Complete System Bill of Materials
For a fully operational HDA-025 harmonic drive joint module, engineers typically specify the following BOM:
- HDA-025-080-2-SP2222 Bearing Assembly (this item)
- HDA-025 Flexspline (wave generator + flex spline sub-assembly)
- HDA-025 Circular Spline housing
- Compatible servo motor (50W–200W, encoder feedback)
- Servo drive / amplifier (EtherCAT or MECHATROLINK-III compatible)
- Output flange coupling hardware (M3/M4 socket head cap screws, grade 12.9)
- Grease replenishment kit (Harmonic Drive SK-1A or equivalent)
Compliance & Industry Standards
- ISO 9283 – Manipulating industrial robots: performance criteria and related test methods
- ISO 10218-1 – Robots and robotic devices: safety requirements for industrial robots
- RoHS 2 Directive (2011/65/EU) – Restriction of hazardous substances compliance
- CE Marking – Applicable to Harmonic Drive AG European-market components
- JIS B 1702 – Japanese Industrial Standard for gear accuracy (applicable to strain-wave gearing)
Quality Assurance & Sourcing
Konmask.com sources HARMONIC DRIVE HDA-025-080-2-SP2222 bearing assemblies exclusively through authorized industrial distribution channels and verified OEM surplus networks. Every unit undergoes:
- Visual and dimensional inspection against OEM drawings
- Cross-reference validation of all SKU markings (PGM-320REC, BM23951L29, BM17180L14/N, EPS31196)
- Packaging integrity check and anti-static protection for sensitive bearing surfaces
- Documentation review: OEM datasheet, traceability records, and country of origin
All products ship with available OEM documentation. Certificates of conformance available upon request for regulated industries.
How to Source This Part
- In-Stock Orders – Add to cart and complete checkout. DHL Express / FedEx International Priority available for urgent requirements.
- Bulk / Project Procurement – Contact support@konmask.com for volume pricing, lead-time commitments, and consolidated BOM sourcing.
- Urgent MRO / Line-Down Support – Call or WhatsApp +0086 19859288691 for same-day response on critical production downtime situations.
- Cross-Reference Lookup – If your BOM lists PGM-320REC, BM23951L29, BM17180L14/N, or EPS31196, this is the correct replacement unit.
Application-Specific FAQ
Q: Is HDA-025-080-2-SP2222 compatible with FANUC R-2000iC robot joints?
A: The HDA-025 series is widely used in robot joint actuators of equivalent torque class. Verify mounting bolt pattern and output flange interface against your robot’s mechanical drawings before installation.
Q: What is the difference between HDA-025-080-2-SP2222 and a standard HDA-025-080-2?
A: The SP2222 suffix denotes a special specification variant — typically involving modified preload, sealing, or surface treatment. Consult the OEM datasheet or contact us for the specific SP2222 deviation sheet.
Q: Can this bearing assembly be used in cleanroom (ISO Class 5) environments?
A: Standard HDA bearing assemblies are not rated for cleanroom use without modification. Harmonic Drive offers cleanroom-compatible variants with special seals and low-outgassing grease. Contact us to confirm suitability.
Q: What is the expected service life under continuous duty?
A: Under rated load and proper lubrication intervals, Harmonic Drive bearing assemblies are designed for L10 bearing life exceeding 10,000 hours in typical servo applications.
Q: Do you provide installation support or technical drawings?
A: Yes. Contact support@konmask.com with your application details and we will provide available OEM dimensional drawings, installation guidelines, and torque specifications.
