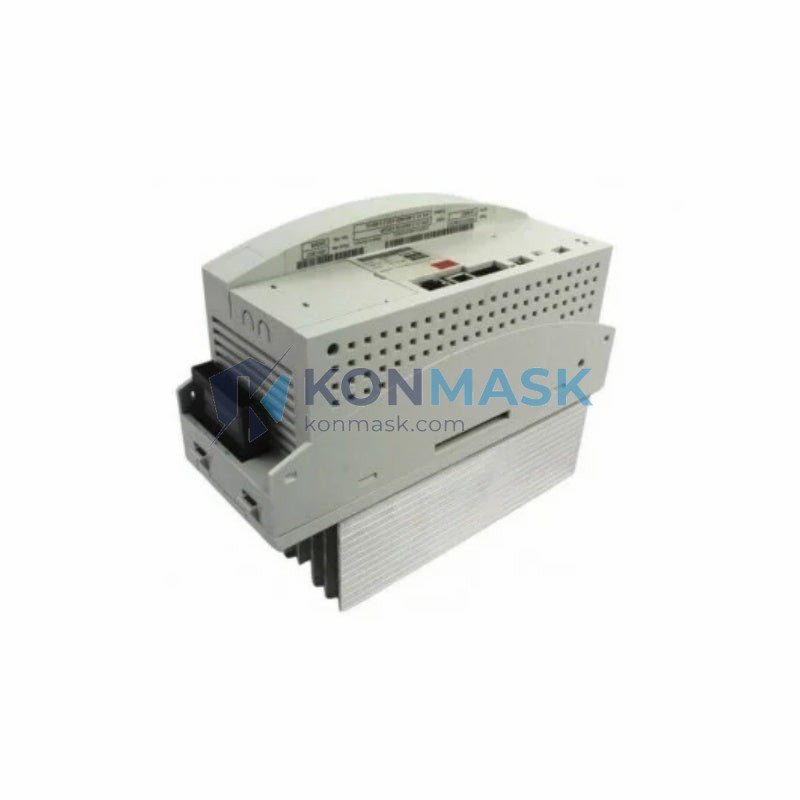

KUKA C2-KSD1-16-00-105-350 Servo Drive – KR C2 Robot Controller Series
When a servo drive fails on a KUKA robot arm, the entire production cell stops. Assembly lines halt, automotive body shops go dark, and every minute of downtime translates directly into lost revenue and missed delivery commitments. The KUKA C2-KSD1-16-00-105-350 is the precision servo drive module that keeps KR C2-series robots moving with accuracy and reliability — and without it, there is no motion, no production, and no output.
The C2-KSD1-16-00-105-350 is a dedicated axis servo drive engineered specifically for KUKA’s KR C2 robot controller platform — one of the most widely deployed industrial robot controllers in the world. Rated at 16A continuous output current and designed to interface directly with the KR C2 cabinet’s power distribution and communication bus, this drive occupies a critical position in KUKA’s motion control architecture. It is found in automotive welding, material handling, palletizing, and precision assembly applications across Europe, Asia, and the Americas.
Technical Specifications
- Part Number: C2-KSD1-16-00-105-350
- Manufacturer: KUKA Roboter GmbH
- Series: KR C2 Robot Controller
- Type: Axis Servo Drive Module
- Continuous Output Current: 16 A
- Compatible Controller: KUKA KR C2 Cabinet
- Interface: KR C2 internal bus (DSE/KPS compatible)
- Weight: Approx. 560 g
- Country of Origin: Germany
- Condition: New / Refurbished (specify on inquiry)
Note: All specifications are based on KUKA published documentation. Konmask.com does not modify or alter OEM specifications.
Key Features & Benefits
- Direct KR C2 Compatibility: Plug-and-play replacement for existing KR C2 installations — no firmware modification required.
- 16A Continuous Drive Capacity: Supports medium-to-heavy axis loads typical in automotive and heavy manufacturing environments.
- Integrated Fault Diagnostics: Onboard status LEDs and bus-reported error codes enable rapid fault isolation and reduced MTTR.
- Thermal Protection: Built-in over-temperature and over-current protection circuits extend operational lifespan in high-duty-cycle environments.
- OEM-Grade Reliability: Manufactured to KUKA’s stringent quality standards, ensuring consistent torque response and positional accuracy.
- Global Availability: Konmask.com maintains sourcing channels across Europe and Asia to minimize lead times for urgent replacement needs.
Industry & Equipment Applications
- Automotive Manufacturing: Spot welding, body-in-white assembly, and paint shop robots using KUKA KR 6, KR 16, KR 30, and KR 60 series arms.
- Metal Fabrication: Arc welding and plasma cutting cells requiring precise multi-axis servo coordination.
- Logistics & Palletizing: High-throughput palletizing robots in food, beverage, and consumer goods facilities.
- Electronics Assembly: Precision pick-and-place and PCB handling applications demanding sub-millimeter repeatability.
- General Industrial Automation: Any KR C2-controlled robot installation requiring axis drive replacement or spare inventory.
System Integration & Compatible Parts
The C2-KSD1-16-00-105-350 operates within the KUKA KR C2 controller ecosystem. Commonly paired components include:
- KUKA KPS-600 / KPS-1500 Power Supply Units
- KUKA DSE-IBS / DSE-RDW Drive System Electronics
- KUKA KR C2 Main Computer (PC) Boards
- KUKA SmartPAD / KCP2 Teach Pendants
- KUKA RDC (Resolver-to-Digital Converter) Cards
Contact our technical team to confirm compatibility with your specific robot model and software version before ordering.
Our Quality Assurance Process
Every KUKA servo drive shipped from Konmask.com passes through a structured 4-step verification process:
- Step 1 — Source Verification: Parts are sourced exclusively from authorized distributors, certified refurbishers, or direct OEM channels. No grey-market or counterfeit sources are accepted.
- Step 2 — Visual & Physical Inspection: Each unit is inspected for physical damage, connector integrity, label authenticity, and serial number traceability.
- Step 3 — Functional Testing (Refurbished Units): Refurbished drives undergo bench testing against KUKA KR C2 reference systems to verify correct bus communication, current output, and fault response.
- Step 4 — Documentation & Packaging: Units are shipped with inspection records, traceability documentation, and ESD-safe packaging to ensure safe transit.
How to Order
- Submit an Inquiry: Use the contact form or email support@konmask.com with your part number, required quantity, and delivery timeline.
- Receive a Quote: Our team will respond within 1 business day with pricing, availability, and lead time.
- Confirm & Pay: Orders are confirmed upon receipt of payment via T/T (bank transfer), PayPal, or other agreed methods.
- Shipping: Parts are dispatched via DHL, FedEx, or UPS Express with full tracking. Customs documentation provided for international shipments.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on industrial control components — KUKA, ABB, Fanuc, Siemens, Yaskawa, and more.
- Verified Supply Chain: Transparent sourcing with traceability documentation available on request.
- Global Shipping: We ship to 50+ countries with experience in customs clearance for industrial equipment.
- Technical Support: Our engineering team can assist with compatibility verification and installation guidance.
- Responsive Service: Dedicated account managers for B2B clients with urgent downtime replacement needs.
Frequently Asked Questions
Q: Is the C2-KSD1-16-00-105-350 compatible with all KR C2 controllers?
A: It is designed for the KUKA KR C2 platform. Compatibility may vary by robot model and software version. Please provide your robot’s nameplate data when inquiring.
Q: Do you supply new or refurbished units?
A: We supply both. Please specify your preference when submitting an inquiry. All refurbished units are tested and documented.
Q: What is the lead time?
A: Lead time depends on current stock. In-stock units typically ship within 2–3 business days. Out-of-stock items are sourced within 5–15 business days.
Q: Can you provide a warranty?
A: Yes. We offer a standard 90-day warranty on all parts. Extended warranty options are available for volume orders.
Q: Do you accept returns?
A: Returns are accepted within 30 days for unused parts in original condition. Please contact support@konmask.com to initiate a return.
