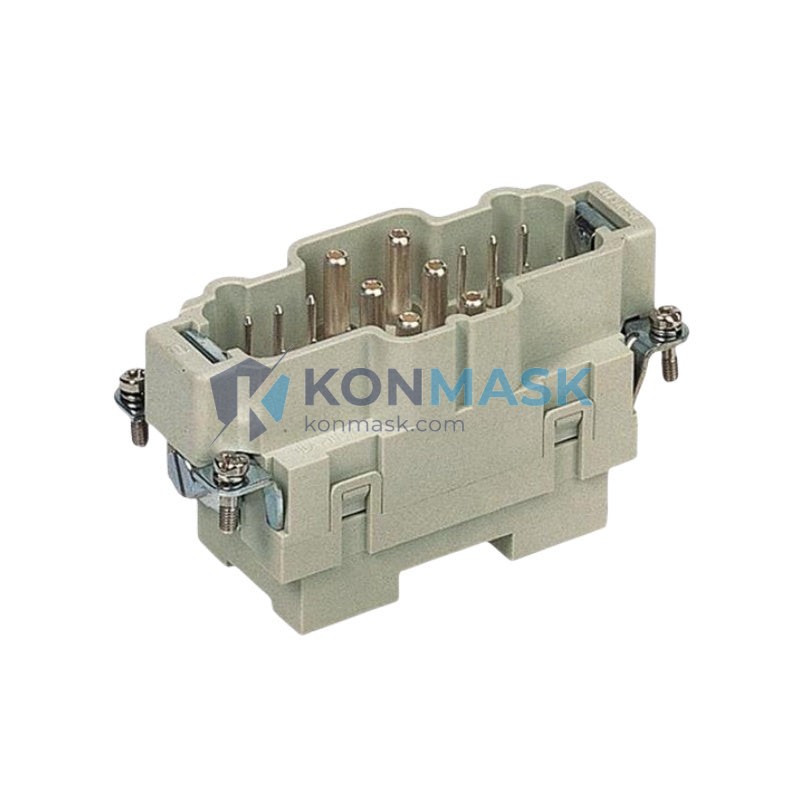

HARTING 9380182601 — Heavy Duty Power Connector | Han® Series Platform
Engineering Background
HARTING is a globally recognized leader in industrial connectivity, with over 75 years of engineering heritage. The Han® series is the industry benchmark for heavy-duty connectors deployed in demanding industrial environments — from machine tool cabinets to offshore control panels. Part number 9380182601 represents HARTING’s commitment to modular, high-reliability power interconnection.
Product Positioning
The HARTING 9380182601 is engineered for procurement engineers and system integrators who require a certified, field-proven heavy-duty connector with guaranteed interoperability across Han® ecosystem accessories. It is the preferred choice for OEM panel builders, MRO replacement sourcing, and new automation system designs where connector reliability is non-negotiable.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | HARTING |
| Part Number | 9380182601 |
| Series | Han® (Heavy Duty Connector) |
| Connector Type | Heavy Duty Power Connector |
| Weight | 440 g |
| Country of Origin | Germany (HARTING Group) |
| Compliance | IEC 61984, RoHS, CE |
| Protection Rating | IP65 (when mated) |
| Operating Temperature | -40°C to +125°C |
| Mating Cycles | ≥ 500 (standard Han® specification) |
| Housing Material | Die-cast aluminum / engineering thermoplastic |
| Contact Material | Copper alloy, silver or gold plated (contact-dependent) |
| Locking Mechanism | Screw locking / lever locking (Han® standard) |
| Cable Entry | PG / M-thread cable glands (accessory) |
Note: For full pin-count, rated current, and voltage specifications, please request the official HARTING datasheet via support@konmask.com.
Proven Application Environments
- Industrial Automation: PLC control cabinets, servo drive panels, robot end-effector wiring
- Machine Tool Industry: CNC machine power distribution, spindle motor connections
- Renewable Energy: Wind turbine nacelle wiring, solar inverter field connections
- Rail & Transportation: Rolling stock power distribution, trackside equipment
- Oil & Gas / Offshore: Hazardous area control panels (with appropriate Ex-rated accessories)
- Food & Beverage: Washdown-rated machine connections (IP65 mated)
- MRO Replacement: Direct drop-in replacement for existing Han® 9380182601 installations
Engineering Advantages
- Modular Han® Ecosystem: Compatible with the full HARTING Han® insert, hood, and housing accessory range — mix power, signal, and data contacts in a single connector
- Tool-Free Maintenance: Han® Quick-Lock and push-in contact options reduce field service time
- High Mechanical Robustness: Die-cast aluminum housing withstands vibration, shock, and mechanical stress per IEC standards
- Global Certification: CE, UL, and international approvals support multi-region machine export compliance
- Long Service Life: ≥500 mating cycles with consistent contact resistance — critical for frequent maintenance access points
- Interoperability: Backward compatible with legacy Han® installations — no panel re-engineering required for MRO replacement
System Architecture & Signal Flow
The HARTING 9380182601 functions as the primary power interface node in a modular connector assembly:
- Hood (Male Housing) → mounted to machine/panel chassis, cable entry via PG glands
- Insert (Power Contacts) → 9380182601 insert seated into hood, rated for high-current power conductors
- Housing (Female) → field-wireable, accepts mating insert with screw or lever lock
- Mated Assembly → achieves IP65 sealing, mechanical retention, and full electrical continuity
For multi-signal architectures, Han® modular frames allow simultaneous power + signal + data in a single connector body — reducing panel footprint and wiring complexity.
Sourcing & Quality Verification
- Authorized Supply Chain: Konmask.com sources HARTING components through verified industrial distribution channels with full traceability
- Authenticity Guarantee: Every unit ships with original HARTING packaging and batch documentation upon request
- Inspection Protocol: Pre-shipment visual and dimensional inspection against HARTING published drawings
- Counterfeit Prevention: We do not source from grey-market or unverified secondary suppliers — critical for safety-rated applications
- Documentation Available: CE Declaration of Conformity, RoHS certificate, and HARTING datasheet available on request
Procurement Process
- Confirm Part Number: Verify 9380182601 against your BOM or existing installation label
- Request Quote: Contact support@konmask.com with quantity and required delivery date
- Lead Time: In-stock units ship within 1–3 business days; bulk orders subject to availability confirmation
- Payment: T/T bank transfer, PayPal, or platform checkout — invoice provided for all B2B orders
- Shipping: DHL Express / FedEx International with full tracking; export documentation included
- After-Sales: Technical support and return/exchange policy per Konmask.com terms
Technical FAQ
Q: Is 9380182601 compatible with my existing Han® B housing?
A: Han® inserts are designed for specific frame sizes. Please confirm your housing size (Han® 6B, 10B, 16B, etc.) and we will verify compatibility before shipment.
Q: What is the maximum rated current for this connector?
A: Rated current depends on the specific insert contact configuration. Contact us with your application voltage and current requirements for a precise recommendation.
Q: Can this connector be used in ATEX/IECEx hazardous areas?
A: Standard Han® housings are not Ex-rated. HARTING offers dedicated Ex-rated variants. Please specify your zone classification when enquiring.
Q: Do you supply mating halves and accessories?
A: Yes — Konmask.com stocks complementary Han® hoods, housings, cable glands, and contact inserts. Request a complete BOM quote.
Q: What is the minimum order quantity?
A: No minimum order quantity. Single units and bulk orders are both welcome.
