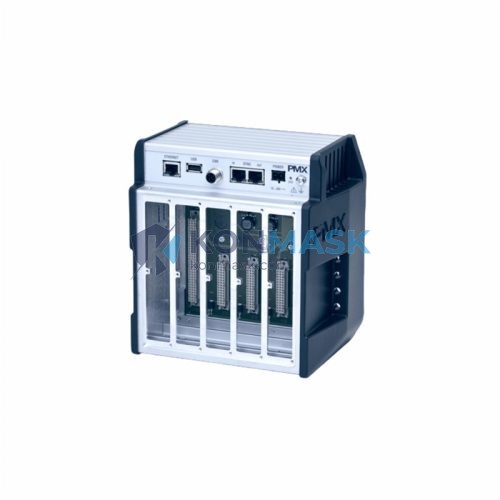

HBM WGX002-PX01PN Weighing & Force Measurement Controller | Replacement, Equivalent & Selection Guide
The HBM WGX002-PX01PN is a high-precision weighing and force measurement controller from HBM (Hottinger Baldwin Messtechnik), designed for industrial automation, process control, and laboratory measurement systems. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make the right sourcing decision.
Technical Specifications
- Manufacturer: HBM (Hottinger Baldwin Messtechnik)
- Part Number / SKU: WGX002-PX01PN
- Series: WGX002
- Module Type: Weighing & Force Measurement Controller
- Interface: PROFINET (PN)
- Input: Compatible with strain gauge load cells and force transducers
- Supply Voltage: 24 V DC (nominal)
- Protection Class: IP20 (panel/DIN rail mount)
- Communication Protocol: PROFINET IO
- Weight: Approx. 1,000 g
- Country of Origin: Germany
Compatible Replacement & Equivalent Models
If the WGX002-PX01PN is unavailable or discontinued, the following models may serve as functional equivalents depending on your system requirements:
- HBM WGX002-PX01EI – EtherNet/IP variant of the same WGX002 series; drop-in replacement for EtherNet/IP-based PLCs
- HBM WGX002-PX01PB – PROFIBUS DP variant; suitable for legacy Siemens S7 systems

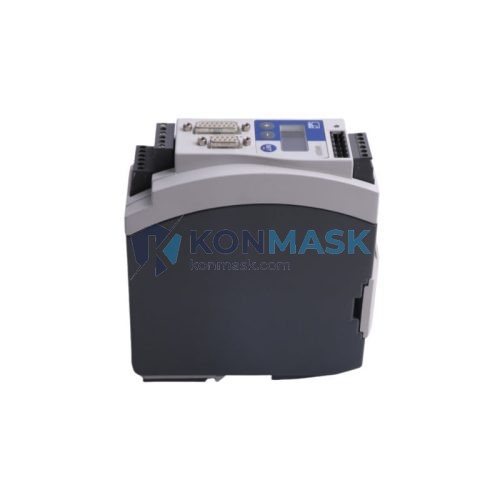

- HBM PME – Predecessor platform; compatible with same load cell wiring, requires firmware reconfiguration
- Siemens SIWAREX WP231 – Third-party equivalent for PROFINET weighing; compatible with S7-1200/1500 via TIA Portal
- Mettler Toledo IND780 – Industrial weighing terminal with PROFINET option; suitable for high-accuracy process weighing
- Minebea Intec Precizia – European-standard replacement for precision force measurement applications
⚠ Always verify firmware version, load cell excitation voltage, and fieldbus configuration before substituting models.
Why Choose the Original HBM WGX002-PX01PN
- ✅ Native PROFINET IO integration — zero gateway required for Siemens, Beckhoff, or B&R PLCs
- ✅ HBM-certified calibration accuracy — traceable to national standards
- ✅ Plug-and-play with HBM load cells (U2, C2, Z6, etc.)
- ✅ Compact DIN-rail form factor — minimal panel space
- ✅ Long-term availability and HBM global support network
Typical Applications
- Checkweighing and filling systems in food & beverage manufacturing
- Batching and dosing control in chemical and pharmaceutical plants
- Force monitoring in press and assembly automation
- Laboratory and R&D force measurement rigs
- Crane and hoisting load monitoring
- Conveyor belt weighing systems
System Compatibility
- PLC Compatibility: Siemens S7-1200 / S7-1500, Beckhoff TwinCAT, B&R Automation Studio, Rockwell (via PROFINET adapter)
- Engineering Software: Siemens TIA Portal (GSDML file available), STEP 7
- Load Cell Types: Strain gauge (mV/V), compatible with HBM and third-party load cells
- Fieldbus: PROFINET IO (RT / IRT)
Selection Guide
Use the table below to select the correct WGX002 variant for your fieldbus:
- PROFINET (PN): WGX002-PX01PN ← This model
- EtherNet/IP (EI): WGX002-PX01EI
- PROFIBUS DP (PB): WGX002-PX01PB
- EtherCAT (EC): WGX002-PX01EC (check availability)
For multi-channel applications or higher accuracy requirements, consider the HBM QuantumX MX1615B or HBM MGCplus platform.
Quality Assurance & Sourcing
- 🔒 All units sourced from authorized HBM distributors or verified industrial surplus channels
- 📋 Factory calibration certificate available upon request
- 🔍 Pre-shipment inspection and functional testing performed
- 📦 Anti-static packaging with humidity indicator card
- 🌐 Global shipping from China — typical lead time 3–7 business days
How to Order
- Confirm your fieldbus type (PROFINET / EtherNet/IP / PROFIBUS)
- Verify load cell excitation voltage and mV/V range
- Add WGX002-PX01PN to cart or contact us for bulk pricing
- Provide your PO number or project reference for B2B invoicing
- Receive tracking number within 1 business day of payment confirmation
📧 Contact: support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace WGX002-PX01PN with WGX002-PX01EI?
A: Only if your PLC supports EtherNet/IP. The hardware is identical but the fieldbus protocol differs — not interchangeable without PLC reconfiguration.
Q: Is the WGX002-PX01PN compatible with third-party load cells?
A: Yes, any strain gauge load cell outputting mV/V within the specified range is compatible. HBM load cells are recommended for optimal accuracy.
Q: What is the warranty on this unit?
A: We offer a 12-month warranty on all units. Extended warranty and calibration services available on request.
Q: Can you provide a GSDML file for TIA Portal integration?
A: Yes, the GSDML file is available for download upon purchase or on request.
Q: Do you offer volume discounts for OEM or system integrators?
A: Yes. Contact us with your annual volume requirements for tiered pricing.
