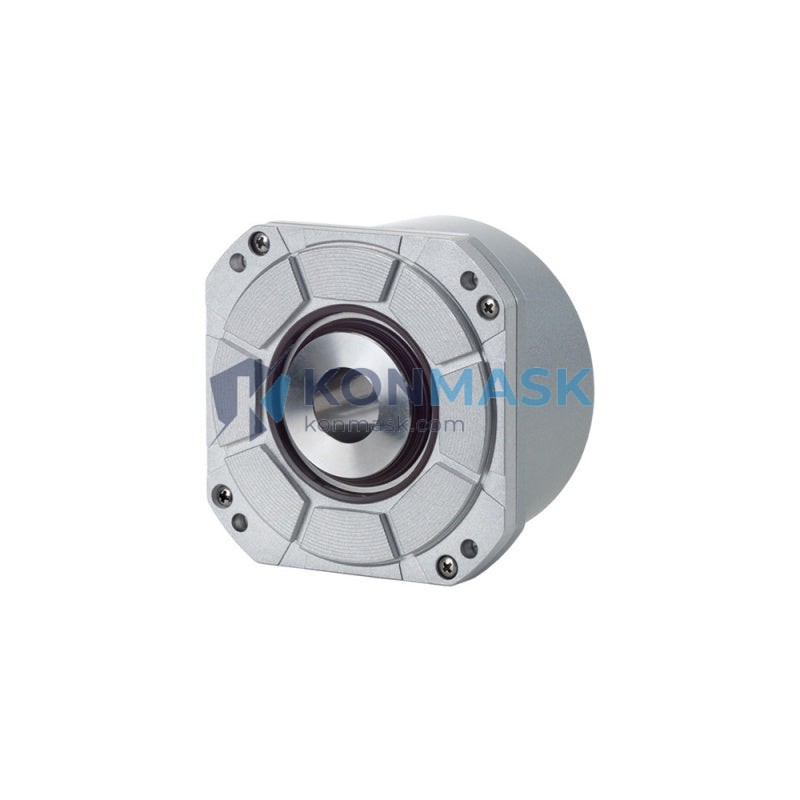

Genuine HEIDENHAIN RCN 223 16384 03S17-0D Absolute Angle Encoder | RCN 200 Series – Verified Source
The HEIDENHAIN RCN 223 16384 03S17-0D is a high-precision absolute angle encoder from the renowned RCN 200 Series, engineered for demanding rotary measurement applications in machine tools, semiconductor equipment, and precision automation systems. At Konmask.com, every unit is sourced through verified supply channels and undergoes multi-point inspection before dispatch — giving industrial buyers the confidence they need when specifying critical motion-control components.
Technical Specifications
- Manufacturer: HEIDENHAIN (Dr. Johannes Heidenhain GmbH)
- Part Number / SKU: RCN 223 16384 03S17-0D
- Series: RCN 200
- Encoder Type: Absolute Angle Encoder (Rotary)
- Resolution: 16,384 positions per revolution (14-bit single-turn)
- Interface: EnDat 2.2 / 01 (serial absolute)
- Accuracy Grade: ±3″ (arc-seconds)
- Operating Voltage: 3.6 V – 14 V DC
- Operating Temperature: 0 °C to +50 °C
- Protection Class: IP64 (dust-tight, splash-proof)
- Weight: approx. 3,190 g (complete assembly)
- Mounting: Stator coupling, integral bearing
- Output Signal: Pure serial (EnDat 2.2)
- Country of Origin: Germany
Our 4-Step Quality Verification Process
Every HEIDENHAIN encoder shipped from Konmask.com passes through our rigorous 4-step verification protocol:
- Step 1 — Source Authentication: Units are procured exclusively from authorised distributors or verified OEM surplus channels. No grey-market or counterfeit sources are accepted.
- Step 2 — Physical Inspection: Housing integrity, connector condition, label authenticity (hologram, serial number format), and packaging seal are checked against HEIDENHAIN factory standards.
- Step 3 — Functional Bench Test: Where applicable, encoders are powered and signal output is verified using compatible HEIDENHAIN diagnostic tools (IK 215 / PWM 20).
- Step 4 — Documentation Review: Original factory documentation, calibration certificates, and traceability records are retained and available upon request.
Key Features & Benefits
- ✅ Absolute position output — no reference run required after power-on, reducing machine cycle time
- ✅ EnDat 2.2 digital interface — noise-immune serial communication, ideal for long cable runs in industrial environments
- ✅ Integral bearing design — simplifies installation and eliminates shaft coupling alignment errors
- ✅ High signal quality — 16,384 positions/rev delivers sub-arc-minute resolution for precision contouring
- ✅ Compact RCN 200 form factor — drop-in compatible with existing HEIDENHAIN RCN 2xx mounting interfaces
- ✅ Genuine OEM part — full manufacturer warranty eligibility preserved
Typical Applications
- CNC rotary tables and tilting axes (5-axis machining centres)
- Direct-drive torque motor feedback (DDL / DDR systems)
- Semiconductor wafer-handling robots and goniometers
- Precision gear-testing and metrology equipment
- Medical imaging gantry drives (CT / MRI positioning)
- Telescope and antenna azimuth/elevation drives
Compatible System Components
- Controllers: HEIDENHAIN iTNC 530, TNC 640, TNC 7 — EnDat 2.2 input axes
- Drive systems: Siemens SINAMICS S120 (with EnDat module), Bosch Rexroth IndraDrive
- Diagnostic tools: HEIDENHAIN PWM 20, IK 215 inspection unit
- Cables: HEIDENHAIN EnDat cable assemblies (ID 309 784-xx series)
- Mounting accessories: RCN 200 stator coupling sets, centering mandrels
Global Sourcing & Shipping Capabilities
- 📦 In-stock & ready to ship — same-day dispatch for orders confirmed before 14:00 CST
- 🌍 Worldwide delivery — DHL Express, FedEx International Priority, UPS Worldwide
- 🇨🇳 China export expertise — full customs documentation, commercial invoice, packing list, and HS code 9031.80 compliance
- 📋 Export licence support — assistance with dual-use classification queries where applicable
- 🔄 Urgent procurement — emergency sourcing service for production-down situations; contact us for priority handling
Certifications & Compliance Statement
- CE Marking: Compliant with EU Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU
- RoHS: HEIDENHAIN RCN 200 series is RoHS 3 (EU 2015/863) compliant
- ISO 9001: Konmask.com operates under ISO 9001-aligned procurement and quality procedures
- Authenticity Guarantee: All units carry original HEIDENHAIN serial numbers traceable to factory production records
How to Order
- Add to Cart — click the “Buy Now” or “Add to Cart” button above
- Request a Quote — for volume orders (5+ units) or urgent procurement, email [email protected] for a dedicated quotation within 2 business hours
- Provide Application Details — share your machine model and controller type so our engineers can confirm compatibility before shipment
- Payment — T/T (bank transfer), PayPal, and major credit cards accepted; LC available for orders above USD 10,000
- Shipping Confirmation — tracking number and export documents sent within 24 hours of payment clearance
Authenticity & Trust FAQ
Q: How do I know this is a genuine HEIDENHAIN product?
A: Every unit ships with its original HEIDENHAIN packaging, holographic label, and factory serial number. We provide a Certificate of Authenticity and retain source documentation for 5 years.
Q: Can I verify the serial number with HEIDENHAIN directly?
A: Yes. HEIDENHAIN’s global service network can verify serial numbers. We encourage buyers to do so and will provide all traceability data needed.
Q: What if the encoder is faulty on arrival?
A: We offer a 12-month warranty against manufacturing defects and a 30-day DOA (Dead on Arrival) replacement guarantee. Contact [email protected] within 48 hours of receipt.
Q: Do you supply calibration certificates?
A: Factory calibration data is available for new-in-box units. For refurbished stock, we provide our own bench-test report. Please specify your requirement at the time of order.
Q: Can you source other HEIDENHAIN RCN 200 variants?
A: Yes — we regularly stock RCN 223, RCN 227, RCN 229, and RCN 2510 variants. Contact us with your exact part number for availability and pricing.
