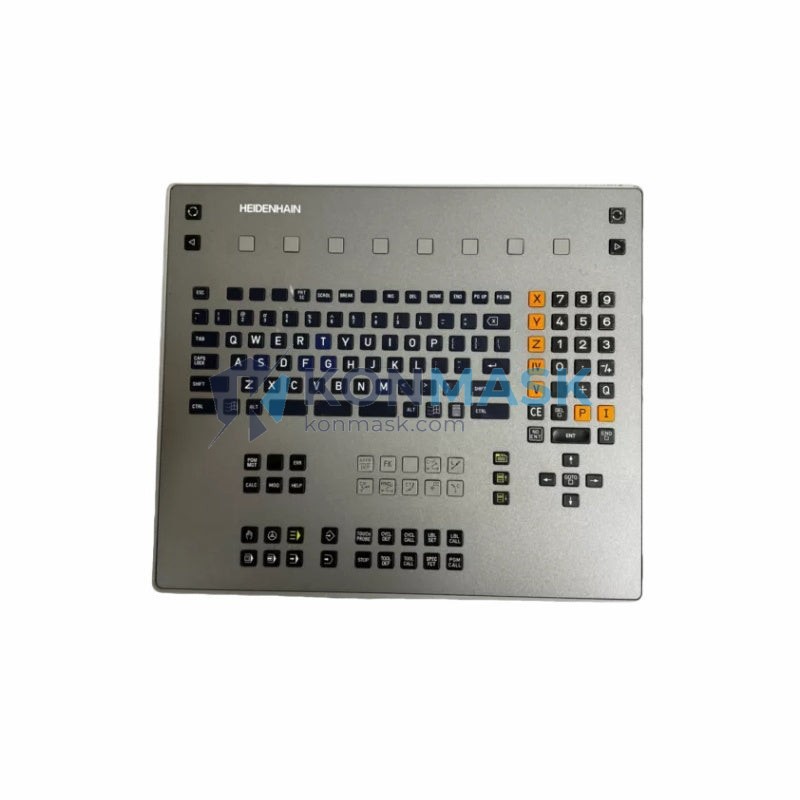

CNC Machining Center Control Solution – HEIDENHAIN iTNC 530 Keyboard Panel 532524-01 | iTNC Series
Where This Product Is Used
The HEIDENHAIN iTNC 530 Keyboard Panel (Part No. 532524-01) is the primary operator input device for HEIDENHAIN’s iTNC 530 contouring control system — one of the most widely deployed CNC controllers in precision machining environments worldwide. This keyboard panel is found in:
- Vertical and horizontal machining centers — Deckel Maho DMC, Hermle C-series, Mikron HPM, and similar 3- to 5-axis platforms
- Jig boring and precision boring machines — where iTNC 530 provides sub-micron positioning accuracy
- Large-format gantry milling machines — aerospace and mold-making applications requiring continuous 5-axis interpolation
- Tool-room and die-sinking operations — where conversational programming via the keyboard is preferred over CAM post-processing
- Retrofit and re-control projects — replacing worn or damaged OEM keyboards on existing iTNC 530 installations
Technical Specifications
| Part Number | 532524-01 |
| Compatible Control | HEIDENHAIN iTNC 530 |
| Series | iTNC Series |
| Manufacturer | HEIDENHAIN (Dr. Johannes Heidenhain GmbH) |
| Component Type | Operator Keyboard / Input Panel |
| Interface | Proprietary HEIDENHAIN keyboard bus |
| Key Layout | Full alphanumeric + NC function keys + axis keys |
| Weight | 160 g |
| Condition | New / Refurbished (specify at inquiry) |
| Origin | Germany |
Why Engineers Specify This Model
- Direct OEM replacement — 532524-01 is the exact HEIDENHAIN part number; no firmware adaptation or parameter changes required upon swap-out
- Conversational programming efficiency — the iTNC 530 keyboard layout is optimized for HEIDENHAIN’s plain-language dialog programming, reducing setup time on the shop floor
- Robust industrial design — sealed key membrane rated for coolant mist, swarf, and continuous multi-shift operation
- Backward compatibility — compatible across iTNC 530 software versions (340 422-xx through 340 490-xx and later), minimizing obsolescence risk
- Minimizes downtime — a failed or sticky keyboard is one of the most common iTNC 530 field failures; having a verified spare on-hand reduces unplanned downtime to under 30 minutes
Complete System Bill of Materials
The iTNC 530 keyboard panel is one component in the full control architecture. Engineers sourcing a complete spare kit typically specify:
- iTNC 530 Main Computer Unit (MCU) — e.g., 340 554-xx
- Keyboard Panel 532524-01 ← this item
- Visual Display Unit (VDU) / TFT Monitor — 15″ or 19″ HEIDENHAIN display
- Machine Operating Panel (MOP) — axis traverse keys, feed override, spindle override
- Handwheel HR 410 / HR 510 (optional, for manual traverse)
- HEIDENHAIN PWM 9 / UEC 11x power supply module
- EnDat encoder cables (machine-specific lengths)
Compliance & Industry Standards
- CE Marked — compliant with EU Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU
- RoHS Compliant — Directive 2011/65/EU (restriction of hazardous substances)
- IP54 rated front panel — protected against dust ingress and coolant splash per IEC 60529
- Designed and manufactured to ISO 9001 quality management standards at HEIDENHAIN’s Traunreut, Germany facility
Quality Assurance & Sourcing
At Konmask.com, every HEIDENHAIN component undergoes a structured verification process before dispatch:
- Visual inspection — keycap integrity, membrane condition, connector pin check
- Functional bench test — keyboard scan matrix verified against HEIDENHAIN diagnostic protocol
- Traceability — part number and serial number logged against order record
- Packaging — ESD-safe anti-static bag, foam-lined carton, fragile labeling
We source directly from authorized HEIDENHAIN distributors and certified industrial surplus channels. All refurbished units carry a 90-day functional warranty.
How to Source This Part
- Add to cart — for in-stock units, proceed directly to checkout
- Request a quote — for volume orders (3+ units) or specific firmware/revision requirements, contact us for a formal quotation within 24 hours
- Cross-reference check — if you are unsure whether 532524-01 matches your machine’s iTNC 530 revision, send us your control’s ID plate photo and we will confirm compatibility before shipment
- Lead time — in-stock units ship within 1–2 business days; sourced units typically 5–10 business days
📧 support@konmask.com | 📞 +0086 19859288691
Application-Specific FAQ
Q: Is 532524-01 compatible with all iTNC 530 software versions?
A: Yes. The keyboard hardware interface is consistent across all iTNC 530 NC software releases. No parameter changes are required.
Q: Can this keyboard be used with the iTNC 426 or iTNC 430?
A: No. The 532524-01 is designed specifically for the iTNC 530 platform. Earlier iTNC generations use different keyboard bus protocols and physical connectors.
Q: My machine is a Deckel Maho DMC 75V — will this fit?
A: If your DMC 75V is equipped with an iTNC 530 control (check the control cabinet label), then yes, 532524-01 is the correct replacement keyboard.
Q: Do you offer exchange / core return pricing?
A: Yes. Contact us with your faulty unit’s serial number for an exchange quotation — this typically reduces cost by 20–35% versus outright purchase.
Q: What is the lead time for urgent orders?
A: In-stock units can be dispatched same day if ordered before 14:00 CST. Express international courier options (DHL, FedEx) are available at checkout.
