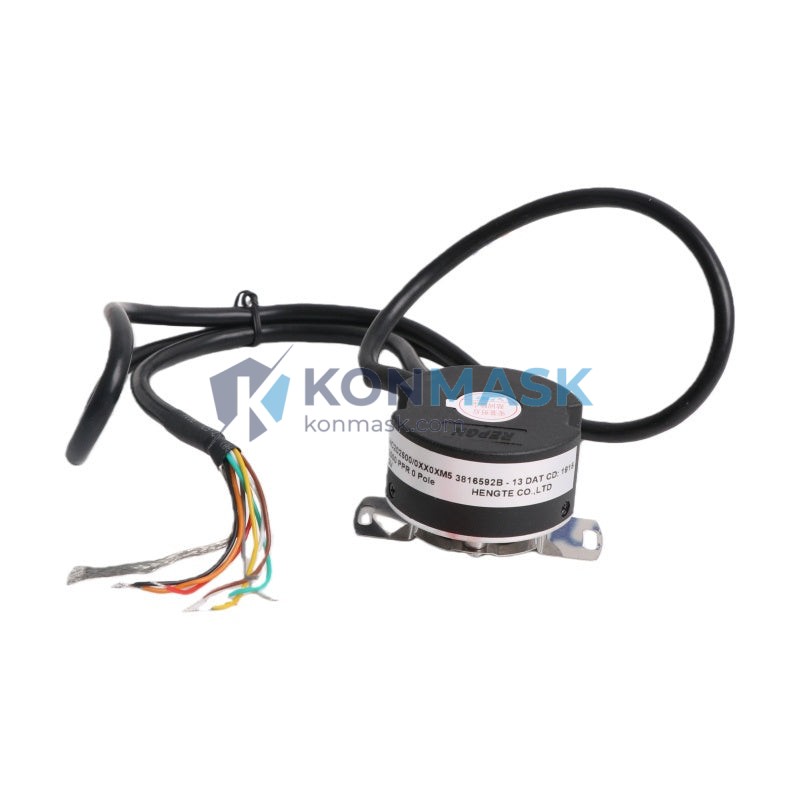

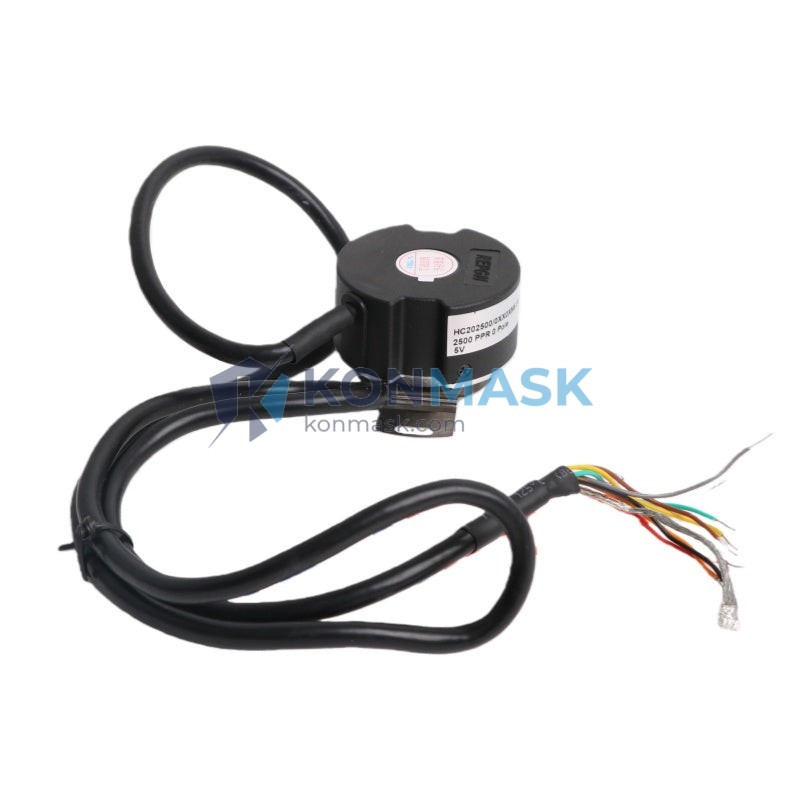

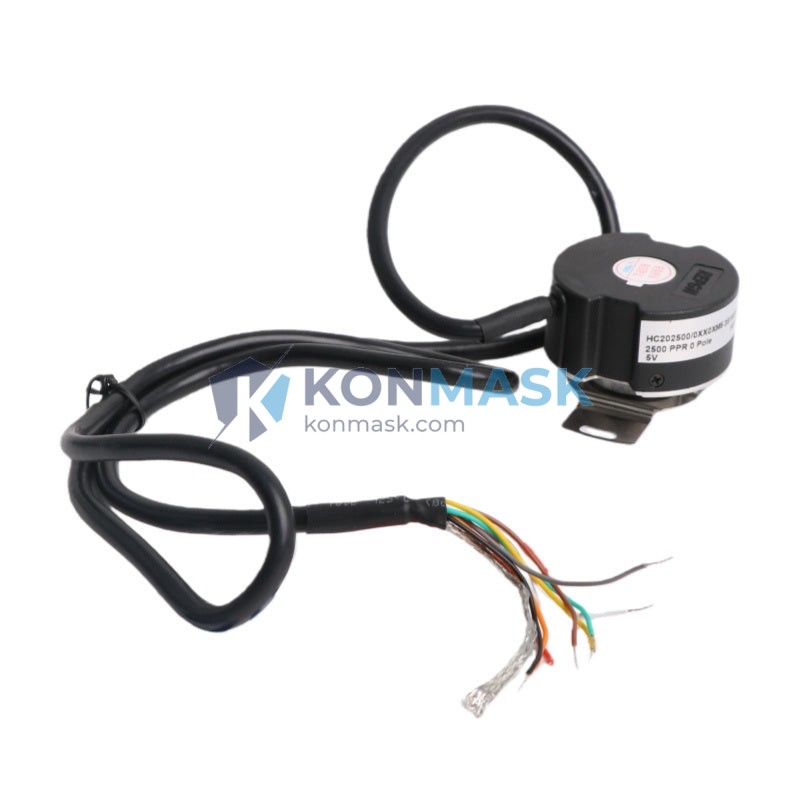

Hengstler HC202500/0XX0AJ2 Incremental Encoder | Replacement, Equivalent & Selection Guide
The Hengstler HC202500/0XX0AJ2 is a high-precision incremental rotary encoder from Hengstler’s HC20 series, designed for demanding industrial motion control and positioning applications. This page provides full technical specifications, compatible replacement models, system compatibility notes, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Manufacturer: Hengstler (Germany)
- Series: HC20
- Model / SKU: HC202500/0XX0AJ2
- Encoder Type: Incremental Rotary Encoder
- Resolution (PPR): 2500 pulses per revolution
- Output Signals: A, B, Z (index) channels
- Output Type: Push-pull (totem pole) / RS422 differential (depending on suffix)
- Supply Voltage: 5 VDC – 24 VDC
- Operating Temperature: -20°C to +85°C
- Protection Rating: IP65 (shaft side)
- Shaft Diameter: 6 mm (solid shaft)
- Housing Diameter: 58 mm
- Connection: Cable / connector (per suffix code)
- Weight: Approx. 120 g
- Certifications: CE
Compatible Replacement & Equivalent Models
The following models are functionally compatible or serve as direct/near-direct replacements for the HC202500/0XX0AJ2 in most applications. Always verify electrical interface and mechanical dimensions before substitution.
- Hengstler RI58-O/2500ER.42KB – Same 2500 PPR, 58 mm housing, RS422 output; direct series equivalent
- Sick DFS60B-S4EK02500 – 2500 PPR, 58 mm, push-pull; widely used cross-brand replacement
- Omron E6B2-CWZ6C 2500P/R – 2500 PPR, 5–24 V, NPN open-collector; common retrofit option
- Autonics E50S8-2500-3-T-24 – 2500 PPR, 50 mm body, 5–24 V; cost-effective alternative
- Kübler 8.5820.1331.2500 – 2500 PPR, 58 mm, line driver; European-grade equivalent
- Leine & Linde 861001313 – Heavy-duty equivalent for harsh environments
Note: Konmask.com supplies both original Hengstler units and verified compatible alternatives. Contact us to confirm the best fit for your system.
Why Choose the Original Model
- Proven Reliability: Hengstler encoders are manufactured to DIN/ISO standards with rigorous QC, ensuring long service life in 24/7 industrial environments.
- Exact Signal Integrity: Original HC202500/0XX0AJ2 guarantees factory-spec A/B/Z signal timing, critical for servo drives and CNC controllers.
- Full Traceability: Genuine units include batch traceability and manufacturer warranty, reducing risk in regulated industries.
- Drop-in Fit: Mechanical and electrical dimensions match OEM specifications — no adaptation required.
Typical Applications
- CNC machine tool spindle and axis feedback
- Servo motor position and speed control
- Conveyor and material handling systems
- Printing and packaging machinery
- Robotics and automated assembly lines
- Elevator and hoist positioning systems
- Wind turbine pitch control
System Compatibility
- Servo Drives: Siemens SINAMICS, Mitsubishi MR-J4/J5, Yaskawa Sigma-7, Fanuc αi series
- PLCs / Motion Controllers: Siemens S7-1200/1500, Allen-Bradley CompactLogix, Omron NX/NJ, Beckhoff EtherCAT
- CNC Systems: Fanuc 0i/30i, Siemens SINUMERIK 828D/840D, Mitsubishi M70/M80
- DCS Platforms: ABB 800xA, Honeywell Experion, Emerson DeltaV (via pulse input modules)
Selection Guide
Use the HC20 series part number structure to select the correct variant:
- HC20 – Series identifier (58 mm incremental encoder)
- 2500 – Resolution: 2500 PPR
- 0 – Shaft type: 0 = solid shaft 6 mm
- XX – Flange/mounting code (application-specific)
- 0 – Cable exit direction
- A – Output circuit: A = push-pull 5–24 V
- J – Connector type: J = M12 connector
- 2 – Cable length / termination code
Need a different PPR (100, 360, 500, 1000, 5000) or output type (RS422, HTL, TTL)? Contact Konmask.com for the correct part number.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- 100% functional inspection prior to shipment
- Anti-static packaging with humidity indicators
- Certificate of conformity available on request
- Lead time: In-stock items ship within 1–3 business days; special orders 7–15 days
How to Order
- Confirm your required PPR, output type, voltage, and connector from the selection guide above
- Add the HC202500/0XX0AJ2 to cart, or contact us for volume pricing
- Provide your PO number and shipping address at checkout
- Receive order confirmation and tracking within 24 hours
📧 Email: support@konmask.com
📞 Phone/WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Can I replace the HC202500/0XX0AJ2 with an Omron E6B2-CWZ6C 2500P/R?
A: In many cases yes — both are 2500 PPR with 5–24 V supply. However, the Omron uses NPN open-collector output vs. push-pull on the Hengstler. Verify your controller’s input circuit before substituting.
Q: Is the HC202500/0XX0AJ2 compatible with Siemens SINAMICS drives?
A: Yes. With appropriate HTL/TTL input modules (e.g., SMC20, SME20), this encoder integrates directly with SINAMICS S120 and G120 drives.
Q: What does the suffix 0XX0AJ2 mean?
A: The suffix encodes shaft type, flange, cable exit, output circuit (A = push-pull), connector (J = M12), and termination. See the Selection Guide section above for a full breakdown.
Q: Do you supply original Hengstler or compatible replacements?
A: We supply both. All units are clearly labeled as OEM original or compatible equivalent. Contact us to specify your preference.
Q: What is the minimum order quantity?
A: MOQ is 1 piece. Volume discounts apply for orders of 5+ units.
