Safety Bus Coupling Solution – HIMA F7553 | HIMax / HIMatrix Series

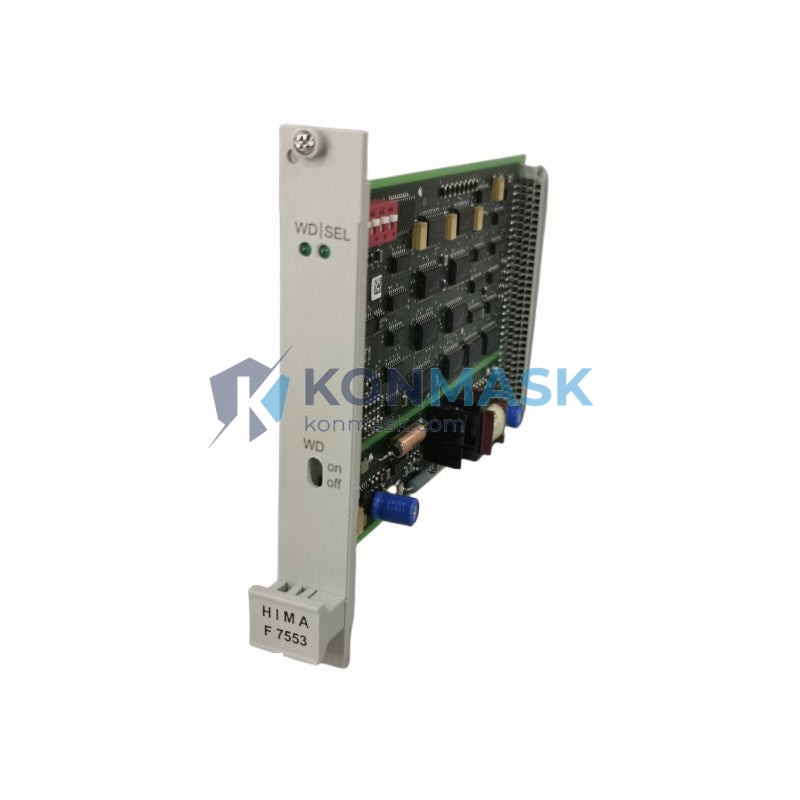

The HIMA F7553 Coupling Module is a safety-rated bus coupler designed for integration within HIMA’s HIMax and HIMatrix safety controller platforms. Engineered for process-critical environments where functional safety is non-negotiable, the F7553 enables reliable, high-speed communication between safety I/O modules and the central processing unit — maintaining system integrity under the most demanding industrial conditions.
Where This Product Is Used
The HIMA F7553 is specified by safety engineers and system integrators across industries where IEC 61508 / IEC 61511 compliance is mandatory:
- Oil & Gas — Upstream / Midstream / Downstream: Emergency Shutdown Systems (ESD), High Integrity Pressure Protection Systems (HIPPS), and burner management in refineries and LNG terminals.
- Chemical & Petrochemical Plants: Safety Instrumented Systems (SIS) for reactor protection, toxic gas detection interlocks, and pressure relief automation.
- Power Generation: Turbine protection systems, boiler safety loops, and grid-tie protection in thermal and combined-cycle power plants.
- Offshore Platforms: Subsea control and topside ESD systems requiring SIL 3 certification and redundant architecture.
- Pipeline Infrastructure: Compressor station safety systems and leak detection interlock logic.
- Nuclear & Critical Infrastructure: Safety-critical control loops requiring rigorous fault tolerance and diagnostic coverage.
Technical Specifications
- Part Number: F7553
- Manufacturer: HIMA Paul Hildebrandt GmbH
- Module Type: Coupling Module (Bus Coupler)
- Compatible Platform: HIMax, HIMatrix Safety Controllers
- Safety Integrity Level: SIL 3 (IEC 61508)
- Communication Interface: HIMA SafeEthernet / internal safety bus
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −25 °C to +85 °C
- Power Supply: Via backplane / system bus (module-dependent)
- Mounting: DIN rail / HIMax rack-mount chassis
- Approvals: TÜV, CE, ATEX (zone-dependent configuration)
- Weight: Approx. 100 g
- Housing: Industrial-grade plastic enclosure, plug-in design
Why Engineers Specify This Model
- Proven SIL 3 Architecture: The F7553 is designed and certified for use in safety loops up to SIL 3, eliminating the need for additional external safety relays in many configurations.
- Seamless HIMax / HIMatrix Integration: Drop-in compatibility with HIMA’s native safety bus eliminates integration risk and reduces commissioning time.
- High Diagnostic Coverage: Internal self-diagnostics continuously monitor module health, enabling predictive maintenance and reducing unplanned downtime.
- Redundancy Support: Supports hot-standby and redundant I/O configurations critical for high-availability safety systems.
- Long Product Lifecycle: HIMA’s commitment to long-term spare parts availability makes the F7553 a reliable choice for 20+ year plant lifecycles.
- Compact Form Factor: Optimized for high-density rack configurations without sacrificing thermal performance.
Complete System Bill of Materials
The F7553 Coupling Module is typically deployed alongside the following HIMA components. Konmask.com stocks or can source all items below:
- HIMA HIMax Central Processing Unit (CPU) — e.g., F8650E, F8651E
- HIMA HIMax I/O Modules — Digital Input (F3236), Digital Output (F3330), Analog Input (F3416)
- HIMA F7130 / F7131 Power Supply Modules
- HIMA F8621A / F8627X Communication Modules (Profibus, Modbus, HART)
- HIMA HIMax Rack / Backplane Assembly
- HIMA SafeEthernet Cables and Connectors
- HIMA System Software: SILworX Engineering Tool
Compliance & Industry Standards
- IEC 61508: Functional Safety of E/E/PE Safety-related Systems (SIL 1–3)
- IEC 61511: Functional Safety for the Process Industry Sector
- IEC 62061: Safety of Machinery — Functional Safety
- EN 54: Fire Detection and Fire Alarm Systems (where applicable)
- ATEX Directive 2014/34/EU: Equipment for explosive atmospheres (zone-specific)
- CE Marking: Compliant with EU machinery and EMC directives
- TÜV Rheinland Certified: Independent third-party safety certification
Quality Assurance & Sourcing
Konmask.com specializes in the procurement of industrial automation components from verified supply chains. Every HIMA F7553 unit we supply undergoes the following process:
- Source Verification: Units are sourced from authorized distributors, OEM surplus channels, or certified secondary market suppliers with full traceability documentation.
- Visual & Functional Inspection: Each module is inspected for physical integrity, label authenticity, and connector condition prior to dispatch.
- Serialization Check: Where applicable, serial numbers are cross-referenced against manufacturer records.
- Packaging: Anti-static packaging with desiccant, shipped in reinforced cartons to prevent transit damage.
- Warranty: 90-day replacement warranty on all stocked units. Extended warranty available on request.
How to Source This Part
- Submit a Quote Request: Email support@konmask.com with your required quantity, delivery timeline, and any project documentation.
- Receive Availability & Pricing: Our team responds within 1 business day with stock status, lead time, and a formal quotation in your preferred currency.
- Order Confirmation: Upon PO receipt, we confirm dispatch schedule and provide tracking information.
- Express Shipping Available: DHL / FedEx international express available for urgent plant shutdowns or emergency replacements.
- Call Directly: For urgent requirements, call +0086 19859288691 (Mon–Sat, 09:00–18:00 CST).
Application-Specific FAQ
Q: Is the HIMA F7553 compatible with both HIMax and HIMatrix platforms?
A: The F7553 is primarily designed for the HIMax platform. For HIMatrix compatibility, please confirm your chassis revision with our technical team before ordering.
Q: Can this module be used in SIL 3 loops without additional external safety components?
A: Yes, when correctly configured within a validated HIMA HIMax safety system, the F7553 supports SIL 3 loop integrity as part of the certified architecture. Always verify with your functional safety engineer.
Q: Do you supply the HIMA SILworX software license alongside the hardware?
A: We supply hardware only. SILworX software licenses are managed directly through HIMA or their authorized regional partners. We can provide referrals upon request.
Q: What is the typical lead time for the F7553?
A: In-stock units ship within 2–3 business days. For out-of-stock scenarios, lead time is typically 4–8 weeks depending on global supply chain conditions. Contact us for real-time availability.
Q: Can Konmask provide a Certificate of Conformance (CoC) or test report?
A: Yes. CoC documentation is available for all stocked units. Third-party test reports can be arranged for large-volume orders or critical plant applications.
Q: Do you accept purchase orders from EPC contractors and system integrators?
A: Absolutely. We work with EPCs, MRO procurement teams, and system integrators globally. Net payment terms available for qualified accounts.
