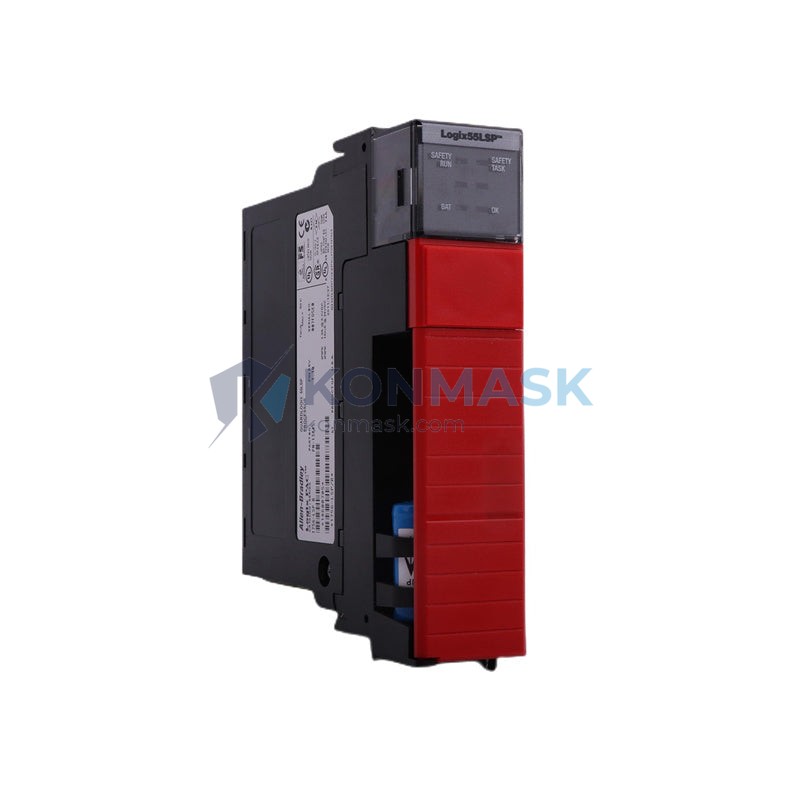

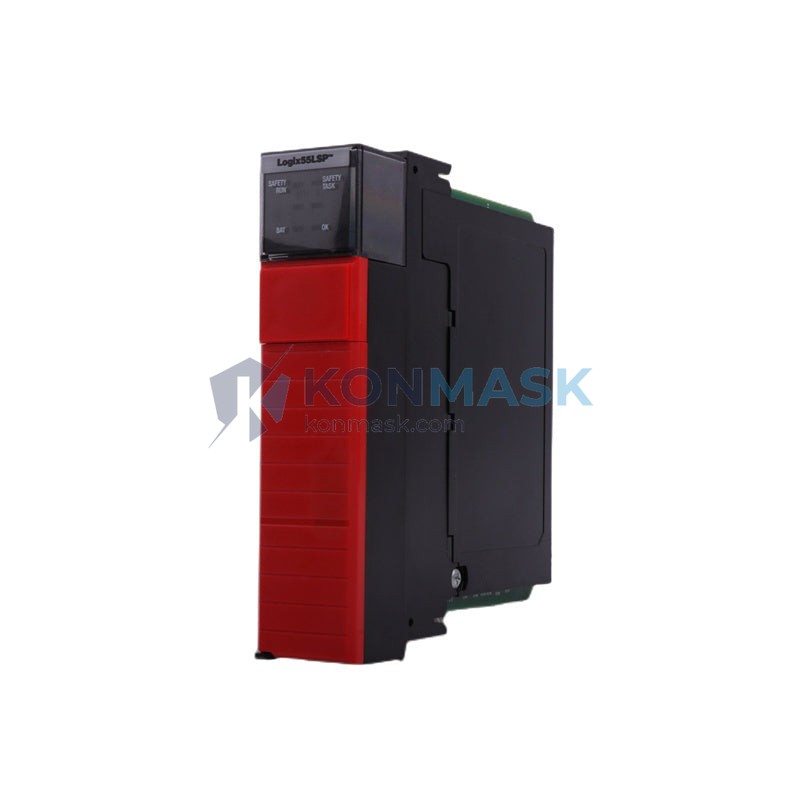

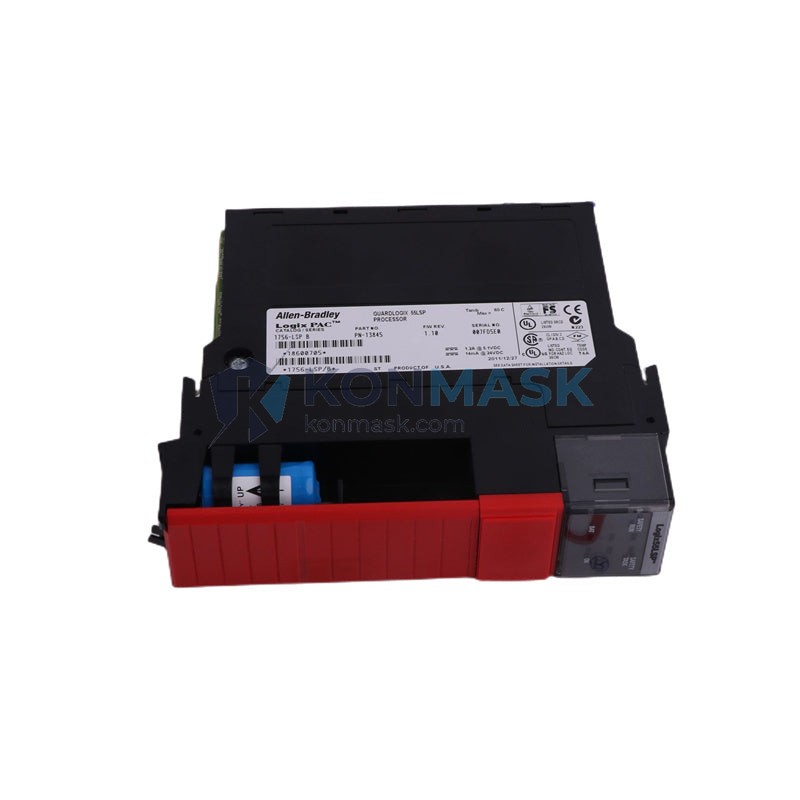

Allen-Bradley 1756-LSP — GuardLogix Safety Partner Controller | ControlLogix Platform

Engineering Background: The Rockwell Automation ControlLogix platform (1756 series) is the dominant distributed control architecture in North American process and discrete manufacturing. Within this ecosystem, the GuardLogix subsystem extends standard ControlLogix logic execution into IEC 61508-certified functional safety territory. The 1756-LSP is the dedicated Safety Partner module — it operates exclusively in tandem with a primary GuardLogix controller (1756-LSC or 1756-L7xS series) and is responsible for executing and validating the safety portion of the control program, maintaining the SIL 2 / PLe integrity boundary between standard and safety logic domains.

Product Positioning: Unlike the primary GuardLogix controller (which handles both standard and safety tasks), the 1756-LSP performs no standard logic. Its sole function is safety task execution and cross-checking with the primary controller via the internal safety bus. This architecture mandates that the 1756-LSP be installed in the same chassis as its paired primary controller — it cannot operate standalone, cannot be used with non-GuardLogix primaries, and does not support remote chassis configurations for the safety task. Engineers selecting this module are implementing a certified dual-controller safety architecture, not a general-purpose safety relay or standalone SIS controller.

Complete Technical Specifications

Electrical

• Backplane Current Draw: 800 mA @ 5 VDC; 3 mA @ 24 VDC
• Power Dissipation: 4.1 W (typical)
• Isolation: Backplane-isolated; no direct I/O connections
• Communication: ControlLogix backplane (proprietary high-speed serial bus)

Mechanical

• Form Factor: Single-slot ControlLogix 1756 chassis module
• Dimensions: 94.0 mm H × 54.9 mm W × 87.6 mm D (standard 1756 footprint)
• Weight: Approx. 350 g
• Connector: 1756 backplane edge connector (no front-panel I/O terminals)
• Keying: Electronic keying enforced by RSLogix 5000 / Studio 5000

Environmental

• Operating Temperature: 0 °C to +60 °C
• Storage Temperature: −40 °C to +85 °C
• Relative Humidity: 5–95% non-condensing
• Vibration: IEC 60068-2-6 (5–500 Hz, 2 g)
• Shock: IEC 60068-2-27 (30 g, 11 ms)
• Pollution Degree: 2 (IEC 60664-1)
• IP Rating: IP20 (chassis-mounted, open-frame)

Certifications

• Safety Integrity Level: SIL 2 (IEC 61508), suitable for SIL 2 safety functions
• Performance Level: PLe / Category 4 (ISO 13849-1) when paired with certified 1756-LSC primary
• UL Listed: UL 508 (Industrial Control Equipment)
• CE Marking: Low Voltage Directive 2014/35/EU; EMC Directive 2014/30/EU
• cULus: Canadian and US safety listing
• TÜV Rheinland: Functional safety assessment (IEC 61508)

Data source: Rockwell Automation Publication 1756-UM020 (GuardLogix Controller Systems User Manual), 1756-TD008 (ControlLogix Technical Data), and 1756-SG001 (ControlLogix Selection Guide). Specifications subject to revision; verify against current Rockwell publications for safety-critical applications.

Proven Application Environments

• Petrochemical / Refinery: Compressor anti-surge and shutdown systems — high-cycle valve actuation under continuous process conditions requiring SIL 2 ESD response times <100 ms.
• Electric Power Generation: Turbine overspeed protection and boiler safety interlock systems — paired with 1756-LSC in redundant chassis configurations for N+1 availability.
• Water & Wastewater Treatment: Chlorination dosing interlock and pump station emergency stop — safety task isolation prevents nuisance trips from standard SCADA logic faults.
• Automotive Assembly: Robotic cell safety gate monitoring and light curtain integration — PLe architecture satisfies machinery directive requirements without external safety relay banks.
• Pharmaceutical / Life Sciences: Reactor pressure relief and agitator interlock systems — audit-ready safety task separation supports 21 CFR Part 11 and GAMP 5 validation frameworks.
• Mining & Minerals Processing: Conveyor belt emergency stop and crusher jam protection — operates reliably in high-vibration, dusty environments within sealed enclosures meeting IP54+.

Engineering Advantages

• For SIL 2 ESD applications, this safety partner controller maintains independent safety task execution, because the dual-controller architecture physically separates safety logic from standard process control, eliminating common-cause software failures.
• For facilities already running ControlLogix infrastructure, this module integrates into existing 1756 chassis without additional communication hardware, because it uses the native backplane bus — reducing BOM cost and eliminating protocol conversion latency.
• For applications requiring periodic proof testing, this controller supports online safety task download and partial stroke testing without full system shutdown, because Studio 5000 SafetyLogix enforces change management and task locking at the firmware level.
• For multi-zone safety architectures, this module supports up to 32 safety tasks with independent SIL ratings per task, because the safety execution engine allocates dedicated scan time budgets isolated from standard task scheduling.
• For high-availability process lines, this controller’s safety partner architecture enables hot-standby configurations when paired with a 1756-SB sync module, because the safety state is continuously mirrored across the backplane without user-programmed synchronization logic.
• For regulated industries requiring traceability, this module stores a safety task signature (CRC-based) that is logged on every download event, because Studio 5000 enforces electronic signature workflows compliant with IEC 62443 and FDA 21 CFR Part 11.

System Architecture & Signal Flow

Signal Flow: Field safety devices (E-stops, light curtains, safety relays) → Safety I/O modules (1791DS / 1734-IB8S series) → CIP Safety protocol over EtherNet/IP or DeviceNet → Primary GuardLogix controller (1756-LSC) → Internal safety bus → 1756-LSP Safety Partner (cross-check and safety task execution) → Safety output modules → Final control elements (safety valves, contactors).

Compatible Primary Controllers:

• 1756-LSC (GuardLogix 5560 Safety Controller) — direct pairing, same chassis required
• 1756-L7xS series (GuardLogix 5570) — firmware-dependent pairing; verify catalog suffix
• 1756-L8xES series (GuardLogix 5580) — uses integrated safety architecture; 1756-LSP is not required for this generation

Substitution Conditions: The 1756-LSP cannot be substituted with a standard ControlLogix controller or any third-party safety module. Replacement with a 1756-L8xES (GuardLogix 5580) is architecturally valid only when the entire safety system — including I/O, network topology, and Studio 5000 project — is migrated and re-validated per IEC 61508 requirements.

Sourcing & Quality Verification

Units offered through Konmask.com are sourced from authorized distribution channels and verified surplus inventory with documented chain of custody. All modules undergo a 4-step incoming inspection before listing:

1. Visual Inspection: Enclosure integrity, label legibility, connector pin condition, and absence of rework indicators (solder bridges, flux residue, re-marked labels).
2. Firmware Verification: Module firmware revision confirmed via RSLinx Classic or Studio 5000 online connection; revision recorded and disclosed in listing.
3. Functional Power-On Test: Module installed in a 1756 chassis with a compatible primary controller; safety task download and cross-check handshake verified.
4. Serialization Check: Serial number cross-referenced against known counterfeit databases and Rockwell Automation product authentication resources where applicable.

Documentation available upon request: Test report, firmware revision record, photos of physical unit (label and connector), and certificate of conformance (CoC).

Procurement Process

1. Submit Inquiry: Contact via the form below or email [email protected] with quantity, required firmware revision, and delivery timeline. A formal quotation with lead time confirmation is issued within 24 hours on business days.
2. Order Confirmation & Payment: Purchase order or proforma invoice accepted. Payment terms discussed based on order volume and customer profile. Export documentation (commercial invoice, packing list, COO) prepared for international shipments.
3. Shipment & Technical Handover: Units shipped with ESD-safe packaging and shock indicators. Post-delivery technical support is available for installation verification, firmware compatibility questions, and Studio 5000 project integration guidance.

Technical support scope: Pre-sales compatibility verification, firmware revision advisory, system architecture review, and post-delivery commissioning guidance. On-site engineering services are available by arrangement.

Technical FAQ

• Q: Can the 1756-LSP operate in a different chassis from the primary GuardLogix controller?
  A: No. The 1756-LSP must be installed in the same 1756 chassis as its paired primary controller. The safety partner communication occurs over the internal backplane bus, which does not extend to remote chassis via ControlNet or EtherNet/IP. Remote chassis configurations are not supported for the safety task.
• Q: Is the 1756-LSP compatible with the GuardLogix 5580 (1756-L8xES) controllers?
  A: No. The GuardLogix 5580 series uses an integrated safety architecture — the safety partner function is built into the primary controller. The 1756-LSP is designed exclusively for the GuardLogix 5560 (1756-LSC) and 5570 (1756-L7xS) generations. Using a 1756-LSP with a 5580 primary is not a supported configuration.
• Q: What certifications are required to program and validate a GuardLogix safety application using this module?
  A: Rockwell Automation recommends that safety application programming be performed by personnel holding a TÜV Functional Safety Engineer (FSE) certification or equivalent. The Studio 5000 SafetyLogix environment enforces electronic signatures and change management, but the SIL validation — including FMEA, proof test procedures, and safety requirements specification — must be completed by a qualified safety engineer per IEC 61508-1 Clause 6.

---
