HIMA HIMATRIX F30 01 – Distributed Safety Controller | HIMATRIX Platform
Engineering Background
HIMA Paul Hildebrandt GmbH, founded in 1908 and headquartered in Brühl, Germany, is a global pioneer in functional safety systems. The HIMATRIX series represents HIMA’s compact, distributed safety architecture — purpose-engineered for applications where SIL 2 and SIL 3 integrity is mandatory without the overhead of a centralized safety PLC rack.
Product Positioning

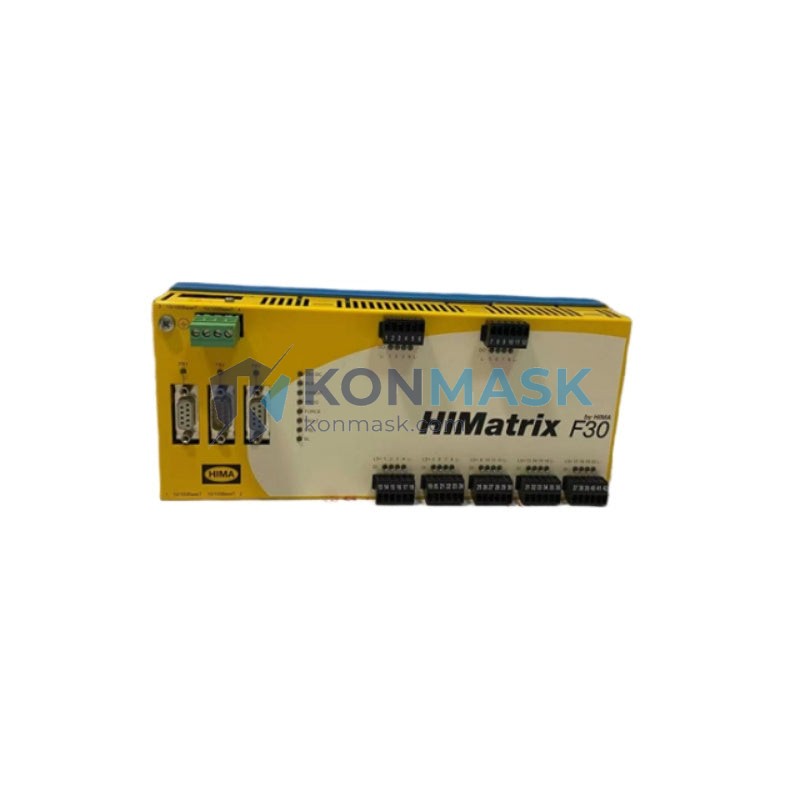

The HIMATRIX F30 01 is a standalone, self-contained safety controller designed for distributed field-level deployment. It integrates safety logic execution, I/O processing, and peer-to-peer SafeEthernet communication in a single compact housing — eliminating the need for a separate safety CPU rack in many process safety applications. It is the preferred choice for burner management systems (BMS), emergency shutdown (ESD) nodes, fire & gas (F&G) detection loops, and rotating machinery protection.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model / Part Number | HIMATRIX F30 01 |
| Manufacturer | HIMA Paul Hildebrandt GmbH |
| Product Series | HIMATRIX |
| Safety Integrity Level | SIL 3 (IEC 61508 / IEC 61511) |
| Architecture | 1oo1D (Diagnostic 1-out-of-1) |
| Communication Protocol | SafeEthernet (peer-to-peer, IEC 61784-3) |
| Programming Standard | IEC 61131-3 (via SILworX engineering tool) |
| Digital Inputs | 16 × DI (24 VDC, configurable) |
| Digital Outputs | 8 × DO (relay / transistor) |
| Analog I/O | Configurable via expansion modules |
| Supply Voltage | 24 VDC (18–32 VDC operating range) |
| Power Consumption | ≤ 15 W (typical) |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Degree of Protection | IP20 (EN 60529) |
| Mounting | DIN rail (EN 60715) |
| Dimensions (W × H × D) | Approx. 45 × 130 × 110 mm |
| Weight | Approx. 0.58 kg |
| Country of Origin | Germany |
| HS Code | 8537.10 |
| Certifications | TÜV Rheinland, CE, ATEX (Zone 2 / Zone 22 with barrier) |
| Availability | In Stock — Ready to Ship |
Proven Application Environments
- Oil & Gas: Wellhead ESD, pipeline isolation, compressor shutdown
- Petrochemical & Refining: Burner management (BMS), reactor protection, high-integrity pressure protection (HIPPS)
- Power Generation: Turbine overspeed protection, boiler safety, generator protection relay logic
- Fire & Gas: Distributed F&G detection nodes, suppression system interlocks
- Offshore & Marine: Platform ESD, ballast control safety, FPSO process safety
- Chemical & Pharmaceutical: Reactor interlock, pressure relief management, batch safety logic
Engineering Advantages
- Compact SIL 3 in a Single Unit: Full safety logic execution without a dedicated safety rack — reduces panel footprint by up to 60% vs. traditional rack-based SIS.
- SafeEthernet Peer-to-Peer: Deterministic, certified-safe communication between HIMATRIX nodes without a central safety bus master — ideal for distributed ESD architectures.
- SILworX Integration: Unified engineering, simulation, and diagnostics environment; supports IEC 61131-3 FBD, LD, SFC, and ST languages.
- High Diagnostic Coverage: Internal self-test routines achieve DC > 99% — minimizing dangerous undetected failures (λDU).
- Wide Temperature Range: Qualified for harsh field environments from -20 °C to +60 °C without derating.
- Proven Global Install Base: Deployed in 2,000+ safety-critical facilities across 80+ countries.
System Architecture & Signal Flow
The HIMATRIX F30 01 operates as an autonomous safety node. Field signals (DI/DO) are acquired and processed locally by the onboard safety CPU. Logic execution follows the IEC 61131-3 program loaded via SILworX. SafeEthernet ports enable certified peer-to-peer data exchange with other HIMATRIX or HIMax nodes — supporting distributed voting architectures (e.g., 2oo3 across three F30 01 units). Diagnostic data is accessible via the integrated Ethernet service port for non-safe SCADA/DCS integration without compromising the safety function.
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels with full traceability.
- Each module undergoes incoming inspection: visual check, label verification, firmware version confirmation, and functional power-on test.
- Original HIMA factory packaging and documentation preserved where available.
- Certificate of conformity and test records available upon request for SIL validation dossiers.
- Anti-counterfeit verification: serial number cross-referenced against HIMA’s authorized distributor records.
Procurement Process
- Confirm Availability: Contact us to verify current stock and lead time before placing order.
- Request Quotation: Email support@konmask.com with quantity, delivery address, and Incoterms preference.
- Order Confirmation: Pro-forma invoice issued within 1 business day.
- Payment & Export: T/T, PayPal, or credit card accepted. Export documentation (commercial invoice, packing list, COO) provided for customs clearance.
- Shipping: DHL Express / FedEx International Priority — typical transit 3–7 business days worldwide.
- After-Sales: 12-month warranty on hardware defects. Technical support available via email and WhatsApp.
Technical FAQ
Q: Is the HIMATRIX F30 01 suitable for SIL 3 applications without redundancy?
A: Yes. The 1oo1D architecture with high diagnostic coverage (DC > 99%) achieves SIL 3 capability as a single unit per IEC 61508 Part 2.
Q: Can it communicate with a HIMax or HIMatrix S35 system?
A: Yes. SafeEthernet is the common certified communication layer across all HIMA platforms, enabling seamless peer-to-peer integration.
Q: What engineering software is required?
A: SILworX (HIMA’s proprietary IEC 61131-3 engineering tool) is required for programming, configuration, and online diagnostics.
Q: Is ATEX certification available for Zone 1 installation?
A: The F30 01 itself is rated for Zone 2 (Category 3G). For Zone 1 installation, use with certified Zener barriers or galvanic isolators.
Q: What is the typical delivery time from Konmask?
A: In-stock units ship within 1–2 business days. International delivery via DHL/FedEx typically takes 3–7 business days.
