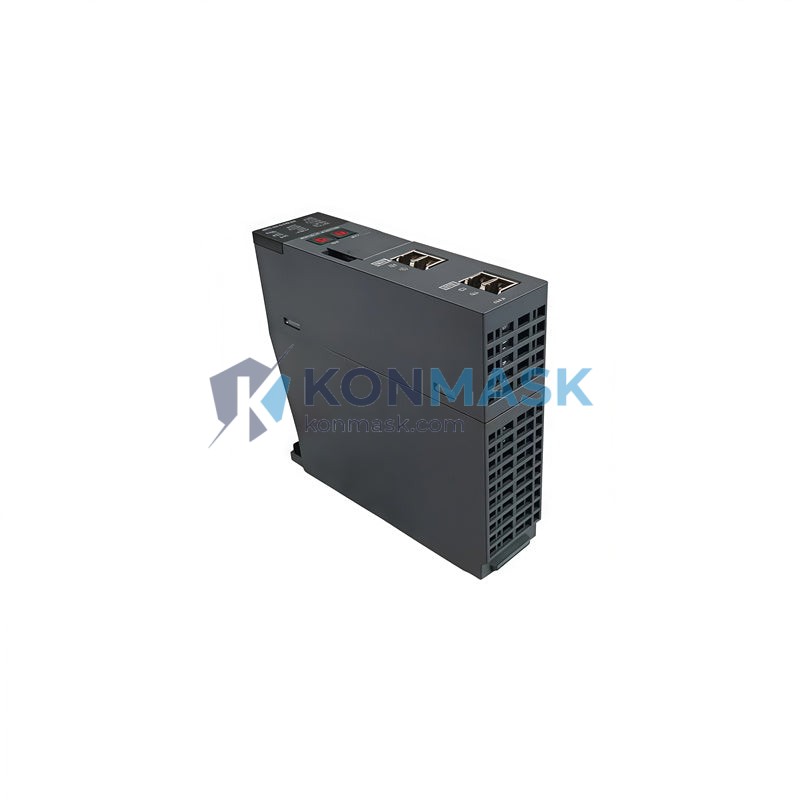

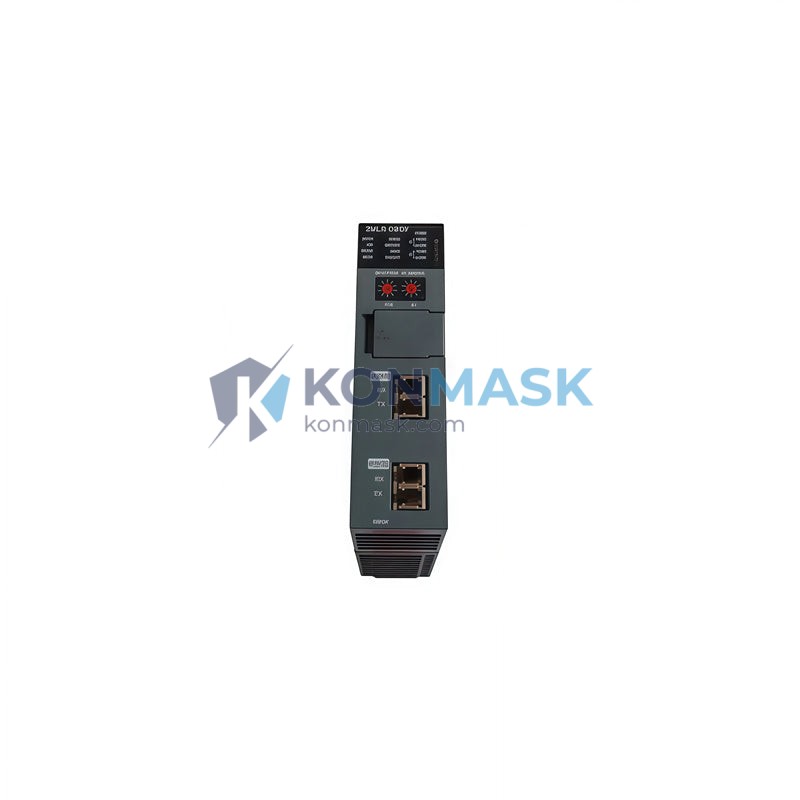

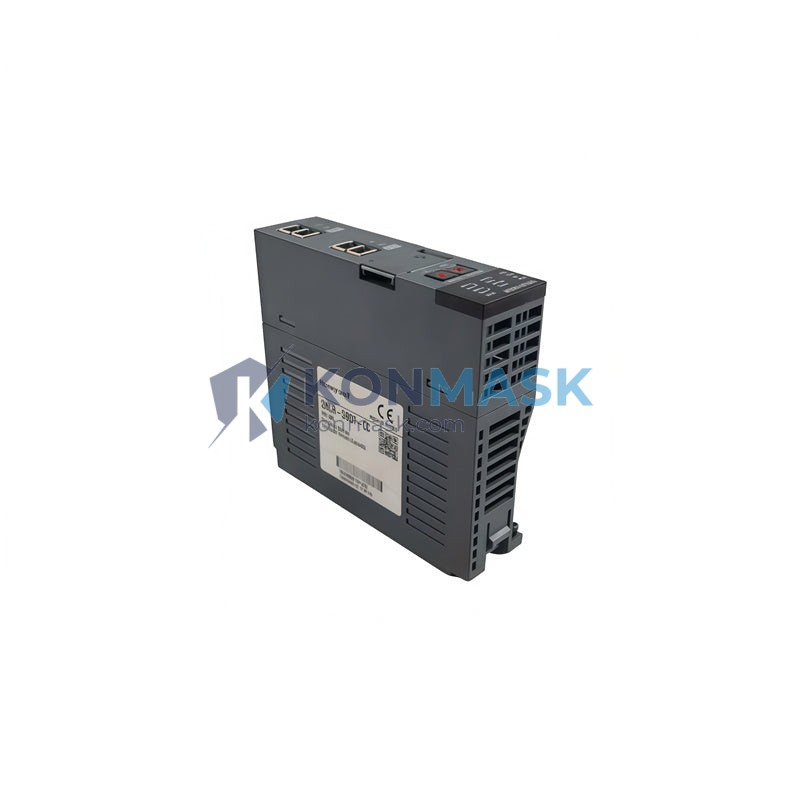

Honeywell 2MLR-DBDHS-CC – Redundant Dual Bus High-Speed Expansion Driver Module | Experion PKS DCS Platform
In modern distributed control systems, the reliability of inter-chassis communication is mission-critical. The Honeywell 2MLR-DBDHS-CC is an Expansion Driver Module engineered for the Experion PKS (Process Knowledge System) platform, providing high-speed, redundant dual-bus connectivity between controller chassis and I/O expansion cabinets. Designed for continuous process industries where unplanned downtime is unacceptable, this module ensures deterministic, fault-tolerant data transfer across the control architecture.
At Konmask.com, we supply the 2MLR-DBDHS-CC to procurement engineers and MRO teams worldwide, backed by rigorous sourcing verification and technical pre-sales support.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 2MLR-DBDHS-CC |
| Manufacturer | Honeywell Process Solutions |
| Platform | Experion PKS / Safety Manager |
| Module Type | Redundant Dual Bus High-Speed Expansion Driver |
| Bus Architecture | Dual redundant FTE (Fault Tolerant Ethernet) / proprietary expansion bus |
| Communication Speed | High-Speed (HS) — deterministic low-latency transfer |
| Redundancy | Full hardware redundancy (active/standby switchover) |
| Chassis Compatibility | Experion PKS C300 Controller chassis, expansion I/O cabinets |
| Backplane Interface | CC-series backplane connector |
| Power Consumption | Refer to Honeywell system power budget documentation |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Humidity | 5% to 95% RH, non-condensing |
| Weight | 920 g (approx.) |
| Certifications | CE, UL, FM (refer to product datasheet for full listing) |
| Form Factor | Single-slot module, DIN-rail / chassis mount |
Proven Application Environments
- Oil & Gas: Upstream/downstream process control — compressor stations, pipeline SCADA, refinery DCS expansion
- Petrochemical & Chemical: Reactor control systems requiring fault-tolerant I/O bus extension
- Power Generation: Turbine control, boiler management, and plant-wide DCS architectures
- Pulp & Paper / Mining: Large-scale I/O expansion across geographically distributed cabinets
- Pharmaceutical: FDA-regulated batch process control with validated Experion PKS configurations
- Water & Wastewater: Multi-cabinet treatment plant automation
Engineering Advantages
- Dual Redundant Bus: Eliminates single points of failure in the expansion bus path — critical for SIL-rated and high-availability systems
- High-Speed (HS) Variant: Reduced scan cycle latency compared to standard-speed expansion drivers, enabling tighter control loops across expanded I/O
- Hot-Swap Capable: Supports module replacement without system shutdown in properly configured redundant architectures
- Seamless Experion Integration: Native compatibility with Experion PKS configuration tools — no additional licensing or driver installation required
- Deterministic Communication: Guaranteed cycle-time performance for time-critical process control applications
- Compact Form Factor: Single-slot design maximizes chassis density in space-constrained control rooms
System Architecture & Signal Flow
The 2MLR-DBDHS-CC operates as the physical and logical bridge between the C300 Controller (or equivalent Experion PKS controller) and remote/expansion I/O chassis. In a typical architecture:
- The primary controller chassis houses the C300 and local I/O modules
- The 2MLR-DBDHS-CC is installed in the controller chassis expansion slot, establishing the high-speed dual-bus link
- A corresponding expansion receiver module (e.g., 2MLR-DBDHS-CC or compatible receiver) is installed in the remote I/O chassis
- Both buses operate simultaneously in active/standby mode — on primary bus failure, switchover occurs within one scan cycle
- All I/O data, diagnostics, and configuration traffic traverse the expansion bus transparently to the Experion PKS application layer
This architecture supports daisy-chaining of multiple expansion chassis, subject to Honeywell’s maximum expansion distance and node count specifications.
Sourcing & Quality Verification
Konmask.com applies a 5-stage quality protocol to every 2MLR-DBDHS-CC unit:
- Source Traceability: Units sourced from authorized distributors, OEM surplus, or verified MRO channels — no grey-market or counterfeit risk
- Visual & Physical Inspection: Connector integrity, label authenticity, firmware version verification, and housing condition assessment
- Functional Bench Test: Where applicable, modules are powered and communication handshake verified prior to shipment
- ESD-Safe Packaging: Anti-static bags, foam cushioning, and moisture barrier packaging for international transit
- Documentation Package: Certificate of conformance, test report, and sourcing declaration available on request
Procurement Process
- Submit RFQ: Email [email protected] with quantity, required delivery date, and destination country
- Receive Quote: Pricing, lead time, and availability confirmed within 24 business hours
- Order Confirmation: Pro forma invoice issued; payment via T/T, PayPal, or approved credit terms
- Quality Inspection & Dispatch: Pre-shipment inspection completed; tracking number provided
- Post-Delivery Support: 12-month warranty; technical support available via email and WhatsApp
Technical FAQ
Q: Is the 2MLR-DBDHS-CC compatible with Experion PKS R500 and later releases?
A: The 2MLR-DBDHS-CC is designed for the CC-series Experion PKS platform. Compatibility with specific software releases should be confirmed against Honeywell’s compatibility matrix for your system version.
Q: Can this module be used in a Safety Manager (SM) architecture?
A: Some 2MLR-series modules are used in Safety Manager configurations. Confirm the exact application with Honeywell engineering or contact Konmask for pre-sales technical guidance.
Q: What is the maximum expansion distance supported?
A: Maximum cable length between chassis depends on the cable type and Honeywell’s system design rules. Refer to the Experion PKS Hardware Planning Guide for your specific installation.
Q: Do you supply the matching receiver module for the remote chassis?
A: Yes. Contact us with your full system BOM and we will source all required expansion bus components.
Q: What warranty is provided?
A: All units carry a 12-month warranty against manufacturing defects. Replacement or refund issued within the warranty period upon verified failure.
