HONEYWELL CC-PAIH01 51405038-175 Analog Input Module | Experion PKS / C300

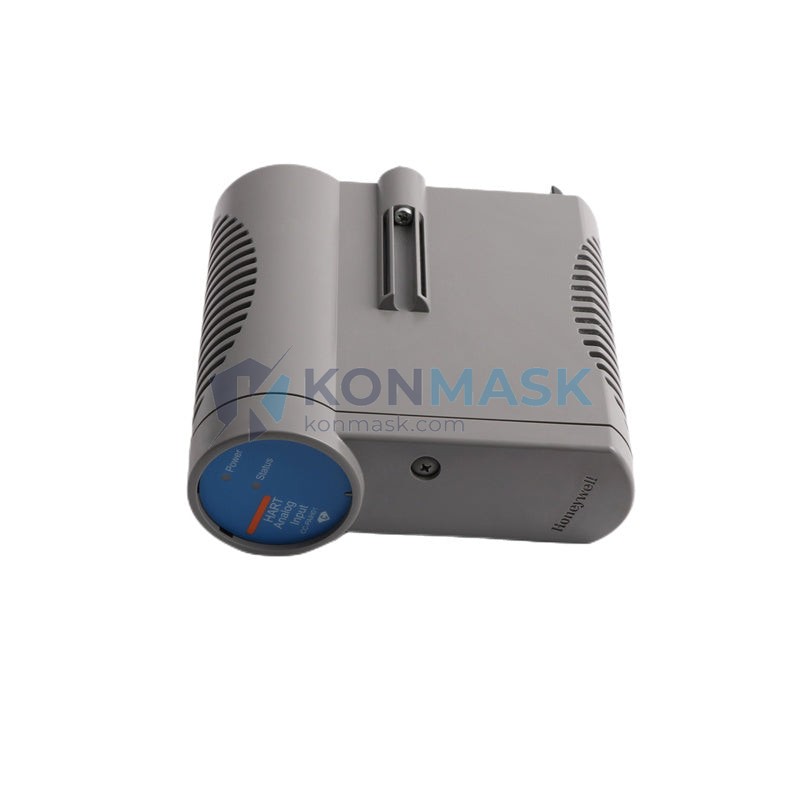

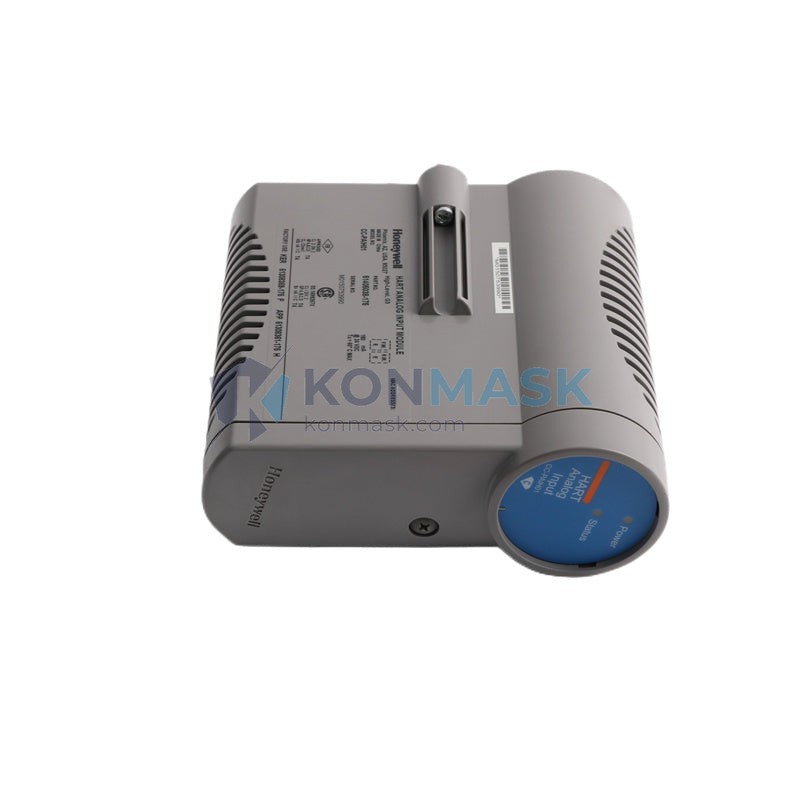

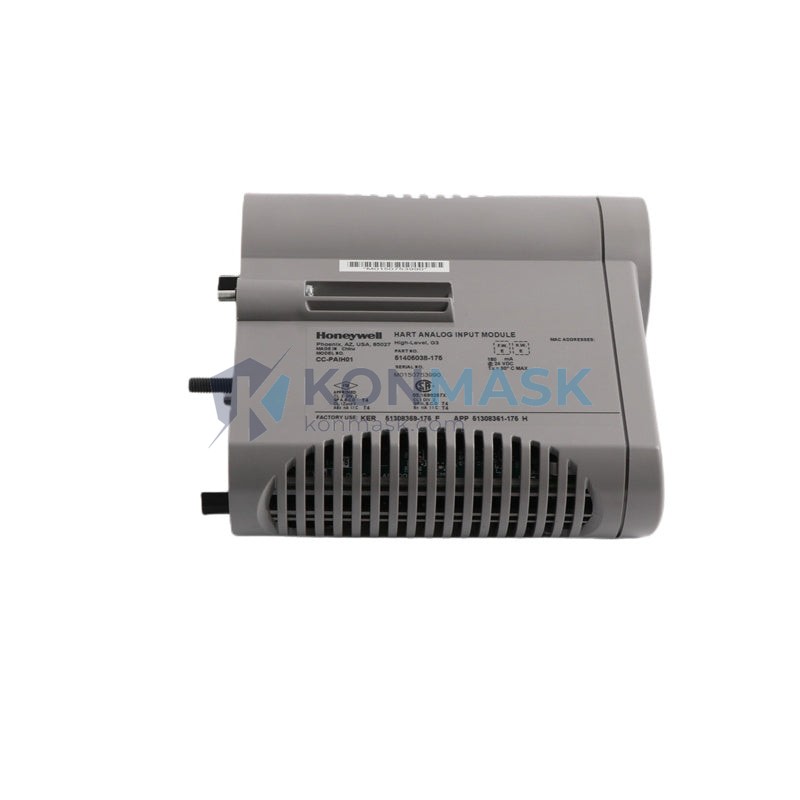

Honeywell CC-PAIH01 (51405038-175) – 8-Channel Analog Input Module | Experion PKS C300 Series

Engineering Background: The Honeywell Experion PKS (Process Knowledge System) is one of the most widely deployed distributed control system platforms in continuous-process industries globally. At its core, the C300 Controller architecture relies on a modular I/O subsystem—CHARM I/O and Series C I/O—to interface field instruments with the control layer. The CC-PAIH01 is a high-density analog input module designed specifically for this architecture, serving as the primary signal acquisition point for process variables such as flow, pressure, temperature, and level transmitted via 4–20 mA HART instruments. In a typical C300 node, this module sits between field junction boxes and the controller backplane, converting analog signals into digital process values with the accuracy and determinism required for closed-loop regulatory control.

Product Positioning: The CC-PAIH01 (part number 51405038-175) is the standard 8-channel non-isolated analog input variant within the Series C I/O family. It is distinguished from the CC-PAIH02 (isolated version) by its shared-common ground topology, making it optimal for installations where field instruments share a common reference and galvanic isolation is handled at the marshalling cabinet level. The boundary condition for selection is straightforward: use CC-PAIH01 when all 8 channels reference the same ground potential; specify CC-PAIH02 when channel-to-channel isolation is required due to ground loops or mixed-source instruments. This module is not interchangeable with CHARM I/O modules (CCIOM series), which use a different backplane and characterization architecture.

Complete Technical Specifications

Electrical

• Input Channels: 8 (single-ended, non-isolated)
• Input Signal Range: 4–20 mA (primary); 1–5 V DC (with external resistor)
• HART Communication: Supported on all 8 channels (HART 5/6/7 pass-through to controller)
• Input Impedance: ≤ 250 Ω (current input mode)
• Resolution: 16-bit ADC
• Accuracy: ±0.1% of full scale at 25°C
• Power Consumption: ≤ 1.5 W (from C300 backplane, 24 V DC)
• Backplane Interface: Series C I/O bus (proprietary Honeywell)

Mechanical

• Form Factor: Single-slot Series C I/O module
• Dimensions: Approx. 25 mm W × 200 mm H × 130 mm D
• Weight: ~400 g
• Connector: 40-pin backplane edge connector + field terminal block (screw-type, 0.5–2.5 mm²)
• Mounting: Series C I/O carrier (CC-TCNT01 or equivalent)

Environmental

• Operating Temperature: 0°C to +60°C
• Storage Temperature: −40°C to +85°C
• Relative Humidity: 5%–95% non-condensing
• Vibration: IEC 60068-2-6 (5–150 Hz, 1 g)
• Shock: IEC 60068-2-27 (15 g, 11 ms)
• Protection Class: IP20 (module only; enclosure-dependent)

Certifications

• CE Marking (EMC Directive 2014/30/EU)
• UL Listed (UL 508)
• FM Approved (Class I, Div. 2, Groups A–D) – when installed per Honeywell drawing
• ATEX Zone 2 (II 3 G) – with appropriate barriers
• RoHS Compliant

Data source: Honeywell Experion PKS Series C I/O Product Specification PS-00-01-0065-EN; Honeywell Drawing 51405038-175 Rev. G. Specifications subject to revision; verify against current Honeywell documentation for safety-critical applications.

Proven Application Environments

• Petroleum Refining – Crude Distillation Unit: Acquiring 4–20 mA signals from differential pressure transmitters on tray columns; module handles continuous scan cycles at 500 ms update rate under sustained 55°C ambient in the MCC room.
• Power Generation – Boiler Drum Level Control: Reading redundant level transmitter outputs in a 2oo3 voting architecture; HART pass-through enables online diagnostics without process interruption during scheduled outages.
• Water Treatment – Dosing Control System: Monitoring flow and pH transmitters across multiple dosing loops; shared-common ground topology is compatible with loop-powered instruments sharing a common 24 V DC supply rail.
• Chemical Processing – Reactor Temperature Profiling: Aggregating 8 temperature transmitter signals per module across multi-zone reactors; 16-bit resolution supports tight ±0.5°C process control bands.
• LNG Terminal – Cryogenic Storage Monitoring: Interfacing with pressure and level transmitters on cryogenic tanks; module operates within rated temperature range in climate-controlled instrument rooms adjacent to cold zones.
• Pulp & Paper – Recovery Boiler Combustion Control: Collecting airflow and draft pressure signals; HART diagnostics flag transmitter drift before it impacts combustion efficiency, reducing unplanned shutdowns.

Engineering Advantages

• For high-density I/O marshalling, this analog input module delivers 8 channels per single backplane slot, because the Series C I/O architecture maximizes channel density without requiring additional power supplies or carriers per module.
• For HART-enabled field device management, this module passes HART secondary variables and device status to the Experion PKS asset management layer, because all 8 channels support simultaneous HART communication without multiplexing delays.
• For installations requiring online module replacement, this module supports hot-swap removal and insertion on a powered C300 node, because the Series C backplane isolates module power sequencing from the controller scan cycle.
• For long-cable-run installations, this module maintains ±0.1% accuracy despite line resistance variations, because the current-input topology is inherently immune to voltage drop across field wiring resistance.
• For hazardous area interfaces, this module is compatible with Zener barrier and galvanic isolator installations in Zone 1/Division 1 field wiring, because the backplane-side circuitry meets the associated apparatus requirements of FM and ATEX standards.
• For lifecycle-critical systems, this module carries a Honeywell extended support commitment under the Experion PKS platform roadmap, because Honeywell has publicly committed to Series C I/O hardware support through 2030+, reducing obsolescence risk for long-horizon capital projects.

System Architecture & Signal Flow

Field instruments (4–20 mA HART) → Field terminal block (screw terminals on CC-PAIH01 carrier) → Module ADC (16-bit conversion, 500 ms default scan) → Series C I/O backplane bus → C300 Controller (FTE network node) → Experion PKS Server (historian, alarm management, HMI) → Operator Workstation.

Compatible Hardware:

• CC-TCNT01 – Standard Series C I/O carrier (required mounting hardware)
• CC-TCNT11 – Redundant carrier for fault-tolerant I/O configurations
• C300 Controller (CC-PCF901) – Primary controller; CC-PAIH01 is validated for all C300 firmware revisions R310 and above
• EPLCG2 – Experion PKS gateway for legacy integration

Substitution Conditions: The CC-PAIH02 (51405039-175) is the direct isolated-channel substitute when ground loop isolation is required. The CC-PAIH01 cannot substitute for CHARM I/O modules (e.g., CC-AIAM01) without backplane and configuration changes. Cross-series substitution requires Honeywell engineering review and updated I/O assignment in Control Builder.

Sourcing & Quality Verification

Modules offered through Konmask.com are sourced from decommissioned plant upgrades, authorized distributor overstock, and verified secondary-market channels. Each unit undergoes the following 4-step inspection process before dispatch:

1. Visual Inspection: PCB, connector pins, and housing examined for physical damage, corrosion, or evidence of field modification.
2. Label & Part Number Verification: Honeywell part number (51405038-175), revision level, and date code confirmed against Honeywell’s published part genealogy.
3. Functional Power-On Test: Module installed in a Series C I/O test rack with C300 controller; channel-by-channel analog input verification performed with calibrated signal source.
4. Firmware Revision Check: Onboard firmware version recorded and compared against Honeywell’s compatibility matrix for the target Experion PKS release.

Documentation available upon request: Test report, inspection checklist, Honeywell product datasheet (PS-00-01-0065-EN), certificate of conformance, and high-resolution photographs of the specific unit shipped.

Procurement Process

1. Submit Inquiry: Send model number, required quantity, target Experion PKS version, and delivery timeline to support@konmask.com or via the product page inquiry form.
2. Receive Quote & Availability Confirmation: A technical response is provided within 24 business hours, including unit price, lead time, inspection report availability, and shipping options (DHL Express / sea freight).
3. Order Confirmation & Dispatch: Payment confirmed → unit re-inspected → packed in anti-static ESD bag with foam insert → shipped with tracking number and documentation package.

Technical Support: Pre-sale support covers compatibility verification, firmware matching, and system architecture questions. Post-sale support covers installation guidance and Honeywell documentation referral. Support is provided via email and WhatsApp in English and Chinese.

Technical FAQ

• Q: Is CC-PAIH01 compatible with Experion PKS R500 and later releases?
  A: Yes. The CC-PAIH01 hardware is compatible with Experion PKS R310 through R500+. Firmware on the module is updated via Control Builder during commissioning; no hardware change is required for software upgrades within the Series C I/O platform.
• Q: Can CC-PAIH01 replace CC-PAIH02 in an existing installation?
  A: Only if channel-to-channel isolation is not required by the field wiring design. If the existing installation uses CC-PAIH02 due to ground loop concerns, substituting CC-PAIH01 without resolving the ground reference issue will introduce measurement errors. A site ground loop survey is recommended before substitution.
• Q: Does this module carry FM Class I, Division 2 approval for use in classified areas?
  A: The CC-PAIH01 is FM approved for Class I, Division 2, Groups A–D when installed in accordance with Honeywell control drawing 51405038-175. For Division 1 or Zone 0/1 field wiring, appropriate certified barriers (Zener or galvanic isolators) must be installed between the field instrument and the module terminals.

---
