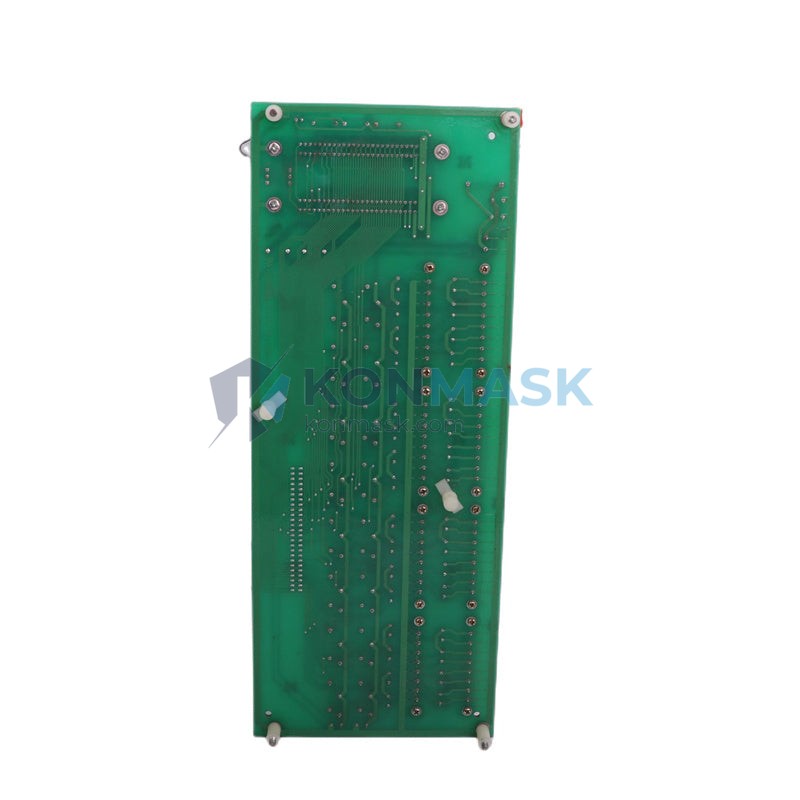

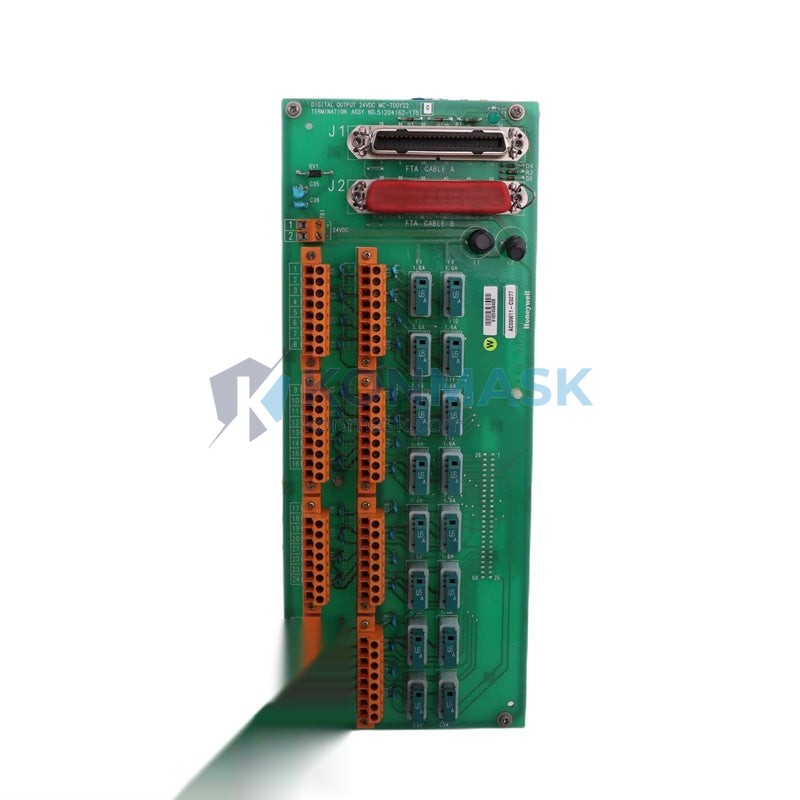

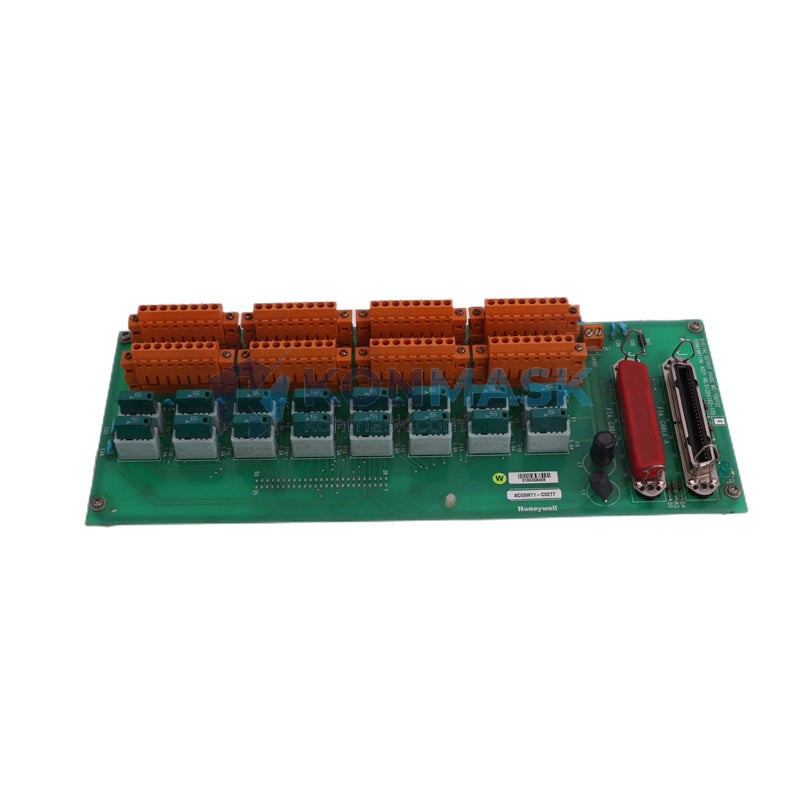

Honeywell MC-TDOY22 (51204162-175) – Digital Output HD Termination PCB | Experion PKS / TDC 3000 Platform
Engineering Background: The Honeywell Experion PKS (Process Knowledge System) and its predecessor TDC 3000 represent Honeywell’s flagship distributed control system platforms, deployed across critical infrastructure in refining, petrochemical, power generation, and water treatment worldwide. Within these architectures, the High-Density (HD) I/O subsystem provides the physical interface layer between field instrumentation and the controller backbone. The MC-TDOY22 is the dedicated termination PCB for the digital output HD I/O channel, serving as the hardwired signal conditioning and field-wiring termination point that ensures deterministic, noise-immune switching commands reach final control elements.
Product Positioning: The MC-TDOY22 (part number 51204162-175) is specifically designed for digital (discrete) output applications within the HD I/O family — distinguishing it from analog output termination boards (e.g., MC-TAOY22) and digital input termination boards (e.g., MC-TDIY22). Its application boundary is defined by installations requiring 24 VDC discrete output switching, CE-marked compliance, and direct plug-in compatibility with Honeywell HD I/O carriers. It is not interchangeable with standard-density (SD) termination assemblies or third-party I/O platforms without validated adapter hardware.
Complete Technical Specifications
Electrical
- Module Type: Digital Output HD Termination PCB
- Output Type: Discrete (Digital) Output
- Output Voltage: 24 VDC nominal field supply
- Channel Density: High-Density (HD) I/O format
- Signal Interface: Direct plug-in to Honeywell HD I/O carrier assembly
- Isolation: Channel-to-channel and channel-to-backplane isolation per Honeywell HD I/O specification
- Connector Type: Screw-terminal field wiring termination
Mechanical
- Part Number: MC-TDOY22
- Honeywell Reference: 51204162-175
- Form Factor: PCB termination assembly, HD I/O form factor
- Weight: 550 g (including packaging)
- Mounting: Carrier-mounted, tool-free plug-in installation
Environmental
- Operating Temperature: 0°C to +60°C (per Honeywell Experion PKS HD I/O environmental specification)
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Vibration/Shock: Compliant with IEC 60068-2 series for industrial DCS environments
- Installation Category: Indoor, controlled industrial environment (DCS cabinet)
Certifications
- CE Marking: Yes (European conformity for industrial control equipment)
- Platform Certification: Honeywell Experion PKS / TDC 3000 qualified component
- RoHS: Compliant per applicable revision
Data source: Honeywell Experion PKS HD I/O Hardware Reference Manual; Honeywell part datasheet 51204162-175. Specifications subject to revision — consult official Honeywell documentation for safety-critical applications.
Proven Application Environments
- Petroleum Refining: Crude distillation units | Solenoid valve control for reflux drum isolation | Continuous 24/7 operation with high cycle frequency on valve actuators
- Petrochemical / Ethylene Plants: Cracker furnace control systems | Burner management system (BMS) discrete output commands | High-temperature, vibration-intensive cabinet environments
- Power Generation (Thermal): Boiler control and turbine auxiliary systems | Motor starter and breaker trip output signals | Redundant DCS architectures requiring hot-standby I/O
- Water & Wastewater Treatment: Pump station automation | On/off control of submersible pump contactors | High-humidity, corrosive-atmosphere installations
- LNG / Gas Processing: Compressor station control | ESD (Emergency Shutdown) system discrete output interface | SIL-rated loop architectures with Honeywell Safety Manager integration
- Pharmaceutical / Fine Chemical: Batch reactor control | Clean-in-place (CIP) valve sequencing | FDA-regulated environments requiring full component traceability and documentation
Engineering Advantages
- For high-cycle valve switching applications, this termination PCB maintains signal integrity over extended service life, because the HD I/O architecture separates field wiring termination from the I/O processor card, eliminating wear-induced contact degradation on active electronics.
- For DCS cabinet space-constrained retrofits, this termination PCB maximizes channel density per rack unit, because the HD I/O form factor supports higher point counts per carrier compared to standard-density predecessors.
- For plants operating mixed Experion PKS and TDC 3000 assets, this termination PCB preserves backward compatibility, because Honeywell’s HD I/O platform was engineered for cross-generation interoperability within the same carrier and backplane infrastructure.
- For emergency shutdown and safety-instrumented loop applications, this termination PCB supports deterministic output response, because the dedicated termination architecture eliminates shared-bus contention that could introduce latency in critical discrete commands.
- For maintenance-intensive environments with frequent I/O card swaps, this termination PCB reduces field rewiring risk, because field cables terminate permanently on the PCB while the I/O processor card is replaced independently without disturbing field connections.
- For procurement teams managing multi-site Honeywell DCS fleets, this termination PCB simplifies spare parts standardization, because a single MC-TDOY22 revision serves multiple Experion PKS generations without firmware or configuration changes.
System Architecture & Signal Flow
Signal Flow: DCS Controller → Experion PKS HD I/O Carrier → MC-TDOY22 Termination PCB → Field Screw Terminals → Field Cable → Final Control Element (solenoid valve, motor starter, indicator, relay coil)
Compatible Modules & Carriers:
- MC-PDOY22 / MC-PDOY22E — Digital Output I/O Processor Card (direct mating module; MC-TDOY22 is the termination complement)
- Honeywell HD I/O Carrier assemblies (MC-PAIH03, MC-PAIH02 series) — physical carrier platform
- Experion PKS C200, C300, C300E controllers — upstream controller compatibility
- TDC 3000 HPM (High-Performance Process Manager) — legacy platform compatibility
Substitution Conditions: The MC-TDOY22 (51204162-175) may be substituted with later approved revisions of the same part number provided the revision suffix is confirmed compatible per Honeywell’s Engineering Change Notice (ECN) documentation. Cross-substitution with SD I/O termination assemblies or third-party equivalents is not supported without Honeywell engineering validation.
Sourcing & Quality Verification
All Honeywell DCS components listed on Konmask.com are sourced through established industrial automation supply channels, including authorized distributor surplus, decommissioned plant asset recovery with full traceability, and verified OEM-equivalent stock. Every unit undergoes the following 4-step verification process before dispatch:
- Visual Inspection: PCB surface, connector pins, and component population checked against reference images for the 51204162-175 revision; counterfeit indicators (re-marking, solder rework, incorrect silkscreen) are grounds for rejection.
- Label & Revision Verification: Honeywell part number, revision code, and date code confirmed against procurement documentation.
- Functional Pre-check: Where test fixtures are available, digital output switching function is verified prior to packaging.
- Packaging & ESD Protection: Unit is packaged in anti-static bag with desiccant, labeled with part number and revision, and sealed for transit.
Documentation available upon request: Test report, photos of actual unit (all sides), packing list with serial/revision data, Certificate of Conformance (CoC), and export compliance documentation (HS code, country of origin).
Procurement Process
- Submit Inquiry: Contact via email (support@konmask.com) or phone (+0086 19859288691) with your required quantity, delivery timeline, and any revision-specific requirements. RFQ responses are provided within 24 hours on business days.
- Review Quotation & Documentation: A formal quotation including unit price, lead time, available revision, and optional documentation package will be issued. Sample photos of the actual unit in stock can be provided upon request before order confirmation.
- Order Confirmation & Dispatch: Upon purchase order receipt, the unit is prepared, re-inspected, and dispatched with full shipping documentation. Express international freight options (DHL, FedEx, UPS) are available for urgent plant maintenance requirements.
Technical Support: Pre-sales engineering consultation is available for compatibility verification, system architecture questions, and cross-reference confirmation. Post-sales support includes documentation provision and installation guidance coordination.
Technical FAQ
Q: Is the MC-TDOY22 (51204162-175) compatible with both Experion PKS and TDC 3000 systems?
A: Yes. The HD I/O termination PCB platform was designed for cross-generation compatibility within Honeywell’s DCS product line. The MC-TDOY22 functions in both Experion PKS (C200/C300 controller families) and TDC 3000 HPM environments, provided the carrier assembly and I/O processor card (MC-PDOY22 series) are correctly matched. Confirm the carrier revision with Honeywell’s compatibility matrix before installation in mixed-generation racks.
Q: Can the MC-TDOY22 replace the MC-TDOY21 or other earlier digital output termination revisions?
A: Revision interchangeability depends on the specific Engineering Change Notice (ECN) history for the 51204162 base part number. In many cases, later revisions are backward compatible, but this must be confirmed against the plant’s Honeywell system documentation or via Honeywell technical support before substitution in a live process environment. Documentation of the installed revision is available upon request to support this evaluation.
Q: Does the MC-TDOY22 carry SIL certification for use in Safety Instrumented Systems (SIS)?
A: The MC-TDOY22 is a standard DCS I/O termination component and is not independently SIL-certified as a safety device. For SIS applications, Honeywell’s Safety Manager platform with dedicated FSC (Fail-Safe Controller) I/O modules is the appropriate architecture. The MC-TDOY22 may appear in hybrid architectures where the DCS handles non-safety discrete outputs adjacent to a separate SIS layer — in such cases, the SIL rating applies to the SIS loop, not the DCS I/O. Consult the plant’s Safety Requirements Specification (SRS) and functional safety engineer before specifying any DCS component in a safety-instrumented loop.
