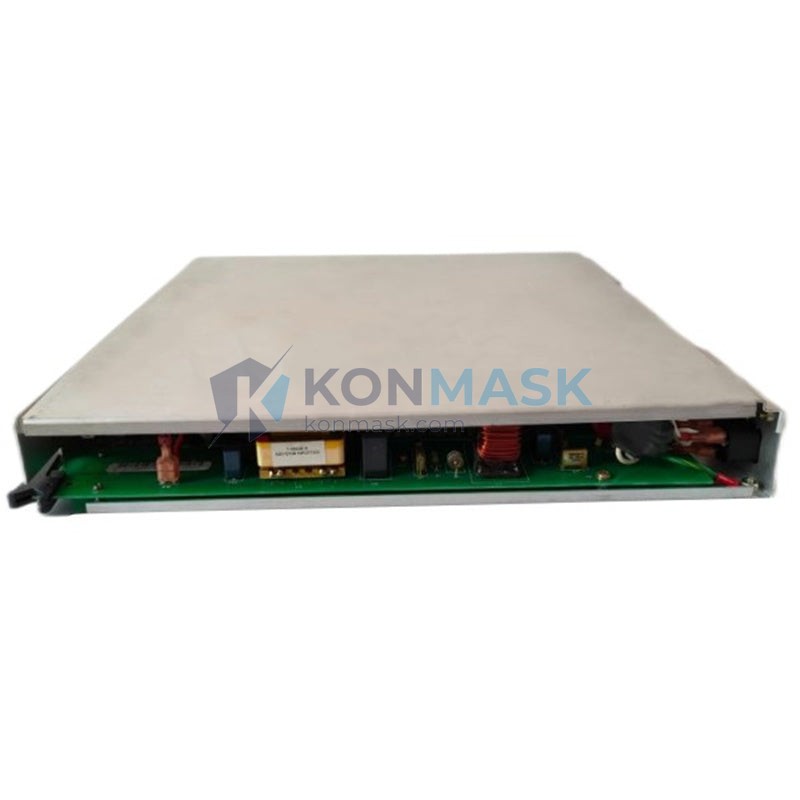

HONEYWELL 51196653-100 Link Module | Replacement, Equivalent & Selection Guide
The HONEYWELL 51196653-100 is a Link Module designed for use within Honeywell’s distributed control system (DCS) architecture, specifically the TDC 3000 / PlantScape / Experion platform family. It serves as a critical communication bridge between controller nodes and I/O subsystems, enabling high-speed, deterministic data exchange across the control network.
Buyers searching for a 51196653-100 replacement, a functionally equivalent link module, or a substitute for an end-of-life unit will find this guide covers all key decision points — from direct drop-in options to cross-brand alternatives — so you can restore system uptime with confidence.
Technical Specifications
- Part Number: 51196653-100
- Manufacturer: Honeywell Process Solutions
- Module Type: Link Module (Communication / Network Interface)
- Compatible Platform: TDC 3000, PlantScape, Experion PKS
- Communication Protocol: Local Control Network (LCN) / Universal Control Network (UCN)
- Form Factor: Card-cage / rack-mount module
- Weight: 760 g
- Operating Temperature: 0°C to 60°C (typical DCS card spec)
- Power Supply: Supplied via backplane (card-cage bus)
- ⚠️ Key Replacement Parameter: Network protocol (LCN vs UCN) and firmware revision must match the target system — verify before substitution.
Compatible Replacement & Equivalent Models
1. Direct Drop-in Replacements
These units share the same part family and are confirmed pin-compatible and firmware-compatible with the 51196653-100 in most TDC 3000 / Experion installations:
- HONEYWELL 51196653-200 — revised hardware revision, same functional role; confirm firmware compatibility with your system version
- HONEYWELL 51196653-100 (refurbished / tested) — factory-equivalent performance when sourced from a certified repair depot
2. Functional Equivalents
These modules perform the same link/communication function within the Honeywell DCS ecosystem but may require configuration changes or firmware updates:
- HONEYWELL 51304485-100 — alternative link interface card used in certain Experion PKS node configurations; verify slot compatibility
- HONEYWELL 51401469-100 — UCN interface module; functionally equivalent for UCN-based architectures
3. Cross-Brand Alternatives
For system migrations or where OEM parts are unavailable, the following platforms offer comparable DCS link/communication module functionality. Note: cross-brand substitution requires engineering review and is not a plug-and-play replacement.
- ABB: 3BSE013208R1 (CI854A) — PROFIBUS DP communication interface for ABB 800xA; suitable for migration projects
- Emerson DeltaV: VE4002S2T2B4 — DeltaV S-series controller with integrated I/O link; for full platform migration
- Yokogawa: ADV151-P00 — CENTUM VP field communication module; cross-brand migration only
Prerequisite: Cross-brand alternatives require full system compatibility assessment. Contact Konmask engineering support before ordering.
Why Choose the Original Model
- Precision-Matched Performance: The 51196653-100 is factory-calibrated and validated for exact timing and throughput requirements of the Honeywell LCN/UCN network — no derating or workarounds needed.
- OEM Certification: Carries Honeywell’s original quality certification; accepted by plant safety auditors and insurance assessors without additional validation.
- Seamless System Compatibility: Plug-and-play with existing TDC 3000 / Experion card cages — no firmware patching, no configuration changes, no integration risk.
- Full Technical Support: Konmask provides pre-sale compatibility checks and post-sale technical assistance specific to this part number.
- Warranty Coverage: All units supplied by Konmask include a minimum 12-month warranty with documented test reports.
- Regulatory Traceability: Full supply chain documentation available — COO, test certificates, and inspection reports — supporting IEC 61511 / SIL compliance requirements.
Typical Applications
- Petrochemical & Refining: DCS node communication in crude distillation units and hydrocracker control systems
- Power Generation: Turbine and boiler control network link modules in coal-fired and combined-cycle plants
- Pulp & Paper: Process control network interface in continuous digester and recovery boiler systems
- Pharmaceutical Manufacturing: GMP-compliant DCS communication modules in batch reactor and clean-room HVAC control
- Chemical Processing: Reactor and distillation column control network in specialty chemical plants
- Water & Wastewater Treatment: SCADA/DCS hybrid architectures requiring reliable link module communication between remote I/O and central controllers
System Compatibility
The 51196653-100 is designed to operate within the following Honeywell system components:
- 51196653-200 — Companion link module (revised revision); same card cage slot
- 51304485-100 — Node interface card; upstream communication partner
- 51401469-100 — UCN interface module; network peer
- 51198685-100 — Power supply module; provides backplane power to link module slot
- 51190493-100 — Card cage / chassis; physical housing for this module
- 51309288-175 — Experion PKS C300 controller; primary control node communicating via this link module
Selection Guide
Answer these three questions before ordering to confirm the 51196653-100 — or its replacement — is the right fit for your system:
- What is your DCS platform and firmware version? The 51196653-100 is validated for TDC 3000 R500+ and Experion PKS R310+. If your system runs an earlier revision, contact us to confirm compatibility before purchasing a replacement or equivalent.
- Is your network LCN or UCN? This module supports LCN architecture. UCN installations require the 51401469-100 equivalent. Mixing network types will cause communication faults.
- Do you need a direct substitute or are you open to a functional equivalent? If downtime is critical, a tested OEM unit is the safest path. If you are planning a system upgrade, a functional equivalent or cross-brand alternative may offer a better long-term ROI. Contact Konmask to discuss your specific scenario.
Quality Assurance & Sourcing
Sourcing Channels: Konmask sources the HONEYWELL 51196653-100 through authorized surplus distributors, certified repair depots, and direct OEM channels. All units are traceable to original manufacture.
4-Step Inspection Process:
- Visual Inspection: Check for physical damage, corrosion, burnt components, and label integrity
- Functional Bench Test: Power-on test with protocol simulation to verify communication link establishment
- Firmware Verification: Confirm firmware revision matches documented specification for the target platform
- Final Documentation: Issue test report, attach COO and traceability certificate before shipment
Available Documentation: Certificate of Origin (COO) · Functional Test Report · Material Safety Data Sheet (MSDS) · Customs HS Code Declaration · OEM Datasheet (on request)
How to Order
- Submit Your Inquiry: Email support@konmask.com or call +0086 19859288691 with your part number, required quantity, and target DCS platform/firmware version.
- Receive Compatibility Confirmation & Quote: Our engineering team will verify compatibility with your system and provide a formal quotation within 24 hours.
- Order & Ship: Confirm the order, and we will arrange inspection, documentation, and dispatch — with full tracking provided.
Replacement & Compatibility FAQ
Q1: Can the HONEYWELL 51196653-200 directly replace the 51196653-100?
In most cases, yes — the -200 revision is a hardware update to the same functional module and is considered a direct replacement for the 51196653-100 in TDC 3000 and Experion PKS systems. However, we recommend confirming your system’s firmware revision supports the -200 hardware before swapping. Contact Konmask for a pre-purchase compatibility check.
Q2: Is there a compatible equivalent for the 51196653-100 if the OEM part is no longer available?
Yes. The 51304485-100 and 51401469-100 are functional equivalents for specific network configurations within the Honeywell DCS ecosystem. For cross-brand equivalent options (ABB, Emerson, Yokogawa), a full migration assessment is required. Konmask can support both paths.
Q3: What is the difference between a substitute and an equivalent for this module?
A substitute typically refers to a unit that fills the same physical slot and performs the same function with minimal or no configuration change — such as a tested refurbished 51196653-100. An equivalent may require firmware updates or minor configuration adjustments but delivers the same operational outcome. Konmask will clearly specify which category applies to any unit we recommend, so you can make an informed decision before purchase.
