Honeywell MU-PLAM02 51304362-100 Low Level Analog Mux Module | Replacement, Equivalent & Selection Guide

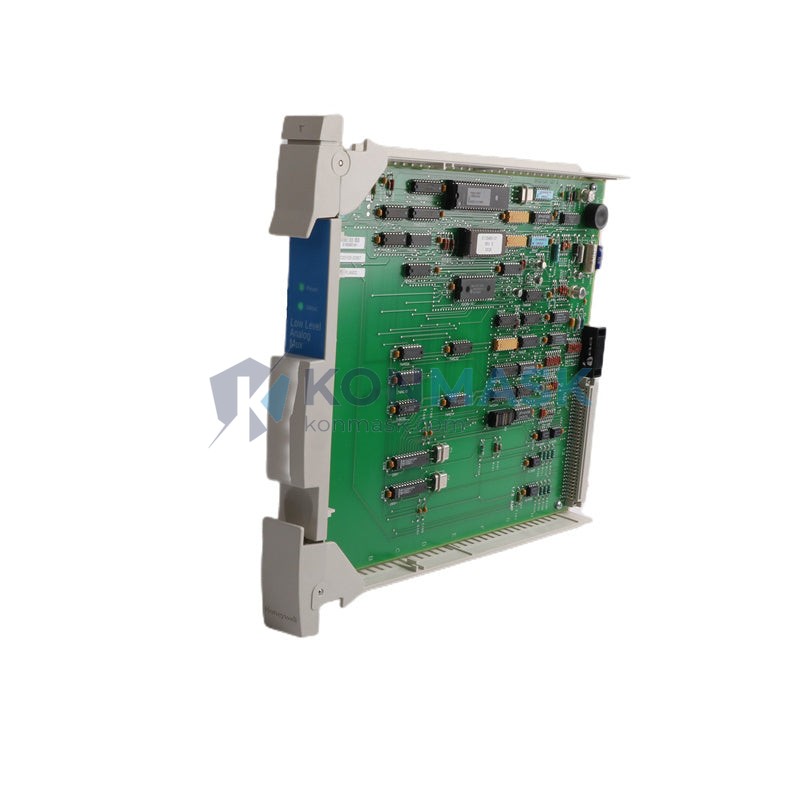

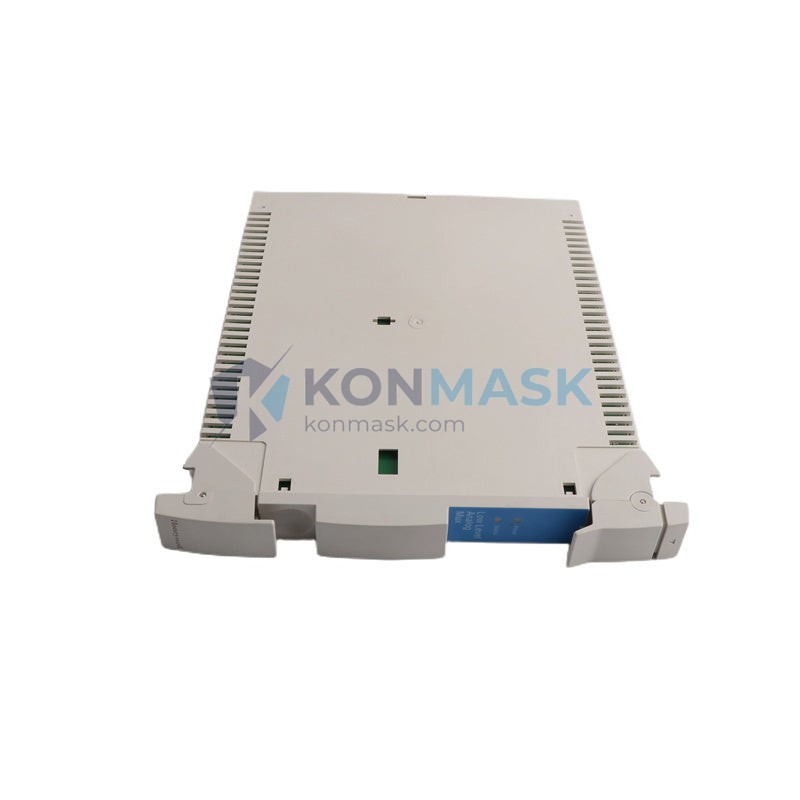

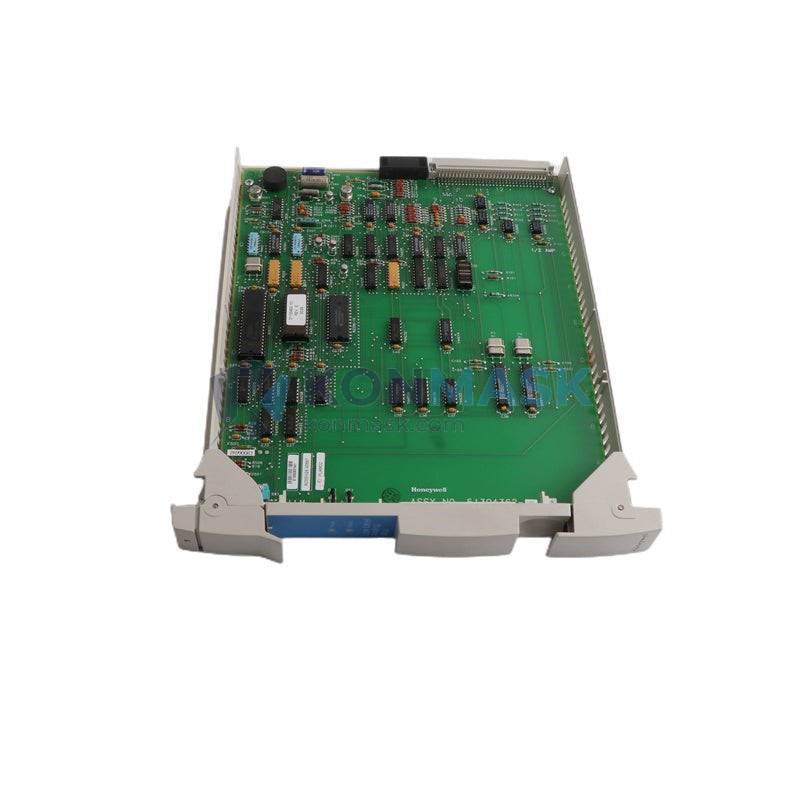

The Honeywell MU-PLAM02 (P/N 51304362-100) is a Low Level Analog Multiplexer Module designed for use within Honeywell’s TDC 3000 and Experion PKS distributed control systems. It enables high-density acquisition of low-level analog signals — including thermocouple and millivolt inputs — by multiplexing multiple field channels into a single high-accuracy measurement path. This page provides full technical specifications, compatible replacement options, a structured selection guide, and sourcing information for procurement engineers and system integrators.
Technical Specifications
- Part Number: 51304362-100
- Model: MU-PLAM02
- Manufacturer: Honeywell Process Solutions
- Function: Low Level Analog Multiplexer Module
- Signal Types Supported: Thermocouple (TC), millivolt (mV), RTD (with appropriate signal conditioner)
- Input Range: Low-level analog, typically –100 mV to +100 mV
- Channel Multiplexing: Multi-channel MUX architecture for high-density I/O
- Compatible Platform: Honeywell TDC 3000, Experion PKS
- Mounting: Card cage / backplane slot mount
- Communication: Internal DCS backplane bus
- Power Supply: Supplied via backplane (system-regulated)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Humidity: 5% to 95% RH, non-condensing
- Weight: Approx. 530 g
- Compliance: CE, UL listed (per system certification)
Compatible Replacement & Equivalent Models
When the MU-PLAM02 is discontinued, obsolete, or unavailable through standard channels, the following alternatives may be evaluated depending on system configuration and I/O requirements:
- Honeywell MU-PLAM01 (51304362-050) — Earlier revision; functionally equivalent in most TDC 3000 configurations. Verify firmware compatibility before substitution.
- Honeywell 51304362-150 (MU-PLAM03) — Later revision with enhanced noise immunity; drop-in replacement in most cases.
- Honeywell MC-PLAM02 / CC-PAIH01 — Experion PKS generation equivalents for systems undergoing migration from TDC 3000 to C300 controller architecture.
- Third-party compatible modules — Select certified aftermarket suppliers offer functionally equivalent MUX modules. Always validate signal range, backplane pinout, and firmware handshake before deployment.
Note: All replacement decisions should be validated by a qualified DCS engineer. Konmask.com supplies both OEM and certified refurbished units with full traceability documentation.
Why Choose the Original Model
- OEM Accuracy: Factory-calibrated to Honeywell’s tight millivolt measurement tolerances — critical for thermocouple-based process control loops.
- Backplane Compatibility: Designed and validated for Honeywell’s proprietary backplane bus; no firmware patching or signal conditioning workarounds required.
- System Certification Integrity: Using the original P/N preserves SIL, CE, and UL system-level certifications — essential for regulated industries (oil & gas, pharma, power generation).
- Long Service Life: Honeywell’s industrial-grade components are rated for continuous 24/7 operation in harsh process environments.
- Reduced Commissioning Risk: No re-engineering of I/O maps, controller logic, or alarm setpoints when using the original model.
Typical Applications
- Oil & Gas: Wellhead temperature monitoring, refinery distillation column TC arrays, compressor station analog acquisition
- Power Generation: Boiler thermocouple multiplexing, turbine exhaust temperature scanning
- Chemical & Petrochemical: Reactor temperature profiling, heat exchanger monitoring
- Pulp & Paper: Dryer section temperature control, digester process monitoring
- Pharmaceutical: Validated batch process temperature acquisition in GMP environments
- Water & Wastewater: Multi-point analog signal aggregation in SCADA-integrated DCS architectures
System Compatibility
- Honeywell TDC 3000 — Primary platform; fully validated for LCN and UCN architectures
- Honeywell Experion PKS (legacy I/O) — Compatible via legacy I/O interface modules
- Honeywell PlantScape — Supported in hybrid migration configurations
- Card Cage Compatibility: Standard Honeywell MU-series card cages; verify slot assignment with system engineer
- Not compatible with: Honeywell C300 native I/O, Safety Manager I/O, or third-party DCS backplanes without adaptation
Selection Guide
Use the following criteria to confirm the MU-PLAM02 is the correct module for your application:
- ✅ Your DCS platform is Honeywell TDC 3000 or compatible Experion PKS legacy I/O
- ✅ You require low-level analog (TC / mV) multiplexed input — not standard 4–20 mA
- ✅ Your card cage accepts MU-series modules (verify slot type and backplane revision)
- ✅ Part number 51304362-100 matches your existing BOM or spare parts list
- ✅ You need a direct drop-in replacement without re-engineering I/O assignments
If your system has migrated to C300 or Safety Manager architecture, contact Konmask.com for migration-compatible alternatives.
Quality Assurance & Sourcing
- Source: Konmask.com supplies MU-PLAM02 units sourced from authorized distributors, certified refurbishers, and decommissioned plant inventories with full chain-of-custody documentation.
- Inspection: Every unit undergoes visual inspection, functional bench test, and firmware version verification prior to shipment.
- Traceability: Serial number, revision level, and test records provided with each shipment.
- Packaging: ESD-safe anti-static packaging with foam cushioning; export-compliant labeling.
- Warranty: 12-month warranty against defects in materials and workmanship (terms apply).
- Lead Time: In-stock units ship within 3–5 business days; sourced units typically 7–15 business days.
How to Order
- Step 1: Confirm part number 51304362-100 / MU-PLAM02 against your system BOM or existing module label.
- Step 2: Submit an RFQ via support@konmask.com or add directly to cart.
- Step 3: Provide quantity, required delivery date, and any revision-level preferences.
- Step 4: Receive quotation with availability, lead time, and test certification options within 24 business hours.
- Step 5: Confirm PO — we handle export documentation, customs HS code classification, and freight coordination.
📞 Phone/WhatsApp: +0086 19859288691
📧 Email: support@konmask.com
Replacement & Compatibility FAQ
Q: Can MU-PLAM02 replace MU-PLAM01 directly?
A: In most TDC 3000 configurations, yes — both share the same backplane pinout and signal range. However, verify firmware revision compatibility with your system engineer before hot-swapping in a live process.
Q: Is 51304362-100 still in production?
A: Honeywell has transitioned newer systems to Experion PKS C300 I/O. The MU-PLAM02 is considered a legacy/mature product. Konmask.com maintains stock of new-surplus and certified refurbished units.
Q: What is the difference between -050, -100, and -150 revisions?
A: Revision suffixes typically denote hardware ECO (Engineering Change Order) levels — minor PCB or component updates that do not affect functional performance. All revisions are generally interchangeable within the same platform generation.
Q: Can this module be used with third-party DCS systems?
A: No. The MU-PLAM02 uses Honeywell’s proprietary backplane communication protocol and is not compatible with non-Honeywell DCS platforms without significant re-engineering.
Q: Do you provide test reports with the module?
A: Yes. All units shipped by Konmask.com include a functional test record. Extended calibration certificates are available upon request.
Q: What is your return policy if the module is incompatible?
A: We offer a 30-day return window for unused, uninstalled modules in original packaging. Contact support@konmask.com to initiate an RMA.
