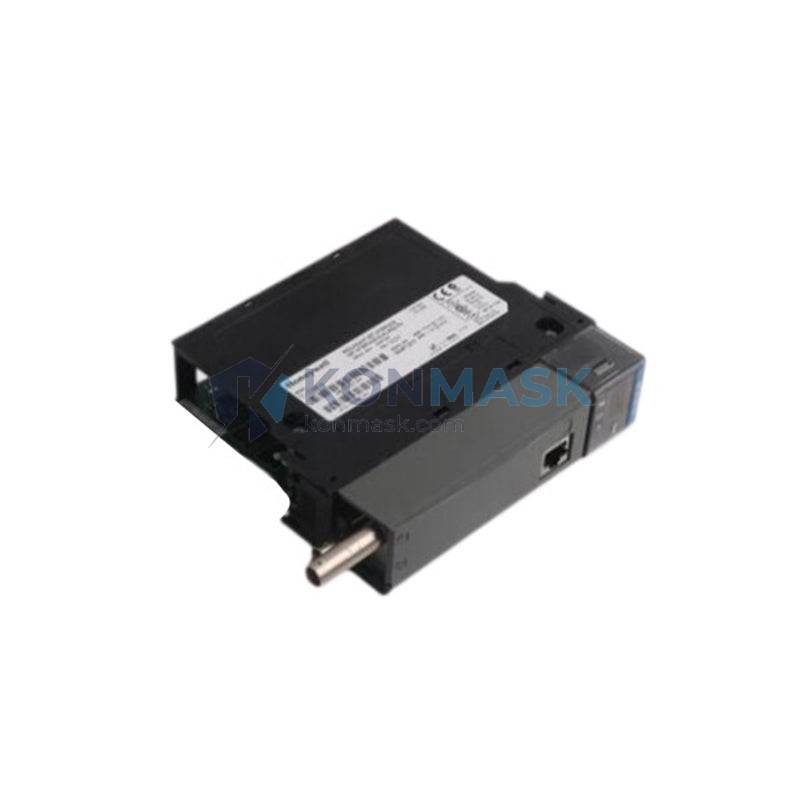

HONEYWELL TC-IXR061 20-Point Input Card – Experion Process Knowledge System
When a distributed control system loses its field signal acquisition capability, the consequences cascade instantly: operators go blind to process variables, safety interlocks lose their reference data, and a refinery unit or chemical reactor must be brought to an emergency shutdown — costing tens of thousands of dollars per hour in lost production. The TC-IXR061 Input Card is the component that prevents this scenario. It is the physical bridge between field instrumentation and the Experion PKS controller, converting analog and discrete field signals into the digital data stream that drives process decisions.
Within the Honeywell C300 Controller family, the TC-IXR061 occupies a well-defined role as a 20-point input termination module. It is not a general-purpose I/O card — it is engineered specifically for the Experion PKS architecture, where signal integrity, deterministic scan times, and tight integration with the C300 controller are non-negotiable. Honeywell’s Experion PKS platform is deployed across thousands of process plants globally, from LNG terminals in Qatar to petrochemical complexes in China, making the TC-IXR061 one of the most widely demanded spare parts in the DCS aftermarket.
Technical Specifications
Electrical
- Input Points: 20 discrete/analog input channels
- Signal Types: Compatible with standard field instrument signal ranges per Experion PKS I/O architecture
- Power Supply: Sourced via C300 controller backplane (no external power wiring required)
- Isolation: Channel-to-channel and channel-to-backplane isolation per IEC 61131-2
Mechanical
- Form Factor: Plug-in module for Honeywell Series C I/O chassis
- Weight: 550 g (nominal)
- Connector: Dedicated backplane edge connector; field wiring via associated termination assembly
- Mounting: Tool-free insertion/extraction with locking latch
Environmental
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Vibration/Shock: Designed to IEC 60068-2 series environmental test standards
Certifications & Standards
- Designed and tested in accordance with IEC 61131-2 (Programmable Controllers — Equipment Requirements and Tests)
- CE Marking compliant
- RoHS compliant
Note: All specifications are based on Honeywell published documentation. Verify against the applicable Experion PKS system release notes for your installation.
Key Features & Benefits
- 20-Point Input Density — Consolidates 20 field signal terminations onto a single module slot, reducing chassis footprint by up to 50% compared to 10-point alternatives and lowering spare-parts inventory complexity.
- Native Experion PKS Integration — Communicates directly over the C300 backplane without gateway hardware, eliminating an entire layer of potential signal latency and failure modes.
- Hot-Swap Capable — Supports online replacement without controller shutdown, enabling maintenance teams to swap a failed card during live production — a critical requirement for continuous-process industries where planned downtime windows are measured in months.
- Deterministic Scan Performance — Input scan cycle is synchronized with the C300 controller execution rate, ensuring that process variable data presented to control algorithms is time-stamped and coherent — compliant with IEC 61131-2 timing requirements.
- Robust Isolation Architecture — Channel isolation prevents a field wiring fault on one input from propagating to adjacent channels, protecting both the controller and connected instrumentation.
- Long-Term Platform Availability — As a catalogued Honeywell Experion PKS spare, the TC-IXR061 is supported under Honeywell’s extended lifecycle program, reducing the risk of obsolescence-driven plant modifications.
Industry & Equipment Applications
- Oil & Gas — Upstream Production: Wellhead control panels and SCADA-linked RTU cabinets where discrete valve position feedback and pressure transmitter signals must be reliably acquired by the DCS.
- Petrochemical & Refining: Distillation column control loops, reactor feed/effluent monitoring, and fired heater management systems running on Experion PKS C300 controllers.
- LNG & Gas Processing: Compressor train monitoring and liquefaction unit control, where 20-point input density reduces cabinet count in space-constrained offshore modules.
- Power Generation: Boiler drum level control, turbine auxiliary systems, and balance-of-plant I/O in combined-cycle power plants using Honeywell DCS infrastructure.
- Pulp & Paper / Chemical: Continuous digester control and batch reactor sequencing, where the hot-swap capability allows maintenance during short production changeovers.
- Water & Wastewater Treatment: Pump station monitoring and dosing system control in large municipal treatment facilities standardized on Experion PKS.
System Integration & Compatible Parts
Upstream (Controller Side):
- Honeywell C300 Controller (TC-CCR014, TC-CCR016) — primary host controller for TC-IXR061 in Experion PKS R310 and later releases
- Series C I/O Chassis — provides backplane power and communication bus
Downstream (Field Side):
- Associated Termination Assembly (FTA) — field wiring connects to the FTA, which mates with the TC-IXR061 via a dedicated cable assembly
- Marshalling cabinets with standard terminal blocks for field instrument home-run cables
Equivalent / Replacement Considerations:
- TC-IXR061 is a specific Honeywell part number; functional substitution requires confirmation against the Experion PKS I/O assignment database and system configuration files. Do not substitute without engineering review — incorrect module type will cause I/O configuration mismatch alarms and potential control loop failure.
- For legacy HC900 or TDC 3000 migrations to Experion PKS, consult Honeywell’s migration guide before specifying replacement I/O modules.
Our Quality Assurance Process
Every TC-IXR061 unit sourced and supplied by Konmask.com passes through a four-step verification process before shipment:
- Visual & Physical Inspection: Examination of PCB, connector pins, locking latch, and label integrity. Units with physical damage, corrosion, or missing labels are rejected.
- Functional Power-On Test: Module is seated in a compatible test chassis and powered up to verify backplane communication handshake and self-diagnostic pass status.
- Firmware / Revision Verification: Hardware revision and firmware version are recorded and cross-referenced against Honeywell’s compatibility matrix for the customer’s stated Experion PKS release.
- Packaging & ESD Protection: Modules are packed in anti-static bags, foam-lined boxes, and double-boxed for international freight.
Documentation available upon request: Test report, hardware revision record, photos of actual unit, certificate of conformance, and packing list.
How to Order
- Submit Your Inquiry: Send your part number (TC-IXR061), required quantity, and your Experion PKS system release version to support@konmask.com or use the inquiry form on this page.
- Receive Quotation: Our technical team will confirm availability, hardware revision compatibility, lead time, and pricing within 24 hours on business days.
- Confirm & Ship: Upon order confirmation, we arrange export documentation, ESD-safe packaging, and your preferred freight method — DHL, FedEx, or sea freight consolidation.
Why Choose Konmask.com?
- DCS Specialist Sourcing: We focus exclusively on industrial automation and DCS components — Honeywell, ABB, Siemens, Yokogawa — giving us deeper supplier relationships and faster access to hard-to-find modules than general electronics distributors.
- Technical Pre-Sales Support: Our team includes engineers with hands-on DCS experience who can verify compatibility before you commit to a purchase order.
- Traceable Supply Chain: We document the provenance of every module and can provide hardware revision records, reducing your risk of receiving counterfeit or incompatible parts.
- Global Export Experience: We ship to over 40 countries with full export documentation — commercial invoice, packing list, and certificate of conformance — simplifying customs clearance for your procurement team.
- Responsive Communication: 24-hour inquiry response commitment, with a dedicated account contact for repeat customers and MRO procurement teams.
Frequently Asked Questions
- Q: Is the HONEYWELL TC-IXR061 compatible with Experion PKS R400 and later software releases?
- A: Compatibility depends on the hardware revision of the specific unit. When you submit your inquiry, please provide your Experion PKS software release and C300 firmware version. Our team will cross-reference the Honeywell compatibility matrix and confirm before shipment.
- Q: Can the TC-IXR061 be replaced online without shutting down the C300 controller?
- A: Yes — the TC-IXR061 is designed for hot-swap replacement within the Experion PKS architecture, provided the replacement module has a compatible hardware revision and the I/O configuration has been pre-loaded in the controller. Always follow Honeywell’s documented hot-swap procedure to avoid momentary process variable loss.
- Q: What is the lead time for TC-IXR061 if it is not in stock, and do you supply new or refurbished units?
- A: We supply both new (factory-sealed) and professionally refurbished units depending on availability. Lead time for new units is typically 2–8 weeks depending on Honeywell’s current production schedule. Refurbished units that have passed our QA process are often available for immediate shipment. Availability and condition will be confirmed in your quotation.
