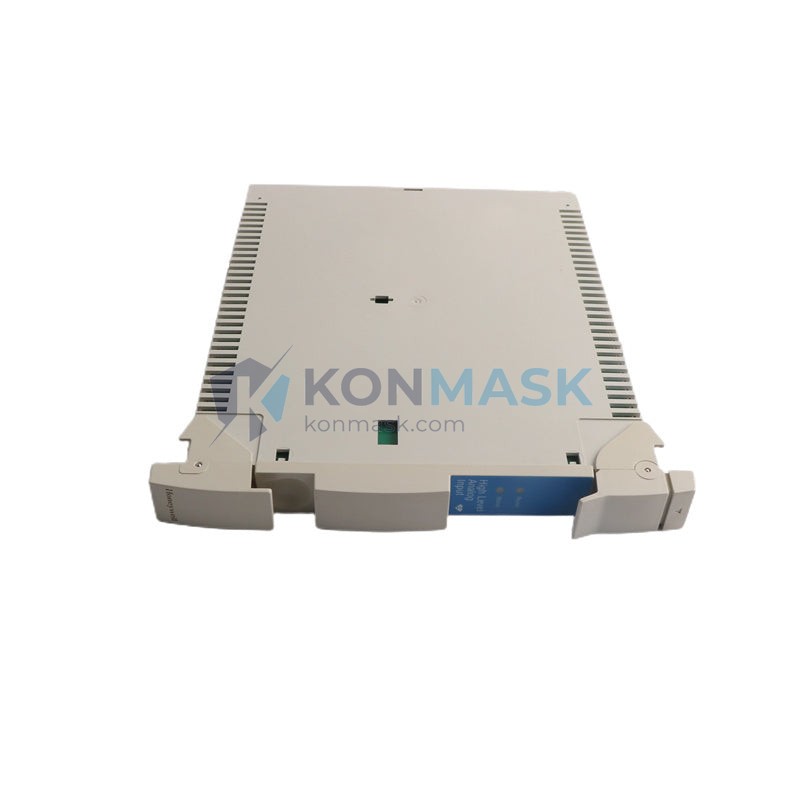

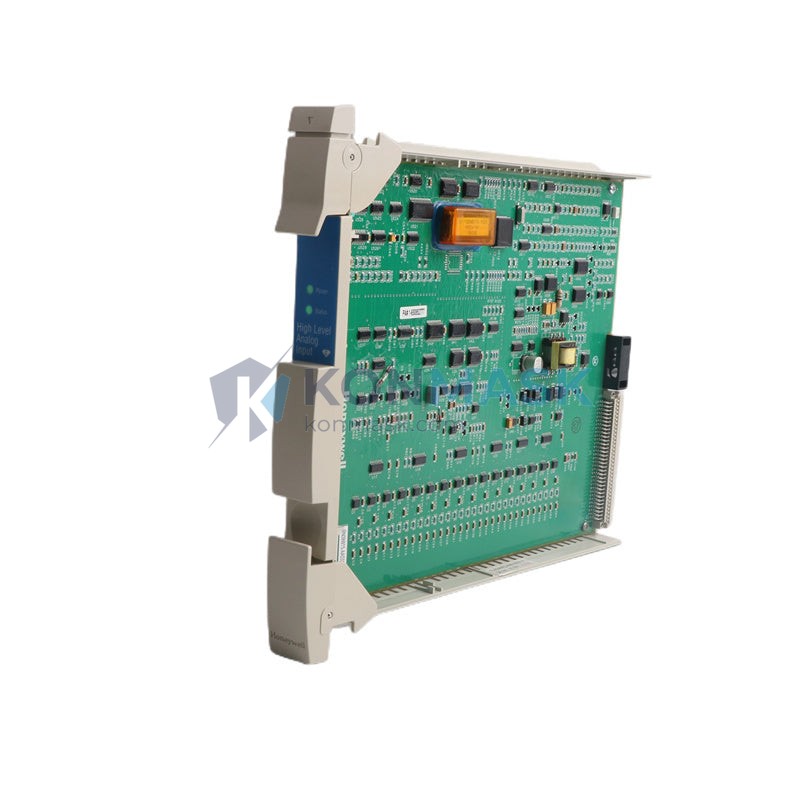

Honeywell MC-PAIH03 (51304754-150) — High Level Analog Input Module | Experion PKS / TDC 3000 Platform
Engineering Background
The Honeywell MC-PAIH03 is a high-level analog input module engineered for Honeywell’s Experion PKS (Process Knowledge System) and legacy TDC 3000 distributed control architectures. Designed to interface directly with high-level process signals (1–5 V DC, 0–10 V DC), it eliminates the need for external signal conditioning in voltage-output transmitter loops, reducing wiring complexity and improving signal fidelity in demanding industrial environments.
Product Positioning
This module is the preferred choice for process engineers requiring reliable, high-density analog acquisition within Honeywell C200/C300 controller cabinets. Its plug-and-play compatibility with the IOTA (I/O Termination Assembly) backplane and native Experion integration make it a drop-in replacement for aging TDC 3000 I/O infrastructure, supporting brownfield modernization projects without full system overhauls.
Complete Technical Specifications
| Part Number | 51304754-150 |
| Model | MC-PAIH03 |
| Manufacturer | Honeywell Process Solutions |
| Module Type | High Level Analog Input |
| Compatible Platform | Experion PKS, TDC 3000, PlantScape |
| Input Signal Range | 1–5 V DC, 0–5 V DC, 0–10 V DC (high-level voltage) |
| Number of Channels | 8 channels (differential) |
| Resolution | 16-bit ADC |
| Accuracy | ±0.1% of full scale |
| Input Impedance | >1 MΩ |
| Isolation | Channel-to-bus optical isolation |
| Update Rate | 500 ms typical (configurable) |
| Power Consumption | ≤3.5 W (from backplane) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH, non-condensing |
| Mounting | IOTA backplane slot (MC-TAIH03 termination assembly) |
| Weight | ~600 g |
| Certifications | CE, UL, FM (Class I, Div 2) |
| Firmware | Honeywell-managed, field-upgradeable via Experion console |
Proven Application Environments
- Oil & Gas: Wellhead pressure/temperature monitoring, compressor station control, pipeline SCADA integration
- Petrochemical & Refining: Distillation column instrumentation, reactor temperature profiling, heat exchanger control loops
- Power Generation: Turbine inlet/outlet monitoring, boiler drum level acquisition, generator excitation feedback
- Pulp & Paper: Digester pressure sensing, dryer section temperature mapping
- Pharmaceutical: Bioreactor parameter acquisition, clean-room HVAC monitoring (21 CFR Part 11 compliant environments)
- Water & Wastewater: Flow meter signal aggregation, chemical dosing feedback loops
Engineering Advantages
- High-Level Direct Input: Accepts voltage transmitter outputs natively — no signal conditioner required, reducing BOM cost and panel footprint.
- 16-Bit Resolution: Delivers 65,536 discrete counts across the input span, enabling precise PID tuning and alarm setpoint granularity.
- Optical Channel Isolation: Prevents ground loops and protects the controller bus from field-side transients — critical in electrically noisy process plants.
- Hot-Swap Capable: Module can be replaced under power without shutting down the controller, minimizing process interruption during maintenance windows.
- Experion Native Integration: Automatically recognized by Experion Configuration Studio; no manual I/O mapping required after physical installation.
- Backward Compatibility: Fully interoperable with TDC 3000 UCN/LCN infrastructure, protecting legacy capital investment during phased migrations.
System Architecture & Signal Flow

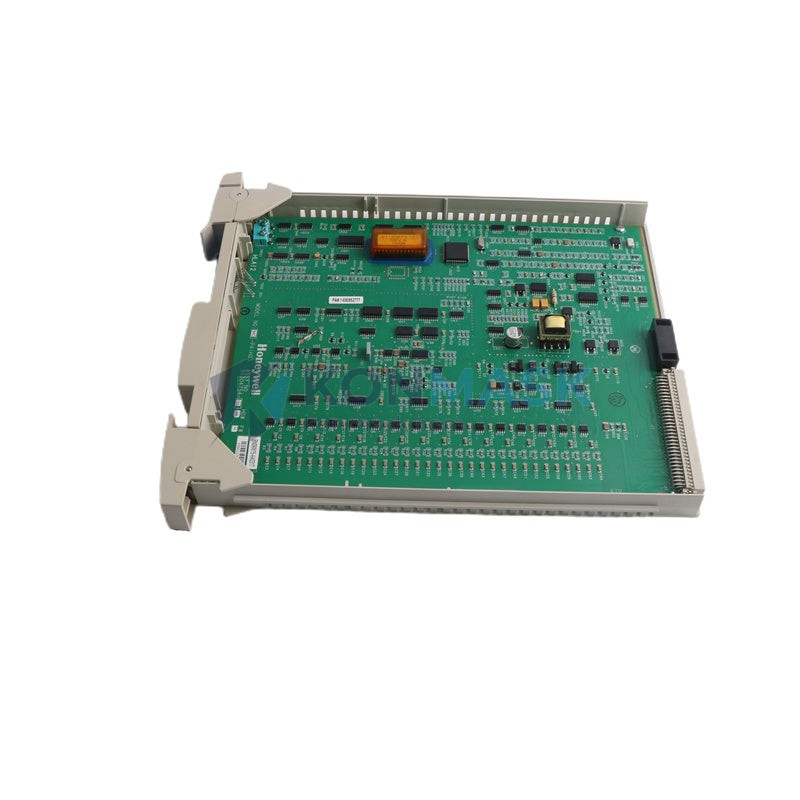

The MC-PAIH03 installs into a dedicated slot on the MC-TAIH03 IOTA termination assembly. Field wiring connects to the IOTA’s screw terminals; the module plugs into the IOTA via a 96-pin DIN connector, establishing both power and communication paths. Signal flow proceeds as follows:
- Field transmitter outputs high-level voltage signal (e.g., 1–5 V DC) to IOTA terminal block.
- MC-PAIH03 samples each channel sequentially via internal multiplexer at the configured scan rate.
- 16-bit ADC digitizes the analog value; engineering unit conversion is applied per channel configuration in Experion.
- Digitized process values are transmitted over the FTE (Fault-Tolerant Ethernet) or UCN bus to the C200/C300 controller.
- Controller executes control strategy; alarms and historian data are propagated to Experion server.
Sourcing & Quality Verification
- Origin: Genuine Honeywell OEM hardware — sourced from authorized distribution channels and decommissioned plant inventories with full traceability.
- Inspection Protocol: Each unit undergoes visual inspection (PCB, connector pins, label integrity), functional power-on test, and firmware version verification prior to shipment.
- Packaging: Anti-static bag + foam-lined carton; humidity indicator card included for long-haul freight.
- Documentation: Honeywell product datasheet, test report, and certificate of conformance available upon request.
- Warranty: 12-month replacement warranty against manufacturing defects from date of invoice.
Procurement Process
- Inquiry: Submit your part number, required quantity, and delivery timeline via the product page or email [email protected].
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 24 business hours.
- Order Confirmation: Purchase order or online checkout accepted; proforma invoice issued for wire transfer payments.
- Quality Check & Dispatch: Unit tested, packed, and dispatched with tracking number via DHL / FedEx / SF Express (customer’s choice).
- After-Sales Support: Technical commissioning support available via email or WhatsApp; RMA process initiated within 48 hours for any warranty claims.
Technical FAQ
Q: Is the MC-PAIH03 compatible with Experion R500 and later releases?
A: Yes. The module is supported across Experion PKS R400 through R520. Verify firmware compatibility via Honeywell’s I/O Compatibility Matrix before installation in R510+ environments.
Q: Can this module accept 4–20 mA current loop signals directly?
A: No. The MC-PAIH03 is a high-level voltage input module. For 4–20 mA loops, use the MC-PAIM03 (current input variant) or install a 250 Ω precision shunt resistor at the IOTA terminals to convert current to voltage.
Q: What is the maximum cable length from field transmitter to IOTA?
A: Honeywell recommends ≤300 m for shielded twisted-pair cable (22 AWG minimum) to maintain signal integrity within specification. Longer runs require signal repeaters or local junction boxes.
Q: Is hot-swap replacement possible without a controller restart?
A: Yes, provided the replacement module carries the same firmware revision. Experion will automatically re-download the channel configuration upon module insertion.
Q: Do you provide installation and commissioning support?
A: Yes. Konmask offers remote technical support for installation verification and Experion configuration. On-site support can be arranged for large-scale projects — contact us for details.
