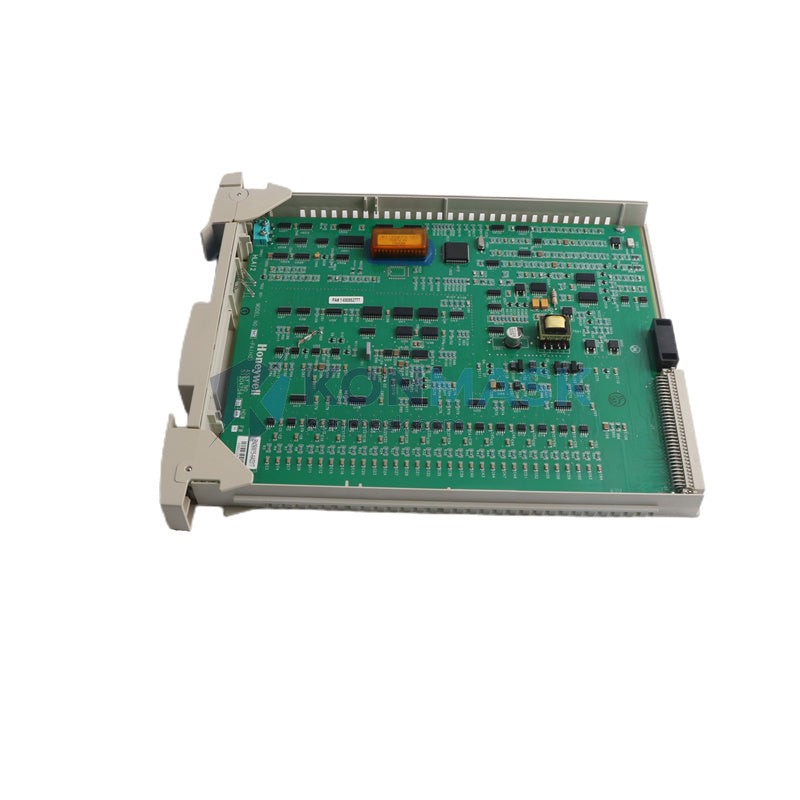

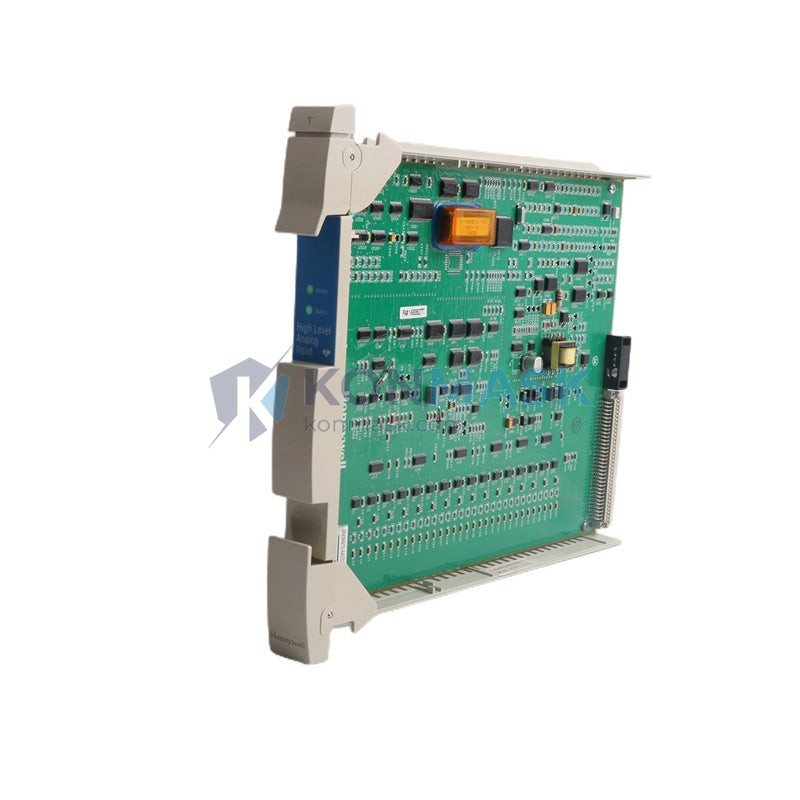

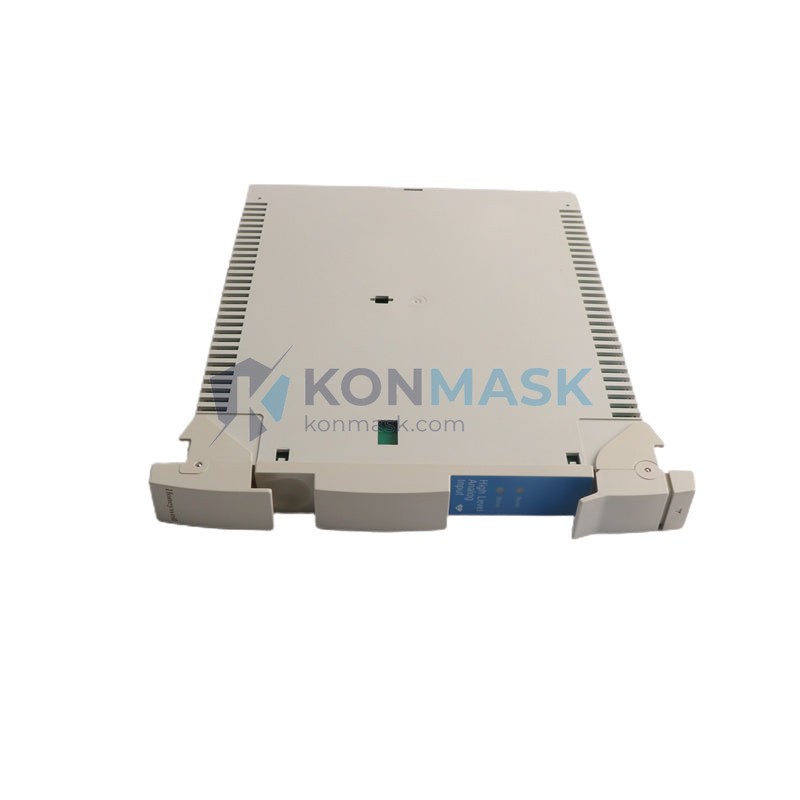

Honeywell MC-PAIH03 (51304754-150) Analog Input Module – Experion PKS Process Automation Series
When an analog input module fails mid-campaign in a refinery or chemical plant, the DCS loses its eyes on the process. Temperature readings go blind, flow signals drop to zero, and operators are forced into manual override — a scenario that costs thousands of dollars per hour and introduces serious safety risk. The MC-PAIH03 is the field-proven solution that keeps those signal chains intact, delivering reliable 4–20 mA and thermocouple/RTD inputs directly into the Experion PKS controller fabric without signal conditioning gaps.
Within Honeywell’s Experion PKS architecture, the MC-PAIH03 (part number 51304754-150) occupies the high-density analog input tier of the Process Automation I/O family. It is widely deployed across upstream oil & gas, petrochemical, and power generation facilities globally, where long-term platform continuity and backward compatibility with legacy C200/C300 controller pairs are non-negotiable procurement criteria.
Technical Specifications
Electrical
- Module Type: Analog Input (AI)
- Part Numbers: MC-PAIH03 / 51304754-150
- Input Signal Types: 4–20 mA, 1–5 V DC, Thermocouple (J, K, T, E, R, S, B), RTD (Pt100, Ni120)
- Input Channels: 8 channels per module (differential)
- Resolution: 16-bit A/D conversion
- Accuracy: ±0.1% of full scale (typical, at 25°C)
- Input Impedance: >10 MΩ (voltage mode); 250 Ω (current mode)
- Isolation: Channel-to-bus isolation per IEC 61131-2
- Bus Interface: Experion PKS FTE (Fault Tolerant Ethernet) backplane
- Power Consumption: ≤4 W (from backplane)
Mechanical
- Form Factor: Single-slot plug-in module
- Connector: 40-pin backplane edge connector
- Weight: 580 g (with housing)
- Dimensions: Per Experion PKS chassis slot standard
Environmental
- Operating Temperature: 0°C to +60°C
- Storage Temperature: −40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Vibration: IEC 60068-2-6
- Shock: IEC 60068-2-27
Certifications & Standards
- CE Marking (EMC Directive)
- UL Listed
- IEC 61131-2 compliant programmable controller I/O
- RoHS compliant
Note: All specifications are referenced against IEC 61131-2 and Honeywell Experion PKS engineering documentation.
Key Features & Benefits
- 8-Channel High-Density Input — Consolidates up to 8 differential analog signals into a single chassis slot, reducing cabinet footprint by up to 50% compared to single-channel I/O architectures.
- 16-Bit Resolution A/D Conversion — Delivers 0.0015% full-scale resolution, meeting the signal fidelity requirements of precision flow and pressure measurement loops per ISA-5.1.
- Universal Signal Compatibility — Accepts mA, voltage, thermocouple, and RTD inputs on the same module, eliminating the need for separate signal-type-specific cards in mixed-sensor installations.
- Backplane Isolation Architecture — Channel-to-bus galvanic isolation prevents ground loop interference from propagating into the controller, a critical requirement in electrically noisy petrochemical environments.
- Hot-Swap Capable — Supports online module replacement without process shutdown, enabling maintenance during live production windows and reducing planned downtime exposure.
- Long-Term Platform Continuity — Fully backward compatible with Honeywell C200 and C300 controller pairs; no firmware migration required when replacing aging modules in existing Experion PKS installations.
Industry & Equipment Applications
- Oil & Gas Upstream — Wellhead pressure and temperature monitoring, separator level control, and multiphase flow measurement in remote production facilities.
- Petrochemical & Refining — Distillation column temperature profiling, reactor feed flow control, and heat exchanger duty monitoring where signal accuracy directly impacts yield.
- Power Generation — Turbine inlet temperature measurement, boiler drum level sensing, and generator cooling system monitoring in combined-cycle and coal-fired plants.
- Pulp & Paper — Digester pressure and temperature control, bleach plant pH loop inputs, and recovery boiler combustion air flow measurement.
- Pharmaceutical & Fine Chemical — Batch reactor temperature profiling and clean-in-place (CIP) conductivity monitoring in FDA-regulated manufacturing environments.
- Water & Wastewater Treatment — Influent flow measurement, dissolved oxygen sensor inputs, and chemical dosing pump feedback loops in municipal and industrial treatment plants.
System Integration & Compatible Parts
Upstream (Controllers): Honeywell C200 Controller (MC-PDOX02), C300 Controller (MC-PDOX03), Experion PKS R500+ firmware
Downstream (Field Termination): MC-TAIH02 / MC-TAIH04 Terminal Assembly, FTA (Field Termination Assembly) for 4–20 mA loops
Power Supply: MC-PWRJ01 / MC-PWRJ02 Chassis Power Supply
Equivalent / Replacement Modules:
- 51304754-100 — Earlier revision; functionally equivalent, verify firmware compatibility with C300 R400+ before substitution
- 51304754-175 — Later revision with extended temperature rating; drop-in replacement for MC-PAIH03 in all standard applications
- MC-PAIH02 — Lower channel count (4-channel) variant; use only when slot density is not a constraint
Always verify revision compatibility with your Experion PKS system release notes before substituting part numbers.
Our Quality Assurance Process
Every MC-PAIH03 module sourced through Konmask.com passes a structured 4-step verification process before shipment:
- Visual & Physical Inspection — Board-level examination for component damage, corrosion, bent pins, and label integrity. Modules with any cosmetic anomaly are quarantined for further assessment.
- Functional Power-On Test — Module is seated in a compatible Experion PKS chassis and powered on to verify backplane communication, LED status, and self-diagnostic pass.
- Channel Signal Verification — Each input channel is stimulated with calibrated 4–20 mA and thermocouple signals; output values are logged and compared against factory tolerance bands.
- Documentation & Traceability — Test records are retained per shipment. Available documents include: test report, original manufacturer datasheet, certificate of conformance (CoC), and photos of the actual unit shipped.
How to Order
- Submit Your Inquiry — Email [email protected] or use the contact form with your required part number (MC-PAIH03 / 51304754-150), quantity, and delivery timeline.
- Receive Quotation — Our technical team will confirm stock availability, revision level, and provide a formal quotation within 24 hours on business days.
- Confirm & Ship — Upon PO or deposit confirmation, we arrange inspection, packaging, and dispatch with full tracking. Export documentation available for international orders.
Why Choose Konmask.com?
- Verified Stock, Not Broker Listings — We physically hold or have confirmed access to the modules we quote. No phantom inventory.
- Technical Pre-Sales Support — Our team can advise on revision compatibility, FTA pairing, and system integration before you commit to a purchase order.
- Traceable Documentation — Every shipment includes a test report and CoC. Critical for regulated industries and plant maintenance records.
- Global Export Experience — We handle export documentation, customs classification support, and international freight coordination for customers across Asia, the Middle East, and Europe.
- Responsive Communication — 24-hour quotation turnaround, dedicated account contact, and WhatsApp/WeChat support for time-sensitive procurement situations.
Frequently Asked Questions
Q: Is the Honeywell MC-PAIH03 compatible with Experion PKS R500 and later firmware releases?
A: Yes. The MC-PAIH03 (51304754-150) is qualified for use with Experion PKS R400 through R500+ releases when paired with C200 or C300 controllers. Always cross-reference the Honeywell Experion PKS I/O Compatibility Matrix for your specific system release before installation.
Q: Can I replace a 51304754-100 with a 51304754-150 without reconfiguring the controller?
A: In most cases, yes — the -150 revision is backward compatible with the -100 at the hardware level. However, if your system is running firmware below R400, a firmware update may be required. We recommend reviewing the Honeywell release notes for your controller revision prior to substitution.
Q: What is the lead time for MC-PAIH03 if I need expedited delivery for an unplanned shutdown?
A: For urgent plant shutdown or emergency maintenance situations, contact us directly at [email protected] or call +0086 19859288691. We prioritize emergency inquiries and can typically confirm availability and arrange same-day or next-day dispatch for in-stock units.
