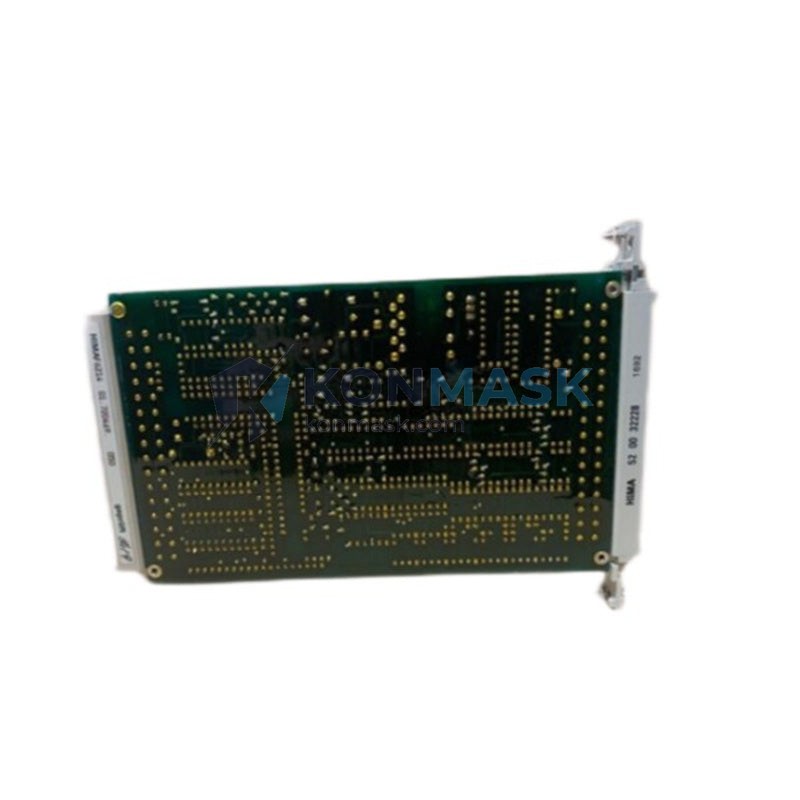

Genuine HIMA F6214 Analog Input Module | HIMatrix Series – Verified Source
The HIMA F6214 is a safety-rated analog input module engineered for the HIMatrix distributed safety controller platform — one of the most demanding and widely deployed functional-safety architectures in the process, oil & gas, and power generation industries. As a SIL 2/3-capable I/O module, the F6214 is not a commodity component: it is a precision-engineered safety device whose authenticity directly impacts plant safety and regulatory compliance. The global market for legacy HIMA I/O modules is unfortunately saturated with counterfeit, refurbished-as-new, and grey-market units that carry no traceable provenance, fail factory acceptance tests, and void OEM warranties — exposing end-users to catastrophic operational and legal risk.
Konmask sources the F6214 exclusively through verified industrial automation supply channels with documented chain of custody. Every unit we ship is inspected against HIMA’s published hardware specifications, cross-referenced with official HIMA documentation, and accompanied by a Certificate of Conformance. We deliberately use the terms genuine, verified, and authentic not as marketing language, but as operational commitments backed by our 4-step quality verification process described below. When you order from Konmask, you receive a part you can confidently install in a safety-critical loop.
Technical Specifications
- Part Number: F6214
- Manufacturer: HIMA Paul Hildebrandt GmbH
- Series: HIMatrix
- Module Type: Analog Input Module
- Number of Channels: 4 analog input channels (4–20 mA / 0–10 V configurable)
- Safety Integrity Level: SIL 2 / SIL 3 capable (IEC 61508)
- Input Signal Range: 4–20 mA (HART-compatible) / 0–10 V DC
- Resolution: 16-bit ADC
- Isolation: Galvanic isolation per channel group
- Diagnostic Coverage: >99% (DC High per IEC 61508)
- Operating Temperature: -25°C to +70°C
- Power Supply: 24 V DC (via HIMatrix backplane)
- Communication: HIMatrix internal bus
- Certifications: TÜV Rheinland, IEC 61508, ATEX (Zone 2 with appropriate barrier)
- Housing: DIN rail mountable, IP20
- Weight: Approx. 100 g
- Firmware Compatibility: HIMatrix SILworX engineering tool
Specifications verified against HIMA official documentation and HIMatrix hardware datasheet.
Our 4-Step Quality Verification Process
- Step 1 — Visual & Physical Inspection: Each F6214 unit is examined for label integrity, housing condition, connector pin alignment, and OEM markings. Counterfeit units frequently exhibit label misprints, incorrect font weights, or missing holographic security features — all checked at this stage.
- Step 2 — Functional Bench Test: Modules are powered via a compatible HIMatrix rack and subjected to channel-level signal injection tests across the full 4–20 mA range. ADC linearity, channel isolation, and diagnostic self-test routines are verified. Test data is logged and available upon request.
- Step 3 — Documentation Cross-Check: Serial numbers are cross-referenced against procurement records and, where available, HIMA’s traceability database. We verify firmware revision compatibility and confirm the unit has not been previously registered as a warranty return or field failure.
- Step 4 — Pre-Shipment Package Audit: Final unit is re-inspected, ESD-bagged, and packed with a Packing List, Certificate of Conformance (COC), Country of Origin (COO) Declaration, and — on request — a copy of the functional test report. Photos of the actual unit shipped are available for high-value orders.
Key Features & Benefits
- SIL 2/3 Safety Rating: Compliant with IEC 61508 and IEC 61511, making the F6214 suitable for use in Safety Instrumented Systems (SIS) requiring high diagnostic coverage.
- 16-Bit Resolution ADC: Delivers measurement accuracy critical for process control loops in refining, chemical, and power generation applications.
- Per-Channel Galvanic Isolation: Eliminates ground loop interference and protects the safety controller from field-side transients — a requirement under IEC 61784-3 for functional safety networks.
- HART Signal Pass-Through: Supports HART-enabled field instruments for remote diagnostics and asset management without additional hardware.
- Seamless HIMatrix Integration: Plug-and-play compatibility with the HIMatrix controller family; configured via SILworX with no additional driver installation.
- Extended Temperature Range: Rated to -25°C / +70°C, supporting installation in harsh industrial enclosures and outdoor cabinets.
Typical Applications
- Oil & Gas — Wellhead & Pipeline: Pressure and flow transmitter inputs for Emergency Shutdown (ESD) systems on wellheads and compressor stations.
- Refinery Process Safety: Analog inputs for high-integrity pressure protection systems (HIPPS) in crude distillation and hydrocracking units.
- LNG & Gas Terminal: Temperature and level monitoring in cryogenic storage safety loops requiring SIL 2 certification.
- Power Generation: Turbine protection systems where analog sensor inputs feed into HIMatrix-based safety controllers for over-speed and vibration shutdown.
- Chemical & Petrochemical: Reactor temperature and pressure monitoring in batch and continuous process safety systems.
- Water & Wastewater: Flow and level analog inputs for pump protection and overflow prevention in municipal safety systems.
Compatible System Components
- HIMA HIMatrix F30 / F35 Safety Controllers
- HIMA HIMatrix F60 / F8650 Controllers
- HIMA HIMatrix Backplane / Rack assemblies
- HIMA SILworX Engineering & Configuration Software
- HIMA F6217 / F6218 Analog Output Modules (companion I/O)
- HIMA F3236 / F3330 Digital I/O Modules (mixed I/O configurations)
- HART-compatible field transmitters (Rosemount, Endress+Hauser, Yokogawa)
- Zener barriers and galvanic isolators for ATEX Zone 1 field instruments
Global Sourcing & Shipping Capabilities
- Primary Service Regions: China (domestic), Southeast Asia, Middle East, Europe, and North America — with export documentation tailored to destination country requirements.
- Packaging Standard: Anti-static ESD bag + foam-lined carton + outer corrugated box. Fragile / high-value units double-boxed with desiccant packs.
- Export Documentation: Commercial Invoice, Packing List, COO Declaration, COC, and HS Code declaration (HS 8537.10) provided as standard.
- Logistics Partners: DHL Express, FedEx International Priority, SF Express (China domestic), and sea freight consolidation for bulk orders.
- Lead Time: In-stock units ship within 1–3 business days. Sourced units: 5–15 business days depending on origin. Expedited options available.
- Customs Support: We assist with import permit documentation and can provide end-use certificates for regulated-destination shipments.
Certifications & Compliance Statement
- IEC 61508 (Functional Safety of E/E/PE Safety-related Systems) — SIL 2/3
- IEC 61511 (Safety Instrumented Systems for the Process Industry)
- TÜV Rheinland Type Approval
- CE Marking (EU Machinery Directive & EMC Directive)
- ATEX Directive 2014/34/EU (Zone 2 with appropriate isolation)
- RoHS Compliant
Konmask Quality Commitment: We do not knowingly source, stock, or sell counterfeit, cloned, or non-OEM components. All products are represented accurately as to their condition (new, surplus-new, or refurbished — clearly stated per listing). If a unit fails to match its stated specification upon receipt, we provide full replacement or refund. Our quality commitment is not a policy footnote — it is the foundation of every transaction.
How to Order
- Step 1 — Submit Your Enquiry: Contact us via email at support@konmask.com or WhatsApp/phone at +0086 19859288691 with your part number (F6214), required quantity, and destination country.
- Step 2 — Receive Quotation & Availability Confirmation: We respond within 24 hours with pricing, lead time, available documentation (COC, test report, photos), and shipping options.
- Step 3 — Confirm & Ship: Upon order confirmation and payment, we complete final QC, prepare export documentation, and dispatch with full tracking. Sample units and pre-shipment test reports are available upon request for qualified buyers.
Authenticity & Trust FAQ
-
Q: How can I verify the F6214 I receive is genuine HIMA?
A: Every unit ships with a Certificate of Conformance referencing the serial number and our sourcing record. We can provide pre-shipment photos of the actual unit, including label close-ups and connector detail. For critical applications, we offer functional test reports generated on a live HIMatrix rack prior to shipment. -
Q: What is your warranty policy?
A: We offer a 12-month warranty against defects in materials and workmanship from the date of shipment. If a unit fails under normal operating conditions within the warranty period, we replace it at no cost or issue a full refund — your choice. Warranty claims are processed within 5 business days of receiving the returned unit. -
Q: Can you provide a functional test report before I commit to purchase?
A: Yes. For orders of 2 or more units, or for single-unit orders above a qualifying value, we can perform a pre-shipment bench test and provide a signed test report with channel-level measurement data. Please request this at the quotation stage so we can schedule accordingly.
